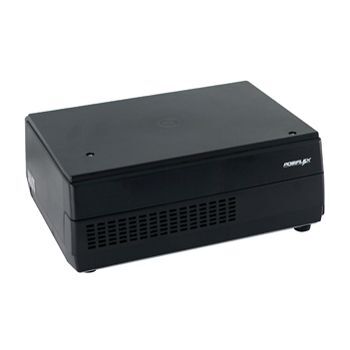

POS Box PB-4700

Posiflex Products

The PB-4700 is an advanced compact POS box, ideally suited for most retail sectors and cash till areas, where the space is at a premium. It brings greater value to the store owner through compact design, robust performance and superior consumer experience.

The PB-4700 is an advanced compact POS box, ideally suited for most retail sectors and cash till areas, where the space is at a premium. It brings greater value to the store owner through compact design, robust performance and superior consumer experience.



Processor

Intel Haswell Core i3-4330TE CPU, 2.40 GHz, 4M Cache, Intel Haswell Core i5-4570TE CPU, up to 3.30 GHz, 4M Cache, Intel Haswell Core i7-4770TE CPU, up to 3.30 GHz, 8M Cache, Intel Haswell G1820 CPU, 2.70 GHz, 2M Cache, Intel Haswell G3320TE CPU, 2.30 GHz, 3M Cache

System Memory

DDR3L SO-DIMM x 2, max. 16GB

Storage Device

SATA x 2

Power Supply

12V/80W

OS Support

Windows 10 IoT/Linux per request, Windows 7, POSReady 7, Windows Embedded 8.1 Industry

SERIAL PORT

4, DB9 x 4, optional COM5 / COM6 via daughterboard, 5V / 12V support on all COM ports

PARALLEL PORT

Yes

STANDARD USB PORT

1 x USB 3.0 + 3 x USB 2.0

LAN PORT

10/100/1000 Mb x 1

DISPLAY PORT

VGA x 1, DP x 1, 12V support on main VGA port for Posiflex monitors

CR PORT

1, control 2 CR via optional Y-cable

PS/2 PORT

Yes

Audio

Line-out/Mic-in, optional internal speaker x 1

EXPANSION SLOT

PCI-E slot x 1, via Riser card

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

279 x 243 x 114

WEIGHT (N. W. IN KG)

2.5

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH
