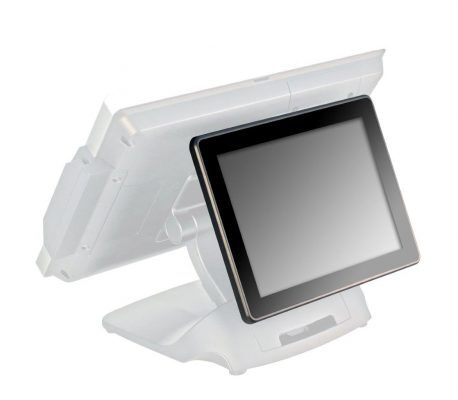

The LM-3015E/PM is a 15″ LCD 2nd monitor bezel-free display with resolution up to 1024 x 768 for all XT Series POS terminals (excl. XT-2614Q).
The LM-3015E/PM is a 15″ LCD 2nd monitor bezel-free display with resolution up to 1024 x 768 for all XT Series POS terminals (excl. XT-2614Q).
The LM-3015E/PM is a 15″ LCD 2nd monitor bezel-free display with resolution up to 1024 x 768 for all XT Series POS terminals (excl. XT-2614Q).
• • SPECIFICATION | • • • • • • • • • • |
---|---|
LCD | 15.0″ TFT LCD |
RESOLUTION | Up to 1024 x 768 |
Active Area | 304.128 (H) x 228.096 (V) |
Pixel Pitch | 0.297 (H) x 0.297 (V) |
Pixel Arrangement | RGB Vertical Stripe |
Viewing Angle | 80/80/80/80 degree (U/D/L/R) |
Contrast Ratio | 600:1 |
Response Time | 3 ms (Raising)/7 ms (Falling) |
Brightness | 350cd/m2 |
General Specification | • • • • • • • • • • |
Display Interface | VGA |
Power Supply | 12V from Posiflex terminal VGA port |
System Supported | All XT Series (excl. XT-2614Q) |
BRAND | POSIFLEX |
• • SPECIFICATION | • • • • • • • • • • |
---|---|
LCD | 15.0" TFT LCD |
RESOLUTION | Up to 1024 x 768 |
Active Area | 304.128 (H) x 228.096 (V) |
Pixel Pitch | 0.297 (H) x 0.297 (V) |
Pixel Arrangement | RGB Vertical Stripe |
Viewing Angle | 80/80/80/80 degree (U/D/L/R) |
Contrast Ratio | 600:1 |
Response Time | 3 ms (Raising)/7 ms (Falling) |
Brightness | 350cd/m2 |
General Specification | • • • • • • • • • • |
Display Interface | VGA |
Power Supply | 12V from Posiflex terminal VGA port |
System Supported | All XT Series (excl. XT-2614Q) |
BRAND |
