POS Terminal RT-5016E

Posiflex Products

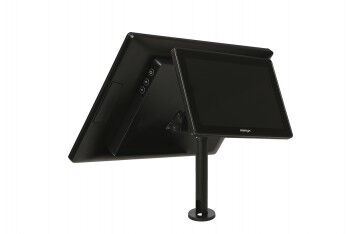

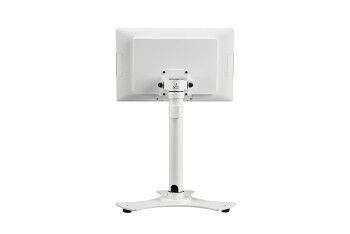

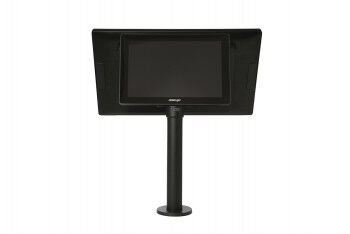

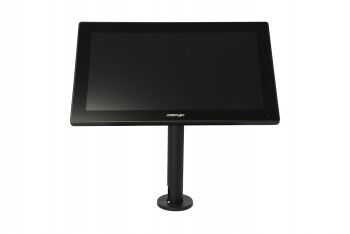

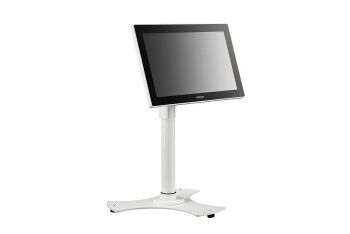

The POS Terminal  RT-5016E is the pole-mounting variant of the standard RT Series from Posiflex. Unlike the standard desktop terminal RT Series that can equip the optional Powered USB ports in the base, the RT-5016E comes with a 24V Powered USB port built-in by default. The user can enjoy the convenience that the Powered USB port offers while the terminal is being pole mounted or wall mounted. The RT-5016E features an internal cable organizer that makes clean cable routing even easier.

The POS Terminal RT-5016E is the pole-mounting variant of the standard RT Series from Posiflex. Unlike the standard desktop terminal RT Series that can equip the optional Powered USB ports in the base, the RT-5016E comes with a 24V Powered USB port built-in by default. The user can enjoy the convenience that the Powered USB port offers while the terminal is being pole mounted or wall mounted. The RT-5016E features an internal cable organizer that makes clean cable routing even easier.



• • SPECIFICATION

• • • • • • • • • •

Processor

Intel 7th Generation Kaby Lake-U Core i3 Processor, Intel 7th Generation Kaby Lake-U Core i5 Processor

System Memory

DDR4 SO-DIMM slot x 2, max. 16GB

Storage Device

SATA Storage x 2

Power Supply

12V / 150W

OS Support

Windows 10 IoT 64 bit

• • DISPLAY & TOUCH

• • • • • • • • • •

LCD

15.6" TFT LCD

RESOLUTION

1920 x 1080

TOUCH

True-flat PCAP touch with multi-touch support (IP65 on front panel)

SERIAL PORT

3, DB9 x 1+ RJ50 x 2, 5V/12V support on all COM ports

STANDARD USB PORT

3, USB 3.0 x 2 + USB 2.0 x 1

POWERED USB PORT

24V x 1

LAN PORT

10/100/1000 Mb x 1

DISPLAY PORT

mini DP x 1

CR PORT

1, control 2 CR via optional Y-cable, supporting 24V cash drawer

Audio

Internal 2W speaker x 1

EXPANSION SLOT

M.2 slot x 1

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

402 x 207 x 297

Weight

3.3

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 40°C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

• • BUILT-IN OPTIONS

• • • • • • • • • •

WIFI

M.2 WiFi/BT module

CAMERA

1MP wide angle camera

AG GLASS

Cannot coexist with built-in camera
