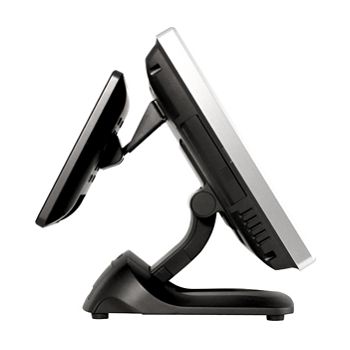

POS Terminal XT-4015

Posiflex Products

The POS Terminal XT-4105 features a 15” true-flat PCAP touch screen, beautifully sculptured slim body, and sexily curved base stand, it looks right at home at any elegantly decorated store. More than just good looks, the XT-4015 can be equipped with the lighting fast Intel Core i7 CPU that provides ample muscle power to handle any task imaginable.

The POS Terminal XT-4015 features a 15” true-flat PCAP touch screen, beautifully sculptured slim body, and sexily curved base stand, it looks right at home at any elegantly decorated store. More than just good looks. The XT-4015 can be equipped with the lighting fast Intel Core i7 CPU that provides ample muscle power to handle any task imaginable.



• • SPECIFICATION

• • • • • • • • • •

Processor

Intel Ivy Bridge Core i3-3220 CPU, 3.30 GHz, 3M Cache;, Intel Ivy Bridge Core i5-3550S CPU, up to 3.70 GHz, 6M Cache;, Intel Ivy Bridge Core i7-3770 CPU, up to 3.90 GHz, 8M Cache, Intel Ivy Bridge G1620 CPU, 2.70 GHz, 2M Cache, Intel Ivy Bridge G2120 CPU, 3.10 GHz, 3M Cache

System Memory

DDR3L, SO-DIMM x 2, max. 16GB

Storage Device

SATA Storage x 2

Raid Function

Optional, RAID 1 (Disk Mirroring)

Power Supply

12V/130W

OS Support

Linux per request, POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7

• • DISPLAY & TOUCH

• • • • • • • • • •

LCD

15" TFT LCD

RESOLUTION

1024 x 768

TOUCH

True-flat PCAP touch with multi-touch support (IP65 on front panel)

• • I/O & EXPANSION

• • • • • • • • • •

SERIAL PORT

4, DB9 x 3 + RJ50 x 1, 5V/12V support on all 4 COM ports

STANDARD USB PORT

USB 2.0 x 5

PARALLEL PORT

1, via optional conversion cable through service window

POWERED USB PORT

Optional 24V x 1 and 12V x 3 via GEN8E Base

LAN PORT

10/100/1000 Mb x 2

DISPLAY PORT

VGA x 1, 12V support for Posiflex monitors

CR PORT

1, control 2 CR via optional Y-cable

PS/2 PORT

1, via optional conversion cable through service window

UPS PORT

Yes

Audio

Internal 2W speaker x 1 + Line-out

EXPANSION SLOT

Mini-PCIe slot x 1

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

372 x 320 x 252.7

Weight

6.2

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

• • BUILT-IN OPTIONS

• • • • • • • • • •

WIFI

Optional mini-PCIe WiFi/BT module

BRAND

POS Terminal XT-4015

SKU: XT-4015
The POS Terminal XT-4105 features a 15” true-flat PCAP touch screen, beautifully sculptured slim body, and sexily curved base stand, it looks right at home at any elegantly decorated store. More than just good looks, the XT-4015 can be equipped with the lighting fast Intel Core i7 CPU that provides ample muscle power to handle any task imaginable.

Genuine Product
Warranty Included
Qatar Delivery

The POS Terminal XT-4015 features a 15” true-flat PCAP touch screen, beautifully sculptured slim body, and sexily curved base stand, it looks right at home at any elegantly decorated store. More than just good looks. The XT-4015 can be equipped with the lighting fast Intel Core i7 CPU that provides ample muscle power to handle any task imaginable.
