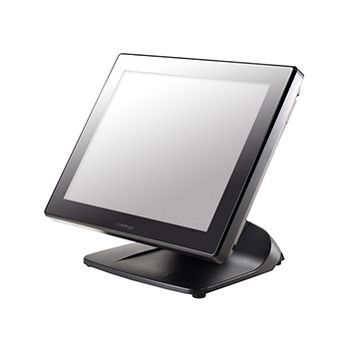

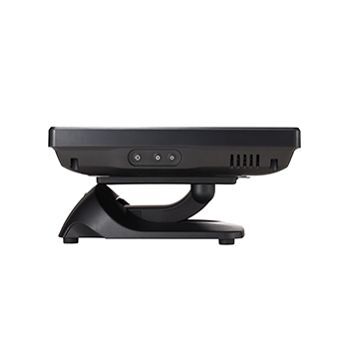

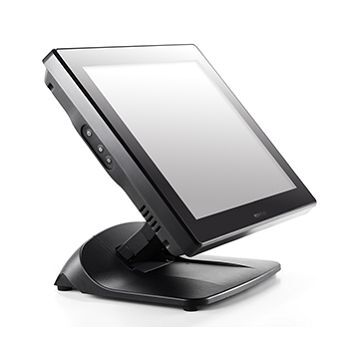

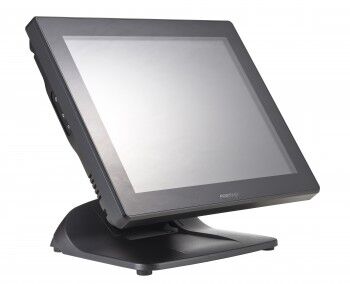

POS Terminal XT-6315

Posiflex Products

The POS Terminal XT-6315 features a 15” true-flat PCAP touch screen, beautifully sculptured slim body, and sexily curved base stand, it looks right at home at any elegantly decorated store. More than just good looks, the XT-6315 offers ample of performance and flexibility to satisfy the most demanding daily POS operations.

ر.ق6.00 for 3 item(s)

The POS Terminal XT-6315 features a 15” true-flat PCAP touch screen, beautifully sculptured slim body, and sexily curved base stand, it looks right at home at any elegantly decorated store. More than just good looks, the XT-6315 offers ample of performance and flexibility to satisfy the most demanding daily POS operations.



• • SPECIFICATION

• • • • • • • • • •

Processor

Intel Kaby Lake Celeron G3930TE, 2.70 GHz, 2M cache, Intel Kaby Lake Core i3-7101TE, 3.40 GHz, 3M cache, Intel Kaby Lake Core i5-7500T, up to 3.30 GHz, 6M cache, Intel Skylake Celeron G3900TE CPU, 2.30 GHz, 2M cache, Intel Skylake Core i3-6100TE CPU, 2.70 GHz, 4M cache, Intel Skylake Core i5-6500TE CPU, up to 3.30 GHz, 6M cache, Intel Skylake Core i7-6700TE CPU, up to 3.40 GHz, 8M cache;, Intel Skylake Pentium G4400TE CPU, 2.40 GHz, 3M cache

System Memory

DDR4 SO-DIMM x 2, max. 32 GB

Storage Device

SATA Storage x 2

Power Supply

12V/100W

OS Support

Linux per request for Skylake processor, POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7, Windows 10 IoT 64 bit for Kaby Lake processor

• • DISPLAY & TOUCH

• • • • • • • • • •

LCD

15" TFT LCD

RESOLUTION

1024 x 768

TOUCH

True-flat PCAP touch with multi-touch support (IP65 on front panel)

• • I/O & EXPANSION

• • • • • • • • • •

SERIAL PORT

6, 4 on I/O plate (DB9 x 2 + RJ50 x 2) + 2 via optional converter cable from service window, 5V support on all COM ports, 12V support on COM1 to 4 (all converter cables are optional)

STANDARD USB PORT

6, USB 3.0 x 4 + USB 2.0 x 2

PARALLEL PORT

1, via optional conversion cable through service window

POWERED USB PORT

Optional 24V x 1 + 12V x 3 via GEN8E base

LAN PORT

10/100/1000 Mb x 2

DISPLAY PORT

VGA x 1, 12V support for Posiflex monitors; mini-HDMI x 1

CR PORT

1, control 2 CR via optional Y-cable

PS/2 PORT

1, via optional conversion cable through service window

UPS PORT

Yes

Audio

Internal 2W speaker x 1 + Line-out

EXPANSION SLOT

M.2 slot x 1

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

372 x 320 x 252.7

Weight

5.86

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

• • BUILT-IN OPTIONS

• • • • • • • • • •

WIFI

M.2 WiFi/BT module
