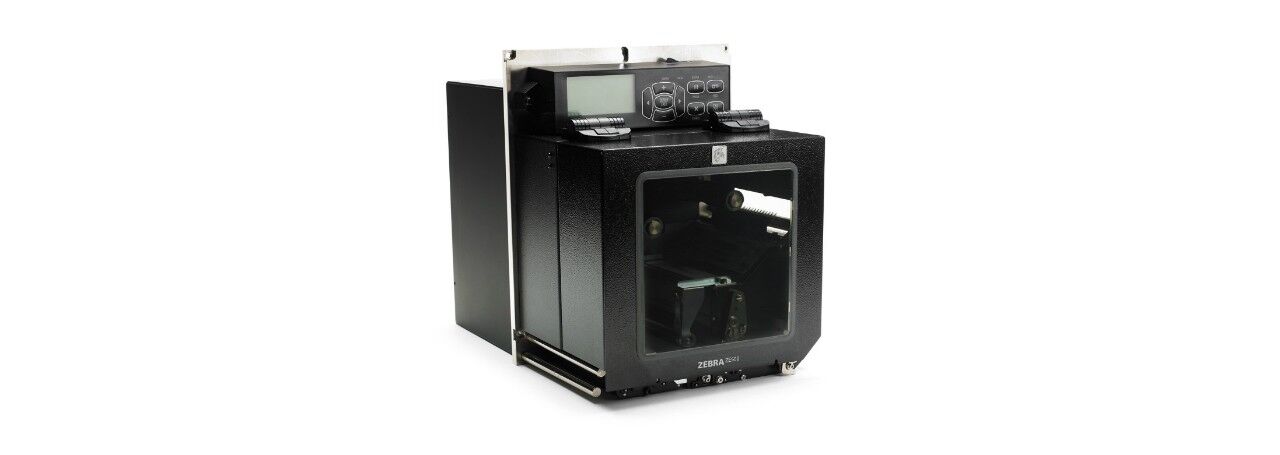

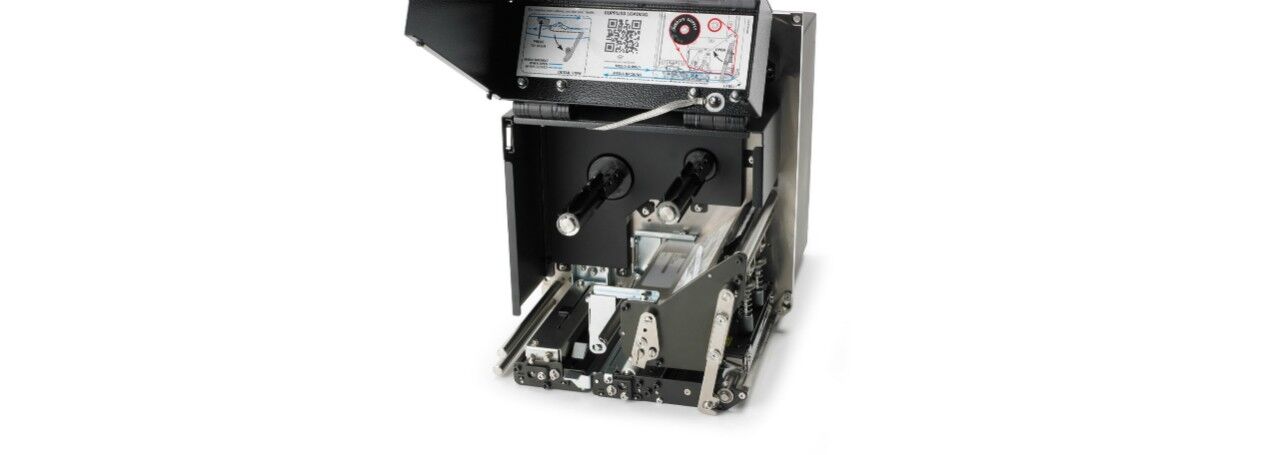

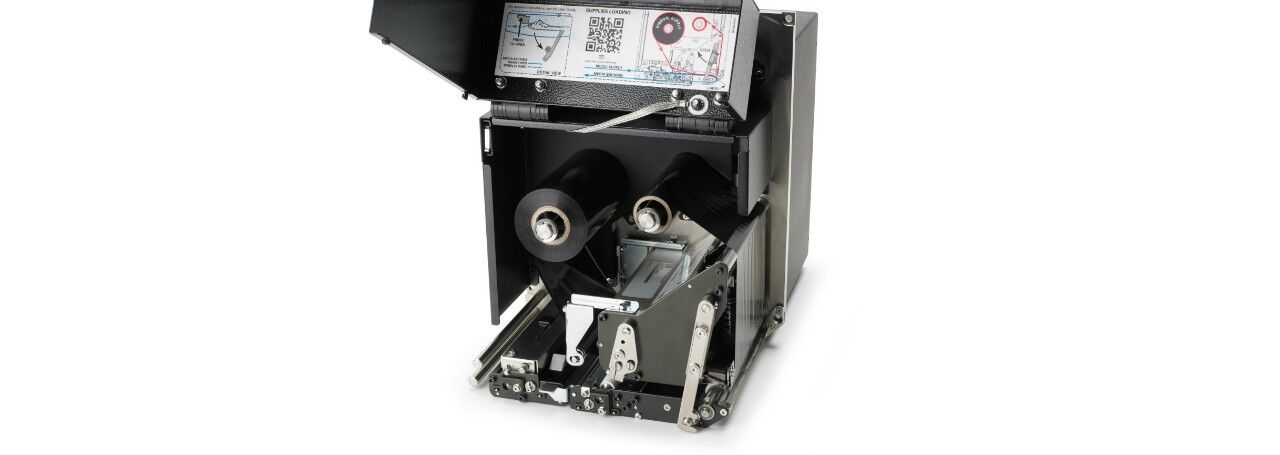

Print Engines ZE500

Zebra Products In Qatar

Zebra’s ZE500™ Series print engines are designed to keep your mission-critical print-and-apply applications operating without interruptions. Incorporating customer feedback and best practices into the design, Zebra® created print engines that can endure harsh environments and are easy to integrate, operate and maintain. Pairing mindful engineering with the features you need—including
optional expanded RFID capabilities for greater tracking and visibility—ZE500 Series print engines give you the tools and flexibility you need to keep your business moving forward.

Zebra’s ZE500™ Series print engines are designed to keep your mission-critical print-and-apply applications operating without interruptions. Incorporating customer feedback and best practices into the design, Zebra® created print engines that can endure harsh environments and are easy to integrate, operate and maintain. Pairing mindful engineering with the features you need—including
optional expanded RFID capabilities for greater tracking and visibility—ZE500 Series print engines give you the tools and flexibility you need to keep your business moving forward.



• • SPECIFICATION

• • • • • • • • • •

Printing Specifications

203 dpi resolution (8 dots/mm) Dot size (W x L): 0.0049” x 0.0052” (0.125mm x 0.132mm) Pitch: 8.0 dots/mm, 300 dpi resolution (12 dots/mm) Dot size (W x L): 0.0033" x 0.0043" (0.084mm x 0.110mm)Pitch: 11.8 dots/mm, Distance from mounting side of mainframe to media edge; .914” (23.2mm), First dot location measured from media edge 0.093" ±0.035" (2.4mm ±0.89mm), Maximum continuous media print length* (203 dpi)= 150” (3810mm), Maximum continuous media print length* (300 dpi)= 100” (2540mm), Maximum non-continuous media print length* (203 dpi)= 39” (990mm), Maximum non-continuous media print length* (300 dpi)= 39" (990mm), Media registration tolerance: * Vertical = < ±0.040" (±1.0mm) On concurrent labels in “Applicator” mode Horizontal = < ±0.040" (±1.0mm)

Barcode Symbologies

• • • • • • • • • •

Barcode Ratios

2:1, 7:3, 5:2, and 3:1

1D

Codabar, Code 11, Code 128 with subsets A/B/C and UCC Case Codes, Code 39, Code 93, EAN-13, EAN-8, ISBT-128, Logmars, MSI, Planet Code, Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E

2D

Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, RSS-14 (and composite), TLC 39

Software

Zebra Programming Language® (ZPL® and ZPL II®)

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Environment

20% to 85% non-condensing Relative Humidity, Direct Thermal = 32º to 104ºF (0º to 40ºC), Thermal transfer = 40º to 104ºF (5º to 40ºC)

Storage/Transportation environment

-40º to 160ºF (-40º to 71ºC), 5% to 95% non-condensing Relative Humidity

Communications

Applicator interface with DB15F connector, High-speed bi-directional parallel interface, IEEE 1284:Compatibility mode, EPC, Nibble mode., High-speed serial interfaces, USB 2.0, ZebraNet 10/100 Print Server, ZebraNet b/g Print Server
