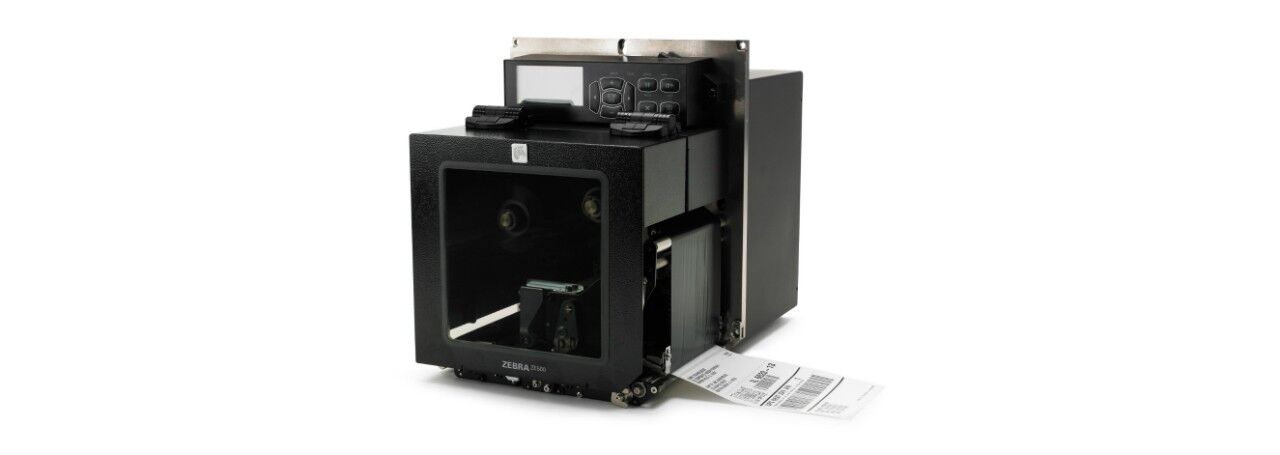

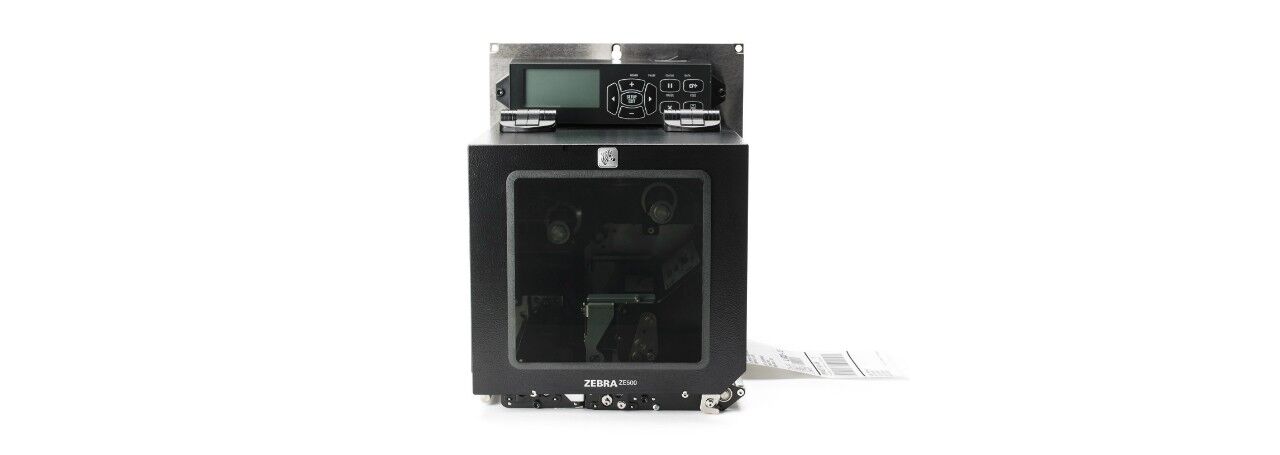

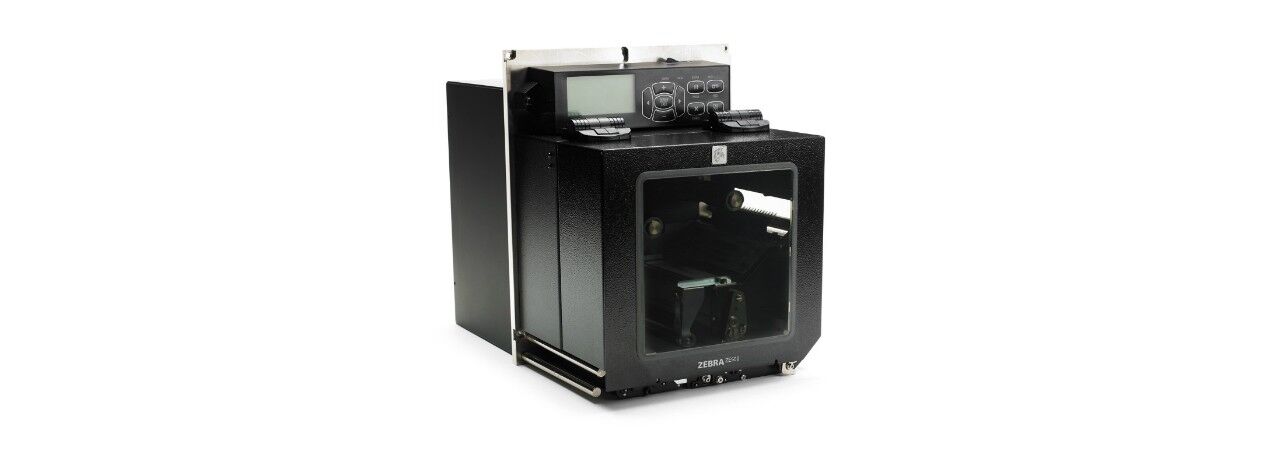

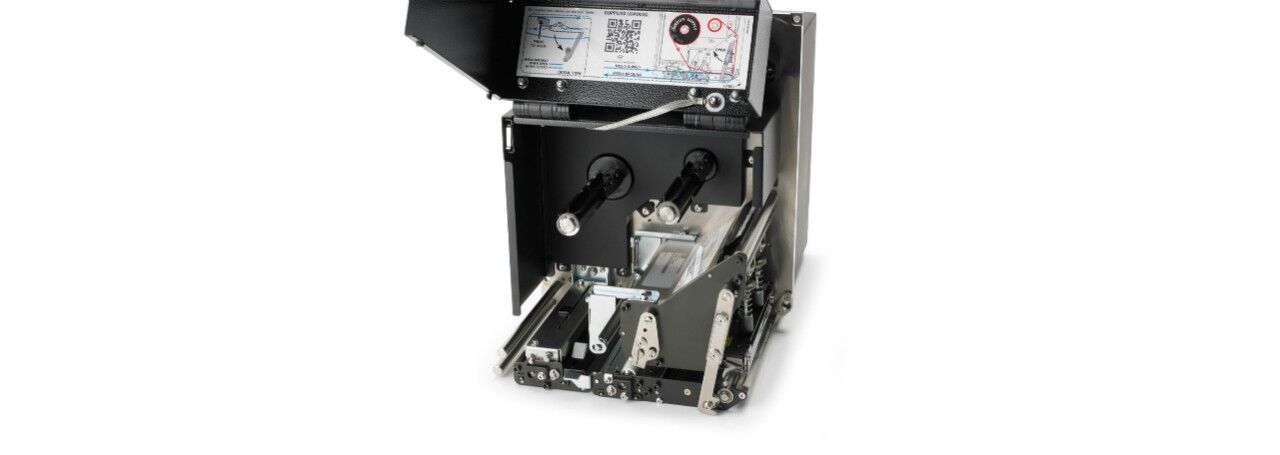

RFID Printers ZE500R
Zebra’s ZE500™ Series print engines are designed to keep your mission-critical print-and-apply applications operating without interruptions. Incorporating customer feedback and best practices into the design, Zebra® created print engines that can endure harsh environments and are easy to integrate, operate and maintain. Pairing mindful engineering with the features you need—including optional expanded RFID capabilities for greater tracking and visibility—ZE500 Series print engines give you the tools and flexibility you need to keep your business moving forward.
Zebra’s ZE500™ Series print engines are designed to keep your mission-critical print-and-apply applications operating without interruptions. Incorporating customer feedback and best practices into the design, Zebra® created print engines that can endure harsh environments and are easy to integrate, operate and maintain. Pairing mindful engineering with the features you need—including optional expanded RFID capabilities for greater tracking and visibility—ZE500 Series print engines give you the tools and flexibility you need to keep your business moving forward.
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| RESOLUTION | 203 dpi/8 dots per mm or 300 dpi/12 dots per mm |
| Memory | 16 MB SDRAM, 64 MB Flash |
| Maximum Print Width | ZE500-4: 4.1"/104 mm, ZE500-6: 6.6"/168 mm |
| Maximum Print Speed | ZE500-4: 12"/305 mm per second (203 and 300 dpi), ZE500-6: 10"/254 mm per second (300 dpi), ZE500-6: 12"/305 mm per second (203 dpi) |
| Media Sensors | Transmissive and reflective |
| PRINT LENGTH | • • • • • • • • • • |
| ZE500-4 | Label and liner width: 0.625”/16 mm to 4.5”/ 114 mm, Maximum continuous media print length:150”/3,810 mm, Maximum length: 39”/991 mm, Minimum length in stream mode: 0.25”/6.5 mm, Minimum length with back feed: 0.5”/13 mm, Minimum length without back feed: 0.25”/6.5 mm, Ribbon width: 1”/25.4 mm to 4.2”/107 mm |
| ZE500-6 | Label and liner width: 3”/76 mm to 7.1”/180 mm, Maximum continuous media print length: 150”/3,810 mm, Maximum length: 39”/991 mm, Minimum length in stream mode: 1”/25.4 mm, Minimum length with back feed: 3”/76 mm, Minimum length without back feed: 1”/25.4 mm, Ribbon width: 3”/76 mm to 7.1”/180 mm |
| Minimum Label and Liner Length | ZE500-4 | ZE500-6 |
| ZE500-4 | Applicator mode, backfeed off: 0.25 in./6.4mm, Applicator mode, backfeed on: 0.50 in./12.7mm, Rewind mode: 0.25 in./6.4mm “loose loop”, Stream mode: 0.25 in./6.4mm, Tear-off mode, backfeed off: 0.25 in./6.4mm, Tear-off mode, backfeed on: 0.50 in./12.7mm |
| ZE500-6 | Applicator mode, backfeed off: 1.0 in./25.4mm, Applicator mode, backfeed on: 3.0 in./76.2mm, Rewind mode: 1.0 in./25.4mm “loose loop”, Tear-off mode, backfeed off: 1.0 in./25.4mm, Tear-off mode, backfeed on: 3.0 in./76.2mm |
| Media Width | ZE500-4: 4.5”/114 mm, ZE500-6: 7.1”/180 mm |
| Media Roll Size | 4.0” (101.6mm) O.D on a 1.0” (25.4mm) I.D. core |
| Media Thickness | ZE500-4: 0.0053"/0.135 mm to 0.010"/0.254 mm, ZE500-6: 0.003"/0.076 mm to 0.012"/0.305 mm |
| Media Type | Black Mark, Continuous, die-cut |
| Ribbon Length | 1,968'/600 M |
| Ribbon Width | ZE500-4: 1"/25.4 mm to 4.2"/107 mm, ZE500-6: 3"/76 mm to 7.1"/180 mm |
| Core I.D. | 1"/25.4 mm ID |
| • • ENVIRONMENTAL | • • • • • • • • • • |
| Operating Temperature | 31°F to 104°F/0°C to 40°C |
| Operating Humidity | 20% to 95% non-condensing R.H. |
| Storage temperature | -40°F to 160°F/ -40°C to 71°C |
| Storage Humidity | 5% to 95% non-condensing R.H. |
| Electrical | Universal power supply with power-factor correction 90–264 VAC, 47–63 Hz |
| Length | ZE500-4: 14.9"/379 mm, ZE500-6: 17.2"/438 mm |
| Width | ZE500-4: 9.6"/245 mm, ZE500-6: 9.6"/245 mm |
| Height | ZE500-4: 11.8"/300 mm, ZE500-6: 11.8"/300 mm |
| Weight | ZE500-4: 34 lbs/15.4 kg, ZE500-6: 38 lbs/17.3 kg |
| Communications | Applicator interface with DB-15F connector, Optional ZebraNet b/g Print Server, Parallel port: Centronics®-compatible, Serial interface: RS-232, USB 2.0, ZebraNet® 10/100 Print Server (internal) |
| ZebraLink Solutions | ZBI-Developer™, Zebra Enterprise Connector, Zebra Setup Utilities, ZebraDesigner Pro, ZebraDesigner Windows Driver, ZebraDesigner™, ZebraNet Utilities v7.0, ZebraNet™ Bridge Enterprise |
| Web View | Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers. |
| Alert | Printers equipped with ZebraNet print servers will notify you via any emailenabled, wired, or wireless device to minimize downtime. |
| FIRMWARE | ZBI 2.0, ZPL and ZPL II® |
| Barcode Symbologies | • • • • • • • • • • |
| Barcode Ratios | 2:1, 7:3, 5:2, and 3:1 |
| 1D | Codabar, Code 11, Code 128 with subsets A/B/C and UCC Case Codes, Code 39, Code 93, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, ISBT-128, Logmars, MSI, Planet Code, Plessey, Postnet, Standard 2-of-5, UPC and EAN 2-or 5-digit extensions, UPC-A, UPC-E |
| 2D | Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, RSS-14 (and composite), TLC 39 |
| FONTS AND GRAPHICS | Additional fonts available, Bitmap fonts A to H and GS symbols are expandable up to 10 times, height- and width-independent, Firmware support for downloadable TrueType™ fonts, IBM® Code Page 850 International Characters, Smooth-scalable font Ø (CG Triumvirate™ Bold Condensed*) is expandable dot-by-dot, height- and width-independent, Supports user-defined fonts and graphics including custom logos, Swiss 721 font standard, Zebra Global printing solution including Unicode™ |
| BRAND |
