RS6100 BLUETOOTH WEARABLE SCANNER


MAXIMUM VERSATILITY, POWER AND PERFORMANCE

Introducing Zebra’s most powerful and versatile wearable scanner — the RS6100. This small and practically weightless wearable scanner is less than half the size and weight of its predecessor, the RS6000. An advanced multi-focus scan engine captures 1D and 2D barcodes at close range and on the top shelf of a rack 40 ft./12.2 m away, regardless of condition — scratched, dirty, poorly printed, under shrinkwrap and more. With five interchangeable wearing options, there’s a style that will maximize comfort for every user. Use it anywhere — from warehouse aisles, freezers and coolers to the seat of a fork truck and out on the dock in rain, snow, blazing summer heat or subzero winter cold. The RS6100 is always in service with its removable battery — no downtime needed for charging, just swap in a fully charged battery. Choose cordless freedom with two battery options or corded battery-free operation. And since the RS6100 and RS5100 share common trigger assemblies, batteries and mounts, upgrading from the RS5100 is easy and cost-effective.

Power the RS6100 via a corded adapter that connects to select Zebra mobile devices, including wearable and handheld computers.

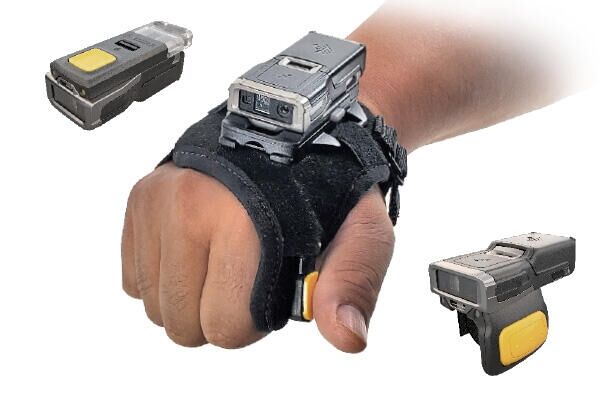

Five interchangeable wearing styles

Five different mounts provide users with the freedom to choose the wearing style they prefer to maximize comfort, simplify task execution — and increase job satisfaction. All mounting accessories are interchangeable — swap at any time to maximize user comfort for scan-intensive tasks. The Enterprise Hand Mount accessory gives every hand a snug, comfortable and secure custom fit with a range of sizes for right and left hands — and users can adjust the scanner position on the hand to achieve the perfect balance and optimal scan angle for the ultimate in comfort and user productivity. For workers who prefer to wear the scanner on one finger, there are two single finger mount options — single and double triggers. The single trigger can be removed and rotated, allowing users to easily switch between left and right finger mounting. The double trigger enables workers to change hands on the fly — without removing the trigger. All triggers support continuous scanning mode. And the optional vibrating trigger signals an error or exception, allowing users to take corrective actions. The ambidextrous, one-size-fits-all back of hand mount accommodates gloves and easily fits into the smallest of spaces. And a retracting lanyard trigger worn around the neck or on a belt keeps the scanner handy, yet out of the way.

Use it everywhere — including the freezer

Use the RS6100 in freezers and coolers, out on the dock in the sweltering heat and subzero cold, rain, snow — the RS6100 is built to handle it all.

Physical Characteristics

Dimensions 2.62 in. L x 1.29 in. W x 0.83 in. D (2.8 cubic inches)
66.6 mm L x 32.7 mm W x 21 mm D
Weight With 1x battery: 2.47 oz./70 g
With 1.5x battery: 2.68 oz./76 g
Optical Resolution 2688 x 1520 pixels
Roll 360°
Pitch ±60°
Skew ±60°
Aiming Element 515 nm Laser
Illumination Element 1 warm white LED
Field of View Horizontal: 37°, Vertical: 21.4°
Ambient Light Immunity (from total darkness) Max 107,639 lux (direct sunlight)
Supported 1D Symbologies Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma)
Supported 2D Symbologies PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
Supported OCR Symbologies OCR-A, OCR-B
Power 480 mAh standard; 735 mAh extended; PowerPrecision+; Li-ion battery pack; corded adapters for WT6000, WT6300, TC21/26 and TC53/58
Network Connections WPAN (Bluetooth)
Scanner SE55 1D/2D Advanced Range Scan Engine with IntelliFocusTM technology
Pairing NFC; Tap to Pair

Performance Characteristics

User Environment RoHS Directive 2011/65/EU; Amendment 2015/863
REACH SVHC 1907/2007
Operating Temperature 32° F to 122° F/0° C to 50° C with standard battery
-22° F to 122° F/-30° C to 50° C with extended battery
Storage Temperature -40° F to 140° F/-40° C to 60° C including battery
-40° F to 158° F/-40° C to 70° C excluding battery
Humidity 5% – 95% non condensing
Drop Specification Multiple 6 ft./1.8 m drops to concrete over the operating temperature range
Tumble Specification 1,000 1.64 ft./0.5 m tumbles
Sealing IEC 60529: IP65
Vibration Sine 5-2000Hz, 4g peak, 1 hour per axis; Random 20-2000Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis
Electrostatic Discharge (ESD) ±15kVdc air discharge; ±8kVdc contact discharge

User Interface

LED 4 RGB LEDs located at the back side of the device (programmable)
Beeper Up to 85 dBA @ 10 cm from the back of the device beeper port
Restore Key User accessible for emergency warm boot and Bluetooth reconnect (after disconnect timeout)
Scan Triggering Manual ambidextrous trigger
Bluetooth Class 1 and 2, Bluetooth v5.2 with Bluetooth Low Energy (BLE)
Supporting profiles: Serial Port Profile (SPP), Human Interface Device Profile (HID), Service Discovery
Application Profile (SDAP)

Decode Ranges (Typical)1

Symbology/Resolution Near/far
3 mil Code 39 2.7 in./6.9 cm to 16.2 in./41.1 cm
5 mil Code 39 2.5 in./6.4 cm to 26.6 in./67.6 cm
5 mil PDF417 2.8 in./7.1 cm to 19.6 in./49.8 cm
6.7 mil PDF417 2.6 in./6.6 cm to 25.6 in./65.0 cm
10 mil DataMatrix 2.2 in./5.6 cm to 27.1 in./68.8 cm
100% UPC (13 mil) 2.5 in./6.4 cm to 71 in./180 cm
15 mil Code 128 7.2 in./18.2 cm2 to 72 in./182.9 cm
20 mil Code 39 109 in./276.9 cm2
55 mil Code 39 293 in./744.2 cm2
100 mil Code 39 554 in./1407.2 cm2
100 mil DataMatrix 270 in./685.8 cm2
