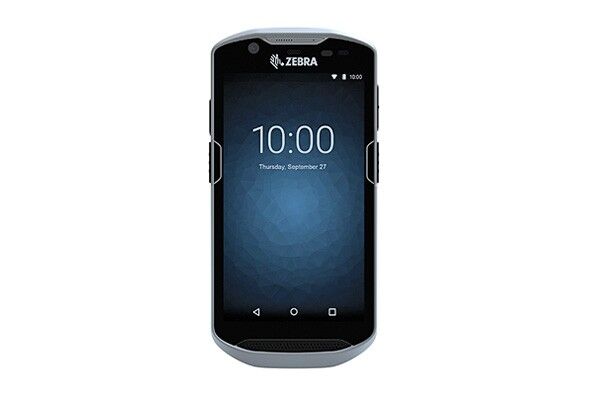

TC57 Mobile Computer


The Ultimate in Rugged Enterprise-Class Touch Computing for Outside the Four Walls

The rugged TC57 mobile computer builds on the highly successful TC56, adding a new platform, new capabilities, Wi-Fi and cellular, to deliver the ultimate in enterprise-class mobile computing.

Physical Characteristics

Dimensions6.1 in. L x 2.9 in. W x 0.73 in. H
155 mm L x 75.5 mm W x 18.6 mm H
Weight8.8 oz./249 g with battery
Display5.0 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel
Imager WindowCorning Gorilla Glass
TouchpanelDual mode capacitive touch with stylus or bare or gloved fingertip input (conductive stylus sold separately); Corning Gorilla Glass; water droplet rejection; fingerprint resistant anti-smudge coating
BacklightLED backlight
PowerRechargeable Li-Ion, PowerPrecision+, > 15.48 Watt hours, > 4150 mAh, improved battery metrics for better battery management, fast charging (up to 2.4 A)
Expansion SlotUser accessible MicroSD up to 32GB SDHC and up to 256 GB SDXC
SIM SlotsTC57 only: 1 nano SIM; 1 eSIM
Network ConnectionsTC52/TC57: WLAN, WPAN (Bluetooth), USB 2.0, High Speed (Host and Client)
TC57 Only: WWAN
NotificationAudible tone; multi-color LEDs; vibration
KeypadOn-screen keypad and enterprise keyboard
Voice and AudioThree microphones with noise cancellation; vibrate alert; Front facing speaker; Bluetooth wireless headset support; High quality speaker phone; PTT headset support; cellular circuit switch voice; HD Voice; and SWB & FB audio
ButtonsSix programmable buttons for maximum flexibility: Back button, dual dedicated scan buttons, dedicated push-to-talk button and volume up/down buttons

Performance Characteristics

CPUQualcomm Snapdragon™ 660 octa-core, 2.2 GHz
Operating SystemTC52: Upgradeable to Android 14
TC57: Upgradeable to Android 14
Memory4GB RAM/32GB Flash

User Environment

Operating Temp.-4°F to 122°F/-20°C to 50°C
Storage Temp.-40°F to 158°F/-40°C to 70°C
Humidity5% to 95% non-condensing
Drop SpecificationsMultiple 6 ft. drops to concrete with the rugged boot accessory per Mil STD 810 G; Multiple 4 ft/1.2m drops to tile over concrete -10°C to 50°C (14°F to 122°F)
Tumble Specification500 1.6 ft./0.5 m tumbles, meets or exceeds IEC tumble specification
SealingIP68 and IP65 per applicable IEC sealing specifications
Vibration4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis
Thermal Shock-40° F to 158° F/-40° C to 70° C rapid transition
Electrostatic
Discharge (ESD)
+/- 15kv air discharge; +/- 8kv direct discharge;
+/- 8kv indirect discharge

Interactive Sensor Technology (IST)

Light SensorAutomatically adjusts display backlight brightness
MagnetometereCompass automatically detects direction and orientation
Motion Sensor3-axis Accelerometer with MEMS Gyro
Pressure SensorAutomatically detects altitude information for locating (TC57 only)
Proximity SensorAutomatically detects when the user places the handset against head during a phone call to disable display output and touch input

Data Capture

ScanningSE4710 imager (1D and 2D) with extraordinary range:
Scan range – Code 39 barcode:
20 Mil: 2.0 in. to 30.0 in./5.08 cm to 76.2 cm
4 Mil: 3.3 in. to 8.8 in./8.4 cm to 22.4 cm
Digimarc support
CameraFront — 5 MP; f/2.0 aperture
Rear — 13 MP autofocus; f/2.2 aperture; flash LED generates balanced white light; supports Torch mode
NFCISO 14443 Type A and B; FeliCa and ISO 15693 cards; P2P mode and Card Emulation via Host.
TC57 Only: Card Emulation via Host and UICC

Wireless WAN Data and Voice Communications (TC57 Only)

Radio Frequency BandSupports VoLTE , Carrier Aggregation up to 3DL CA
AT&T FirstNet Ready certification
Verizon PNTM certification
LTE FDD: 700/800/850/900/1800/1900/AWS/2100/2600 (28,13,14,12,17/19,20/5,26/8/3/2,25/4,66/1/7);
LTE TDD: 1900/2300/2500 (39/40/41,38);
UMTS/HSPA/HSPA+: 850/900/AWS/1900/2100 (5/8/4/2/1);
GSM/GPRS/EDGE: 850/900/1800/1900
GPSTC57 only: Autonomous, Concurrent GPS; GLONASS; Gallileo; BeiDou, and A-GPS.
Supports IZAT™ XTRA
MultimediaWi-Fi Multimedia™ (WMM) and WMM-PS; Including TSPEC

Wireless LAN

RadioTC52: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v3/w; Wi-Fi™
certified; IPv4, IPv6, 2×2 MU-MIMO
TC57: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v3/w; Wi-Fi™
certified; IPv4, IPv6, 5GHz 2×2 MU-MIMO
Data Rates5GHz: 802.11a/n/ac — up to 866.7 Mbps
2.4GHz: 802.11b/g/n — up to 300 Mbps
Operating ChannelsChannel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,
12,13
Channel 36-165 (5180-5825 MHz): 36,40,44,48,52
56,60,64,100,104,108,112,116,120,124,128,132,136,140,
144,149,153,157,161,165
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and
bandwidths depend on regulatory rules
and certification agency.
Security and
Encryption
WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and
AES); WPA/WPA2 Enterprise (TKIP and AES) — EAP-TTLS
(PAP, MSCHAP, MSCHAPv2), EAP-TLS,
PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP.EAP-PWD
CertificationsWFA (802.11n, WMM-PS, 801.11ac, PMF)
Fast RoamPMKID caching; Cisco CCKM; 802.11r; OKC

Wireless PAN

BluetoothClass 2, Bluetooth v5.0, Bluetooth Low Energy (BLE)

Warranty

Subject to the terms of Zebra’s hardware warranty statement, the TC52/57 Series is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit:
www.zebra.com/warranty

Recommended Services

Zebra OneCare® Essential and Select support services
Zebra Visibility Services – VisibilityIQ™ Foresight or Asset Visibility Service

Footnotes

1. Based on typical user profiles

Specifications subject to change without notice.

For details related to Common Criteria support, please visit:
www.zebra.com/commoncriteria

Mobility DNA Software

Mobility DNA solutions help you get more value out of our mobile computers by adding functionality as well as simplifying deployment and management of our mobile devices. For more information on these Zebra-only features
