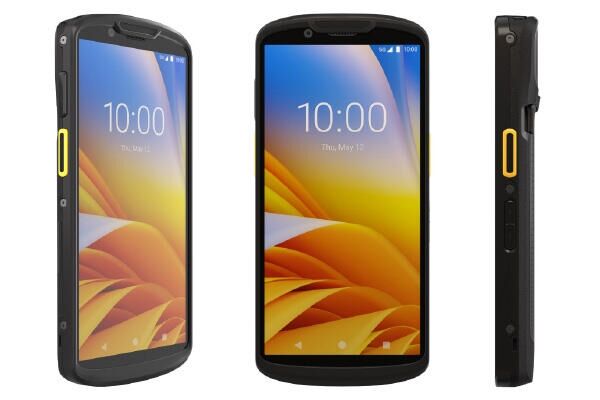

TC58 Mobile Computer


The 5G/Wi-Fi 6E Rugged Mobile Computer for Powering a New Generation of Data Collection Outside the Four Walls

The rugged cellular/Wi-Fi TC58 Mobile Computer, equipped with the latest mobile technology advancements including 5G, Wi-Fi 6E, CBRS (US only), available with the SE4720 1D/2D Scan Engine or the SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology, Device Tracker, Zebra’s Dimensioning™ Certified Mobile Parcel, and Mobility DNA tools, makes the TC58 the new generation of data collection for outside the four walls.

Physical Characteristics



Dimensions 6.48 in. L x 3.04 in. W x 0.66 in. H
164.8 mm L x 77.35 mm W x 16.75 mm H
Weight 10.3 oz./293 g with standard battery
Display 6.0 in. Full High Definition; 1080x 2160; LED back-light; 600 NITS; optically bonded to touch panel
Imager Window Corning® Gorilla® Glass
Touch Panel Multi-mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately), Corning Gorilla Glass; water droplet rejection; fingerprint resistant anti-smudge coating
Power Rechargeable Li-Ion, PowerPrecision+ for real-time battery metrics; 17.71 Watt hours; Standard capacity: 4400 mAh; Extended capacity: 6600 mAh; BLE battery: 4400 mAh; Qi compatible Wireless charge battery: 4400 mAh; fast charging Warm Swap battery mode (standard SKUs); Hot Swap battery mode (premium SKUs)
Expansion Slot User accessible MicroSD card supports up to 2 TB
SIM TC58 only: 1 nano SIM; 1 eSIM
Network Connections TC53: WLAN, WPAN (Bluetooth)
TC58 only: WWAN 5G
Notifications Audible tone; multi-color LEDs; haptic feedback
Keypad On-screen keypad and enterprise keyboard
Voice and Audio Three microphones with noise cancellation; vibrate alert; dual speakers for loudness; Bluetooth wireless headset support; high quality speaker phone; PTT headset (3.5 mm and Zebra USB-C) support; cellular circuit switch voice; HD voice; Super-wideband (SWB) and Fullband (FB) audio; 3.5 mm audio jack only on WLAN SKUs
Buttons Programmable buttons for maximum flexibility: dual dedicated scan buttons, dedicated push-to-talk button, volume up/down buttons and trigger button of trigger handle via Back I/O.
Interface Ports USB 2.0 (Back I/O – Host Only), USB 3.0 (Bottom Type C) – Super Speed (Host and Client)



Performance Characteristics



CPU Qualcomm 6490 octa-core, 2.7 GHz
Operating System Upgradeable to Android 16
Memory 4GB RAM/64GB UFS Flash;
8GB RAM/64GB UFS Flash;
8GB RAM/128GB UFS Flash
Security FIPS 140-2 Validated (ISO 19790) and Common Criteria certified (ISO 15408); FIPS 140-2 cryptography can be enabled on select configurations through a custom SKU request; Supports Secure Boot and Verified Boot.



User Environment



Operating Temp. -4°F to 122°F/-20°C to 50°C
Storage Temp. -40°F to 158°F/-40°C to 70°C
Humidity 5% to 95% non-condensing
Sealing IP68 and IP65 with battery per applicable IEC sealing specifications
Drop Specifications Multiple 6 ft./1.8 m drops to concrete over operating temp (-20°C to 50°C/-4°F to 122°F) with protective boot per MIL STD 810H;
Multiple 5 ft./1.5 m drops to tile over concrete (-10°C to 50°C/14°F to 122°F) per MIL STD 810H
Tumble Specification 1000 1.6 ft./0.5 m tumbles at room temperature without protective boot, meets or exceeds IEC tumble specification; 1000 3.2 ft./1.0 m tumbles at room temperature with protective boot, meets or exceeds IEC tumble specification
Electrostatic
Discharge (ESD)
+/- 15 kV air discharge; +/- 8 kV direct discharge;
+/- 8 kV indirect discharge



General Certifications



TAA compliant; ARCore Google certification sustained



Automated Interactive Sensor Technology (IST)



Light Sensor Adjusts display backlight brightness
Magnetometer eCompass to detect direction and orientation (not available in the base LAN model)
Motion Sensor 3-axis accelerometer with MEMS Gyro
Pressure Sensor Detects altitude information for locating
Proximity Sensor Disables display output and touch input when placed against head during a call
Gyro Senses linear orientation



Data Capture



Scanning SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4720 1D/2D Scan Engine
Camera Front—8 MP; Rear—16 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR (standard); Optical Image Stabilization (OIS) (premium SKUs only), Time of Flight (ToF) Sensor (premium SKUs only)
NFC ISO 14443 Type A and B; FeliCa and ISO 15693 cards; Card Emulation via Host; Contactless payment support, ECP1.0 and ECP2.0 polling support, Apple VAS certified

Wireless WAN, Data and Voice Communications (TC58)



GPS GPS, GLONASS, Galileo, Beidou, QZSS Dual-Band GNSS — concurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA
Multimedia Wi-Fi Multimedia™ (WMM) and WMM-PS; TSPEC
Radio Frequency Band North America: 5G FR1: n2/5/7/12/13/14/25/26/29/38/41/48/66/71/77/78; 4G: B2/4/5/7/12/13/14/17/25/26/29/38/41/48/66/71 ; 3G: B2/4/5; 2G: 850/1900

Rest of World: 5G FR1: n1/2/3/5/7/8/20/28/38/ 40/41/66/71/77/78; 4G: B1/2/3/4/5/7/8/17/20/28/38/39/40/41/42/43/66/71; 3G: 1/2/3/4/5/8; 2G: 850/900/1800/1900 China/Japan5G FR1: n1/3/5/8/38/40/41/77/78/79; 4G: B1/3/5/7/8/19/34/38/39/40/41/42; 3G: B1/5/8/19; 2G: 850/900/1800

Supports private networking (LTE/5G)



Wireless LAN



Radio
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2×2 MU-MIMO; Wi-Fi™ 6E (801.11ax); Wi-Fi certified; Wi-Fi™ 6E Certified; Dual Band Simultaneous; IPv4, IPv6
Data Rates 5GHz: 802.11a/n/ac/ax—20MHz, 40MHz, 80MHz, 160MHz – up to 2402 Mbps; 2.4GHz: 802.11b/g/n/ax—20MHz up to 286.8 Mbps
6GHz: 802.11ax – 20MHz, 40MHz, 80MHz, 160MHz – up to 2402 Mbps
Operating Channels Channel 1-13 (2401-2483 MHz):1,2,3,4,5,6,7,8,9,10,11,12,13; Channel 36-165 (5150-5850 MHz): 36,40, 44,48,52,56,60,64,100,104,108,112,116,120,124, 128, 132,136,140,144,149,153,157,161,165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20/40/80/160 MHz; Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.
Security and Encryption WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2); EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD); WWAN device only — EAP-SIM, EAP-AKA; WPA3 Enterprise 192-bit mode (GCMP256) — EAP-TLS; Enhanced Open (OWE)
Certifications Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6; Wi-Fi Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; QoS Management; OCE
Fast Roam PMKID caching; Cisco CCKM; 802.11r; OKC



Wireless PAN



Bluetooth
Class 2, Bluetooth v5.2; secondary Bluetooth Low Energy (BLE) for beaconing within BLE battery



Environmental Compliance



RoHS Directive 2011/65/EU; RoHS Amendment (EU) 2015/863; (EN IEC 63000:2018 Standard); For a complete list of product and materials compliance, please visit
www.zebra.com/environment



Warranty



Subject to the terms of Zebra’s hardware warranty statement, the TC53/TC58 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit:
www.zebra.com/warranty



Recommended Services



Zebra OneCareTM Essential and Select support services; Zebra Visibility Services — VisibilityIQ™ Foresight; For information on Zebra services, please visit
www.zebra.com/services



Footnotes



1. Workstation cradles and Certified Mobile Parcel available in 2H 2022

2. LifeGuard for Android is included with every Zebra OneCare Support agreement. Some features are available through a supported EMM.

Specifications subject to change without notice. For details related to Common Criteria support,
