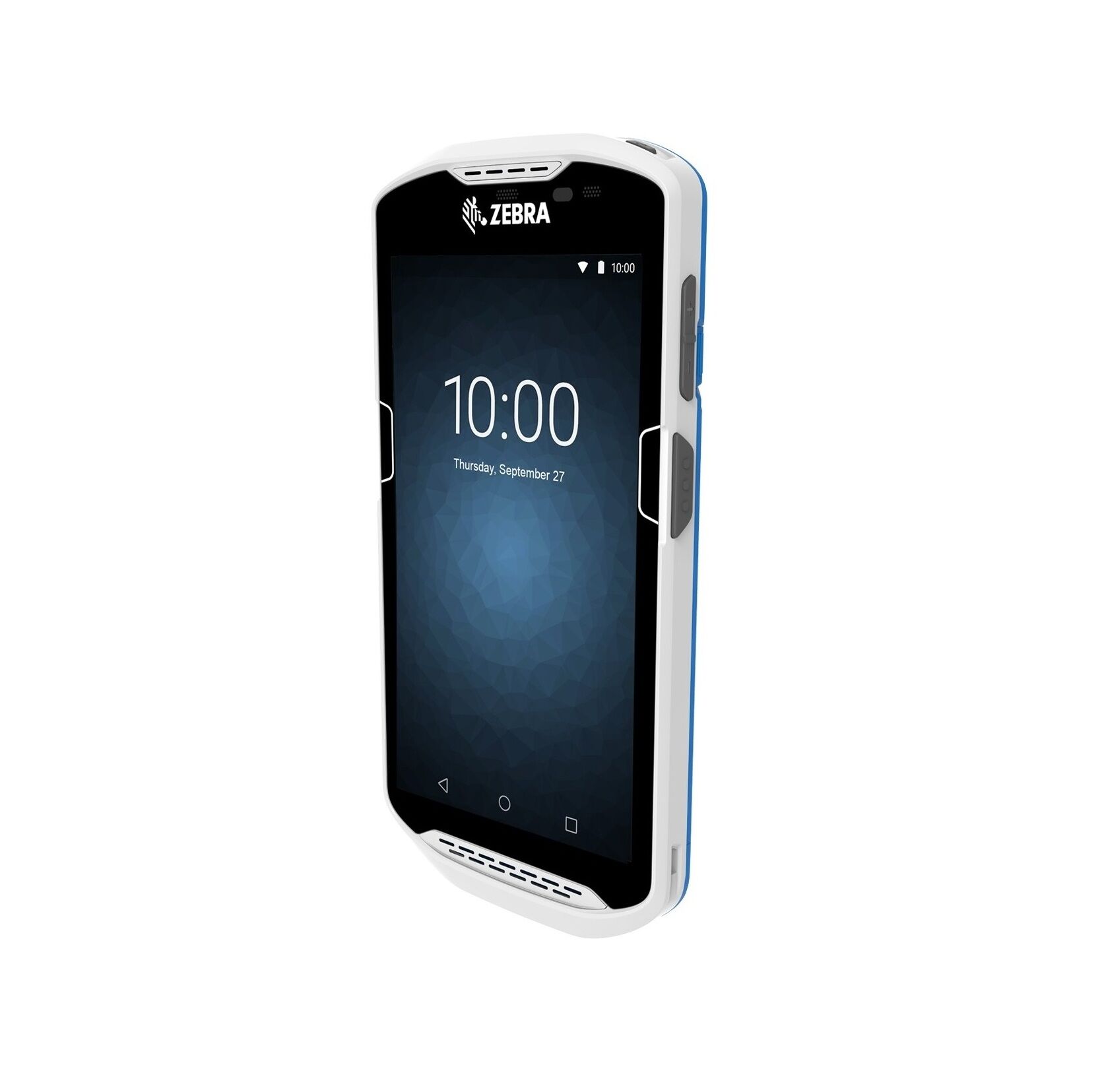

Touch Computer TC51-HC

Zebra Products In Qatar

To provide the highest quality care on every shift, nurses and other healthcare workers need to call or text physicians and other co-workers, take calls coming in from the PBX, access electronic patient records, scan barcodes to ensure accuracy in medicine administration and specimen collection, monitor medical equipment alarms and more. As a result, the average healthcare worker needs a multitude of devices, from a two-way radio, a personal consumer smartphone, a mobile PBX handset to a barcode scanner and a pager. This translates into a lot of devices to purchase, manage and disinfect to prevent the spread of germs.

To provide the highest quality care on every shift, nurses and other healthcare workers need to call or text physicians and other co-workers, take calls coming in from the PBX, access electronic patient records, scan barcodes to ensure accuracy in medicine administration and specimen collection, monitor medical equipment alarms and more. As a result, the average healthcare worker needs a multitude of devices, from a two-way radio, a personal consumer smartphone, a mobile PBX handset to a barcode scanner and a pager. This translates into a lot of devices to purchase, manage and disinfect to prevent the spread of germs.



Dimensions

155 mm L x 75.5 mm W x 18.6 mm H, 6.1 in. L x 2.9 in. W x 0.73 in. H

Weight

8.8 oz./249 g with battery

Display

5.0 in. High Definition (1280 x 720), exceptionally bright, optically bonded to touch panel, outdoor viewable

Imager Window

Corning Gorilla Glass

Touchpanel

Corning® Gorilla® Glass, Dual mode capacitive touch with bare or gloved fingertip input

Backlight

LED backlight

Power

> 15.48 Watt hours, > 4150 mAh, improved battery metrics for better battery management, fast charging (up to 2.4 A), Rechargeable Li-Ion, PowerPrecision+

EXPANSION SLOT

User accessible MicroSD up to 32 GB SDHC and up to 128 GB SDXC, using FAT32 format

Network Connections

WLAN, WPAN (Bluetooth)

Notification

Audible tone

Keypad

On-screen keypad and enterprise keyboard

Voice and Audio

Bluetooth wireless headset support, HD Voice, High quality speaker phone, speaker, Two microphones with noise cancellation, vibrate alert

Buttons

and volume up/down buttons, dedicated push-to-talk button, dual dedicated scan buttons, Programmable back button

CPU

Snapdragon 650 64-bit hexa-core 1.8GHz ARM Cortex A72, power optimization

Operating System

Android 8.0 Oreo

Memory

Optional: 4GB RAM/32GB Flash, Standard: 2GB RAM/16GB Flash

Operating Temperature

14°F to 122°F/-10°C to 50°C (RH 5% to 95% Non-condensing)

Storage temperature

-40°F to 158°F/-40°C to 70°C

Drop Specification

Multiple 4 ft./1.2 m drops to tile over concrete over operating temperature range, per MIL-STD 810G

Tumble Specification

500 1.6 ft./0.5 m tumbles, meets or exceeds IEC tumble specification

Sealing

IP65 per applicable IEC sealing specifications

Vibration

0.04 g 2/Hz Random (20 Hz to 2 kHz), 3 axis, 4 g’s PK Sine (5 Hz to 2 kHz), 60 minute duration per axis

Thermal Shock

-40° F to 158° F/-40° C to 70° C rapid transition

Electrostatic Discharge (ESD)

+/-15kv air, +/-8kv charge body, +/-8kv contact

Light Sensor

Automatically adjusts display backlight brightness

Motion Sensor

3-axis Accelerometer with MEMS Gyro

Proximity Sensor

Automatically detects when the user places the handset against head during a phone call to disable display output and touch input

Scanning

20 Mil: 2.0 in. to 30.0 in./5.08 cm to 76.2 cm, 4 Mil: 3.3 in. to 8.8 in./8.4 cm to 22.4 cm, Scan range – Code 39 barcode, SE4710 imager (1D and 2D) with extraordinary range

Camera — Front Facing

1.3 MP fixed focus

Camera — Rear Facing

13 MP autofocus; f/2.4 aperture, rear camera flash LED generates balanced white light, supports Torch mode

NFC

FeliCa and ISO 15693 cards, ISO 14443 Type A and B; F, P2P mode and Card Emulation via Host

Radio

2×2 MIMO, IEEE 802.11a/b/g/n/ac/d/h/i/k/r/w, IPv4, IPv6, Wi-Fi™ certified

Data Rates

2.4GHz: 802.11b/g/n — up to 144 Mbps, 5GHz: 802.11a/n/ac — up to 866.7 Mbps

Operating Channels

Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency, Channel 1-13 (2412-2472 MHz); Chan 36-165 (5180-5825 MHz), Channel Bandwidth: 20, 40, 80 MHz

Security and Encryption

Data at Rest: FIPS 140-2 Level 1, Data in Motion: FIPS 140-2 Level 1, EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, WEP (40 or 104 bit), WPA/WPA2 Enterprise (TKIP and AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), WPA/WPA2 Personal (TKIP, and AES)

Certifications

Miracast, WFA (802.11n, 802.11ac, WMM-AC, Voice Enterprise, WMM-PS)

Fast Roam

802.11r, Cisco CCKM, OKC, PMKID caching

Bluetooth¹

Bluetooth v4.1 (Bluetooth® Smart technology), Bluetooth v4.1 Low Energy (LE), Bluetooth Wideband support HFPv1.6, Class 2
