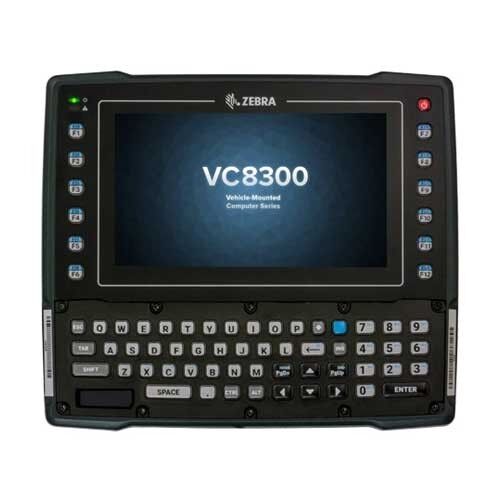

VC8300 VEHICLE MOUNT COMPUTER
THE ULTIMATE ULTRA-RUGGED ANDROID™ KEYBOARD/TOUCH VEHICLE MOUNT COMPUTER
Since your Windows-based vehicle mount mobile computers are near their end-of-life and support for Windows-based mobile devices is ending, you’re ready to migrate to AndroidTM. You need a rugged device that will make that migration and device management simple, easy and cost-effective. Get it all with the VC8300. Designed for the most extreme environments, the VC8300 can go everywhere your vehicle operators need to go—inside the warehouse, out in the yard, on the loading dock and even in the freezer. Run your existing ‘green screen’ apps right out of the box—no ramp-up time required. Re-use all of your existing accessories1, minimizing the cost to upgrade to the latest technology. Replacement couldn’t be easier—just drop it in place and you’re ready to go. With Mobility DNA, only from Zebra, you get powerful features that transform Android into an easy-to-manage robust enterprise-class OS, complete with unique tools that not only boost workforce productivity, but also simplify deployment and application development. And since the same platform is shared with Zebra’s rugged handheld and wearable mobile devices, virtually any worker can use any device with practically no training, providing the flexibility to deploy and re-deploy workers to address changing workloads.
The Best of Both Worlds: Large Touchscreen and Keyboard
When it comes to data input, the VC8300 offers complete flexibility. The integrated full alphanumeric keyboard gives your workers the same familiar key-based interaction they use today—no change to workflow required. And the touchscreen allows you to integrate touch into your apps whenever you’re ready.
Automatically Migrate Your TE Apps to Interactive Android Apps
When you’re ready to transform your TE key-based apps to Android interactive apps, All-touch TE makes it easy. With this pre-loaded Zebra-only Mobility DNA application, just press a button to change TE ‘green screens’ to fully interactive Android screens that can be easily customized with All-touch TE tools—all without any coding.
THE ULTIMATE ANDROID PLATFORM FOR BUSINESS
Easy Viewing Indoors or Outside
The 8-inch display provides plenty of space for graphics-intensive, interactive applications, while best-in-class display resolution and brightness ensure easy viewing in any lighting condition. And the capacitive touch screen is easy to use, even with gloves.
Physical Characteristics
| Dimensions | 10.87 in. W x 9.37 in. H x 3.54 in. D 276 mm W x 238 mm H x 90 mm D |
| Weight | 8.2 lbs/3.7 kg |
| Display | WXGA 8 inch, color display; 1280×720, 1,000 NITs |
| Touch Panel | Capacitive multi touch, Corning Gorilla Glass with air gap, heater option, anti-reflective foil option |
| Power | 10 to 60V DC isolated; Internal |
| Keyboard Options | QWERTY/AZERTY |
| Keyboard | Backlit, field replaceable, full alphanumeric, 67 keys, 12 direct function keys Diamond key pops up on-screen keyboard for additional characters |
| Indicators | Audible tone Power Status: Green/Amber LED Warning: Red LED |
| Mounting | RAM mount; quick release mount; side mounted scanner holder |
| Connectivity | 1x Type C USB 3.0 combination host and client port; 1 x USB 2.0 host port (with strain relief and covered); 1 x standard powered USB 2.0 host port with 12V / 1.5 A (with strain relief and covered); 2 x RS-232 COM ports with power on pin 9; 1 x 3.5 mm audio jack for push-to-talk speaker/mic (with strain relief and covered); optional USB-Ethernet adapter |
| UPS | UPS with minimum 30-min life over the full operating temperature range |
Performance Characteristics
| CPU | Qualcomm SnapdragonTM 660 octa-core 2.2 GHz |
| Operating System | Upgradeable to Android 14 |
| Memory | 4GB RAM/32 GB Flash pSLC |
| Software | Ivanti Velocity (pre-loaded and pre-licensed) |
User Environment
| Operating Temp. | -22° F to 122° F/-30° C to 50° C |
| Storage Temp. | -40° F to 140° F/-40° C to 60° C |
| Humidity | 5% – 95% RH condensing |
| Sealing | IP66 |
| Shock/Vibration | IEC 60721-3-5M3; MIL-STD 810F; Zebra internal |
| Thermal Shock | -22° F to 122° F/-30° C to 50° C |
| Sensors | Temperature, accelerometer, gyroscope |
| Salt Fog | 48h of 5% solution at 35° C |
| Solar Radiation | MIL-STD 810G Method 505.5 |
| Electrostatic Discharge (ESD) | +/-15kV air discharge; +/-8kV contact discharge; +/-8kV indirect discharge |
Data Capture
| Scanner Support | HID via USB and Bluetooth; SSI via USB and Bluetooth for DS/LI 36XX and RS6000; Serial RS232 with power on pin 9 |
Voice and Audio
| Audio | High volume 87dB speaker |
| Push-to-Talk | Optional speaker microphone |
Wireless LAN
| Radio | IEEE 802.11a/b/g/n/ac/k/r; 2×2 MU-MIMO |
| Data Rates | 5GHz: 802.11a/n/ac—up to 866.7 Mbps 2.4GHz: 802.11b/g/n—up to 300 Mbps |
| Operating Channels | Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13 Channel 36-165 (5180-5825 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165 Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency. |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA/WPA2 Enterprise (TKIP and AES) – EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD FIPS 140-2 Level 1: Data in Motion and Data at Rest2 |
| Multimedia | Wi-Fi Multimedia (WMM and WMM-PS; Including TSPEC) |
| Certifications | WFA (802.11n, WMM-PS, 802.11ac, PMF, WMM-AC, Voice Enterprise, WiFi Direct and WPS 2.0) |
| Fast Roam | PMKID caching, Cisco CCKM, OKC, 802.11r |
| WLAN Antennas | Switchable internal or external antennas, various magnetic mounted antennas available |
Wireless PAN
| Bluetooth | Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE) |
Freezer and Condensing
| Selected industrial components with a wide temperature range specification Inside and outside temperature sensors to identify condensing circumstances Heated boards (additional resistors) to avoid inside condensation Heated and vented UPS battery that charges/discharges over the full operating temperature range (-22° F to 122° F/-30° C to 50° C) Heated connectors to avoid corrosion Heater control chip to switch heaters on/off when required Flat surface and drainage holes to avoid heavy icing on the front |
Communication and Messaging
| Workforce Connect PTT Express (included) provides instant push-to-talk small group communications across Wi-Fi networks. Workforce Connect PTT Pro (supported) provides a scalable network agnostic push-to-talk solution which also includes messaging, location services and two-way radio integration. |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the VC8300 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: https://www.zebra.com/warranty |
Platforming
| Mobility DNA, Enterprise MDK, Standard Android SDK and SOTI for Android, Analytics Agent |
Recommended Services
| Zebra OneCare Essential and Select: Maximize Zebra device availability, device value and operational efficiency with these fully-featured support services that set the industry bar for support. Zebra Visibility Services—Asset Visibility Services (AVS) and Operational Visibility Service (OVS): Options on any Zebra OneCare support contract, these services deliver the device management data needed to take device uptime, operational efficiency and return on investment to the next level. |
