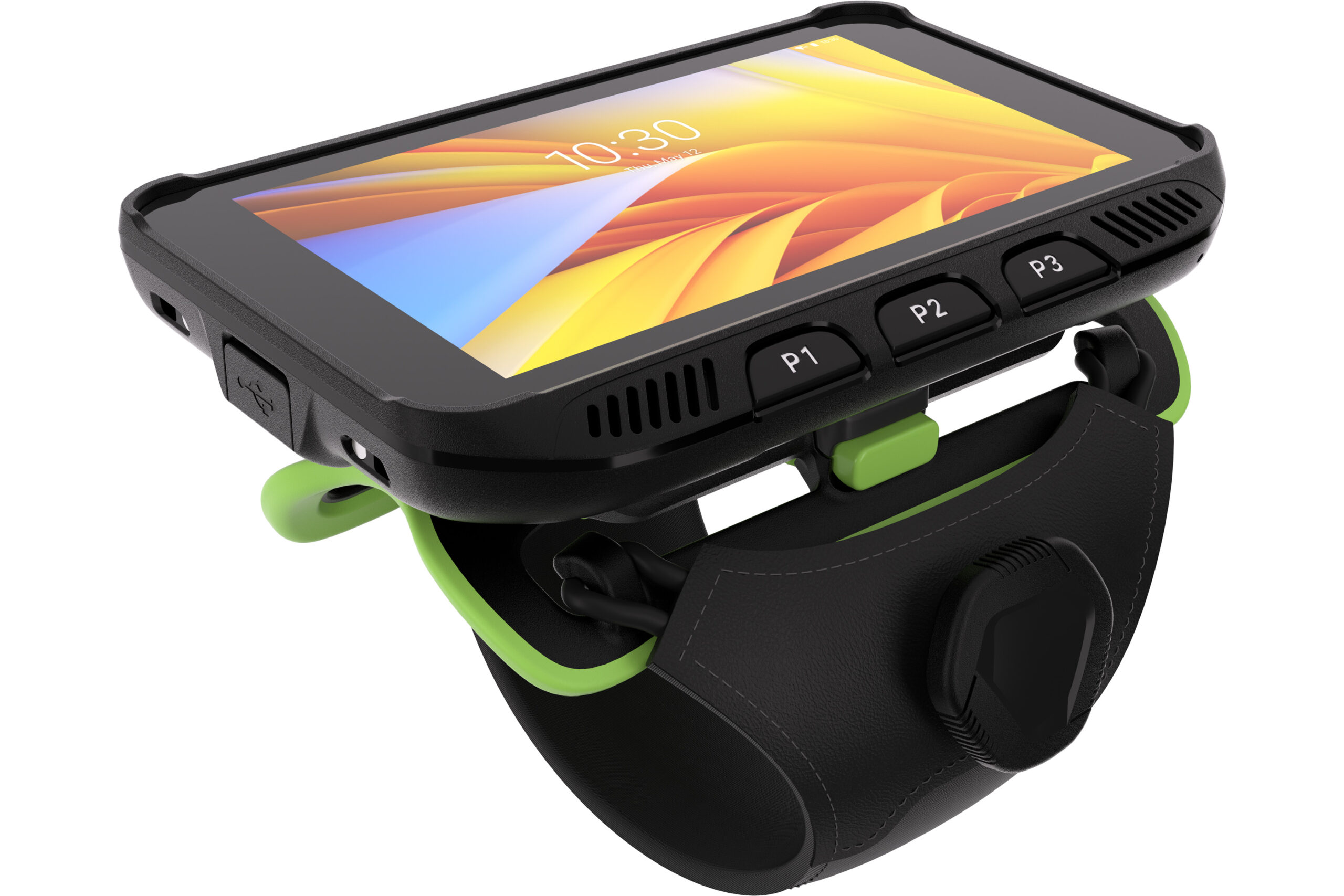

WT5400 Wearable Computer

Markets and Applications

Retail

• Reverse logistics
• Price verification/updates
• Store receiving
• Online order fulfillment
• Backroom inventory management
• Front of store order picking

Physical Characteristics

Dimensions: 5.22 in L x 3.66 in W x 0.55 in D (132.5mm L x 93mm W x 13.97mm D) Weight:

• Standard battery: 9.0 oz (254g)
• Extended battery: 10.9 oz (310g) Display: 4.7 inch; 720×1280; color display Touch Panel: Multimode capacitive touch panel; bare or light gloved fingertip input; Corning® Gorilla® Glass Power:
• Standard battery: typical capacity — 3500mAh
• Extended battery: typical capacity — 5000mAh Network Connections: WLAN (Wi-Fi); WPAN (Bluetooth); USB 3.0 (superspeed client and host) Notifications: Audible tone; multi-color LED; haptic feedback Voice and Audio: Speaker; microphone; PTT voice Buttons: Power button; three (3) programmable function buttons Interface Ports: One (1) USB-C (USB 3.0); two (2) charge pogo pads on each side

Performance Characteristics

CPU: Qualcomm® QCS4490 octa-core; 2.4 GHz Operating System: Android 13; upgradeable to Android 17 Memory: 6 GB RAM; 64 GB Flash Security: FIPS 140-2; Secure Boot; Verified Boot

User Environment

Operating Temp: -4°F to +122°F (-20°C to +50°C) Storage Temp: -40°F to +158°F (-40°C to +70°C) Humidity: 5% to 95%, non-condensing Drop Spec:

• Per MIL-STD 810H: 6 ft (1.8m) to concrete at (+73°F to +122°F/+23°C to +50°C)
• 4 ft (1.2m) to concrete across temperature (-4°F to +122°F/-20°C to +50°C) Tumble Spec: 1,000 Tumbles at 1.6 ft (0.5m) at room temperature Sealing: IP65; IP67 with battery per applicable IEC sealing specifications Vibration: 4g PK Sine (5Hz to 2kHz); 0.04g 2/Hz Random (20Hz to 2kHz); 60 minutes duration per axis, 3 axis Electrostatic Discharge (ESD): +/- 15kV air discharge, +/- 8kV direct/indirect discharge

Interactive Sensor Technology (IST)

Light Sensor: Automatically adjusts display backlight brightness Motion Sensor: 3-axis accelerometer with MEMS Gyro

General Certifications

Android Enterprise Recommended (AER): Yes

Data Capture

Scanning: Compatible with Zebra wearable Bluetooth scanners (RS2100, RS5100, RS6100) via NFC tap-to-pair. The RS5100 and RS6100 can be powered by the WT5400 using the USB-C corded adapter, with communication over Bluetooth. NFC: ISO 14443 Type A and B; FeliCa and ISO 15693 cards; NFC Forum cards 1 to 5

Wireless LAN

Radio: IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2×2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz); Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6 Data Rates:

• 2.4 GHz: 802.11b/g/n/ax — 20 MHz – up to 286.8 Mbps
• 5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps
• 6 GHz: 802.11ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps Operating Channels:
• Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
• Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 50, 52, 56, 60, 64, 100, 104, 108, 112, 114, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165
• Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20, 40, 80, 160 MHz Security and Encryption: WEP (40 or 104 bit); Enhanced Open (OWE); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES); EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) – EAP-TLS Certifications: Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); WPA2-Personal; WPA2-Enterprise; WPA3-Personal WPA3-Enterprise (includes 192-bit mode); Protected Management Frames: Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save WMM-Admission Control; Voice-Enterprise: Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint

Wireless PAN

Bluetooth: Class 1; Bluetooth v5.3
