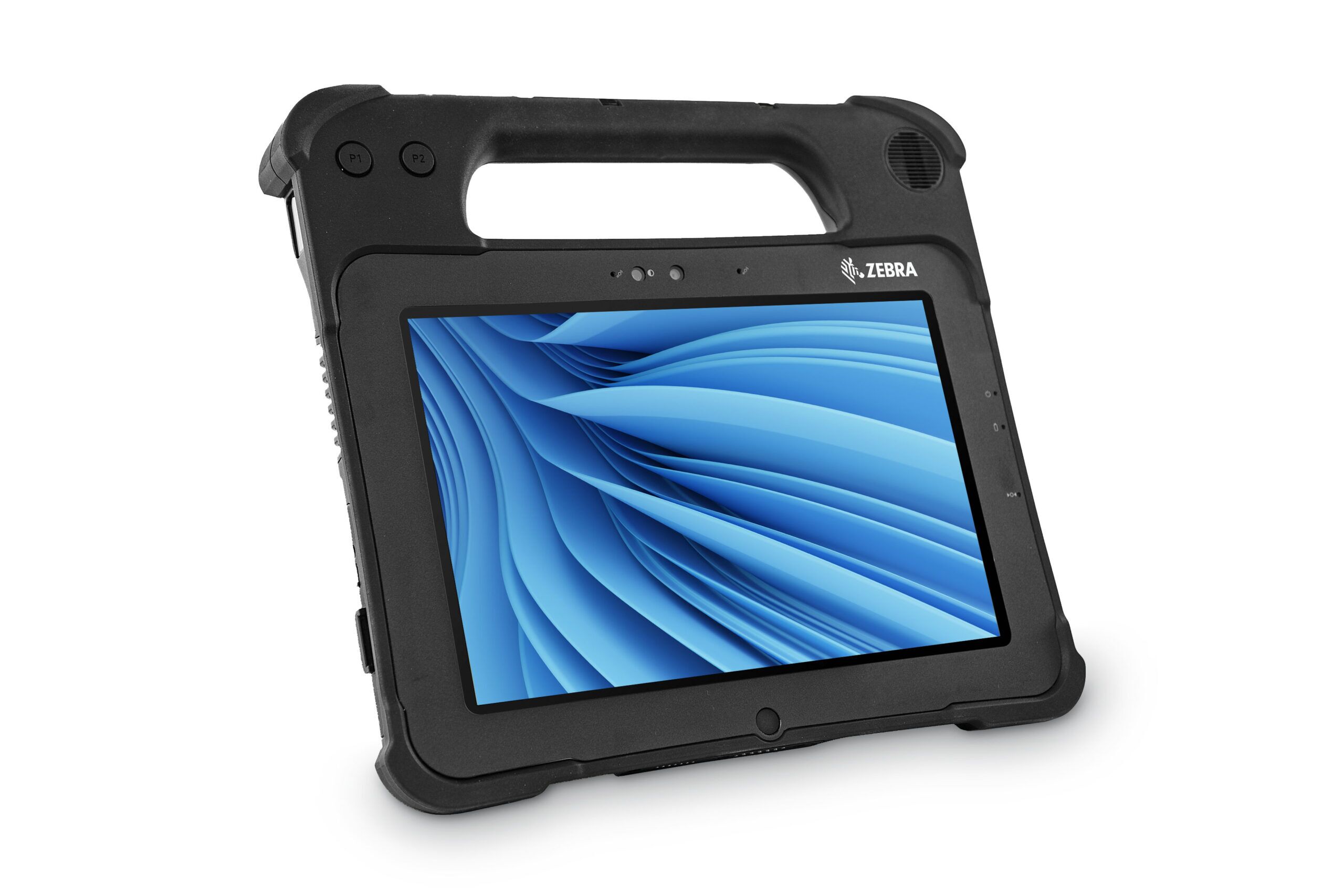

XPad L10 Windows

Ultimate Rugged Tablet With Rigid Handle and Barcode Reader

Experience all the same great features of the XSlate L10 with an integrated rigid handle on top, ideal for workers who spend all day on their feet carrying their tablet from task to task. The XPad also includes a built-in barcode reader for fast and accurate data capture of virtually any barcode in any condition.

Physical Characteristics


Dimensions XSlate: 11.0 in. L x 7.7 in. W x 0.88 in. D
280.8 mm L x 195.2 W mm x 22 mm D
XPad: 11.0 in. L x 10.0 in. W x 0.88 in. D
280.8 mm L x 255.9 W mm x 22 mm D
XSlate with keyboard: 11.0 in. L x 8.3 in. W x 2.36 in. D 280.8 mm L x 210.8 W mm x 60 mm D
Weight XSlate: 2.8 lbs/1.3 kg2
XPad: 3.1 lbs/1.4 kg2
XSlate with keyboard: 4.63 lbs/2.1 kg2
Frame Magnesium alloy internal frame with external elastomer corner bumpers
Display 10.1 in. 2K resolution display
WUXGA 1920 x 1200 (16:10)
– View Anywhere® nominal 1000 Nit capacitive
Corning® Gorilla® Glass 3
Capacitive 10-point touch
Contrast ratio = 800 to 1000 : 1
Wide viewing angle ±85°
Standard user replaceable anti-glare screen protector — 3H hardness
User selectable, glove and wet mode
Night vision mode supported on Active View Anywhere Display only
Graphics Intel® UHD Graphics 505
Battery Life and Power Standard battery: up to 9.5 hours3
Extended battery: up to 25 hours3
Battery charge time:
– Standard battery: 2.75 hours with system off4
– Extended battery: 3.25 hours with system off4
Standard bridge battery (1 minute swap time)
– Hot swap battery feature comes standard
Input Voltage: 12-20V, AC Adapter: 19V
Ports/Connectivity Docking connector
(2) USB 3.0 ports
USB Type-C port (USB 2.0, USB 3.0, Display Port out)
3.5 mm audio output (stereo out, mono in)
RJ-45 ethernet port
Dual Nano SIM (4FF)
Expansion Slot Micro-SDXC
Integrated Options NFC
Optional 1D/2D barcode reader (XPad only)
Optional True RS232 serial, or
Optional HDMI-In, or
Optional CAC / Smart Card reader, or
Optional UHF RFID reader (AEI)
Rugged Keyboard Optional accessory: backlit; IP65; 3.2 ft./1 m drop specification; kick strap/stand
Security Integrated fingerprint reader
Trusted Platform Module (TPM) 2.0
Optional CAC / Smart Card reader
Kensington cable lock slot
TAA compliant
Status Indicators System status, battery status, camera active, SSD activity
Audio Intel High Definition audio
Realtek® HD Codec
RealTek noise cancellation
Multi-directional array microphone
– 2 microphones (2 front facing array mic)
XPad: 1 front facing speaker
XSlate: 1 rear facing speaker


Performance Characteristics


Operating System Windows 10 IoT
Processor Intel Pentium® processor N42005; (LPDDR4, 1.10 GHz with turbo frequency to 2.50 GHz)
Memory 8 GB
Storage Options 128 GB SATA SSD


User Environment


Operating Temperature -4° F to 140° F/-20° C to 60° C; MIL-STD-810G
Storage Temperature -22° F to 158° F/-30° C to 70° C; MIL-STD-810G
Thermal Shock -22° F to 158° F/-30° C to 70° C within five (5)
minutes, non-operating; MIL-STD-810G
Drop Specification MIL-STD-810G:
6 ft./1.83 m drops to plywood over concrete; 4 ft./1.22m drops to concrete
Sealing IP65
Hazardous Environments C1D2 (Class 1 Division 2) for hazardous locations1
Vibration Minimum integrity non-operating, composite wheel operating; MIL-STD-810G
Shock 40G operating; MIL-STD-810G
Humidity 3% to 95% non-condensing, -22° F to 140° F/-30°C to 60°C, 5 cycles of 48Hr; MIL-STD-810G
Water Proofing Method 506.5 – Procedure I, wind speed 40 mph, 4 inches per hour, 4 sides; MIL-STD-810G
Blowing Sand 20M/S, rate 1.1g/m3 (+/-.3g) at high temperature of 140° F/60° C; MIL-STD-810G
Blowing Dust Velocity 8.9M/s dust concentration 3.9 g/m3 at high temperature of 140 °F/60° C; MIL-STD-810G
Fluid Contamination 50/50 solution of water and bleach, 50/50 solution of water and hydrogen peroxide, diesel fuel, mineral based oil, Lysol disinfectant, denatured alcohol, isopropyl alcohol; MIL-STD-810G
Altitude Operating: 50,000 ft./15,240 m; MIL-STD-810G

Data Capture


Camera 13 MP rear camera with AutoFocus; 2 MP front camera with Flash
NFC Optional
RFID Optional UHF RFID Reader (AEI)
Barcode Scanner Optional on XPad only: SE4710 1D/2D imager


Wireless WAN/GPS Data (Cellular)


Radio Optional internal wireless (one expansion slot with choice of:
• Sierra Wireless EM7565, 4G LTE with GNSS (GPS + GLONASS + Galileo + Beidou)
• Sierra Wireless EM7511, LTE-Advanced with GNSS
• Discrete GNSS, Navisys u-blox GPS + GLONASS with SBASAT&T FirstNet Ready & Verizon PNTM certificationCBRS Capable (Band 48) –  EM7511 only


Wireless LAN (WiFi)


Radio Intel® Dual Band Wireless-AC 8265 Wi-Fi plus


Wireless PAN (Bluetooth)


Bluetooth Class 1, Bluetooth® 4.2 (EDR + BLE)




Product Safety UL/CSA 60950-1 2nd Ed.; UL/CSA 62368-1 2nd Ed.; EN 60950-1 2nd Ed.; IEC 62368-1 2nd Ed.; EN 62368-1 2nd Ed.; AS/NZS 62368.1; NOM-019-SCFI
Hazardous Locations: C1D2; ANSI/ISA 12.12.01-2013
SAR FCC OET 65 Supplement C; CAN/CSA RSS-102 Issue 5, Safety Code 6; EN 62311, EN 62209-2; EN62209-2:201
EMC FCC Part 15 B, Class B; CAN/CSA ICES-003, Class B; EN55032, Class B; EN 301-489-1; EN 301-489-17; EN 301-489-24; EN 61000-3-2; EN 61000-3-3; EN55024; EN 303 413
Environment California Proposition 65; Battery Charging Systems; RoHS 2 Directive 2011/65/EU; WEEE Directive 2012/19/EU; Battery Waste Directive 2013/56/EU; NMX -1-122-NYCE-2006 (Mexico Energy Consumption); Energy Star Compliant; EPEAT Silver




Vehicle dock; industrial dock; office dock; standard and extended batteries; kickstand with extended battery bracket; single bay battery charger; power adapters; companion keyboard; short and long digitizer and passive pens; combination kickstand and rotating hand strap; soft handle; shoulder strap; carry case; screen protectors; screen cleaning cloth




Subject to the terms of Zebra’s hardware warranty statement, the L10 is warranted against defects in workmanship and materials for a period of 3 (three) years from the date of shipment. For complete warranty statement, go to:


Recommended Services


Zebra OneCare Essential and Select: Maximize Zebra device availability, device value and operational efficiency with these fully-featured support services that set the industry bar for support.

Zebra Visibility Services — Asset Visibility Services (AVS) and VisibilityIQTM  Foresight options on any Zebra OneCare support contract deliver the device management data needed to take device uptime, operational efficiency and return on investment to the next level.




1. Requires a Hazardous Locations certified model. Many XSlate and XPad models are C1D2 certified.

2. Weight represents approximate system weight measured with a 36WHr battery. Actual system weight may vary depending on configuration, component and manufacturing variability.

3. MobileMark 2014 performance testing software. Battery performance will vary by system configuration. Battery life and recharge estimates will vary based on system settings, applications, optional features, environmental conditions, battery conditioning and user preferences.

4. Approximate charging time. Validated charging from 5% to 90% with system on or system off.

5. L10 Pentium supports Windows 10 Pro 64-bit but this is not offered from the factory.
Specifications are subject to change without notice.Specifications are subject to change without notice.
