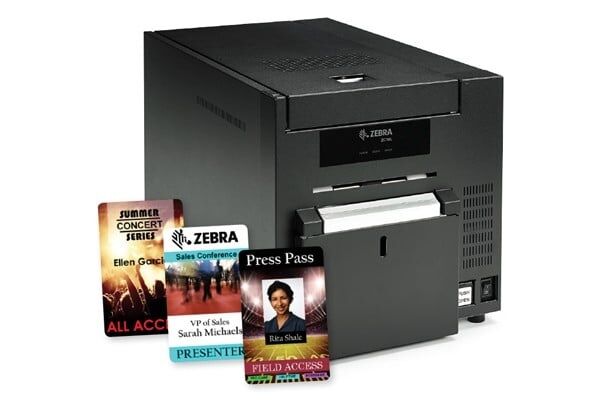

ZC10L Large Format Card Printer

Zebra Products In Qatar

PRINT STUNNING, EDGE-TO-EDGE, OVERSIZED CUSTOM CARDS AND BADGES IN FULL COLOR IN ONE PASS

Designed especially to meet the needs of the Hospitality market, Zebra’s ZC10LTM is the only large-format, direct-to-card printer that can print full, edge-to-edge color cards in one printing process. Produce custom, oversized badges, sporting event and concert tickets/passes, special event and festival badges/passes on the spot in full color—in one print pass. Avoid the hassle of ordering and inventorying pre-printed cards for various levels of guest access at events. Instead, print photo-quality cards edge-to-edge at the point of entry. Since cards are printed on demand, you can customize them for individual guest needs. This adds personalization, reduces waste and eliminates the risk of running out of a specific type of card should attendance change. And, with 300 dpi print quality, the ZC10L enables you to produce cards with exceptional photo-quality images, rich colors and crisp text.

Zebra will also offer synced ribbon and card kits to eliminate waste and operator time. Supply kits sold exclusively for the ZC10L feature 400 cards and ribbon rolls to match. Exhaust ribbon and cards at the same time. No leftover stock or mismatched supplies. Customers looking to customize the backside of cards with “fine-print” content can also order Zebra’s monochrome black ribbon. Genuine Zebra supplies meet stringent quality standards. Our supplies deliver consistent results with every print job and minimize wear and tear on critical printer parts—resulting in reduced overall maintenance costs.

CREATE GUEST EXPERIENCES

Reduce Waste and Hassle

Hosting major events requires intense planning and logistical coordination. Eliminate extra work. With Zebra’s ZC10L large-format printer, you no longer have to pre-order and catalog partially preprinted guest badges and tickets. And, you’re never left with the waste of unusable leftover stock after each event.

Your guests work hard. They want value. They expect that an event won’t simply comprise the event itself, but rather be a larger experience. Make your events meaningful and memorable by creating personalized experiences—starting with visually compelling, custom guest access badges and passes.



• • SPECIFICATION

• • • • • • • • • •

STANDARD FEATURES

100 card covered feeder (30 mil), 16-character LCD operator control display, 300 dpi (11.8 dots/mm) print resolution, 45 card capacity output hopper (30 mil), Auto calibration of ribbon, Eco-Friendly Load-N-Go drop-in ribbon cartridges, Microsoft® Certified Windows drivers, Print Touch NFC tag for online printer documentation and tools, Two-year (unlimited passes) original printhead, Two-year warranty on printer, USB 2.0 connectivity, ZRaster™ host-based image processing

Printing

130 cph YMCKO, 545 cph monochrome, Dye-sublimation thermal transfer direct to card, Edge-to-edge printing on standard CR-80 media, Full color or monochrome printing, Single-sided printing

Ribbon

Black Monochrome: 1000 images/roll, White Monochrome: 500 images/roll, YMCKO: 100 images/roll

Card Thickness

10 – 40 mil

Card Size

2.12" (54 mm) x 3.38" (86 mm), CR-80, ISO 7810 format, Type ID-1

Card Material

PVC and PVC composite

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

Operating Humidity: 20% to 65% non-condensing, Operating Temperature: 60ºF to 86ºF/15ºC to 30ºC, Storage Humidity: 20% to 70% non-condensing, Storage Temperature: 23ºF to 131ºF/-5ºC to 55ºC

Media Storage

Do not store in direct sunlight, Humidity: 35% to 65% non-condensing, Temperature: 41ºF to 77ºF/5ºC to 30ºC

Electrical

Auto-switching single-phase AC power, FCC Class A, Frequency range: 47-63 Hz, Operating range: 90-132VAC and 190-264VAC RMS

Interface

Built-in 10/100 Ethernet — optional*, USB V2.0 (cable included) — standard

Length

9.3" (236 mm)

Width

7.9" (200 mm)

Height

13.0" (330 mm)

Weight

11.6 lbs (5.3 kg)

Microsoft Windows® Certified Printer Drivers Supported

Windows 7® (32 and 64 bit), Windows 8® and Win 8 Pro (32 and 64 bit), Windows Server 2008 (32 and 64 bit), Windows Server 2012 (64 bit), Windows Server® 2003 (32 bit), Windows Vista® (32 and 64 bit), Windows® XP (32 bit)

Optional Features

10/100 Ethernet connectivity, 30 mil cards only, high and low coercivity, Magnetic stripe encoder — ISO 7811 (new and pre-encoded); tracks 1, 2 and 3, Manual front card feeder bezel*, Single card cleaner rolling kit*, stripe down, Zebra OneCare extended product warranty programs

Product Warranty

For the complete warranty statement, please visit: www.zebra.com/warranty., The ZXP Series 1 is warranted against defects in workmanship and materials for a period of 2 (two) years from the date of shipment.

BRAND

Printing

• Direct to card — dye diffusion
• Full color or monochrome printing
• Single-sided printing
• Max print speed single-side color 195 cph*
• Max print speed single-sided K mono 360-410 cph*
• Photo-quality images
• Edge-to-edge printing

Standard Features

• USB connectivity
• 200 card (24 mil) capacity feeder
• 70 card capacity output hopper
• Multi-status LED operator display
• 300 dpi print resolution
• 64 MB memory standard
• Zebra CardStudio 2.0 card design and issuance software (30 day trial)
• Microsoft® Windows® drivers

Physical Characteristics

Height 11.42 in./290 mm
Width 10.94 in./278 mm
Depth 19.09 in./485 mm
Weight (Printer Only) 46.3 lbs./21 kg

Software

Supported OS and SW Windows 7, Windows 8.1 and Windows 10 CardStudio 2.0 Card Design and Issuance Software — single user license key
Driver Features Auto sensing of ribbon type Remaining card count on ribbon

User Environment

Operating Temp. 50° F / 10° C to 95° F / 35° C
Storage Temp. -4° F / -20° C to 131° F / 55° C
Operating Humidity 20% to 80% inclusive, non-condensing
Storage Humidity 10% to 95% inclusive, non-condensing
Shipping Temperature -40° F / -40° C to 140° F / 60° C
Shipping Humidity 10% to 95% inclusive, non-condensing

Card Specifications

Card Thickness 24 mil
Card Size 5.5 in. x 3.46 in. (140 mm x 88 mm)
Card Material PVC
Smart Cards HF, UHF, Dual HF/UHF

Supplies

Intelligent technology uses RFID tags to authenticate and automate color ribbon and monochrome ribbon.
Ribbon: YMCO 4-panel: 400 images/roll
Monochrome black: 2000 images/roll

Communications Interfaces

USB 2.0
USB supports plug-and-play printer identification
10/100 Ethernet connectivity (External Print Server Option)

Electrical

Auto-switching AC power
90V~264V AC and 48 – 62 Hz

Options and Accessories

Zebra OneCare Service program
10/1000 Ethernet connectivity External Print Server

Warranty

Subject to the terms of Zebra’s hardware warranty statement, the ZC10L is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, go to
www.zebra.com/warranty
