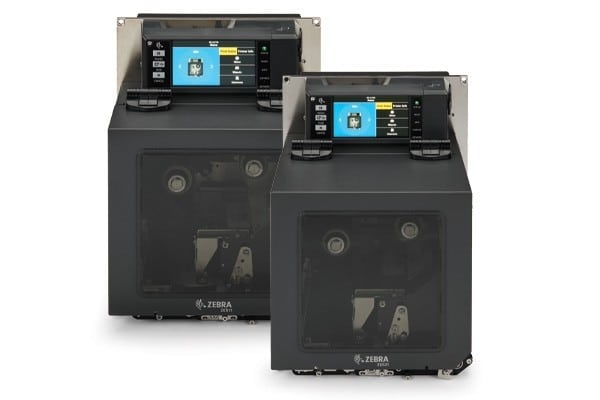

ZE511/ZE521 Rdid Print Engine

Zebra Products In Qatar

MISSION CRITICAL DOESN’T COMPROMISE – NEITHER DO ZEBRA PRINT ENGINES



Your lines and equipment must stand up to the 24/7/365 test, but you need more than just durable performance. Keep your operations moving forward with Zebra’s rugged ZE511 and ZE521 RFID print engines, intelligently engineered to make your work easier – today and tomorrow. These purpose-built essential workers deliver it all: RFID encoding for advanced tracking, fast print speeds and all-metal construction for demanding operation, innovative features and forward capabilities for years of use, along with onboard analytics and expedited maintenance elements to maximize uptime. And, they feature Zebra’s exclusive, industry-leading Print DNA™ software suite that makes them easy to setup, manage, maintain and secure – onsite or remotely. So, go ahead. Push the limits. A Zebra print engine won’t let you down.

ZEBRA RFID: MORE TRANSFORMATION, NO COMPLICATION

Print and Encode With Ease

Featuring Zebra’s own RE40 module, you can easily print and encode 4-inch RFID labels with the ZE511 and 6-inch RFID labels with the ZE521 for deeper visibility and insights in an ever-competitive business environment. Access the intuitive RFID wizards via the screen to get started.

Do RFID Your Way, Automatically

Incorporating Zebra’s exclusive adaptive encoding technology with new algorithms, it eliminates complex and complicated placement guidelines so you can accurately encode smaller labels spaced closely together. Enjoy greater media flexibility and design labels for your application without limitation. Automatically calibrate RFID in minutes and adopt new inlays without pretesting. Simply calibrate and use them.

ENGINEERED TO ENDURE

Encased Design Withstands Harsh Environments

The ZE511 and ZE521 RFID deliver rugged durability to push the limits. Engineered without the need for cooling fans, their external cabinets are designed to resist debris and water ingress making them ideal in dusty environments or where water may be splashed.

• • SPECIFICATION

• • • • • • • • • •

Operating System

Link-OS®

Print Method

Direct Thermal

RESOLUTION

203 dpi/8 dots per mm

Memory

128MB RAM, 256MB Flash (48 MB User Available)

Battery

Li-Ion 2280 mAh, 7.2V, PowerPrecision+

Maximum Print Width

ZQ310 printer: 48 mm/1.89 in., ZQ320 printer: 72 mm/2.83 in.

Maximum Print Speed

Up to 4 ips (100 mm/s)

Media Sensors

BlackBar, Gap, Media Door Open, Media Out

Programming Languages

CPCL, ZPL. The ZPL programming language ensures full compatibility with many other Zebra printers.

Cutter

Tear bar

Print Direction

Horizontal and vertical

Dimensions

ZQ310: 130 mm L x 93.5 mm W x 49.5 mm H | 5.12 in. L x 3.68 in. W x 1.95 in. H, ZQ320: 130 mm L x 117.7 mm W x 49.5 mm H | 5.12 in. L x 4.63 in. W x 1.95 in. H

Volume

ZQ310 printer: 600 cc/36.6 cubic in., ZQ320 printer: 757 cc/46 cubic in.

Weight

ZQ310 printer: 0.37 kg /0.81 lbs, ZQ320 printer: 0.43 kg/0.95 lbs

Media Width

ZQ310: 58 mm ±0.75 mm/2.28 in. ±0.02 in.; spacers available to support 50.8 mm ±0.75 mm/2 in. ±0.02 in., ZQ320: 80 mm ± 0.75 mm/3.15 in. ±0.02 in.; spacers available to support 76 mm ± 0.75 mm/3 in. ±0.02 in.

Maximum Roll Outside Diameter

40 mm/1.57 in.

Media Holder

Drop-in fixed media width (clamshell)

Media Thickness

0.06 mm/0.0023 in. to 0.16 mm/0.0063 in.

Media Type

Direct thermal: receipt paper, labels, linerless labels

Minimum Receipt Length

12.5 mm/0.49 in.

Maximum Receipt Length

Unconstrained in line mode

Label Counter

Odometer

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

-15° to +50° C/5° to +122° F

Storage temperature

-20° to 60° C/-4° to +140° F

Charging Temperature

0° to 40°C/0° to +104° F

Operating Humidity

10% to 90% non-condensing

IP Rating

IP54

Drop Specification

1.5 m/5 ft. tested over operating temp. range

Tumble Specification

500 free falls from 1 m/3.3 ft.

Vibration

MIL STD 810

COMMUNICATION AND INTERFACE CAPABILITIES

• • • • • • • • • •

WLAN¹

802.11ac

WLAN Security

801.1X (with WEP, WPA or WPA2) EAP- FAST, AES encryption, EAP- TTLS, EAP-TLS, LEAP, PEAP, TKIP, WEP, WPA, WPA2

WLAN Features Supported

802.11d, 802.11i, 802.11r, EAP Fast Session resumption, Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), Simultaneous WAN & BT 4.0, Support for Ad Hoc mode

Internet Protocols over WLAN

DHCP/BootP, FTP/Mirror, HTTP, LPD, SMTP / POP3, SNMP, Telnet, UDP/TCP

Bluetooth¹

Dual Radio (802.11ac + BT BR/EDR LE4.0)

USB 2.0

Client, Type- C™ connector

NFC

Passive NFC tag

Host OS Supported

Android 2.3, 4.0, 4.1, iOS 5, iOS 6, iOS 7, iOS 10, Windows compatibility: (CE .NET, Pocket PC, Windows Mobile 2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra Windows printer driver and/or our Mobile SDK controls and other applications)

User Interface

LEDs

Barcode Symbologies

• • • • • • • • • •

Barcode Ratios

1.5:1, 2:1, 2.5:1, 3:1, 3.5:1

1D

2 and 5 digit add-on, Codabar/NW-7, Code 128, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2-of-5, UCC/EAN-128, UPC-A, UPC-E

2D

Aztec, Data Matrix, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39

FONTS AND GRAPHICS

CPCL (Bitmap), CPCL/ZPL (Scalable), ZPL

BRAND

RFID

• Supports tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
• Prints and encodes tags with a minimum pitch of 0.6 in./16 mm
• Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines
• RFID job monitoring tools track RFID performance
• Globally certified in more than 70 countries for RFID to support multinational deployments
• RFID log records all RFID data with timestamps, ensuring complete traceability
• RFID ZPL commands provide compatibility with existing Zebra RFID printers
• Support for industry standard multi-vendor chip-based serialization (MCS)
• Integrated Zebra RE40 RFID Reader/Encoder

Standard Features

• Print Methods: Thermal transfer and direct thermal printing
• Orientation: right-hand or left-hand
• 4.3 in. color touch screen with intuitive menu for quick operation and settings
• Industrial all-metal construction
• Communications: USB 2.0, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1, Dual USB Host, Applicator Interface
• Adjustable transmissive and fixed reflective media sensors
• Quick release, thin film printhead with E3 Element Energy Equalizer for superior print quality
• Real-time clock
• Rotatable screen
• Zebra Designer Essentials: easy label design tool free at
www.zebra.com/zebradesigner
• ENERGY STAR certified
• PDF Direct

Printer Specifications

Resolution ZE511: 203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
600 dpi/24 dots per mm (optional)

ZE521: 203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)

Memory 512MB SDRAM, 512MB Flash
Maximum Print Width ZE511: 4.09 in./104 mm
ZE521: 6.6 in./168 mm
Maximum Print Speed ZE511: 18 ips/457 mm per second @ 203 dpi2
14 ips/356 mm per second @ 300 dpi
6 ips/152 mm per second @ 600 dpi

ZE521: 14 ips/356 mm per second @ 203 dpi
12 ips/305 mm per second @ 300 dpi

Media Sensors Transmissive and reflective
Maximum Continuous Print Length Maximum Continuous Media Print Length
ZE511:  203 dpi: 150 in./3801 mm
300 dpi: 100 in./2540 mm
600 dpi: 50 in./1270 mm

ZE521: 203 dpi: 150 in./3801 mm
300 dpi: 100 in./2540 mm

Media Characteristics

Minimum Label and Liner Length ZE511:
• Applicator mode, backfeed on: 0.50 in./12.7 mm
• Applicator mode, backfeed off: 0.25 in./6.4 mm
• Stream mode: 0.25 in./6.4 mm
• Rewind mode: 0.25 in./6.4 mm “loose loop”
• Tear-off mode, backfeed on: 0.50 in./12.7 mm
• Tear-off mode, backfeed off: 0.25 in./6.4 mm

ZE521:
• Applicator mode, backfeed on: 3.0 in./76.2 mm
• Applicator mode, backfeed off: 1.0 in./25.4 mm
• Rewind mode: 1.0 in./25.4 mm “loose loop”
• Tear-off mode, backfeed on: 3.0 in./76.2 mm
• Tear-off mode, backfeed off: 1.0 in./25.4 mm

Media Width ZE511: .625 in./16 mm – 4.5 in./114 mm

ZE521: 3 in./76 mm – 7.1 in./180 mm

Thickness ZE511: 0.0053 in./0.135 mm to 0.010 in./0.254 mm
ZE521: 0.003 in./0.076 mm to 0.012 in./0.305 mm
Media Types Continuous, die-cut or black mark

Ribbon Characteristics

Standard Length 1,968 ft./600 m
Width ZE511: 1 in./25.4 mm to 4.2 in./107 mm
ZE521: 3 in./76 mm to 7.1 in./180 mm
Core I.D. 1 in./25.4 mm ID

Operating Characteristics

Environmental Operating Temperature: 31°F to 104°F/0°C to 40°C
Operating Humidity: 20% to 95% non-condensing R.H.
Storage/Transportation Temperature: -40°F to 160°F/-40°C to 71°C
Storage Humidity: 5% to 95% non-condensing R.H.
Electrical Universal power supply with power-factor correction 90–264 VAC, 47–63 Hz
Agency Approvals • Standards approvals: IEC 62368-1; EN 55032, Class A; EN 55035; EN 61000-3-2, 3-3
• Product markings, but not limited to: cTUVus; CE; FCC A; ICES-003; VCCI; RCM; CCC; EAC;  S-Mark; KCC; BSMI; India-BIS; In-Metro; Energy Star

Physical Characteristics

Depth ZE511: 14.9 in./379 mm
ZE521: 17.2 in./438 mm
Width ZE511: 9.6 in./245 mm
ZE521: 9.6 in./245 mm
Height ZE511: 11.8 in./300 mm
ZE521: 11.8 in./300 mm
Weight ZE511: 34 lbs/15.4 kg
ZE521: 38 lbs/17.3 kg

Options and Accessories

Communication • Parallel port option card
• Dual band 802.11ac Wi-Fi™ and Bluetooth option card
• 10/100 Ethernet option card
Accessories • Extend peel bar kit
• User Interface extension and mounting kit

Firmware

ZBI 2.0 — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more.
ZPL and ZPL II — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.

Barcode Symbologies

Barcode Ratios: 2:1, 7:3, 5:2, and 3:1
Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Fonts and Graphics

Zebra Global printing solution including Unicode™
Swiss 721 font standard
Bitmap fonts A to H and GS symbols are expandable up to 10 times, height- and width-independent
Smooth-scalable font Ø (CG Triumvirate™ Bold Condensed3) is expandable dot-by-dot, height- and width-independent
IBM® Code Page 850 International Characters
Firmware support for downloadable TrueType™ fonts
Additional fonts available
Supports user-defined fonts and graphics, including custom logos

Consistently Exceptional Zebra Certified Supplies

Printing supplies can impact everything from printhead lifespan to operational efficiency. That’s why we design, produce and rigorously pretest our own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer. We offer the widest selection of in-stock RFID labels and tags for general purpose, advanced and specialty use applications, in a variety of sizes and materials, using inlays from leading manufacturers.
www.zebra.com/supplies

Service When You Need It

You invest in Zebra printers to better serve your customers and boost operational efficiency. Now, you can ensure predictable performance and eliminate unbudgeted repair expenses with Zebra OneCare™. You get unmatched technical support direct from Zebra, as well as comprehensive repair services, including accidental damage and defined repair turn-around times. And Zebra’s Visibility Services provide the real-time insight into printer operational information you need to increase printer availability and optimize utilization within your workflows.
www.zebra.com/zebraonecare

Recommended Services

Zebra OneCare Select™ Comprehensive Coverage, including printheads, normal wear and accidental breakage
Priority access 24×7 live technical support and software updates
Advance Replacement and Express Shipping (Next Day Device Replacement)
Standard Commissioning
Online Return Material Authorization (RMA) support
Zebra OneCare Essential™ Comprehensive Coverage, including printheads, normal wear and accidental breakage
Priority access 8×5 live technical support and software updates
Three-day depot repair turnaround time plus free return ground shipping
Online Return Material Authorization (RMA) support

Footnotes

1. Available on the ZE511 model only
2. Maximum print speed is 18 ips/457 mm per second at 203 dpi in direct thermal mode. Maximum print speed is 14 ips/356 mm per second at 203 dpi in thermal transfer mode.
3. Contains UFST® from Agfa Monotype Corporation

For optimum print quality and printer performance, use Genuine Zebra supplies.

Specifications subject to change without notice.
