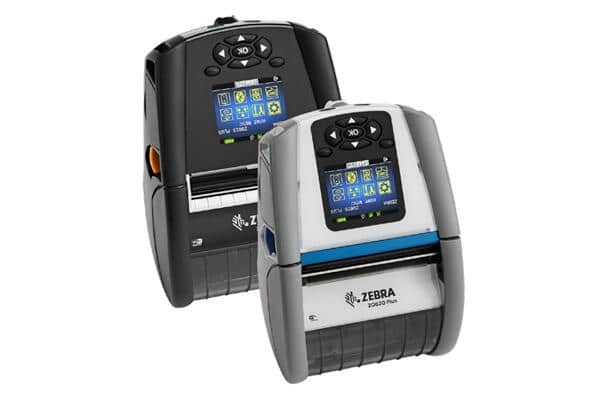

ZQ600 Plus Mobile Printer

Zebra Products In Qatar

PREMIUM MOBILE LABEL AND RECEIPT PRINTERS FOR MAXIMUM PRODUCTIVITY

Want to improve inventory management and customer service in your store? With the ZQ600/ZQ600 Plus Series mobile printer, you can. The ZQ600/ZQ600 Plus Series takes Zebra’s popular QLn platform and makes it even better—adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600/ZQ600 Plus Series never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600/ZQ600 Plus Series easier to integrate, manage, setup and secure. The ZQ600/ZQ600 Plus Series— the next evolution in the gold standard for mobile label and receipt printing. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long-term product continuity and availability. The ZQ600 Plus printers require new, different firmware and drivers.

Industry-Standard 802.11r Fast Roaming for Seamless Access

With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.

Instant Wake-Up Over Wi-Fi

This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600/ZQ600 Plus Series’ instant wake-up works over both Wi-Fi and Bluetooth.

Large Color Display Makes Configuration and Operation a Snap

The ZQ600/ZQ600 Plus Series provides a large display, user-friendly interface and easily customized menu. The ZQ600/ZQ600 Plus Series is based on Zebra’s Link-OS menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop and industrial printers.

Business Tough—Built for All-Day Every Day Enterprise Use

While the ZQ600/ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.

• • SPECIFICATION

• • • • • • • • • •

Operating System

Link-OS®

Print Method

Direct Thermal

RESOLUTION

203 dpi/8 dots per mm

Memory

128MB RAM, 256MB Flash (48 MB User Available)

Battery

Li-Ion 2280 mAh, 7.2V, PowerPrecision+

Maximum Print Width

ZQ310 printer: 48 mm/1.89 in., ZQ320 printer: 72 mm/2.83 in.

Maximum Print Speed

Up to 4 ips (100 mm/s)

Media Sensors

BlackBar, Gap, Media Door Open, Media Out

Programming Languages

CPCL, ZPL. The ZPL programming language ensures full compatibility with many other Zebra printers.

Cutter

Tear bar

Print Direction

Horizontal and vertical

Dimensions

ZQ310: 130 mm L x 93.5 mm W x 49.5 mm H | 5.12 in. L x 3.68 in. W x 1.95 in. H, ZQ320: 130 mm L x 117.7 mm W x 49.5 mm H | 5.12 in. L x 4.63 in. W x 1.95 in. H

Volume

ZQ310 printer: 600 cc/36.6 cubic in., ZQ320 printer: 757 cc/46 cubic in.

Weight

ZQ310 printer: 0.37 kg /0.81 lbs, ZQ320 printer: 0.43 kg/0.95 lbs

Media Width

ZQ310: 58 mm ±0.75 mm/2.28 in. ±0.02 in.; spacers available to support 50.8 mm ±0.75 mm/2 in. ±0.02 in., ZQ320: 80 mm ± 0.75 mm/3.15 in. ±0.02 in.; spacers available to support 76 mm ± 0.75 mm/3 in. ±0.02 in.

Maximum Roll Outside Diameter

40 mm/1.57 in.

Media Holder

Drop-in fixed media width (clamshell)

Media Thickness

0.06 mm/0.0023 in. to 0.16 mm/0.0063 in.

Media Type

Direct thermal: receipt paper, labels, linerless labels

Minimum Receipt Length

12.5 mm/0.49 in.

Maximum Receipt Length

Unconstrained in line mode

Label Counter

Odometer

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

-15° to +50° C/5° to +122° F

Storage temperature

-20° to 60° C/-4° to +140° F

Charging Temperature

0° to 40°C/0° to +104° F

Operating Humidity

10% to 90% non-condensing

IP Rating

IP54

Drop Specification

1.5 m/5 ft. tested over operating temp. range

Tumble Specification

500 free falls from 1 m/3.3 ft.

Vibration

MIL STD 810

COMMUNICATION AND INTERFACE CAPABILITIES

• • • • • • • • • •

WLAN¹

802.11ac

WLAN Security

801.1X (with WEP, WPA or WPA2) EAP- FAST, AES encryption, EAP- TTLS, EAP-TLS, LEAP, PEAP, TKIP, WEP, WPA, WPA2

WLAN Features Supported

802.11d, 802.11i, 802.11r, EAP Fast Session resumption, Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), Simultaneous WAN & BT 4.0, Support for Ad Hoc mode

Internet Protocols over WLAN

DHCP/BootP, FTP/Mirror, HTTP, LPD, SMTP / POP3, SNMP, Telnet, UDP/TCP

Bluetooth¹

Dual Radio (802.11ac + BT BR/EDR LE4.0)

USB 2.0

Client, Type- C™ connector

NFC

Passive NFC tag

Host OS Supported

Android 2.3, 4.0, 4.1, iOS 5, iOS 6, iOS 7, iOS 10, Windows compatibility: (CE .NET, Pocket PC, Windows Mobile 2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra Windows printer driver and/or our Mobile SDK controls and other applications)

User Interface

LEDs

Barcode Symbologies

• • • • • • • • • •

Barcode Ratios

1.5:1, 2:1, 2.5:1, 3:1, 3.5:1

1D

2 and 5 digit add-on, Codabar/NW-7, Code 128, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2-of-5, UCC/EAN-128, UPC-A, UPC-E

2D

Aztec, Data Matrix, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39

FONTS AND GRAPHICS

CPCL (Bitmap), CPCL/ZPL (Scalable), ZPL

BRAND

Standard Features

• Apple® iOS, Android™ and Windows® Mobile connectivity
• Direct thermal printing of barcodes, text and graphics
• CPCL, EPL™ and ZPL® programming languages
• 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
• ZQ620/ZQ620 Plus and ZQ610/ZQ610 Plus: 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery
ZQ630/ZQ630 Plus: 6800 mAh (nominal) 49.4 Wh removable, rechargeable PowerPrecision + Li-Ion battery
• Built-in battery charger
• Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery)
• Black mark and gap media sensing using fixed center position sensors
• Easy-to-use peel and present mode
• Label present sensor for issuing labels one at a time
• Tear bar for easy media dispensing
• Center-loading media locking for variable roll widths
• “Clamshell” design for easy media loading
• Management: Mirror, SNMP, Web server, Profile Manager, AirWatch®, SOTI® MobiControl™ and Ivanti Avalanche® (powered by Wavelink)
• Large, easy-to-read color display (288 x 240 pixels)
• Color display can be customized using WML (text and icons)
• 5-way navigation buttons, two software defined keys
• Printer color alerts on the display
• Tolerance of multiple drops from 5 ft./1.52 m (ZQ620/ZQ620 Plus and ZQ610/ZQ610 Plus) and 6 ft./1.83 m (ZQ630/ZQ630 Plus) to concrete²
• IP54 dust and water resistance rating
• 400 MHz 32-bit ARM processor
• XML support
• Supports vertical and horizontal printing
• Printers can be used in any orientation
• QR barcode links to web-based help pages
• Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with Near Field Communication (NFC) enabled devices
• Label odometer
• NTP (Network Time Protocol) support via Wi-Fi or Ethernet
• Supports Zebra Network Connect manufacturing plant floor solution when used with the Ethernet cradle
• RFID is available on the ZQ630/ZQ630 Plus as a separate product (please see the ZQ630/ZQ630 Plus RFID Spec Sheet for more information)

Physical Characteristics

Dimensions ZQ610/ZQ610 Plus:
6.73 in. L x 3.6 in. W x 2.85 in. H
170.9 mm L x 91.4 mm W x 72.4 mm H

ZQ620/ZQ620 Plus:
6.84 in. L x 4.64 in. W x 3.03 in. H
173.7 mm L x 117.9 mm W x 76.9 mm H

ZQ630/ZQ630 Plus:
7.35 in. L x 6.5 in. W x 3.25 in. H
186.7 mm L x 165.1 mm W x 82.5 mm H

Note: The Extended Capacity Li-Ion smart battery option adds 0.6 in./16 mm to the height of either ZQ600/ZQ600 Plus Series printer.

Weight with battery ZQ610/ZQ610 Plus: 1.33 lbs/0.6 kg
ZQ620/ZQ620 Plus: 1.6 lbs/0.73 kg
ZQ630/ZQ630 Plus: 2.45 lbs/1.1 kg

Printer Specifications

Operating System Link-OS®
Resolution 203 dpi/8 dots per mm
Memory 256 MB RAM; 512 MB Flash (standard)
Maximum
Print Width
ZQ610/ZQ610 Plus: 1.9 in./48 mm
ZQ620/ZQ620 Plus: 2.8 in./72 mm
ZQ630/ZQ630 Plus: 4.1 in./104 mm
Maximum
Print Speed
Up to 4.5 in./115 mm per second
Media Sensors Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time
Print Length Minimum: 0.5 in./12.7 mm
Maximum: 32 in./813 mm
Power ZQ610/ZQ610 Plus and ZQ620/ZQ620 Plus: 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery
ZQ630/ZQ630 Plus: 6800 mAh (nominal) 49.4 Wh removable PowerPrecision+ Li-Ion battery

Media Characteristics

Label
and Liner Length
0.5 in./12.7 mm to 32 in./813 mm or continuous
Media Width ZQ610/ZQ610 Plus: 1.0 in./25 mm to 2.18 in./55.4 mm
ZQ620/ZQ620 Plus: 1.0 in./25 mm to 3.125 in./79 mm
ZQ630/ZQ630 Plus: 2.0 in./51 mm to 4.4 in./112 mm
(linered) 2.0 in./51 mm to 4.1 in./104 mm (linerless)
Maximum Media
Roll Size
ZQ610/ZQ610 Plus: 2.2 in./55.9 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core
ZQ620/ZQ620 Plus: 2.6 in./66 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core
ZQ630/ZQ630 Plus: 2.6 in./66 mm O.D. on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core
Thickness 2.3 mil to 5.5 mil tag stock or 6.5 mil label stock
Media Types Die-cut labels and tags, linerless labels, receipt paper, RFID (ZQ630/ZQ630 Plus RFID compatible), black bar and gap

Operating Characteristics

Environment Operating Temp.: -4°F to 122°F/-20°C to 50°C
Operating Humidity: 10% to 90% non-condensing
Storage/Transportation Temp.: -13°F to 149°F/-25°C to 65°C1
Storage Humidity: 10% to 90% non-condensing
Agency Approvals Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B

Susceptibility: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5

Safety: CE, TUV, CSA

Security FIPS support is available at no cost as a printer OS download. Please contact your Zebra Sales Representative for further information.

Firmware

CPCL, EPL and ZPL programming languages

ZBI 2.x™—powerful programming language that lets printers run standalone applications, connect to peripherals, and much more

Barcode Symbologies

Barcode Ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1

Linear Barcodes: Code 39, Code 93, UCC/EAN128, Code 128, Codabar (NW-7), Interleaved 2-of-5, UPC-A, UPC-E, 2 and 5 digit add-on, EAN-8, EAN-13, 2 and 5 digit add-on

2D Barcodes: PDF417, MicroPDF417, MaxiCode, QR Code, GS1/DataBar™ (RSS) family, Aztec, MSI/ Plessey, FIM Postnet, Data Matrix, TLC39

Fonts and Graphics

Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed¹)
Optional Fonts: downloadable bitmapped/scalable fonts
International Character Sets (optional): Chinese (traditional/simplified); Japanese; Korean; Thai, Vietnamese

¹Contains UFST® from Agfa Monotype Corporation

Communication and Interface Capabilities

ZebraNet® 802.11ac radio with support for:

• TKIP and AES encryption
• WPA and WPA2
• 802.1x (with WPA or WPA2)
• EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
• 802.11d and 802.11i
• Simultaneous Bluetooth 4.2 dual radio
• Wi-Fi Certification
• Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), EAP Fast Session resumption or 802.11r

Bluetooth 4.2 (Classic and BLE) radio
•
Security modes 1–4
• “Made for iPod/iPhone/iPad” certified
• Key Bonding

10/100 Ethernet support (via charging cradle)

Cabled Communications Specifications
•
USB 2.0 full-speed interface (12 Mbps)
• Mini-B connector with optional strain relief
• Serial interface: 14-pin RS-232C port for communication to terminal or other host up to 115.2 Kbps

Print DNA Software

Durable printers are essential, but it’s the software inside that will keep them in action. That’s why we built Zebra Print DNA into our printers. It’s a suite of software capabilities that give you the ability to optimize printer performance over their entire lifecycle even as your business needs evolve.
