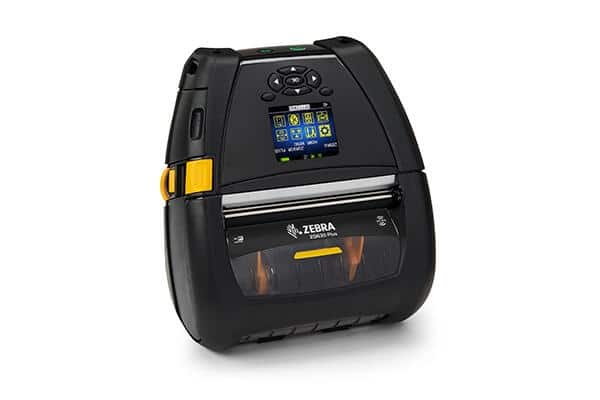

ZQ630 Plus RFID Printer
PREMIUM MOBILE PRINTING AND RFID CAPABILITIES FOR MAXIMUM PRODUCTIVITY
Always on the edge of innovation, Zebra offers premium RFID mobile printers to give your workers a leading advantage. The ZQ630/ZQ630 Plus RFID rounds out Zebra’s ZQ600/ZQ600 Plus Series printers with advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Save time, reduce errors, print and encode RFID labels and tags on the spot with ease. A large color display takes all the guesswork out of printer status. Advanced battery technology powers every minute of the longest shift. The instant wake-up feature on Wi-Fi or Bluetooth® ensures the ZQ630/ZQ630 Plus RFID never sleeps on the job. And, the ZQ630/ZQ630 Plus RFID is easier to integrate, manage, setup and secure. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long-term product continuity and availability. The ZQ600 Plus printers require new, different firmware and drivers.
RFID setup is simple with automatic calibration features that eliminate complex RFID placement guidelines. Insert the RFID media into the ZQ630/ZQ630 Plus and RFID calibrate only once—no need to recalibrate with same-type media changes.
The Latest Wireless Connections
The ZQ630/ZQ630 Plus RFID offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth Classic and Low Energy (BLE), your workers can count on blazing fast and secure connections.
Industry-Standard 802.11r Fast Roaming for Seamless Access
With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.
Business Tough—Built for All-Day Every Day Enterprise Use
While the ZQ630/ZQ630 Plus RFID is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.
SUPERIOR BATTERY POWER AND POWER MANAGEMENT
Do More on a Single Charge
With the ZQ630/ZQ630 Plus RFID’s high-capacity 6800 mAH battery, you can be sure that every worker has plenty of power for every shift.
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| Operating System | Link-OS® |
| Print Method | Direct Thermal |
| RESOLUTION | 203 dpi/8 dots per mm |
| Memory | 128MB RAM, 256MB Flash (48 MB User Available) |
| Battery | Li-Ion 2280 mAh, 7.2V, PowerPrecision+ |
| Maximum Print Width | ZQ310 printer: 48 mm/1.89 in., ZQ320 printer: 72 mm/2.83 in. |
| Maximum Print Speed | Up to 4 ips (100 mm/s) |
| Media Sensors | BlackBar, Gap, Media Door Open, Media Out |
| Programming Languages | CPCL, ZPL. The ZPL programming language ensures full compatibility with many other Zebra printers. |
| Cutter | Tear bar |
| Print Direction | Horizontal and vertical |
| Dimensions | ZQ310: 130 mm L x 93.5 mm W x 49.5 mm H | 5.12 in. L x 3.68 in. W x 1.95 in. H, ZQ320: 130 mm L x 117.7 mm W x 49.5 mm H | 5.12 in. L x 4.63 in. W x 1.95 in. H |
| Volume | ZQ310 printer: 600 cc/36.6 cubic in., ZQ320 printer: 757 cc/46 cubic in. |
| Weight | ZQ310 printer: 0.37 kg /0.81 lbs, ZQ320 printer: 0.43 kg/0.95 lbs |
| Media Width | ZQ310: 58 mm ±0.75 mm/2.28 in. ±0.02 in.; spacers available to support 50.8 mm ±0.75 mm/2 in. ±0.02 in., ZQ320: 80 mm ± 0.75 mm/3.15 in. ±0.02 in.; spacers available to support 76 mm ± 0.75 mm/3 in. ±0.02 in. |
| Maximum Roll Outside Diameter | 40 mm/1.57 in. |
| Media Holder | Drop-in fixed media width (clamshell) |
| Media Thickness | 0.06 mm/0.0023 in. to 0.16 mm/0.0063 in. |
| Media Type | Direct thermal: receipt paper, labels, linerless labels |
| Minimum Receipt Length | 12.5 mm/0.49 in. |
| Maximum Receipt Length | Unconstrained in line mode |
| Label Counter | Odometer |
| • • ENVIRONMENTAL | • • • • • • • • • • |
| Operating Temperature | -15° to +50° C/5° to +122° F |
| Storage temperature | -20° to 60° C/-4° to +140° F |
| Charging Temperature | 0° to 40°C/0° to +104° F |
| Operating Humidity | 10% to 90% non-condensing |
| IP Rating | IP54 |
| Drop Specification | 1.5 m/5 ft. tested over operating temp. range |
| Tumble Specification | 500 free falls from 1 m/3.3 ft. |
| Vibration | MIL STD 810 |
| COMMUNICATION AND INTERFACE CAPABILITIES | • • • • • • • • • • |
| WLAN¹ | 802.11ac |
| WLAN Security | 801.1X (with WEP, WPA or WPA2) EAP- FAST, AES encryption, EAP- TTLS, EAP-TLS, LEAP, PEAP, TKIP, WEP, WPA, WPA2 |
| WLAN Features Supported | 802.11d, 802.11i, 802.11r, EAP Fast Session resumption, Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), Simultaneous WAN & BT 4.0, Support for Ad Hoc mode |
| Internet Protocols over WLAN | DHCP/BootP, FTP/Mirror, HTTP, LPD, SMTP / POP3, SNMP, Telnet, UDP/TCP |
| Bluetooth¹ | Dual Radio (802.11ac + BT BR/EDR LE4.0) |
| USB 2.0 | Client, Type- C™ connector |
| NFC | Passive NFC tag |
| Host OS Supported | Android 2.3, 4.0, 4.1, iOS 5, iOS 6, iOS 7, iOS 10, Windows compatibility: (CE .NET, Pocket PC, Windows Mobile 2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra Windows printer driver and/or our Mobile SDK controls and other applications) |
| User Interface | LEDs |
| Barcode Symbologies | • • • • • • • • • • |
| Barcode Ratios | 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1 |
| 1D | 2 and 5 digit add-on, Codabar/NW-7, Code 128, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2-of-5, UCC/EAN-128, UPC-A, UPC-E |
| 2D | Aztec, Data Matrix, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39 |
| FONTS AND GRAPHICS | CPCL (Bitmap), CPCL/ZPL (Scalable), ZPL |
| BRAND |
RFID Features
| • Supports tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols • Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines • RFID job-monitoring tools track RFID performance • RFID ZPL commands provide compatibility with existing Zebra RFID printers • Support for industry standard multi-vendor chip-based serialization (MCS) • Supports block permalocking of user memory compatible with ATA Spec 2000 • Integrated RFID Reader/Encoder • Prints and encodes tags with a minimum pitch of 16 mm |
Standard Features
| • Apple® iOS, Android™ and Windows® Mobile connectivity • Direct thermal printing of barcodes, text and graphics • CPCL, EPL™ and ZPL® programming languages • 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage) • 6800 mAh (nominal) 49.4 Wh removable, rechargeable PowerPrecision + Li-Ion battery • Built-in battery charger • Belt clip for unobtrusive and convenient printing • Black mark sensing using fixed center position sensors • Easy-to-use peel and present mode • Label present sensor for issuing labels one at a time • Tear bar for easy media dispensing • Center-loading media locking for variable roll widths • “Clamshell” design for easy media loading • Management: Mirror, SNMP, Web server, Profile Manager, AirWatch®, SOTI® MobiControl™ and Ivanti Avalanche® (powered by Wavelink) • Large, easy-to-read color display (288 x 240 pixels) • Color display can be customized using WML (text and icons) • 5-way navigation buttons, two software defined keys • Printer color alerts on the display • Tolerance of multiple drops from 6 ft./1.83 m to concrete • IP54 dust and water resistance rating • 400 MHz 32-bit ARM processor • XML support • Supports vertical and horizontal printing • Printers can be used in any orientation • QR barcode links to web-based help pages • Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with Near Field Communication (NFC) enabled devices • Label odometer • NTP (Network Time Protocol) support via Wi-Fi or Ethernet • Supports Zebra Network Connect manufacturing plant floor solution when used with the Ethernet cradle |
Physical Characteristics
| Dimensions | 7.35 in. L x 6.5 in. W x 3.25 in. H 187mm L x 165 mm W x 82.5 H mm |
| Weight with battery | 2.45 lbs/1.1 kg |
Printer Specifications
| Operating System | Link-OS® |
| Resolution | 203 dpi/8 dots per mm |
| Memory | 256 MB RAM; 512 MB Flash (standard) |
| Maximum Print Width | 4.1 in./104 mm |
| Maximum Print Speed | Up to 4.5 in./115 mm per second |
| Media Sensors | Black mark sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time |
| Print Length | Minimum: 0.5 in./12.7 mm Maximum: 32 in./813 mm |
| Power | 6800 mAh (nominal) 49.4 Wh removable PowerPrecision+ Li-Ion battery |
Media Characteristics
| Label and Liner Length | 0.5 in./12.7 mm to 32 in./813 mm or continuous |
| Media Width | 2.0 in./51 mm to 4.4 in./112 mm (linered) |
| Maximum Media Roll Size | 2.6 in./66 mm O.D. on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core |
| Thickness | 3.2 mil to 5.5 mil tag stock or 7.5 mil label stock |
| Media Types | Die-cut labels and tags, receipt paper, RFID (ZQ630 Plus RFID compatible), black bar Note: ZQ630 Plus RFID requires black mark media and does not support gap sensing |
Operating Characteristics
| Environment | Operating Temp.: -4°F to 122°F/-20°C to 50°C Operating Humidity: 10% to 90% non-condensing Storage/Transportation Temp.: -13°F to 149°F/-25°C to 65°C1 Storage Humidity: 10% to 90% non-condensing |
| Agency Approvals | Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B Susceptibility: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5 Safety: CE, TUV, CSA |
| Security | FIPS support is available at no cost as a printer OS download. Please contact your Zebra Sales Representative for further information. |
Firmware
| CPCL, EPL and ZPL programming languages ZBI 2.x™ — powerful programming language that lets printers run standalone applications, connect to peripherals, and much more |
Barcode Symbologies
| Barcode Ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1 Linear Barcodes: Code 39, Code 93, UCC/EAN128, Code 128, Codabar (NW-7), Interleaved 2-of-5, UPC-A, UPC-E, 2 and 5 digit add-on, EAN-8, EAN-13, 2 and 5 digit add-on 2D Barcodes: PDF417, MicroPDF417, MaxiCode, QR Code, GS1/DataBar™ (RSS) family, Aztec, MSI/ Plessey, FIM Postnet, Data Matrix, TLC39 |
Fonts and Graphics
| Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed*) Optional Fonts: downloadable bitmapped/scalable fonts International Character Sets (optional): Chinese (traditional/simplified); Japanese; Korean; Thai, Vietnamese *Contains UFST® from Agfa Monotype Corporation |
Communication and Interface Capabilities
ZebraNet® 802.11ac radio with support for:
10/100 Ethernet support (via charging cradle) Cabled Communications Specifications
|
Print DNA Software
| Durable printers are essential, but it’s the software inside that will keep them in action. That’s why we built Zebra Print DNA into our printers. It’s a suite of software capabilities that give you the ability to optimize printer performance over their entire lifecycle even as your business needs evolve. For more information, please visit www.zebra.com/printdna |
