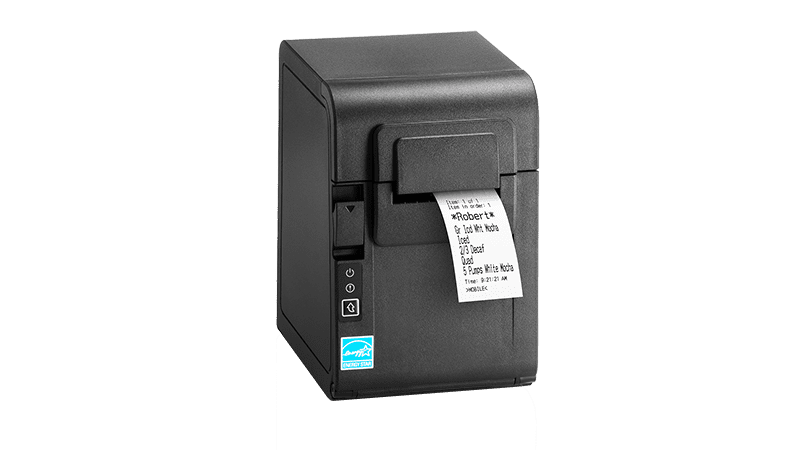

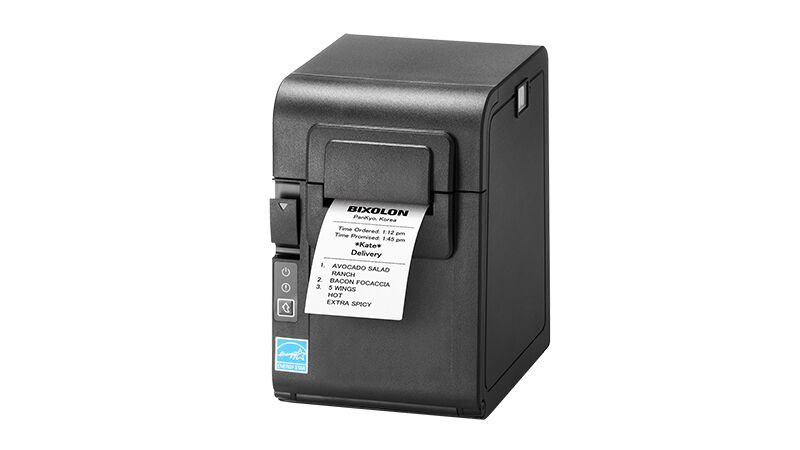

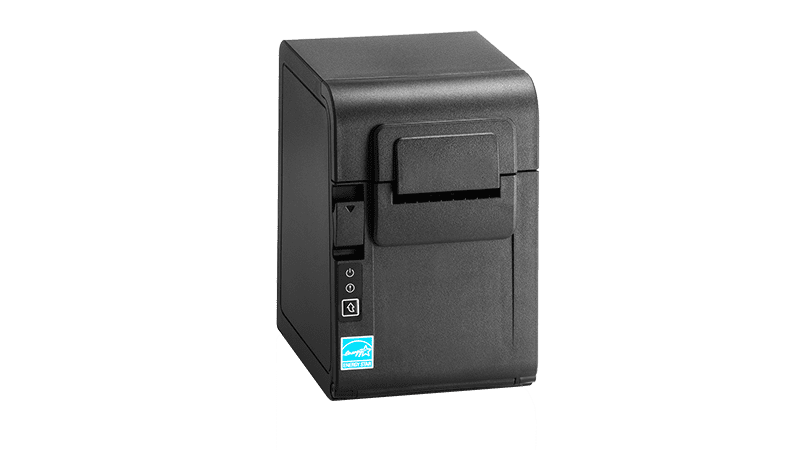

Bixolon SRP-S200
The SRP-S200 is the world’s first 2-inch(58 mm) thermal linerless printer which is ideal for light-adhesive labelling applications.
The SRP-S200 is the world’s first 2-inch(58 mm) thermal linerless printer which is ideal for light-adhesive labelling applications. Thanks to its compact design with IP23 rating, the SRP-S200 is ideal for use in the small, compact kitchen environments. Supporting print speeds of up to 150 mm/sec and 2 widths of media. Coupled with a paper saving mode, its back-feed function reduces total media consumption by up to 40%, resulting in lower TCO and eco benefits. The SRP-S200 also provides an outstanding user experience with toolless maintenance of TPH, Platen Roller, and Auto Cutter.
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| Print Method | Direct Thermal |
| Print Speed | Up to 80 mm/sec |
| PRINT RESOLUTION | 203 dpi |
| PRINT WIDTH | Up to 48 mm |
| SENSOR | Cover Open, Paper End, Paper Near End |
| Media Type | Receipt |
| Media Width | 57.5 mm |
| Media Roll Size | Up to 60 mm |
| Media Thickness | 0.05 ~ 0.08mm |
| Supply Method | Easy Paper Loading |
| DIMENSION (W X D X H IN MM) | 116 x 180 x 90 mm |
| Weight | 450 g (0.99 lbs.) |
| Electrical | 50/60Hz, External Power Adaptor 100-240V AC |
| Drawer Port | 2 Ports (Via y-type adaptor) |
| NV Image Memory | 256 Kbytes (Mono) |
| Receive Buffer | 64 Kbytes |
| User Define Buffer | 12 Kbytes |
| Interface | ① USB V2.0 FS + Serial, ② USB V2.0 FS + Parallel |
| • • ENVIRONMENTAL | • • • • • • • • • • |
| Operating Temperature | Operating: 0 ~ 40℃ (32 ~ 104℉), Storage: -20 ~ 60℃ (-4 ~ 140℉) |
| Operating Humidity | Operating: 10 ~ 80% RH, Storage: 10 ~ 90% RH |
| Thermal Print Head (TPH) | 50 km |
| Emulation | BXL / POS |
| Driver / Utility | Linux / Mac CUPS Driver, OPOS / JPOS Driver, Utility Program, Virtual COM USB / Ethernet Driver, Windows Driver |
| SDK / Plugin | Android SDK, Linux SDK |
| • •Fonts/Graphics/Symbologies | • • • • • • • • • • |
| Character Size | Font A: 12 x 24, Font B: 9 x 17, Font C: 9 x 24, KOR, CHN, JPN: 24 x 24 |
| Characters Per Line | Font A: 32, Font B, C: 42, KOR, CHN, JPN: 16 |
| Character Sets | Alphanumeric: 95, Expanded Graphics: 128 x 33 page, International: 32 |
| Graphics | Supporting user-defined fonts, graphics, formats, and logos |
| Barcode Symbologies | • • • • • • • • • • |
| 1D | Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, ITF, UPC-A, UPC-E |
| 2D | PDF417, QR code |
| Optional Accessories | B-Melodist, External buzzer, USB A-B Cable 1.8m |
| BRAND |
First in its Class
- Built for 2-inch restick media
- 2 media widths supported: 40 / 58 mm
- Fast print speed of up to 150 mm/sec at 203dpi
- USB V2.0 FS + Ethernet + Serial interface
- BIXOLON Profile Manager – XPM™, XCM™ (Windows, Android)
Small in Size, Easy to Use
- Compact 2-inch printing solution for limited workspaces
- Easy toolless replacement of TPH, Platen Roller and Auto Cutter
- IP23 rating and built-in SMPS delivers water resistant operation
- Optional alarm notifications to support busy kitchen environments
Productivity Driving Technology
- Paper saving mode and back-feed function (offering up to 40% media saved)
- Special paper path design and an automatic guillotine cutting system
- Taken Sensor™ : Label will not continue to print until current label is removed to prevent jamming
