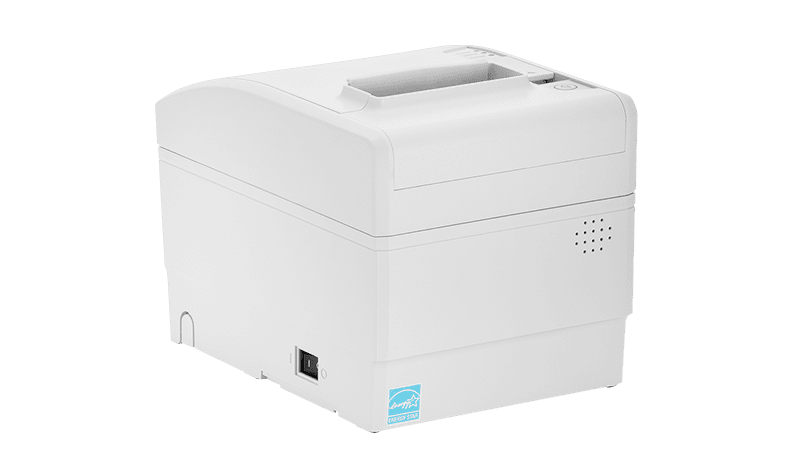

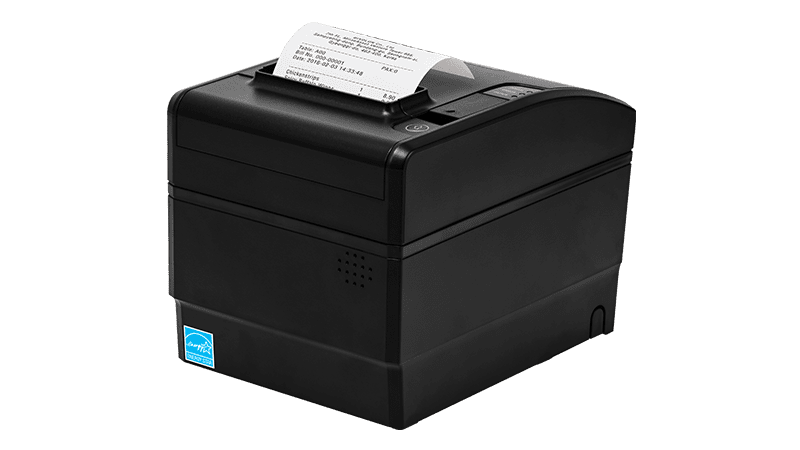

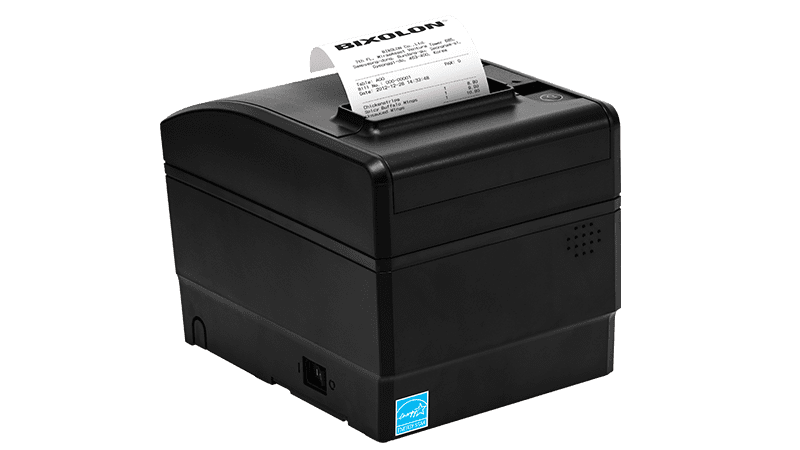

Bixolon SRP-S300 Series
Providing environmentally friendly printing, the SRP-S300 Series high performance, 3-inch thermal linerless printer provides excellent printing quality of up to 203 dpi.
Providing environmentally friendly printing, the SRP-S300 Series high performance, 3-inch thermal linerless printer provides excellent printing quality of up to 203 dpi. The printing solution supports various widths of media, roll diameter of up to 120 mm and a number of economic features including back-feed function.
Supporting an ergonomic design and built-in power supply to save on counter space and protect against water damage. The Linerless printer is bundled with B-Melodist an audio and visual indicator. Supplied with optional I/F card, a wide range of connectivity choices are provided including USB 2.0, Serial, Ethernet, Parallel, WLAN and Bluetooth. The SRP-S300 Series is compatible with market-leading programming languages.
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| Print Method | Direct Thermal |
| Print Speed | Up to 80 mm/sec |
| PRINT RESOLUTION | 203 dpi |
| PRINT WIDTH | Up to 48 mm |
| SENSOR | Cover Open, Paper End, Paper Near End |
| Media Type | Receipt |
| Media Width | 57.5 mm |
| Media Roll Size | Up to 60 mm |
| Media Thickness | 0.05 ~ 0.08mm |
| Supply Method | Easy Paper Loading |
| DIMENSION (W X D X H IN MM) | 116 x 180 x 90 mm |
| Weight | 450 g (0.99 lbs.) |
| Electrical | 50/60Hz, External Power Adaptor 100-240V AC |
| Drawer Port | 2 Ports (Via y-type adaptor) |
| NV Image Memory | 256 Kbytes (Mono) |
| Receive Buffer | 64 Kbytes |
| User Define Buffer | 12 Kbytes |
| Interface | ① USB V2.0 FS + Serial, ② USB V2.0 FS + Parallel |
| • • ENVIRONMENTAL | • • • • • • • • • • |
| Operating Temperature | Operating: 0 ~ 40℃ (32 ~ 104℉), Storage: -20 ~ 60℃ (-4 ~ 140℉) |
| Operating Humidity | Operating: 10 ~ 80% RH, Storage: 10 ~ 90% RH |
| Thermal Print Head (TPH) | 50 km |
| Emulation | BXL / POS |
| Driver / Utility | Linux / Mac CUPS Driver, OPOS / JPOS Driver, Utility Program, Virtual COM USB / Ethernet Driver, Windows Driver |
| SDK / Plugin | Android SDK, Linux SDK |
| • •Fonts/Graphics/Symbologies | • • • • • • • • • • |
| Character Size | Font A: 12 x 24, Font B: 9 x 17, Font C: 9 x 24, KOR, CHN, JPN: 24 x 24 |
| Characters Per Line | Font A: 32, Font B, C: 42, KOR, CHN, JPN: 16 |
| Character Sets | Alphanumeric: 95, Expanded Graphics: 128 x 33 page, International: 32 |
| Graphics | Supporting user-defined fonts, graphics, formats, and logos |
| Barcode Symbologies | • • • • • • • • • • |
| 1D | Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, ITF, UPC-A, UPC-E |
| 2D | PDF417, QR code |
| Optional Accessories | B-Melodist, External buzzer, USB A-B Cable 1.8m |
| BRAND |
Multiple Media Choices
- Supports both Linerless Label and Receipt printing
- Various media widths supported
- SRP-S300: 40 / 58 / 62 / 80 / 83 mm
- SRP-S320: 40 / 58 / 62 / 80 mm
- Handling large media roll diametre of up to 103 mm (SRP-S300) and 120 mm (SRP-S320)
Exceptional Technology
- A water-resistant cover protects the main-board from water and moisture (IP21 certified)
- Optional Taken Sensor™ : Label will not continue to print until current label is removed to prevent jamming
- Built-in B-melodist: Alarm for order notification
- Voice error message
- SRP-S300Hi/S320Hi : Connects various USB peripherals, web & cloud based printing
Anti-jamming Technology
- Special paper path design and an automatic guillotine cutting system
- Equipped with specialized back-feed function (up to 20% of media saved)
- Paper saving mode reduces the length of a label up to 25%
- Optional Taken Sensor™ : Label will not continue to print until current label is removed to prevent jamming”
