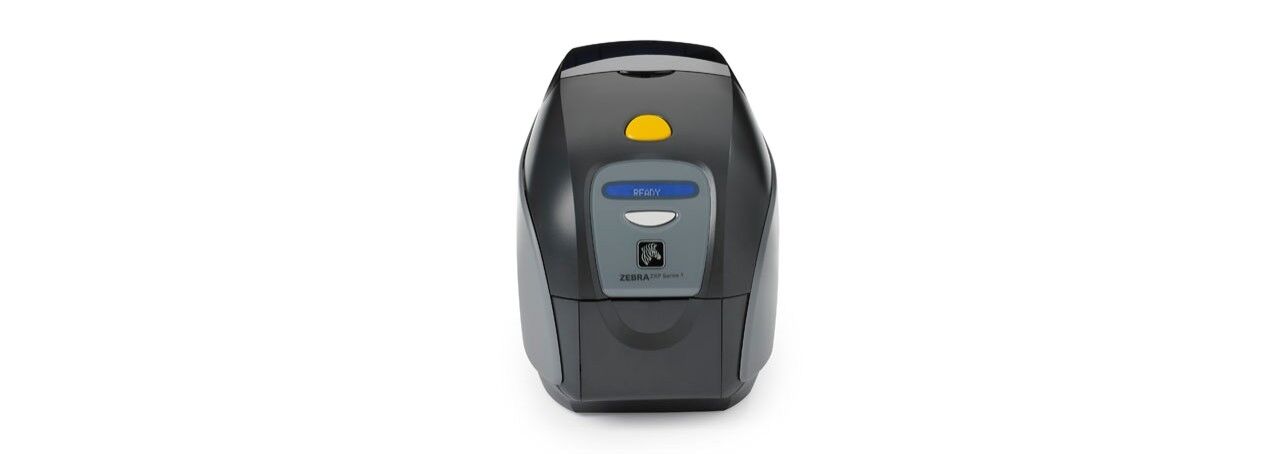

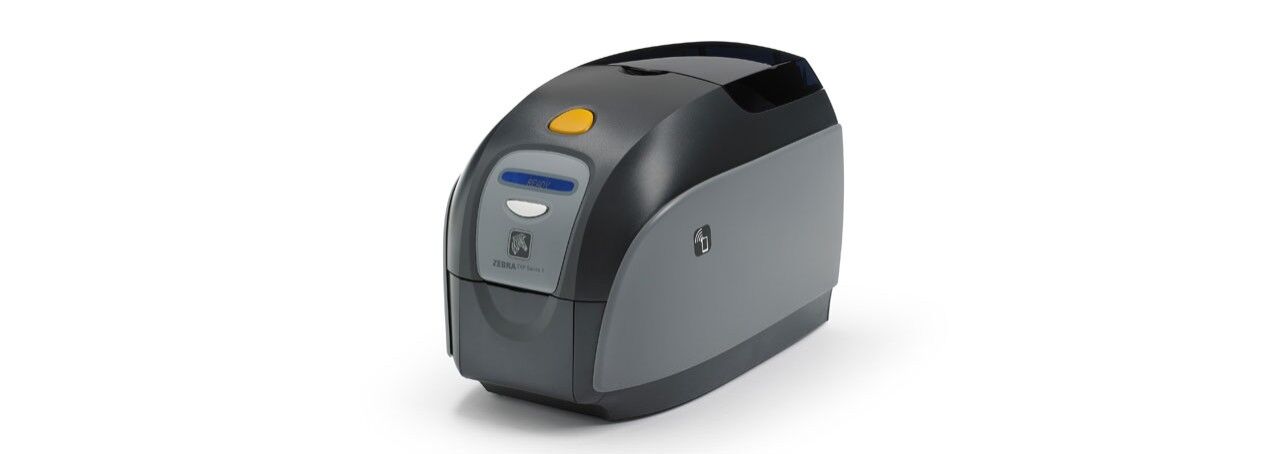

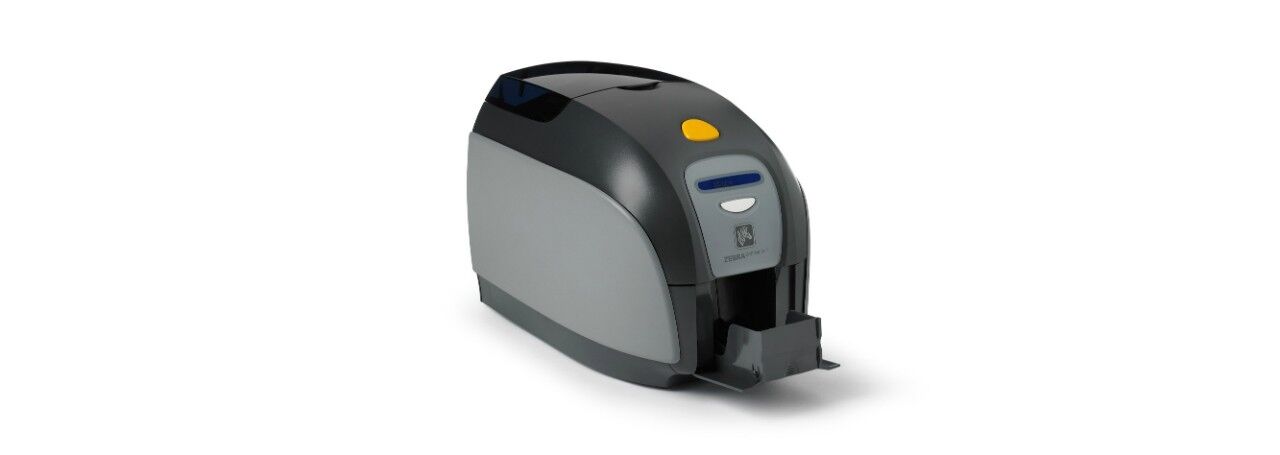

Card Printer ZXP Series 1

Zebra Products In Qatar

The ZXP Series 1™ card printer provides high-quality card printing at an affordable price. Ideal for low-volume, single-sided printing applications in color or monochrome, the ZXP Series 1 offers a complete card printing solution with minimal upfront investment. These features along with Zebra’s eco-friendly print cartridges make it the best entry-level printer on the market.

The ZXP Series 1™ card printer provides high-quality card printing at an affordable price. Ideal for low-volume, single-sided printing applications in color or monochrome, the ZXP Series 1 offers a complete card printing solution with minimal upfront investment. These features along with Zebra’s eco-friendly print cartridges make it the best entry-level printer on the market.



• • SPECIFICATION

• • • • • • • • • •

STANDARD FEATURES

100 card covered feeder (30 mil), 16-character LCD operator control display, 300 dpi (11.8 dots/mm) print resolution, 45 card capacity output hopper (30 mil), Auto calibration of ribbon, Eco-Friendly Load-N-Go drop-in ribbon cartridges, Microsoft® Certified Windows drivers, Print Touch NFC tag for online printer documentation and tools, Two-year (unlimited passes) original printhead, Two-year warranty on printer, USB 2.0 connectivity, ZRaster™ host-based image processing

Printing

130 cph YMCKO, 545 cph monochrome, Dye-sublimation thermal transfer direct to card, Edge-to-edge printing on standard CR-80 media, Full color or monochrome printing, Single-sided printing

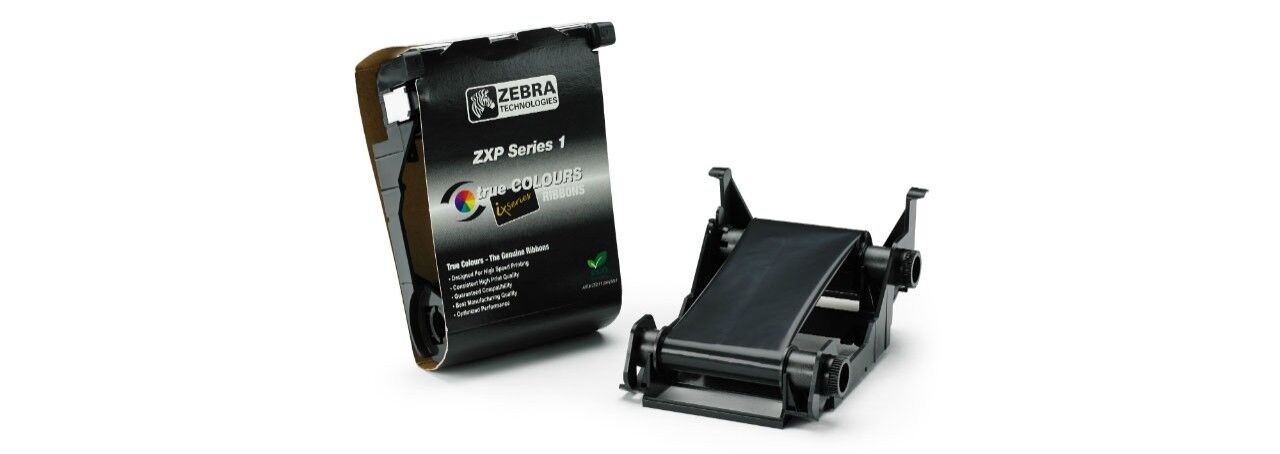

Ribbon

Black Monochrome: 1000 images/roll, White Monochrome: 500 images/roll, YMCKO: 100 images/roll

Card Thickness

10 – 40 mil

Card Size

2.12" (54 mm) x 3.38" (86 mm), CR-80, ISO 7810 format, Type ID-1

Card Material

PVC and PVC composite

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

Operating Humidity: 20% to 65% non-condensing, Operating Temperature: 60ºF to 86ºF/15ºC to 30ºC, Storage Humidity: 20% to 70% non-condensing, Storage Temperature: 23ºF to 131ºF/-5ºC to 55ºC

Media Storage

Do not store in direct sunlight, Humidity: 35% to 65% non-condensing, Temperature: 41ºF to 77ºF/5ºC to 30ºC

Electrical

Auto-switching single-phase AC power, FCC Class A, Frequency range: 47-63 Hz, Operating range: 90-132VAC and 190-264VAC RMS

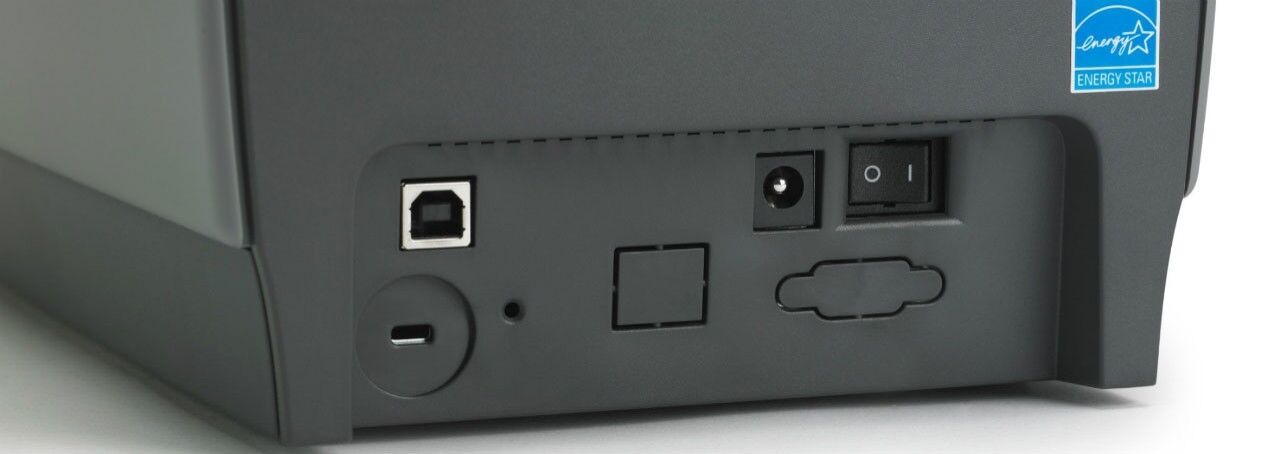

Interface

Built-in 10/100 Ethernet — optional*, USB V2.0 (cable included) — standard

Length

9.3" (236 mm)

Width

7.9" (200 mm)

Height

13.0" (330 mm)

Weight

11.6 lbs (5.3 kg)

Microsoft Windows® Certified Printer Drivers Supported

Windows 7® (32 and 64 bit), Windows 8® and Win 8 Pro (32 and 64 bit), Windows Server 2008 (32 and 64 bit), Windows Server 2012 (64 bit), Windows Server® 2003 (32 bit), Windows Vista® (32 and 64 bit), Windows® XP (32 bit)

Optional Features

10/100 Ethernet connectivity, 30 mil cards only, high and low coercivity, Magnetic stripe encoder — ISO 7811 (new and pre-encoded); tracks 1, 2 and 3, Manual front card feeder bezel*, Single card cleaner rolling kit*, stripe down, Zebra OneCare extended product warranty programs

Product Warranty

For the complete warranty statement, please visit: www.zebra.com/warranty., The ZXP Series 1 is warranted against defects in workmanship and materials for a period of 2 (two) years from the date of shipment.
