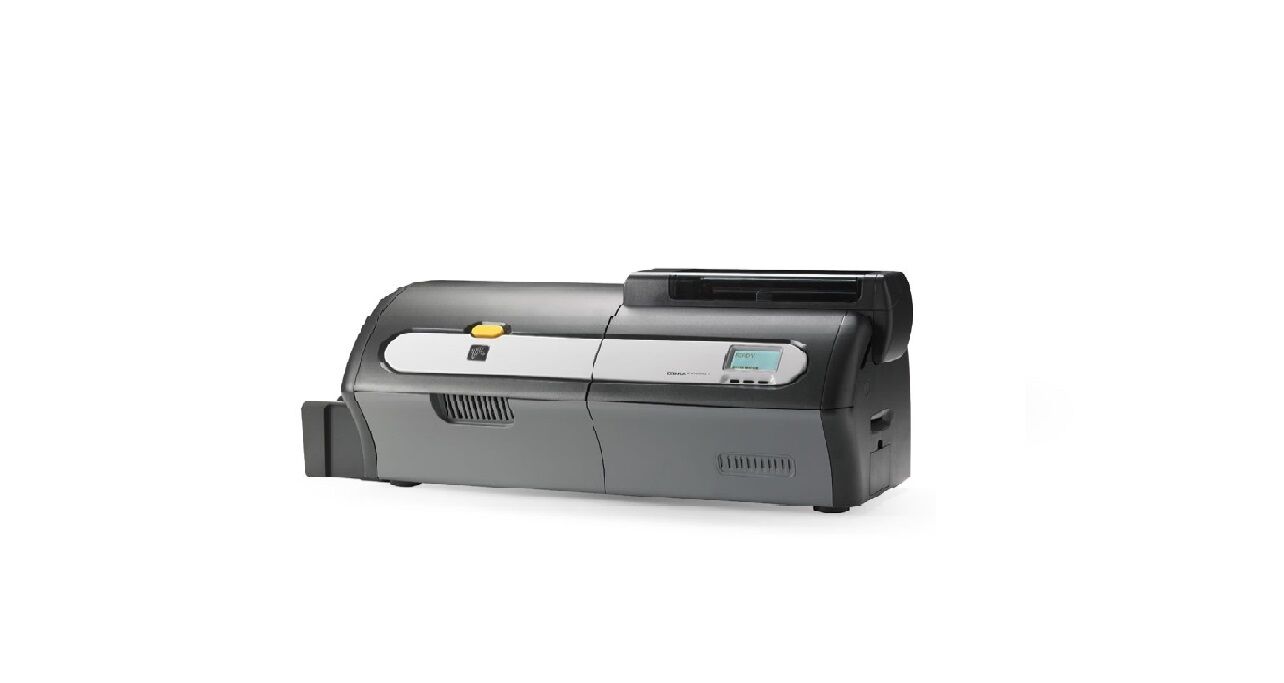

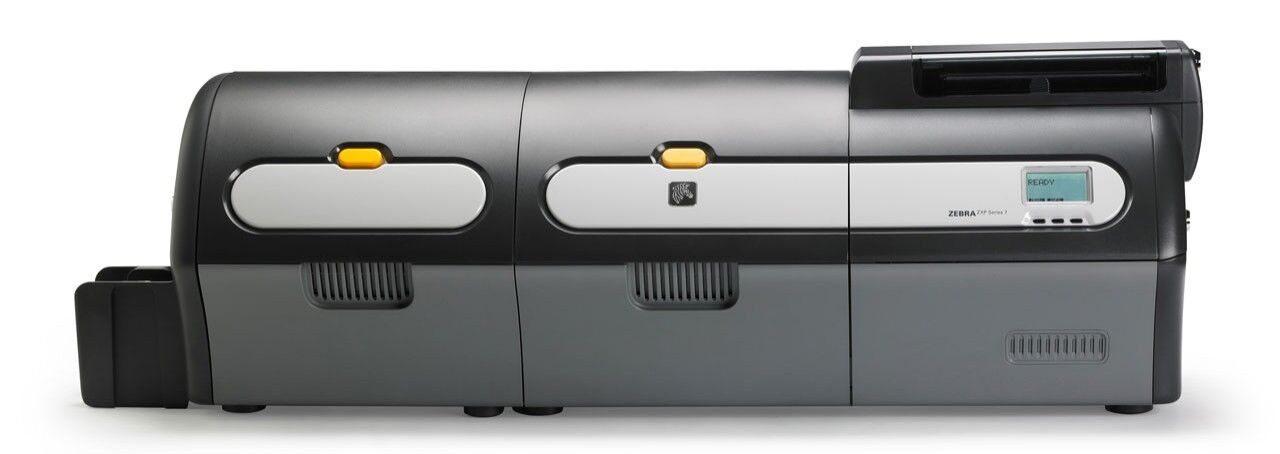

Card Printer ZXP Series 7

Zebra Products In Qatar

Utilizing the latest in card-printing technology, the ZXP Series 7™ card printer provides high-quality card printing. The printer delivers fast yet reliable performance while offering users exceptional value by lowering the printer’s total cost of ownership. Time after time, it prints sharp vivid cards with precise color control.

Utilizing the latest in card-printing technology, the ZXP Series 7™ card printer provides high-quality card printing. The printer delivers fast yet reliable performance while offering users exceptional value by lowering the printer’s total cost of ownership. Time after time, it prints sharp vivid cards with precise color control.



• • SPECIFICATION

• • • • • • • • • •

STANDARD FEATURES

100-card output hopper (30 mil), 15-card reject hopper (30 mil), 200-card capacity feeder (30 mil), 21-character x 6-line LCD operator display with configurable soft keys, 300 dpi/11.8 dots per mm print resolution, ix Series intelligent media technology, Kensington® physical lock slot, Microsoft® Windows Certified drivers, Single-card feed capability, Two-year unlimited warranty on printer and printhead, USB 2.0 and Ethernet 10/100 connectivity

PRINTING AND LAMINATING SPECIFICATIONS

1375 cards / hour monochrome single-sided or 555 cards / hour dual sided printing, 200 cards / hour full-color YMCKOKO dual-sided printing with lamination, 225 cards / hour full-color YMCKOK dual-sided printing, 270 cards / hour full-color YMCKO single-sided printing with lamination, 300 cards / hour full-color YMCKO single-sided printing, Color dye sublimation or monochrome thermal-transfer printing, Edge-to-edge printing on standard CR-80 media, Near photographic print quality, One-pass single- and dual-sided wasteless lamination, Simultaneous printing, encoding, and laminating capability, Single- and dual-sided printing

True Colours ix Series Ribbons

½-panel YMC, full KO: 1250 images / roll, Black monochrome: 2500 or 5000 images / roll, Blue, red, gold, silver monochrome: 5000 images / roll, KdO and KrO: 2000 images / roll, Other colors available on request, Scratch-off gray: 3250 images / roll, White monochrome: 4000 images / roll, WrKr: 2000 images / roll, YMCKO: 250 or 750 images / roll, YMCKOK: 250 or 750 images / roll, YMCUvK: 750 images / roll

True Secure i Series Laminates

Custom laminates with registered or wallpaper holographic images available on request, Laminate types: clear, magnetic stripe, smart card, and holographic wallpaper designs, Linerless waste-free 1.0 mil top and bottom laminate: 750 images / roll

Card Compatibility

Card material: PVC and composite, ABS cards, PET, PET-G, PET-F, PETix, and Teslin® composite, Card size: CR-80, ISO 7810 format, Type ID-1, Card thickness for lamination: 30 mil (0.76 mm), Card thickness: 10 – 50 mil (0.25 – 1.27 mm), Specialty cards: adhesive backed, signature panel, transparent cards with IR-blocker, Technology cards: contact and contactless smart cards

• • OPERATING CHARACTERISTICS

• • • • • • • • • •

Environmental

Operating Humidity: 20% to 80% non-condensing, rating Temperature: 59ºF to 95ºF/15ºC to 35ºC, Storage Humidity: 10% to 90% non-condensing, Storage Temperature: 23ºF to 158ºF/-5ºC to 70º C

Media Storage

Do not store in direct sunlight, Humidity: 30% to 50% non-condensing, Temperature: 41ºF to 86ºF/5ºC to 30ºC

Electrical

90V – 264V AC and 47 – 63Hz (50 – 60Hz nominal), Auto-switching single-phase AC power, FCC Class A

Length

10.9"/277 mm

Width

Printer only: 27.5"/699 mm, Printer with laminator: 38"/964 mm

Height

12"/306 mm

Weight

Printer only: 26.9 lbs/12.2 kg, Printer with laminator: 39.5 lbs/17.9 kg

COMMUNICATION AND INTERFACE CAPABILITIES

10/100 Ethernet, 802.11b/g wireless option, USB 2.0, USB supports plug-and-play printer identification

Software

CardStudio card design and issuance software, Microsoft Windows Certified printer drivers with Toolbox utility features, Zebra Virtual PrintWare software support, ZMotif SDK support and sample code

Optional Features

1D barcode scanner, 802.11b/g wireless connectivity, Duo-Print upgrade kit, Extended product warranty programs, FIPS 201 compliant dual-sided laminator (only for North America), Lockable enclosures and card feeder, Single-sided laminator

Encoding Options and Specifications

Combined MIFARE® ISO 14443 A and B (13.56MHz) contactless and ISO 7816 Contact Encoder with EMV level 1 certification, and PC/SC compliance (supported over USB and Ethernet), EPCglobal® Gen 2 UHF RFID encoder, ISO 7816 Smart Card Contact Station for third-party external contact encoders, Magnetic stripe encoder — AAMVA and ISO 7811 (new and pre-encoded, tracks 1, 2, and 3, high and low coercivity)
