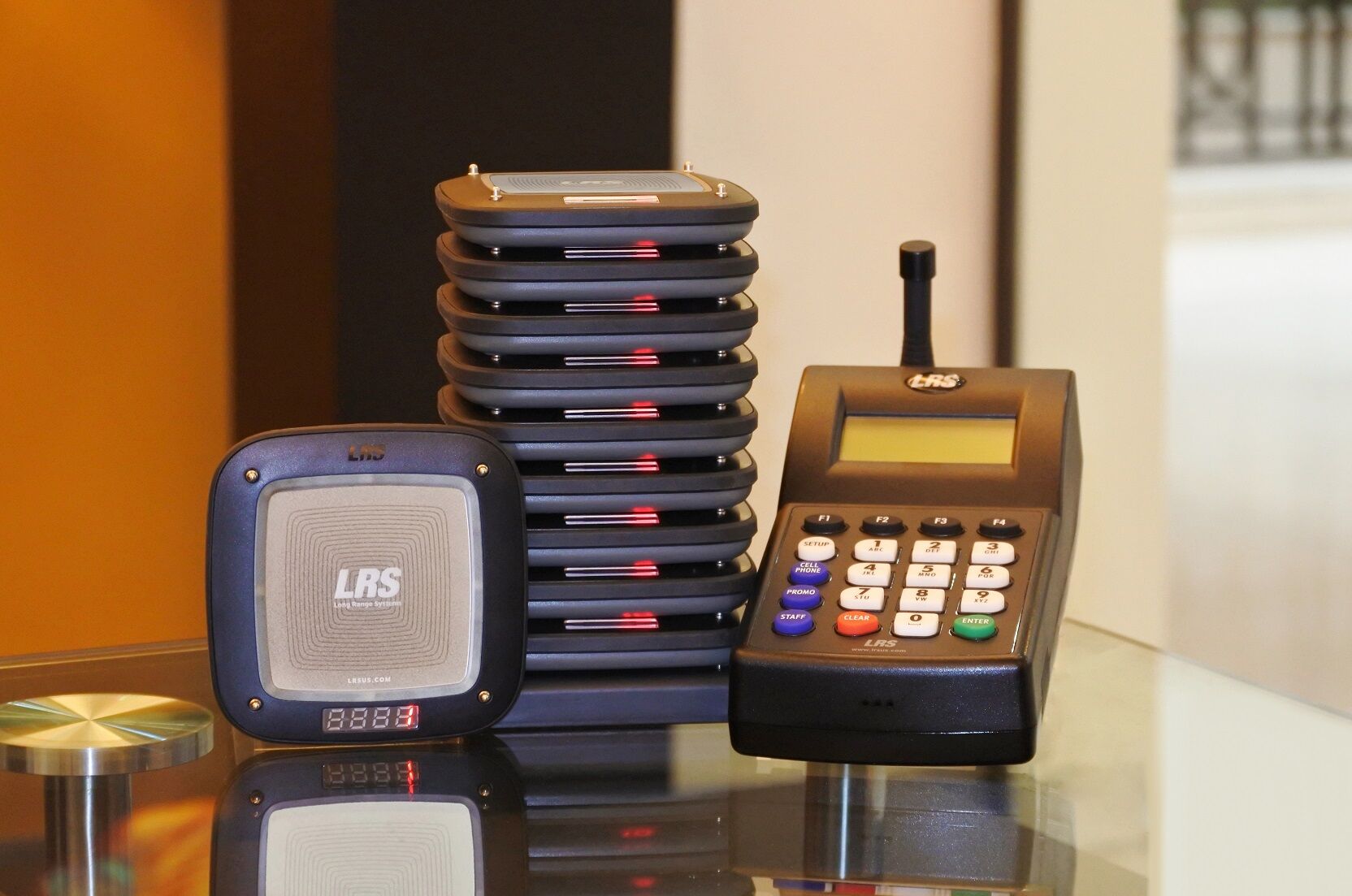

COASTER CALLER PRO

04. LRS

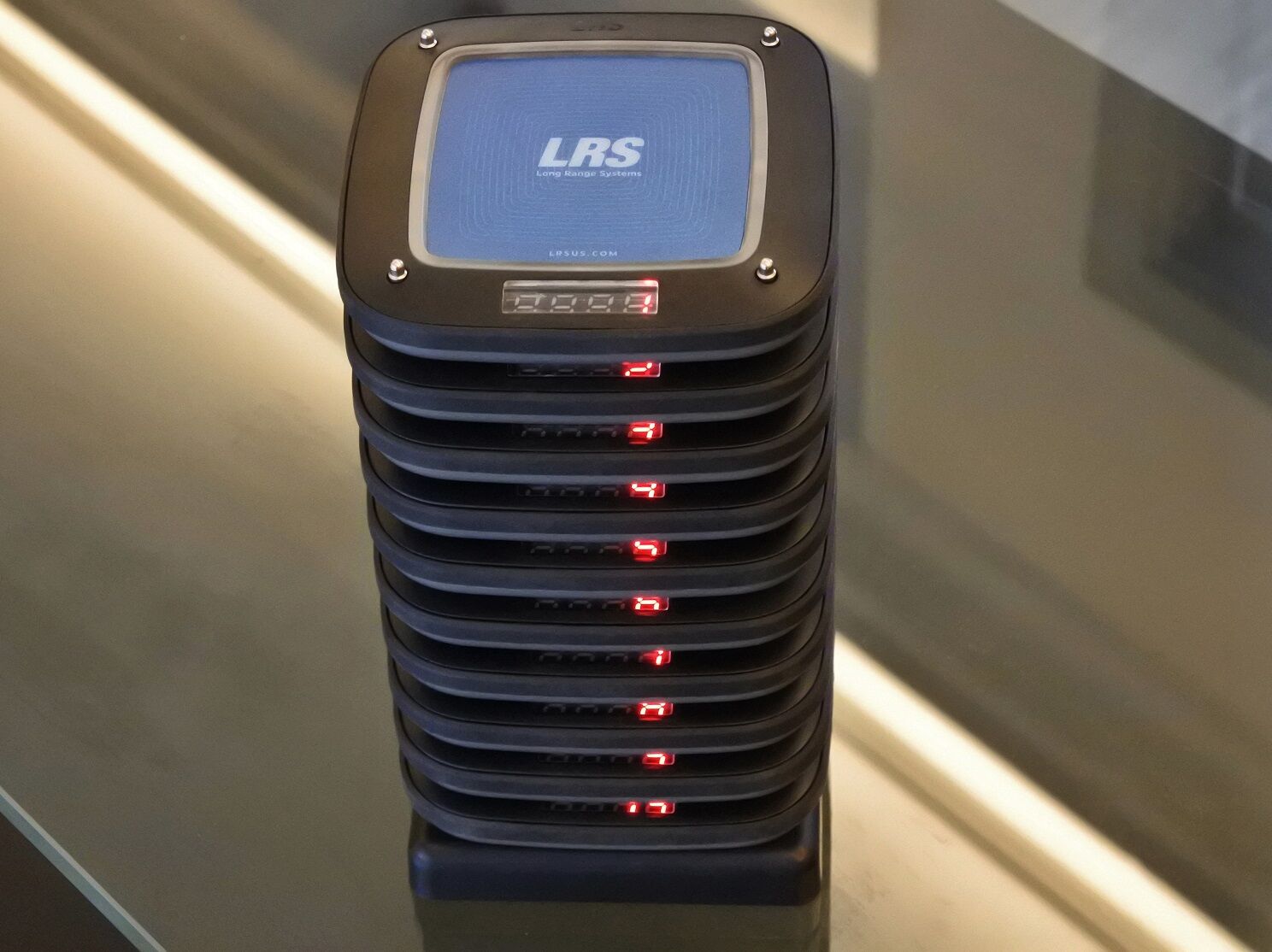

In 1993, LRS invented the Original Coaster Caller and the first any-orientation Stack-Charging system that started the guest paging revolution. With this patented charging system and unique 4-Pin design, LRS Coaster Callers can be charged in any direction, thereby ensuring a consistent and reliable charge every time.

In 1993, LRS invented the Original Coaster Caller and the first any-orientation Stack-Charging system that started the guest paging revolution. With this patented charging system and unique 4-Pin design, LRS Coaster Callers can be charged in any direction, thereby ensuring a consistent and reliable charge every time.





SKU: RX-CS6, RX-CS7, RX-AT9 Categories: , Tags: , , , , , , , , Brand:
• • SPECIFICATION

• • • • • • • • • •

Operating Environment

Humidity: <95% (non-condensing), Operating temperature range: 0 to 45 degrees Celsius, Transport temperature range: -20 to 60 degrees Celsius

Power

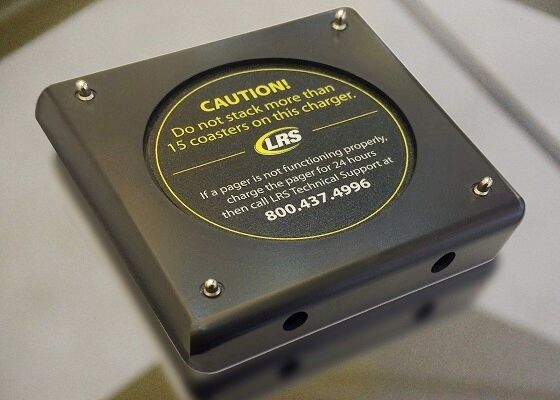

Battery charger power supply: 10 VAC, CS-6 battery pack: NiMH 2/3AAA 350mAh 2.4V, CS-7 / AT-9 battery pack: NiMH AAA 500mAh 3.6V, Warning: To insure regulatory compliance, use only LRS supplied power supply

Paging Transmitter

Antenna: Internal PCB antenna, Bandwidth: 12.5 kHz, Deviation: 3.5 kHz, Frequency Range: 433 MHz – 470 MHz, Modulation: 2-GFSK (Gaussian Frequency Shift Keying), OTA Baud rate: 625, Output power: 69.5 dBuV/m at 10 meters.

Paging Receiver

Frequency Range: 433 MHz – 470 MHz

Supported Paging Protocols

Proprietary LRS protocol

User Interface

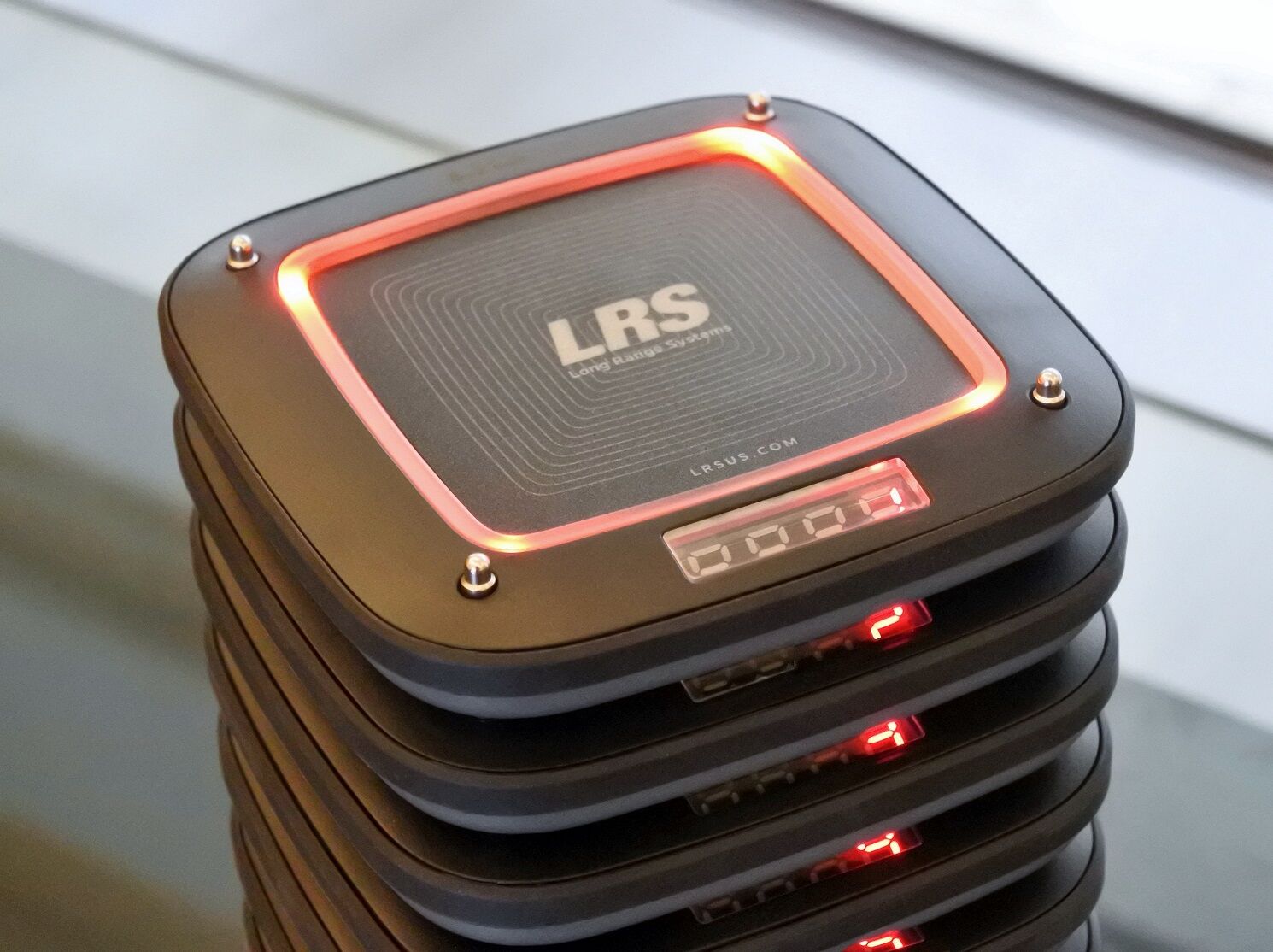

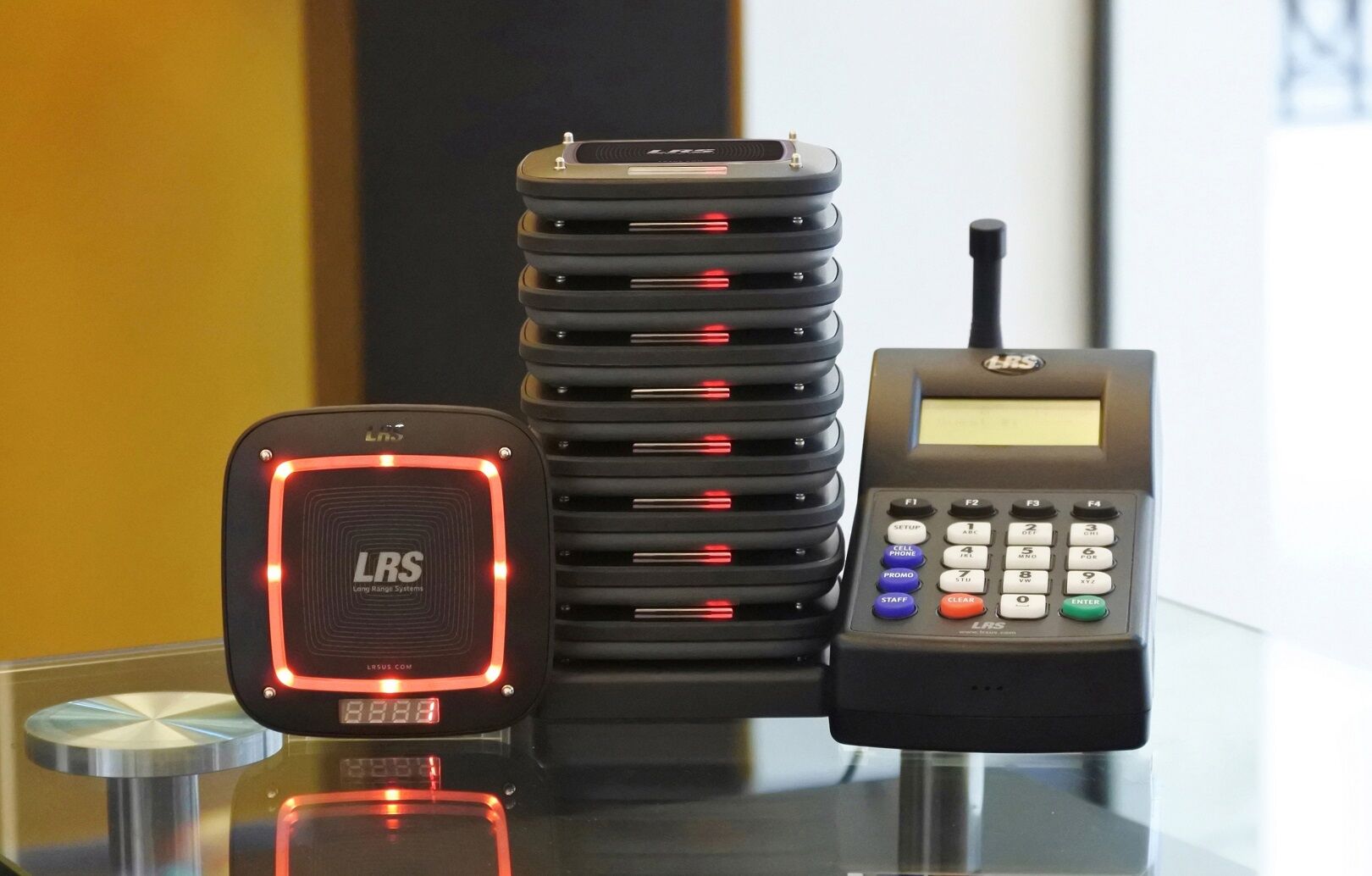

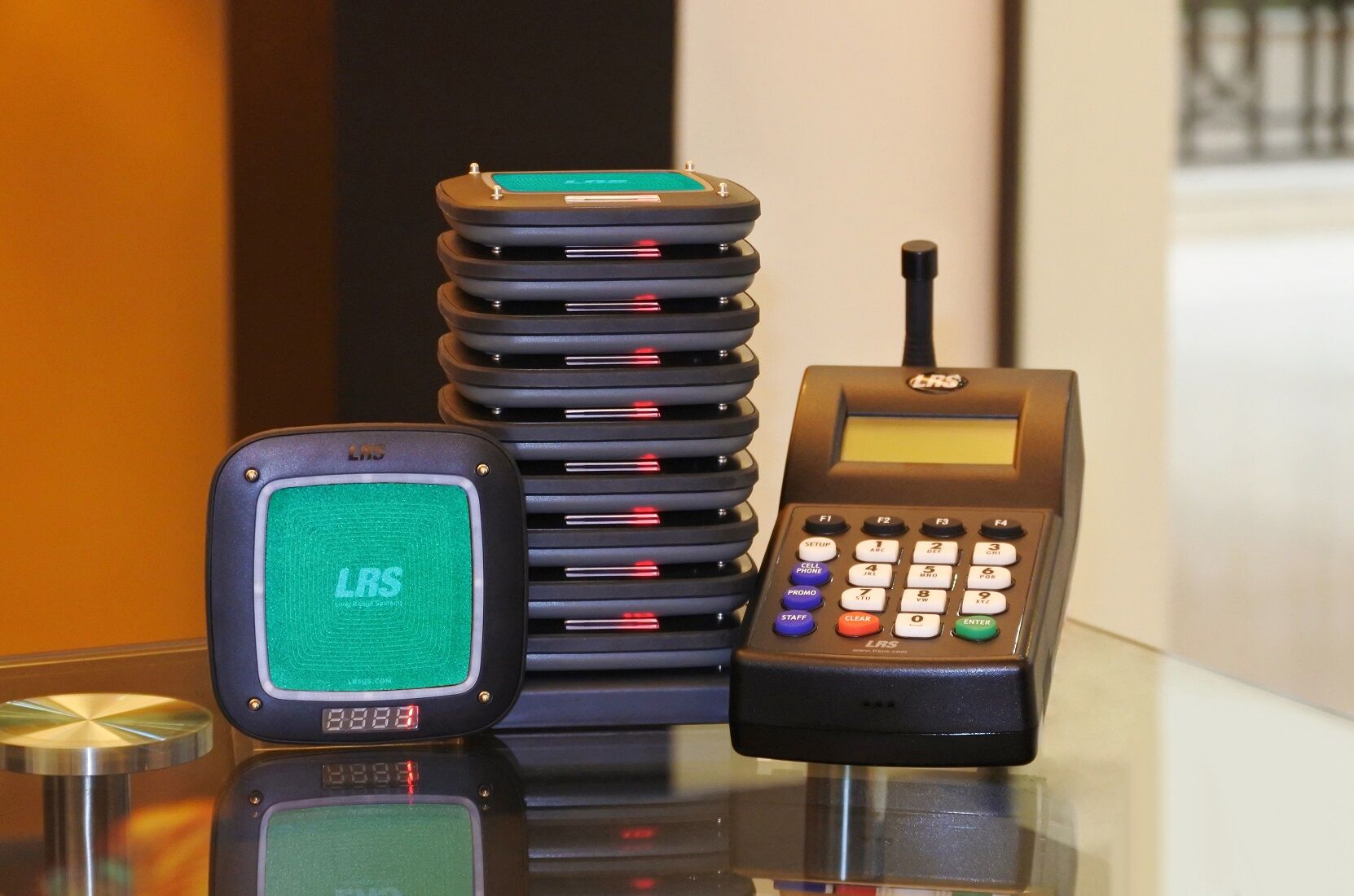

4 digit, 7 segment LED display (CS-7 / AT-9), 8 red LEDs (CS-6), 8 RGB LEDs (CS-7 / AT-9), ESD protected, Vibration motor

Regulatory Certifications

• • • • • • • • • •

United States and Territories

FCC 47 CFR Part 15.107 Class B, FCC 47 CFR Part 15.109 Class B

European Community

EC 300 220-1 v2.3.1, EN 301 489-1 v1.9.2:2011, EN 55022:2010 Class B, EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2010, EN 61000-3-2:2009, EN 61000-3-3:2008, EN 61000-4-11:2004, EN 61000-4-2:2009, EN 61000-4-3:2010, EN 61000-4-4:2004, EN 61000-4-5:2006, EN 61000-4-6:2009, IEC 60950-1:2005 +A1:2009 +A2:2013

Industry Canada

ICES-003 Issue 5:2012 Class B, RSS-210 Issue 8:2010

Dimensions

4.25 x 4.25 x .80 (height) inches

Weight

0.3 lbs

Ordering Information

RX-CSX-434 Algeria, Bahrain, Egypt, Jordan, Kuwait, Morocco, Oman, Qatar and Tunisia), RX-CSX-467 (Cyprus, Iraq, Iran, Lebanon, Libya, Saudi Arabia, Turkey, U.A.E and Yemen)

Frequency Shipped

434.000MHz (Algeria, Bahrain, Egypt, Jordan, Kuwait, Morocco, Oman, Qatar and Tunisia), 467.750MHz (Cyprus, Iraq, Iran, Lebanon, Libya, Saudi Arabia, Turkey, U.A.E and Yemen)
