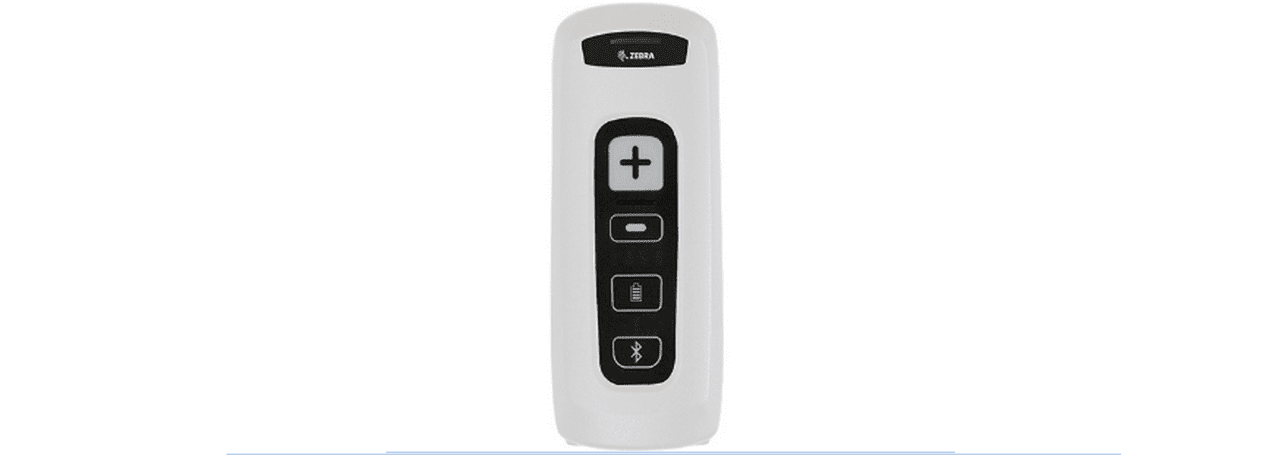

Companion Scanner CS4070

Zebra Products In Qatar

Barcode scanning at patient bedside is crucial in preventing deadly errors in medication administration and specimen collection. Now, you can put advanced barcode scanning in the pockets of every nurse and lab technician with the CS4070-HC. This little wireless enterprise class barcode scanner is designed for the mission critical world of the healthcare worker. Small enough to be easily carried at all times, it can be tucked in a pocket or worn on a lanyard. Superior scanning technology means your healthcare workers can dependably scan any electronic or printed 1-D or 2-D barcode in any condition in the time it takes to press the scan button, whenever and wherever required. Add its rugged disinfectant-ready design that prevents the spread of germs, full shift power, user-selectable scanning feedback and superior ergonomics, and the CS4070-HC is the ideal individual scanning companion for your healthcare workers. Improve patient safety and the patient experience in your facility with the CS4070-HC — only from Zebra.

Barcode scanning at patient bedside is crucial in preventing deadly errors in medication administration and specimen collection. Now, you can put advanced barcode scanning in the pockets of every nurse and lab technician with the CS4070-HC. This little wireless enterprise class barcode scanner is designed for the mission critical world of the healthcare worker. Small enough to be easily carried at all times, it can be tucked in a pocket or worn on a lanyard.
Superior scanning technology means your healthcare workers can dependably scan any electronic
or printed 1-D or 2-D barcode in any condition in the time it takes to press the scan button, whenever and wherever required. Add its rugged disinfectant-ready design that prevents the spread of germs, full shift power, user-selectable scanning feedback and superior ergonomics, and the CS4070-HC is the ideal individual scanning companion for your healthcare workers. Improve patient safety and the patient experience in your facility with the CS4070-HC — only from Zebra.



Dimensions

11.15 cm L x 4.55 cm W x 2.6 cm H, 4.39 in. L x 1.79 in. W x 1.02 in. H

Weight

With batteries: 3.28 oz./93.2 g

Scan Engine

SE4710 image engine

Memory

512 MB Flash

Memory Capacity

Over 1 million barcodes (UPC with time date stamp)

LEDs

Scan LED (Green, Red, and Amber) and Bluetooth® LED (Blue); Four LED battery status indicator

Button

battery status, enable Bluetooth (RF scanners only), remove scan (batch mode only), Scan, scan button tested to a million depressions, all other buttons tested to 250,000 depressions

Batch

Scans recorded with optional time/date stamp

Open Bluetooth

Real time wireless data transmission

Battery

950 mAh Lithium ion

Charge Time

3 hours 40 minutes

Battery Life

Batch: 24 hours use or 8,500 scans (6 scans per minute on full charge), Standby: 3 months Bluetooth 12 hours use or 4,250 scans (6 scans per minute on full charge)

Decode Capability

1D and 2D symbologies

Interfaces Supported

USB (micro jack): Bluetooth

Real Time Clock

A date/time stamp can be recorded with each barcode scanned (batch mode operation only)

Batch Communication

USB 2.0

Drop Specification

Multiple 5 ft./1.5 m drops to concrete

Tumble Specification

250 cycles @ 1.64 ft./0.5 m (500 drops)

Sealing

IP42

Operating Temperature

32° to 104° F/0° to 40° C

Storage temperature

-40° to 158° F/-40° to 70°C

Humidity

10 to 95% non-condensing

Ambient Lighting Tolerance

Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 ft. candles (4,844 Lux), Sunlight: 8,000 ft. candles (86,111 Lux), Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions.

Bluetooth Radio

Bluetooth, Class 1/Class 2, Version 2.1 + Enhanced Data Rate (EDR)

Bluetooth Range

300 ft./100 m when configured for Class 1 or 30 ft./10 m when configured for Class 2

Bluetooth Profiles

HID keyboard wedge and Serial Port Profile (SPP) and Wireless SS I (proprietary)

Laser Safety

EN62471:2008 (LED), IEC62471:2006 (Ed.1.0)

EMC

EN 301 489-1, EN 301 489-17, EN 55022, EN 55024, FCC Part 15 Class B, ICES 003 Class B

Radio

EN 300 328

Electrical Safety

C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1

Environmental

EN50581

4 mil Code 39

2.9 in./7.4 cm — 8.4 in./21.4 cm

5 mil Code 128

2.4 in./6.1 cm — 7.8 in./19.8 cm

5 mil 39

1.6 in./4.1 cm — 13.1 in./33.3 cm

5 mil PDF417

2.7 in./6.9 cm — 8.0 in./20.3 cm

10 mil Data Matrix

2.5 in./6.4 cm — 9.7 in./24.7 cm

100% UPCA

1.4 in./3.6 cm* — 25.6 in./65.0 cm

20.0 mil Code 39

1.6 in./4.1 cm* — 29.6 in./75.2 cm
