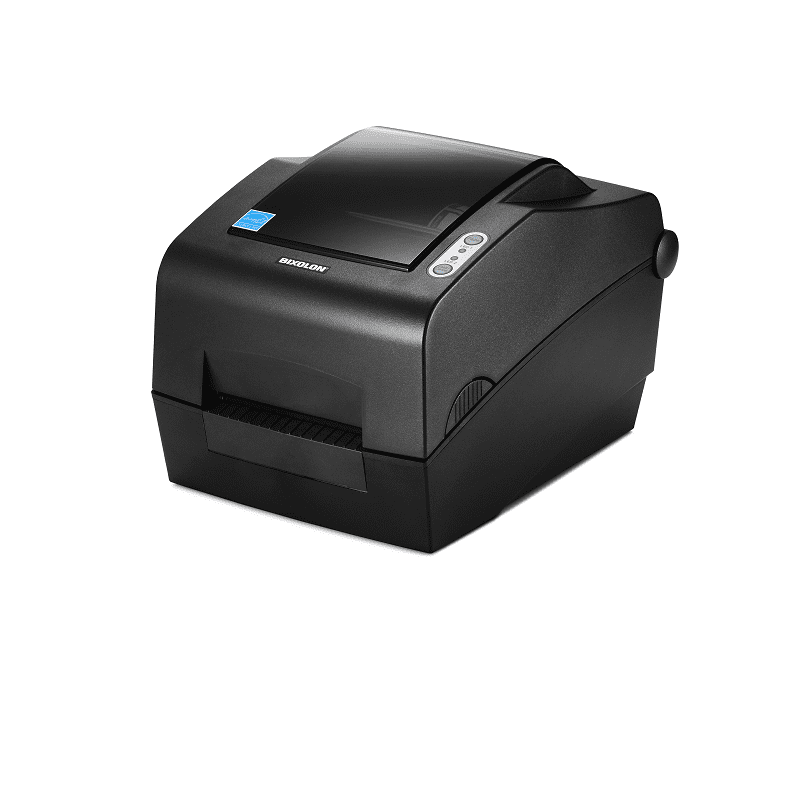

Desktop Label Printer SLP-TX400

Bixolon Products in Qatar

Residing in the Mid-tier of the Desktop portfolio this 4-inch (112mm) model supports UHF RFID print-encoding as an optional feature; the SLP-TX400R. Supporting industry standard programming languages, this model can operate in both Direct Thermal and Thermal Transfer modes of operation and offers WLAN connectivity and print speeds of up to 7 ips (178mm/sec). The ribbon handling support roll lengths of up to 300 metres in length, so downtime can be kept to a minimum. Smart media detection and registration ensure accuracy and use against a variety of media types and sizes. Choices of 203 dpi and 300 dpi resolution to support standard labelling through to applications that required a finer, higher definition output.

Residing in the Mid-tier of the Desktop portfolio this 4-inch (112mm) model supports UHF RFID print-encoding as an optional feature; the SLP-TX400R. Supporting industry standard programming languages, this model can operate in both Direct Thermal and Thermal Transfer modes of operation and offers WLAN connectivity and print speeds of up to 7 ips (178mm/sec). The ribbon handling support roll lengths of up to 300 metres in length, so downtime can be kept to a minimum. Smart media detection and registration ensure accuracy and use against a variety of media types and sizes. Choices of 203 dpi and 300 dpi resolution to support standard labelling through to applications that required a finer, higher definition output.



• • SPECIFICATION

• • • • • • • • • •

Print Method

Direct Thermal, Thermal Transfer

Print Speed

SLP-TX400: Up to 7 ips (178 mm/sec), SLP-TX403: Up to 5 ips (127 mm/sec)

PRINT RESOLUTION

SLP-TX400: 203 dpi, SLP-TX403: 300 dpi

PRINT WIDTH

SLP-TX400: Up to 108 mm, SLP-TX403: Up to 105.7 mm

PRINT LENGTH

Up to 1,000 mm

SENSOR

Head open, Reflective (adjustable), Ribbon-End, Transmissive

Media Type

Black Mark, Continuous, Fan-Fold, Gap, Notch

Media Width

25 ~ 112 mm

Media Roll Size

Up to 130 mm

Media Thickness

0.06 ~ 0.20 mm

Supply Method

Easy Paper Loading

Inner Core

25.4 ~ 38.1mm

Ribbon Type

Outside, Resin, Wax, Wax/Resin

Ribbon Width

33 ~ 110 mm

Ribbon Length

Up to 300 m

Core Inner Diameter

25.4 mm, 12.5 mm

DIMENSION (W X D X H IN MM)

214 x 310 x 195 mm

Weight

2.85 kg (6.28 lbs.)

Electrical

50/60Hz, EnergyStar Certified, External Power Adaptor 100-240V AC

Memory

64 MB SDRAM, 128 MB Flash

Interface

• • • • • • • • • •

Standard Interface

USB + Serial + Parallel

Optional Interface

SLP-TX400R(RFID) USB + Serial + Ethernet + Bluetooth² / WLAN¹ + RFID, USB + Serial + Ethernet + Bluetooth, USB + Serial + Ethernet + WLAN

WLAN¹

802.11a/b/g/n/ac USB dongle type

Bluetooth²

USB dongle type (Optional)

Real Time Clock

Supported

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

Operating: 5 ~ 40℃ (41 ~ 104℉), Storage: -20 ~ 60℃ (-4 ~ 140℉)

Operating Humidity

Operating: 10 ~ 80% RH, Storage: 10 ~ 90% RH

Emulation

BPL-E™ (EPL), BPL-Z™ (ZPLII), SLCS™

Driver / Utility

Bartender Ultralite for BIXOLON, Label Artist-II™, Linux / Mac CUPS Driver, OPOS / JPOS Driver, SAP® Device Driver, Utility Program, Virtual COM USB / Ethernet Driver, Windows Driver (Europlus / Seagull)

SDK / Plugin

Android / iOS / Windows SDK, Chrome SDK, Linux SDK

Application

Label Artist™ Mobile (Android, iOS), mPrint App (iOS), mPrint Server (Windows, iOS)

MDM

BIXOLON Profile Manager – XPM™, XCM™ (Windows, Android)

• •Fonts/Graphics/Symbologies

• • • • • • • • • •

Fonts

10 SLCS Resident Bitmap Fonts, 16 BPL-Z™ Resident Bitmap Fonts, 23 Code Page, 5 BPL-E™ Resident Bitmap Fonts, One BPL-Z™ Resident Scalable Font, One SLCS Resident Scalable Font, Unicode supported (UTF-8, UTF-16LE,UTF-16BE)

Graphics

Supporting user-defined fonts, graphics, formats, and logos

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar (RSS-14), Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-E, UPC/EAN extensions

2D

Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39

Optional Accessories

Auto Cutter, External Paper Supply, Peeler, RFID, WLAN Dongle (Consensus required)

Frequency

865 ~ 868MHz(EU), 902 ~ 928MHz(KR, USA, CHN), UHF

Transmit Power

1W

Modulation

ASK

Protocol

UHF EPC Class 1 Gen 2 V1.2/ ISO 18000-6C

Auto Cutter

Optional

Tag Pitch

Min 25mm
