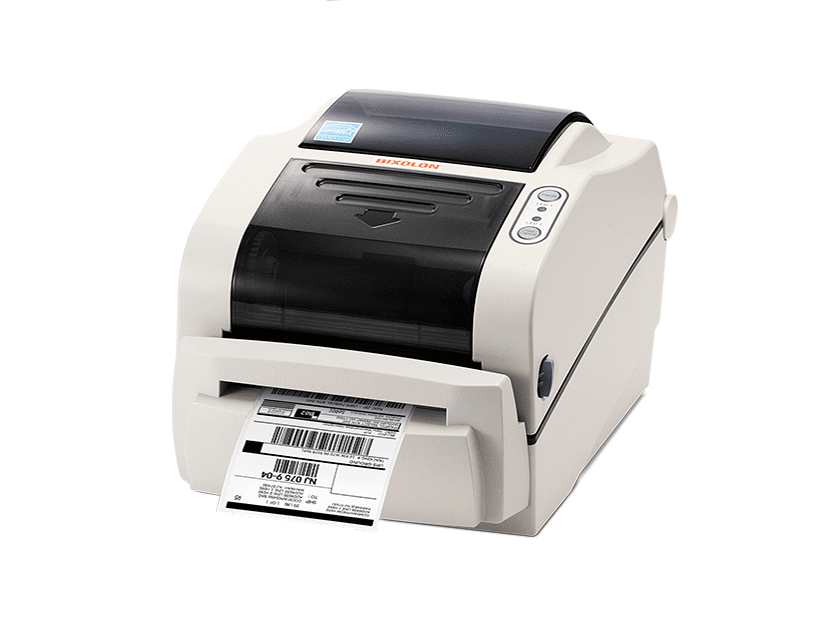

Desktop Label Printer SLP-TX420

Bixolon Products in Qatar

The mid-tiered 4-inch (110mm) SLP-TX420 offers a Thermal Transfer solution in both dark grey and ivory forms, with the lighter colour palette providing an ideal solution for Healthcare and Retail customers. The half ribbon lengths of up to 74 metres in compact design. To ensure high quality output on small media or more defined output, the SLP-TX420 offers a 300 dpi option and with its choice of locally wired or wireless Networked configurations the data can be sent to the printer from a range of fixed or mobile devices – host devices ranging from PCs, laptops, handheld terminal or tablet devices. The SLP-TX420 with its multi-function feed key and Smart Media Detection™ offers and easy to use device for all your labelling and tag printing requirements.

The mid-tiered 4-inch (110mm) SLP-TX420 offers a Thermal Transfer solution in both dark grey and ivory forms, with the lighter colour palette providing an ideal solution for Healthcare and Retail customers. The half ribbon lengths of up to 74 metres in compact design. To ensure high quality output on small media or more defined output, the SLP-TX420 offers a 300 dpi option and with its choice of locally wired or wireless Networked configurations the data can be sent to the printer from a range of fixed or mobile devices – host devices ranging from PCs, laptops, handheld terminal or tablet devices. The SLP-TX420 with its multi-function feed key and Smart Media Detection™ offers and easy to use device for all your labelling and tag printing requirements.



• • SPECIFICATION

• • • • • • • • • •

Print Method

Direct Thermal, Thermal Transfer

Print Speed

SLP-TX420: Up to 7 ips (178 mm/sec), SLP-TX423: Up to 5 ips (127 mm/sec)

PRINT RESOLUTION

SLP-TX420: 203 dpi, SLP-TX423: 300 dpi

PRINT WIDTH

SLP-TX420: Up to 108 mm, SLP-TX423: Up to 105.7 mm

PRINT LENGTH

Up to 2,000 mm

SENSOR

Head open, Reflective (adjustable), Ribbon-End, Transmissive

Media Type

Black Mark, Continuous, Fan-Fold, Gap, Notch

Media Width

20 ~ 110 mm

Media Roll Size

Up to 130 mm

Media Thickness

0.06 ~ 0.20 mm

Supply Method

Easy Paper Loading

Inner Core

25.4 ~ 38.1mm

Ribbon Type

Outside, Resin, Wax, Wax/Resin

Ribbon Width

110 mm

Ribbon Length

Up to 74 m

Core Inner Diameter

12.5 mm

DIMENSION (W X D X H IN MM)

200 x 252 x 173 mm

Weight

2.35 kg (5.18 lbs.)

Electrical

50/60Hz, EnergyStar Certified, External Power Adaptor 100-240V AC

Memory

64 MB SDRAM, 128 MB Flash

Interface

• • • • • • • • • •

Standard Interface

USB + Serial + Parallel

Optional Interface

USB + Serial + Ethernet + WLAN, USB + WLAN* + Bluetooth

WLAN¹

802.11a/b/g/n/ac USB dongle type

Bluetooth²

Built-in type, MFi iAP2 certified

Real Time Clock

Supported

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

Operating: 5 ~ 40℃ (41 ~ 104℉), Storage: -20 ~ 60℃ (-4 ~ 140℉)

Operating Humidity

Operating: 10 ~ 80% RH, Storage: 10 ~ 90% RH

Emulation

BPL-E™ (EPL), BPL-Z™ (ZPLII), SLCS™

Driver / Utility

Bartender Ultralite for BIXOLON, Label Artist-II™, Linux / Mac CUPS Driver, OPOS / JPOS Driver, Utility Program, Virtual COM USB / Ethernet Driver, Windows Driver (Europlus / Seagull)

SDK / Plugin

Android / iOS / Windows SDK, Chrome SDK, Linux SDK, Xamarin SDK

Application

Label Artist™ Mobile (Android, iOS), mPrint App (iOS), mPrint Server (Windows, iOS)

MDM

BIXOLON Profile Manager – XPM™, XCM™ (Windows, Android)

• •Fonts/Graphics/Symbologies

• • • • • • • • • •

Fonts

10 SLCS™, 16 BPL-Z™, 23 Code Page, 5 BPL-E™, One BPL-Z™, Unicode supported (UTF-8, UTF-16LE,UTF-16BE)

Graphics

Supporting user-defined fonts, graphics, formats, and logos

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar (RSS-14), Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-E, UPC/EAN extensions

2D

Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39

Optional Accessories

Auto Cutter, External Paper Supply, Peeler, WLAN Dongle (Consensus required)
