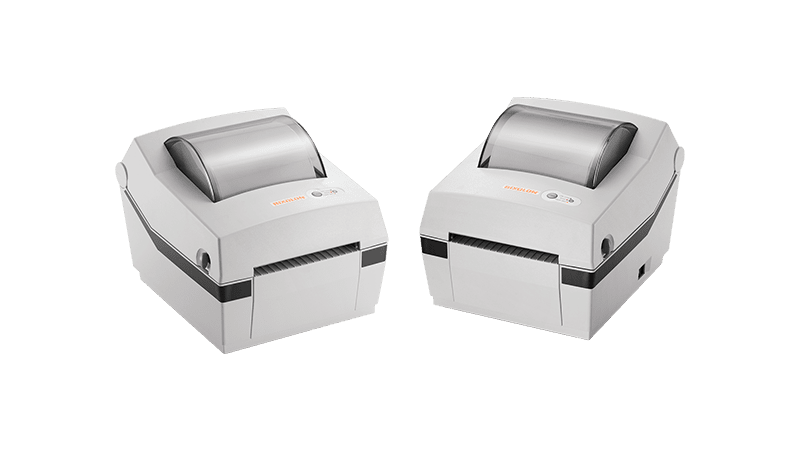

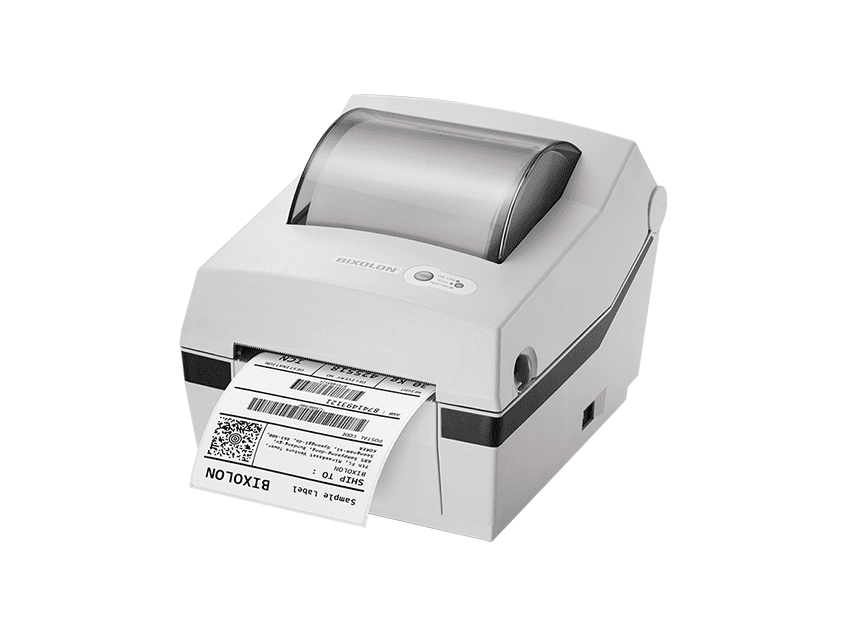

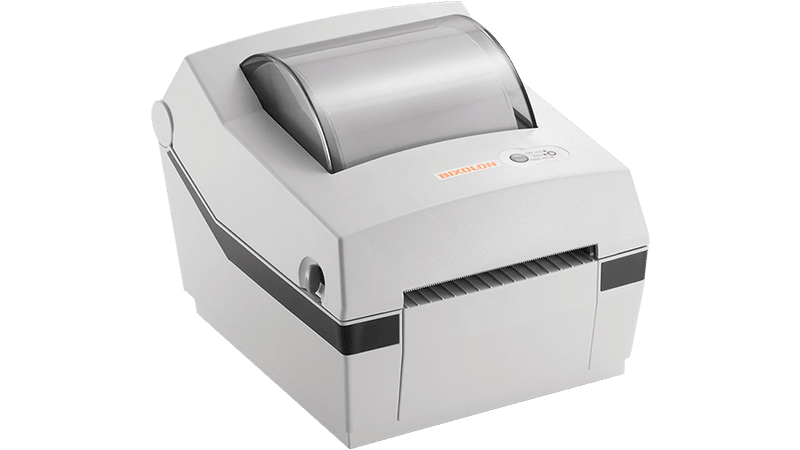

Desktop Label Printer SRP-E770III

Bixolon Products in Qatar

The BIXOLON SRP-E770III offers a design that is synonymous with Direct Thermal barcode labelling. BIXOLON’s entry-level 4-inch (106mm) Direct Thermal printer offers a solution that ensures easy out-of-box setup and recognition of a range of media thanks to its Smart Media detection.Locally wired or wired Network, the 203 dpi printer supports market leading programming languages and offers quality output at up to 5 ips (127mm/s) print speed.Able to handle the market leading programming languages and supported by a range of drivers and Label Artist™ design software, the SRP-E770III printer ensures complexities are minimised and budgets maximized.

The BIXOLON SRP-E770III offers a design that is synonymous with Direct Thermal barcode labelling. BIXOLON’s entry-level 4-inch (106mm) Direct Thermal printer offers a solution that ensures easy out-of-box setup and recognition of a range of media thanks to its Smart Media detection.Locally wired or wired Network, the 203 dpi printer supports market leading programming languages and offers quality output at up to 5 ips (127mm/s) print speed.Able to handle the market leading programming languages and supported by a range of drivers and Label Artist™ design software, the SRP-E770III printer ensures complexities are minimised and budgets maximized.



• • SPECIFICATION

• • • • • • • • • •

Print Method

Direct Thermal

Print Speed

Up to 5 ips (127 mm/sec)

PRINT RESOLUTION

203 dpi

PRINT WIDTH

Up to 104 mm

PRINT LENGTH

Up to 1,000 mm

SENSOR

Head open, Reflective (adjustable), Transmissive

Media Type

Black Mark, Continuous, Fan-Fold, Gap, Notch

Media Width

42 ~ 106 mm

Media Roll Size

Up to 130 mm

Media Thickness

0.06 ~ 0.20 mm

Supply Method

Easy Paper Loading

Inner Core

25.4 ~ 38.1mm

DIMENSION (W X D X H IN MM)

189 x 221 x 171 mm

Weight

1.47kg (3.24 lbs.)

Electrical

50/60Hz, EnergyStar Certified, External Power Adaptor 100-240V AC

Memory

64 MB SDRAM, 128 MB Flash

Interface

• • • • • • • • • •

Standard Interface

USB

Optional Interface

USB + Ethernet, USB + Serial

Real Time Clock

Supported

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

Operating: 0 ~ 40℃ (32 ~ 104℉), Storage: -20 ~ 60℃ (-4 ~ 140℉)

Operating Humidity

Operating: 10 ~ 80% RH, Storage: 10 ~ 90% RH

Emulation

BPL-E™ (EPL), BPL-Z™ (ZPLII), SLCS™

Driver / Utility

Bartender Ultralite for BIXOLON, Label Artist-II™, Linux / Mac CUPS Driver, OPOS Driver, Utility Program, Virtual COM USB / Ethernet Driver, Windows Driver (Europlus / Seagull)

SDK / Plugin

Android / iOS / Windows SDK, Chrome SDK, Linux SDK, Xamarin SDK

Application

Label Artist™ Mobile (Android, iOS), mPrint App (iOS)

• •Fonts/Graphics/Symbologies

• • • • • • • • • •

Fonts

10 SLCS™, 16 BPL-Z™, 23 Code Page, 5 BPL-E™, One BPL-Z™, One SLCS™, Unicode supported (UTF-8, UTF-16LE,UTF-16BE)

Graphics

Supporting user-defined fonts, graphics, formats, and logos

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar (RSS-14), IMB, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-E, UPC/EAN extensions

2D

Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39

Optional Accessories

Peeler
