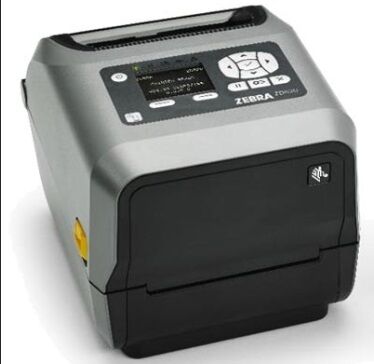

Desktop Printer ZD620

Zebra Products In Qatar

When print quality, productivity, application flexibility and management simplicity matter, the Zebra ZD620 delivers. The next generation
in Zebra’s desktop printer line, the ZD620 replaces Zebra’s popular GX Series and ZD500 printers, rising above conventional desktop
printers with premium print quality and state of the art features. Available in direct thermal, thermal transfer and healthcare models, the
ZD620 meets a wide variety of application requirements. It offers the most standard features of any Zebra desktop printer, including
an optional 10-button user interface with a color LCD that takes all the guesswork out of printer setup and status. Link-OS® and Zebra’s
powerful Print DNA tools deliver a superior printing experience through better performance, simplified remote manageability and easier
integration. The Zebra ZD620 — the print speed, print quality and manageability you need to keep your operations moving forward.

When print quality, productivity, application flexibility and management simplicity matter, the Zebra ZD620 delivers. The next generation
in Zebra’s desktop printer line, the ZD620 replaces Zebra’s popular GX Series and ZD500 printers, rising above conventional desktop
printers with premium print quality and state of the art features. Available in direct thermal, thermal transfer and healthcare models, the
ZD620 meets a wide variety of application requirements. It offers the most standard features of any Zebra desktop printer, including
an optional 10-button user interface with a color LCD that takes all the guesswork out of printer setup and status. Link-OS® and Zebra’s
powerful Print DNA tools deliver a superior printing experience through better performance, simplified remote manageability and easier
integration. The Zebra ZD620 — the print speed, print quality and manageability you need to keep your operations moving forward.



STANDARD FEATURES

5 status icon, 3 button user interface, Dual-wall frame construction, ENERGY STAR qualified, Media dancer, OpenACCESS™ for easy media loading, Print methods: Thermal Transfer or Direct Thermal, Real Time Clock, USB 2.0, USB Host, Serial, Ethernet, BTLE, ZPL and EPL programming languages

Length

ZD620d: 8.7 in./221 mm, ZD620t: 10.5 in./ 267 mm

Width

ZD620d: 7.0 in./177 mm, ZD620t: 8.0 in./ 202 mm

Height

ZD620d: 5.9 in./151 mm, ZD620t: 7.5 in./ 192 mm

Weight

ZD620d: 3.6 lb/ 1.6 kg, ZD620t: 5.5 lb/2.5 kg

• • SPECIFICATION

• • • • • • • • • •

Operating System

Link-OS®

RESOLUTION

203 dpi/8 dots per mm, Optional 300 dpi/12 dots per mm

Memory

512 MB Flash; 256 MB SDRAM

Maximum Print Width

4.09 in./104 mm for 203 dpi, 4.27 in./108 mm for 300 dpi

Maximum Print Speed

6 in./152 mm per second (300 dpi), 8 in./203 mm per second (203 dpi)

Media Sensors

Full width, moveable reflective/black mark sensor, multi-position transmissive/ gap sensor

FIRMWARE

EPL 2, XML, ZBI, ZPL II

Maximum Label Length

39.0 in./991 mm

Media Width

ZD620d — 0.585 in./15 mm to 4.25 in./108 mm, ZD620t — 0.585 in./15 mm to 4.65 in./118 mm

Media Roll Size

Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters, Maximum outer diameter: 5.00 in./127 mm

Media Thickness

0.003 in. (0.08 mm) min.; 0.0075 in. (0.1905 mm) max. (tear-off mode only)

Media Type

, die-cut or ccontinuous direct thermal or thermal transfer labels with or without black line, continuous receipt paper, linerless media, Roll-fed or fan-fed, tag stock, wristbands

Ribbon Outside Diameter

2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)

Ribbon Length

984 ft. (300 m); 244 ft. (74 m)

Ribbon Ratio

1:1 media to ribbon (74 m), 1:4 media to ribbon (300 m)

Ribbon Width

1.33 in./33.8 mm — 4.3 in./109.2 mm

Core I.D.

300 meter ribbon 1 in./25.4 mm, 74 meter ribbon 0.5 in./12.7 mm

• • OPERATING CHARACTERISTICS

• • • • • • • • • •

Operating Temperature

40° to 105° F/4.4° to 41° C

Storage temperature

-40° to 140° F/-40° to 60° C

Operating Humidity

10% to 90% non-condensing

Storage Humidity

5% to 95% non-condensing

Electrical

50/60Hz, Auto-detectable (PFC Compliant) 100-240VAC, ENERGY STAR qualified, optional 2750 mAh battery

Options and Accessories

• • • • • • • • • •

Media Handling

Factory installed cutter, Factory installed dispenser — label peel and present with label present sensor, Field installable aftermarket kits also available

Communications

Factory installed wireless radio: 802.11ac Wi-Fi and Bluetooth 4.1

User Interface

Color LCD (320 x 240 resolution) with 5 status icons, 10 button user interface

Battery

Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options

Keyboard Display Unit

ZKDU keyboard display units for stand-alone printing solutions

Media Locking Cabinet

Mechanical lock with 2 keys; Kensington® lock slot; available on ZD620d Healthcare only

Mounting Plate

Optional accessory to secure ZD Series printers to countertops or shelves

Enclosed Power Supply

Attached power supply accessory for cord-free installation

• •Fonts/Graphics/Symbologies

• • • • • • • • • •

Barcode Ratios

2:1 and 3:1

1D

Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Industrial 2 of 5, Interleaved 2-of-5, ISBT-128, Logmars, MSI, Planet Code, Plessey, Postnet, Standard 2-of-5, UPC and EAN 2-or 5-digit extensions, UPC-A, UPC-E

2D

Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code

FONTS AND GRAPHICS

16 resident expandable ZPL II bitmap fonts, 64 MB user available non-volatile memory, 8 MB user available SDRAM, China units include SimSun simplified Chinese font, Five resident expandable EPL2 fonts, native open-type font support, two resident scalable ZPL fonts, Unicode compliant

PRINTER SUPPLIES

For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer.
