DS3600-DPA

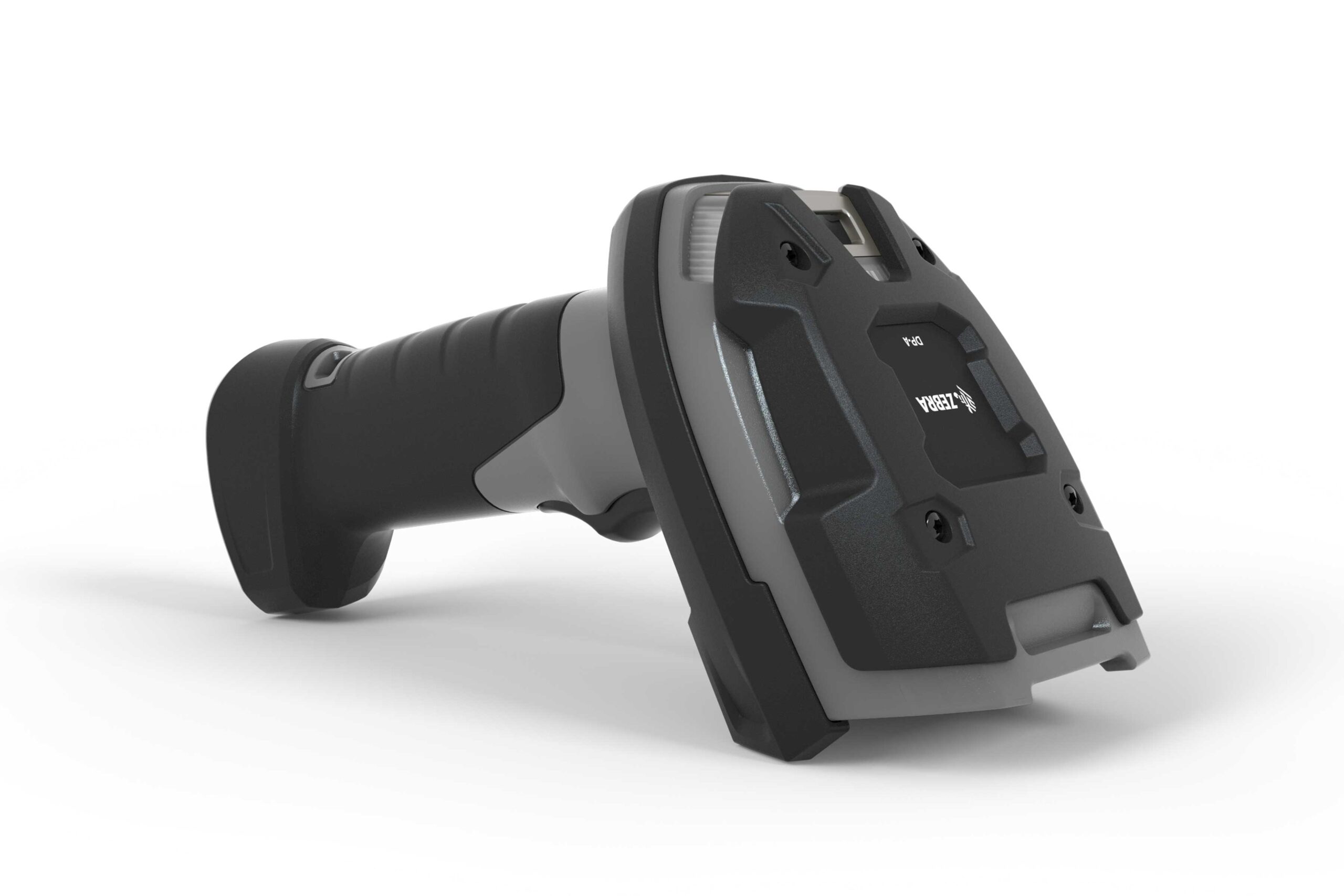

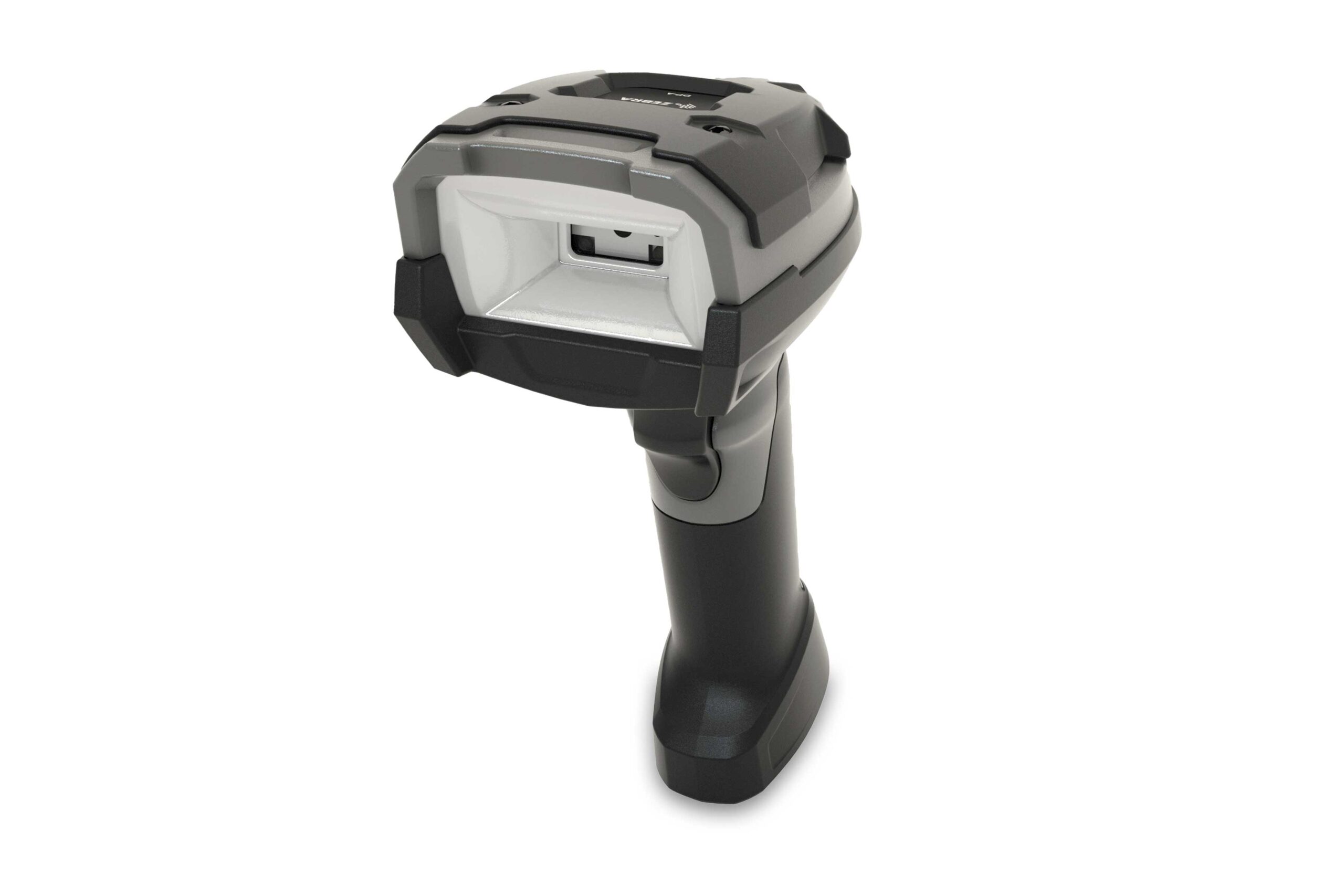

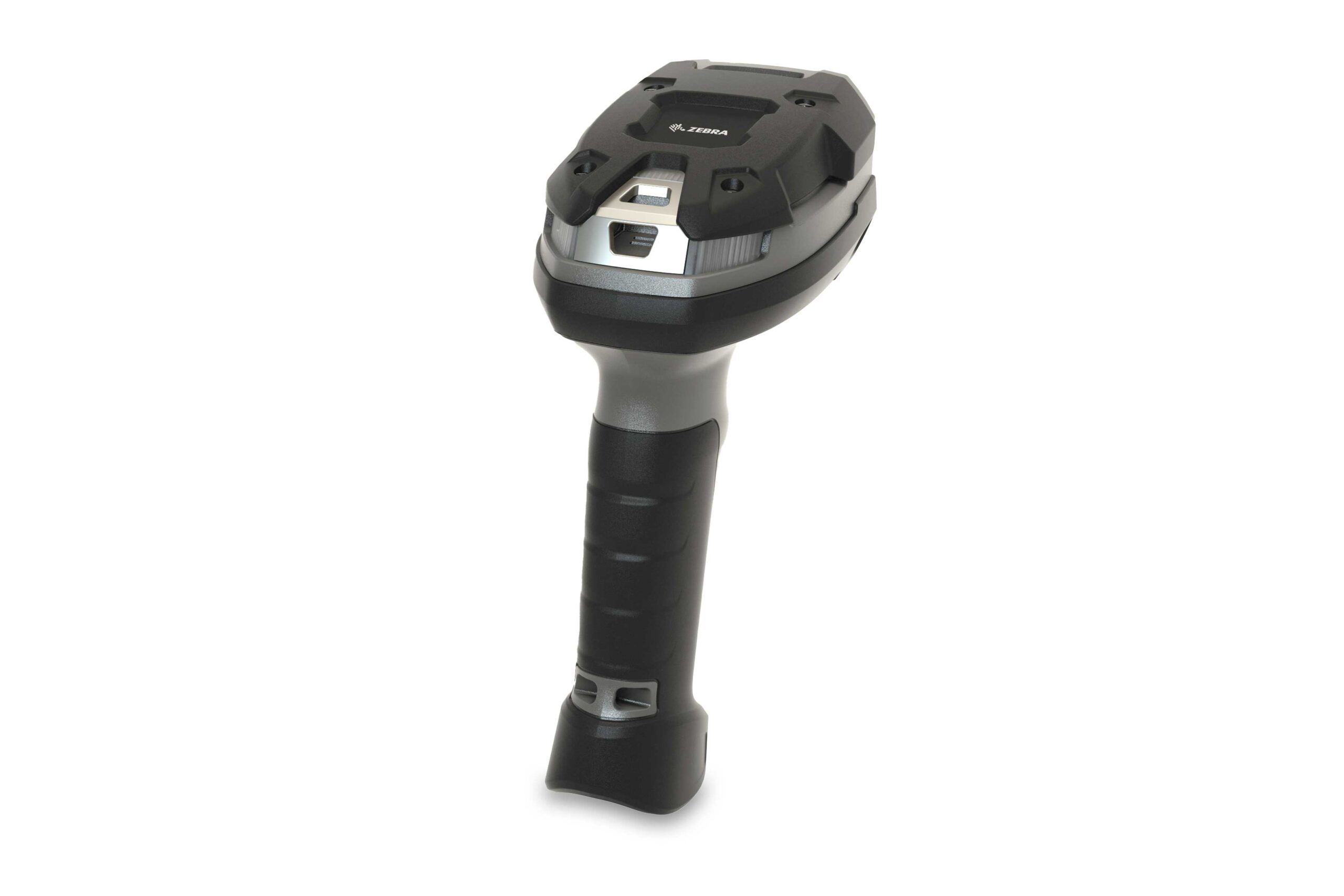

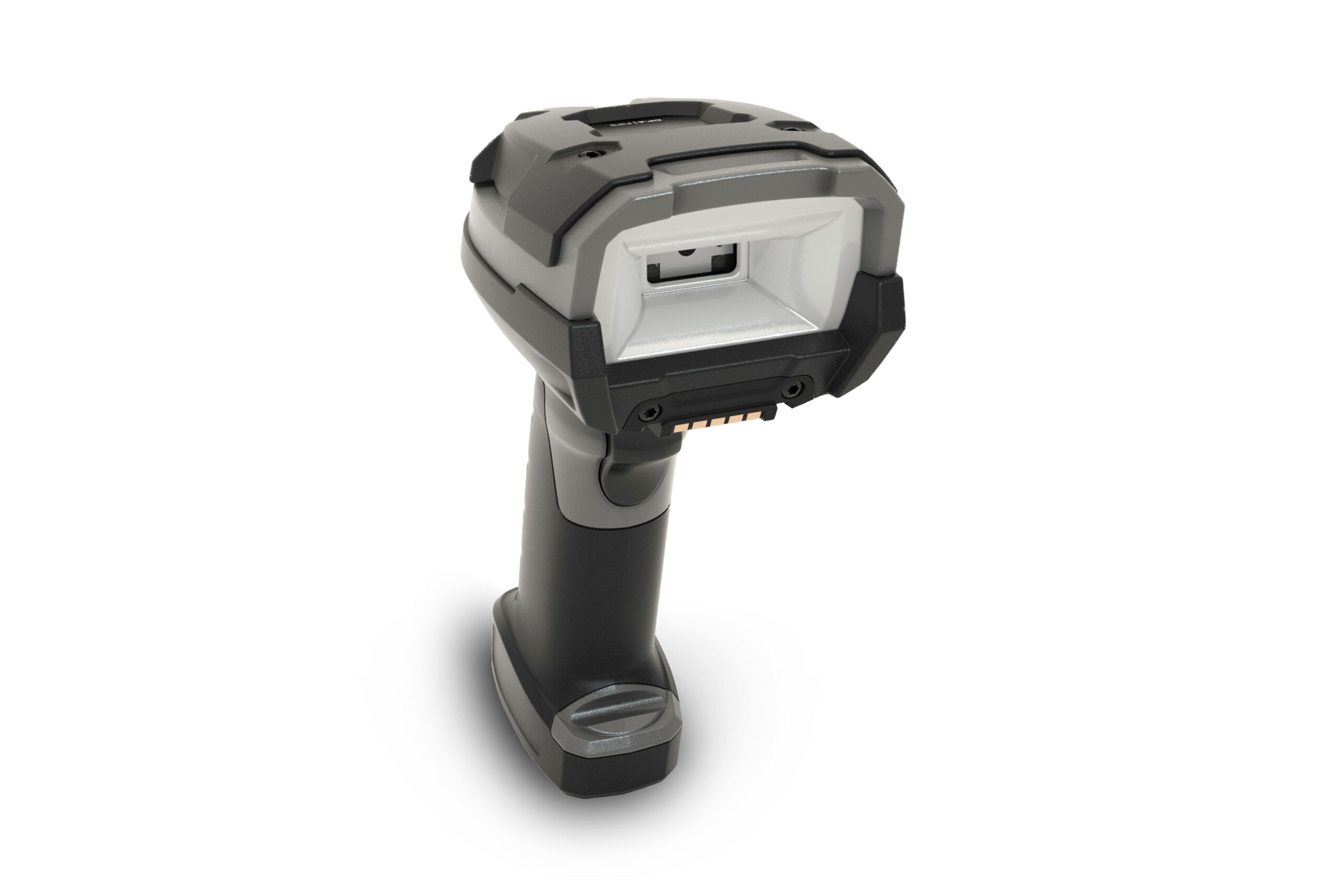

DS3600‑DPA Ultra‑rugged scanner optimized to read Direct Part Marks (DPM), wide and standard 1D/2D barcodes in industrial environments.

DS3600‑DPA delivers unstoppable performance capturing virtually any Direct Part Mark—including laser‑etch, dot‑peen, chemical‑etch, inkjet mold, thermal spray—and wide-format or printed 1D/2D barcodes. This dual-function scanner is ideal for end‑to‑end traceability in automotive, aerospace, manufacturing, and fleet operations.

Built for industrial environments, it survives 10 ft (3 m) drops to concrete, endures 7,500 tumbles, and features dual IP65/IP68 sealing. With Zebra’s Network Connect for Automation, it links directly to PLC-controlled Ethernet networks without third-party converters.

Powered by DataCapture DNA, it includes tools such as Label Parse+, Multi‑Code Data Formatting (MDF), Virtual Tether, ScanSpeed Analytics, AutoConfig, and Network Connect for efficient device management and optimized scanning workflows.

Durability & Environment

  • Drop Spec: 10 ft (3 m) onto concrete; 7,500 tumbles

  • Sealing: IP65/IP68 for full dust, water spray, and submersion protection

  • Operating Conditions: Extreme heat, cold, humidity; suitable for freezer environments

Scanning Capabilities

  • Supports: Direct Part Marks (DPM), wide 1D, standard 1D/2D barcodes

  • Image Sensor: 1280 × 960 pixels

  • Illumination: Advanced lighting modes (diffuser, glancing light) to handle reflective, curved, and low-contrast surfaces

Connectivity & Power

  • Form Factor: Corded USB or cordless Bluetooth 4.0 / BLE

  • Battery: PowerPrecision+ 3100 mAh Li‑Ion; supports 100,000+ scans per charge

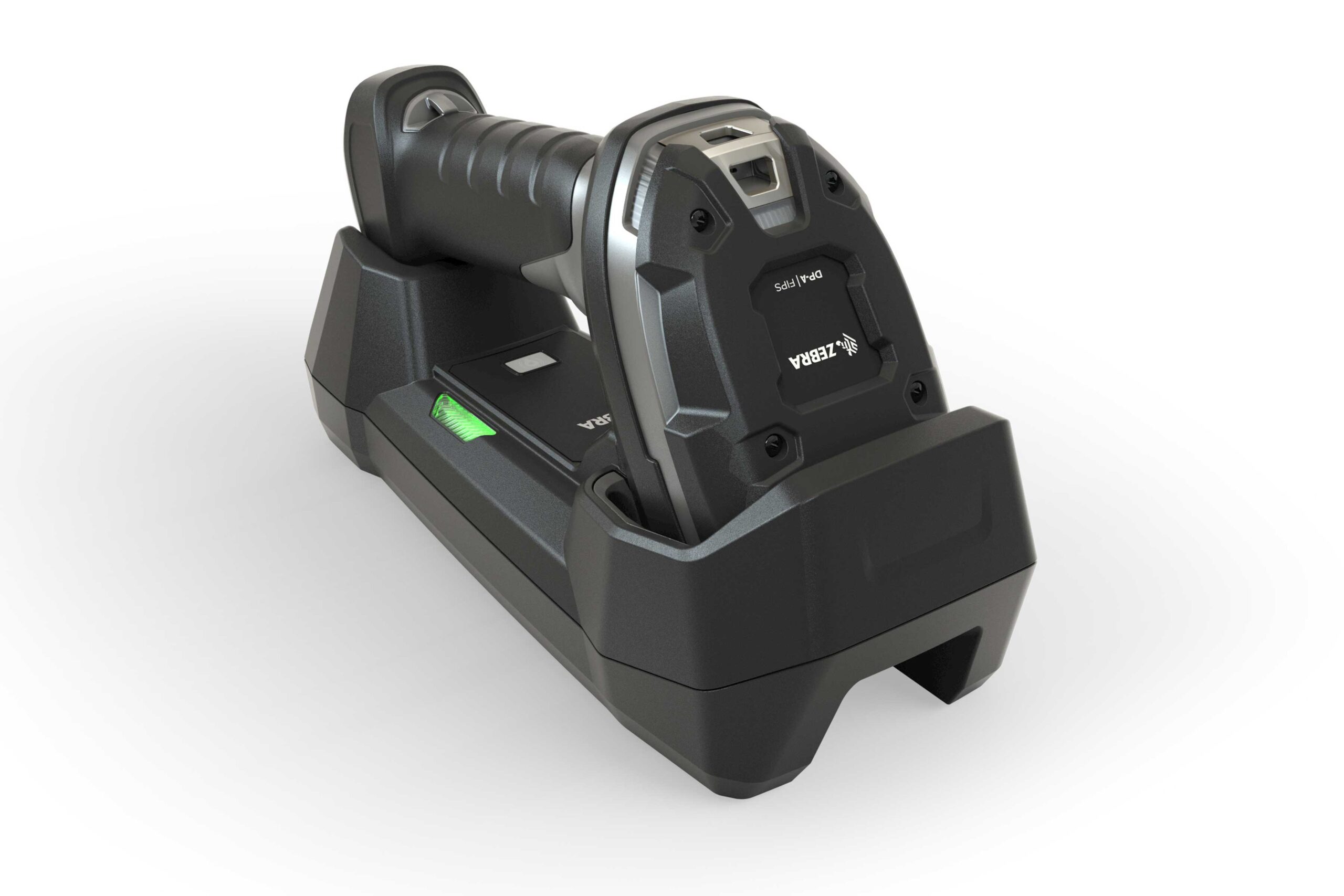

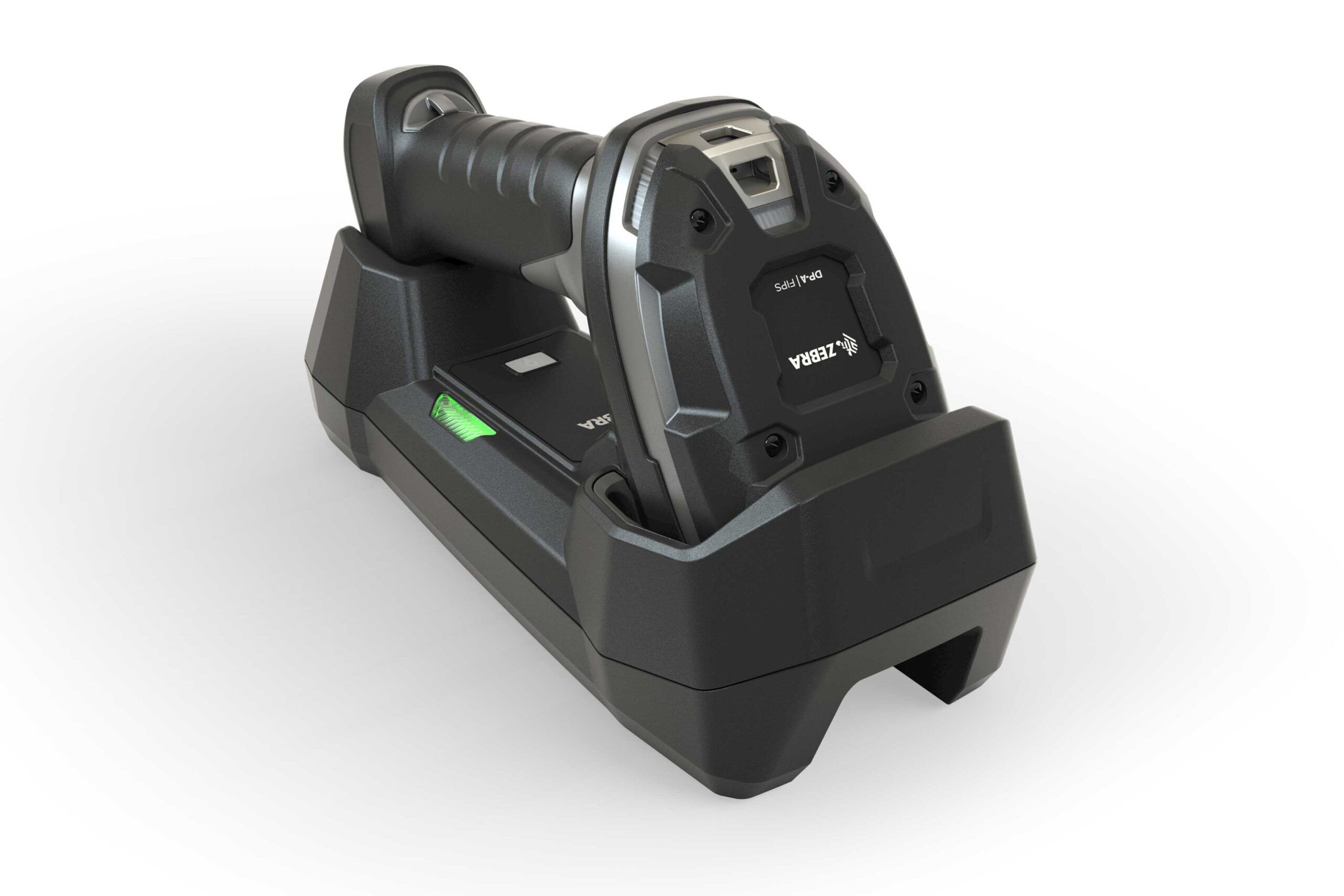

  • Charging Cradle: IP65-sealed, Connect+ contact rated for 250,000 insertions

Data & Device Management Features

  • Software Suite: Zebra DataCapture DNA

  • Key Tools: Label Parse+, Multi-Code Data Formatting, Virtual Tether, ScanSpeed Analytics, Network Connect for Automation, AutoConfig, remote diagnostics

  • Feedback Modes: Vibration, wraparound LEDs, beep tone, Direct Decode Indicator

Warranty

  • Covered under Zebra’s limited warranty for 36 months from shipment or purchase (whichever is later)
