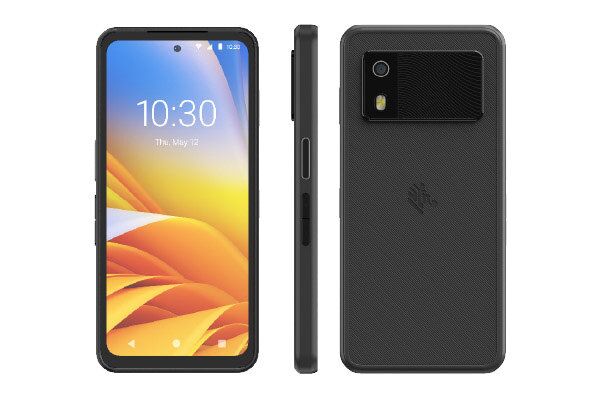

EM45 Enterprise Mobile
Zebra EM45 Enterprise Mobile delivers the power of Zebra in a sleek, lightweight design, perfect for field sales, retail, logistics, and more. With 5G, Wi-Fi 6E, AI-ready performance, and a 25-hour battery, it ensures fast, reliable connectivity and productivity. Enterprise-grade security and the Zebra DNA software suite simplify deployment and management, making it easy to integrate across your entire workforce. Built for work. Designed for you.
The Zebra EM45 blends the strength of enterprise-grade performance with the sleek, ergonomic design of a consumer device—delivering unmatched flexibility and productivity for today’s mobile workforce. Ultra-lightweight and slim, it’s ideal for field sales, retail managers, drivers, and frontline professionals who need speed, connectivity, and reliability on the go.
Key Highlights:
Sleek, Ergonomic Design
Enjoy a modern, lightweight form factor that’s easy to carry, with enterprise durability and consumer-level comfort. The EM45 is as refined in hand as it is rugged in performance.
Stunning 6.7″ FHD+ Display
A large Full HD+ screen with a 120Hz refresh rate offers smooth visuals and responsive touch—perfect for multitasking, data entry, and viewing high-detail images. Glove-friendly and smudge-resistant, it’s built for real-world use with water droplet rejection and a high-brightness panel visible in any environment.
Enterprise-Ready Performance
Powered by a cutting-edge processor and fast memory, the EM45 supports AI-driven applications and delivers consistently smooth performance. A high-performance camera enables quality imaging, while enterprise-level authentication and security protect critical business data.
All-Day Power, Always Connected
With up to 25 hours of battery life and support for 5G and Wi-Fi 6E, your workforce stays connected, productive, and responsive—anytime, anywhere.
Zebra DNA: Smarter Management
Leverage the Zebra DNA software suite to streamline deployment, configuration, and management. Tools like LifeGuard™, StageNow, and Zero-Touch enrollment simplify IT operations across your entire fleet—standardized on a powerful, unified Zebra Android™ platform.
Physical Characteristics
| Dimensions | 6.72 in L x 3.17 in W x .42 in D (170.65mm L x 80.54mm W x 10.7mm D) |
| Weight | 8.57 oz (243g) (with battery) |
| Display | 6.7 in color Full High Definition+ (2400 x 1080); LED backlight; dynamic 120Hz refresh rate |
| Touch Panel | Multi mode capacitive touch with bare or light gloved fingertip input; water droplet rejection, Oleophobic coating |
| Power | Service replaceable; rechargeable Li-Ion, PowerPrecision for real-time battery metrics; Standard Capacity: 4,750mAh/18.43Wh |
| Expansion Slot | User-accessible MicroSD card; supports up to 2 TB |
| SIM | Dual SIM (single Nano SIM and eSIM) |
| Network Connections | WWAN; Wi-Fi, Bluetooth and NFC |
| Notifications | Audible tone; vibration |
| Keypad | On-screen keypad |
| Voice and Audio | Two microphones with noise cancellation; HAC compliant (North America); Dual Stereo speakers for loudness; High Quality stereophonic speaker phone; Bluetooth wireless headset support; PTT headset (Zebra USB-C) support; HD VoIP, Voice and Multimedia, supporting Super-wideband (SWB), Wideband (WB) and Full band (FB) |
| Buttons | Volume up/down; Power (fingerprint biometrics). Programmable action buttons: Left – default to scan; Right – default to PTT; Top – default to camera |
| Interface Ports | USB 3.1 (Bottom Type C) — SuperSpeed (host and client); OTG/host charging mode |
Performance Characteristics
| CPU | Qualcomm® 5430 Octa-core, 2.2 GHz |
| Operating System | Android; for supported Android versions, visit: www.zebra.com/android-versions |
| Memory | 8 GB DDR5 RAM/128 GB UFS3.1 Flash |
User Environment
| Operating Temperature | +32F to +122F (0C to +50C) |
| Storage Temperature | -40F to +158F (-40C to +70C) |
| Humidity | 5% — 95% non-condensing |
| Drop Specification | 5 ft (1.5m) to tile over concrete across temperature (0C to +50C/+32F to +122F) with protective boot exceeding MIL-STD-810H; Multiple 4 ft (1.2m) to tile over concrete across temperature (0C to +50C/+32F to 122F) exceeding MIL-STD 810H |
| Tumble Specification | 600 1.6 ft (0.5m) tumbles for device with protective case; 300 1.6 ft (0.5m) tumbles for device (1.6 ft/0.5m) |
| Sealing | IP68 and IP65, with battery per applicable IEC sealing specifications |
| Vibration | Sine: 4 g’s peak, 5hz to 2khz; Random:0.04 g²/hz, 20hz to 2khz |
| Thermal Shock | -40F to +158F (-40C to +70C) |
| Electrostatic Discharge (ESD) | +/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge |
General Certifications
| Google ARCore certified; Android Enterprise Recommended (AER) certified, AT&T/Verizon certified |
Interactive Sensor Technology (IST)
| Motion Sensor | 3-axis accelerometer with MEMS Gyro |
| Light Sensor | Automatically adjusts display backlight brightness |
| Proximity Sensor | Automatically detects when the user places the device against head during a phone call to disable display output and touch input |
| Magnetometer | eCompass to detect direction |
| Pressure Sensor | Altitude detection for locating |
Data Capture
| Scanning | Camera-based scanning, leveraging Zebra’s advanced decoder library for accurate and efficient data capture — complimentary with the device |
| Camera | Rear: 50 MP, Auto focus, OIS; ƒ/1.9, Video Recording Resolution: UHD 4K (3840×2160) @30fps, Front: 8 MP, ƒ/2.0, Video recording 1080P@30fps |
| NFC | ISO 14443 Type A and B; Sony FeliCa5 and ISO 15693 cards; Card Emulation via Host; Contactless payment support; ECP1.0 and ECP2.0 polling support; Apple VAS certified |
Wireless LAN
| WLAN Radio |
IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2×2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz); Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6 |
| Data Rates | 2.4 GHz: 802.11b/g/n/ax — 20 MHz – up to 286.8 Mbps; 5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz – up to 2402 Mbps; 6 GHz: 802.11ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps |
| Operating Channels | Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20, 40, 80, 160 MHz; Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency |
| Security and Encryption | WPA3 Enterprise 192-bit mode (GCMP256) — EAP-TLS; WPA3 Enterprise, AES-CCMP-128 — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Personal (SAE), AES-CCMP-128; WPA/WPA2 Enterprise, TKIP and AES-CCMP-128; WPA/WPA2 Personal (PSK), TKIP and AES-CCMP-128; Enhanced Open (OWE), AES-CCMP-128; WEP 40 bit and 104 bit; WAN device only: EAP-SIM, EAP-AKA, EAP-AKA Prime |
| Certifications | Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint |
| Fast Roam | 802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC |
Wireless WAN
| Radio Frequency Band6 |
North America: 5G FR1: n2/5/7/8/12/13/14/25/26/29/30/38/41/48/66/71/77/78; 4G: B2/4/5/7/8/12/13/14/17/25/26/29/30/38/41/48/66/71; 3G: B2/4/5 Rest of World: 5G FR1: n1/2/3/5/7/8/20/26/28/38/40/41/66/71/77/78; 4G: B1/2/3/4/5/7/8/13/17/18/20/26/28/38/39/40/41/42/43/66/71; 3G: B1/2/4/5/6/8/19; 2G: 850/900/1800/1900 Dual SIM/Dual Standby, VoLTE, Gigabit LTE-A, 5G NR Sub-6 (NSA, SA), LTE/NR Carrier Aggregation, Supports private 5G/LTE; CBRS (available only in the US) |
| GPS | GPS, GLONASS, Galileo, Beidou, QZSS; Dual-Band GNSS — concurrent L1/G1/E1/B1; (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA |
| Multimedia | Wi-Fi Multimedia™ (WMM) and WMM-PS; Including TSPEC |
Wireless PAN
| Bluetooth | Class 1, Bluetooth v5.3; Classic Bluetooth(BR/EDR) & Bluetooth LE |
Environmental Compliance
| RoHS Directive 2011/65/EU; Amendment 2015/863; REACH SVHC 1907/2006 For a complete list of product and materials compliance, please visit: www.zebra.com/environment |
