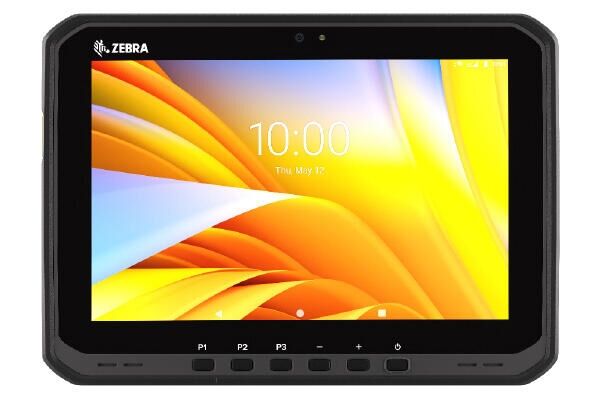

ET60-ET65 Rugged Tablet


THE MOST VERSATILE RUGGED ANDROID™ BUSINESS TABLETS

Maximize productivity and business efficiency with business tablets that deliver more—more features, more power, more security, more ruggedness and more versatility. Put these tablets to work in your most punishing environments—while they offer all the beauty of consumer-styling, they’re built like a tank, ready to handle the dust, dirt and grime in manufacturing plants and warehouses; life in the freezer; constant vibrations in forklifts and other vehicles; and all the elements—snow, ice, rain, dust, blazing heat and frigid cold. With unmatched flexibility, these tablets can be whatever you need them to be—a tablet, a laptop alternative and a vehicle mount computer. When it comes to features, these workhorses are loaded with processing power, battery power, data capture power, all the latest wireless connectivity options and more. And Mobility DNA™ adds unmatched value with features that make the tablets easier to use and manage. When the job calls for a rugged tablet, no matter what features you need, the ET60/ET65 delivers.

to the unpredictable outdoor environments in ports and yards, field services and public safety.

A Display You Can See Everywhere

View the super bright 1000 nit display easily in any lighting—including outside in bright sunlight or inside in a dimly lit manufacturing plant or warehouse. And two of the most vulnerable elements are protected with shatter- and scratch-resistant Gorilla Glass—the display and the optional scanner exit window.

An Extraordinary 4-Year Lifecycle

Unlike many devices, the ET60/ET65 will be available for sale for four years, eliminating the cost and complexity of mixed model deployments. And with service extended for an additional four years, you get up to eight total years of service and support.

GET THE ULTIMATE IN FLEXIBILITY—SO MUCH MORE THAN A TABLET

Turn it Into a Vehicle Mount Computer

Just lock the ET60 or ET65 into the new patent-pending vehicle dock for mounting in a forklift or other material handling vehicle. The touchpanel and warehouse keyboard are heated when locked into the vehicle dock—a feature no other tablet today can offer. Even in the freezer and other condensing environments, the screen is always free of condensation, clear and easy to see—and the keyboard is always free of ice, ready for data entry. All device features are easily accessible—including the expansion connector on the back to add available new capabilities. And choose an optional keyboard to make on-the-move data entry easy for forklift operators.



Physical Characteristics



Dimensions 10.8 in. W x 7.8 in. L x 0.7 in. H
275 mm W x 199 mm L x 18.3 mm H
Weight 2.3 lbs/1,074 g
Display 10.1 in. WUXGA (1920 x 1200)—1,000 nits; optically bonded to touchpanel
Touchpanel Multi mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately); Corning® Gorilla® Glass; Water droplet rejection; fingerprint resistant anti-smudge coating
Expansion Slot User accessible MicroSD card; supports up to 2 TB
Connectivity 2 x USB 3.1 Type A Ports; 1 x USB 3.1 Type C Port (with DisplayPort 1.2 support)
Interface Ports and Expansion Docking connector (charge and data); Keyboard
connector; 1 x USB 2.0 (back I/O – host only)
Notifications Audible tone; 2x multi-color LEDs
Audio Stereo speakers and two microphones; audio headset supported through USB port or Bluetooth; speaker/microphone support
Buttons Power; Scan; Up/Down (volume or brightness); three programmable keys
External Scanner Support HID via USB and Bluetooth®; SSI via USB and Bluetooth for DS/LI 36XX, RS5100 and RS6100



Performance Characteristics



CPU Qualcomm® 6490 octa-core; 2.7 GHz
Operating System Upgradeable to Android 16
Memory 8 GB RAM/128 GB UFS Flash



User Environment



Operating Temp. Standard battery: -4° F to 140° F/-20° C to 60° C
Extended battery: -22° F to 140° F/-30° C to 60° C
Storage Temp. -40° F to 158° F/-40° C to 70° C
Humidity 5% to 95% non-condensing (standard); 5% to 95% condensing (freezer version with heated touch screen)
Drop Specifications 5 ft./1.5 m drop to concrete exceeds MIL-STD-810H
Sealing IP66 per IEC 60529
Vibration MIL-STD-810H Method 514.8 Operating, MIL-STD-810H Method 514.8 E-1 Minimum Integrity 7.7 Grms non-operating
Thermal Shock  -40° F to 158° F/-40° C to 70° C
Electrostatic Discharge ± 15kV air discharge; ± 8 kV contact; ± 8 kV indirect
Salt Fog 48 hour of 5% solution at 95° F/35° C
Solar Radiation EN/IEC 60068-2-5 solar radiation spectral energy distribution; 1120 W/m2 at display surface; environmental temperature: 104° F/40° C; irradiation duration: 24 hours
Impact Steel ball (130 g) dropped from 75 cm height
Hazardous Location Certification Class 1 Division 23



Power



Charging Through USB Type-C (USB PD3.0 compatible) port or optional dock
Battery Standard capacity: 8,920 mAh
Extended capacity: 17,840 mAh
Hot Swap battery mode
Super Capacitor No-battery configurations: 5-minutes of operation4
Battery Run Time Standard battery: 10 hours indoor (WLAN on, 50% backlight); Extended battery: 20 hours indoor (WLAN on, 50% backlight)4
Battery Charge Time Standard battery: 2.5 hrs from 4% to 80% with 45 W power supply; Extended battery:
5.5 hrs from 4% to 80% with 45 W power supply



Sensors



Ambient Light Sensor Automatically adjusts display brightness
Magnetometer eCompass
Motion Sensor 3-axis gyroscope; 3-axis accelerometer
Humidity Sensor  Control input for display heating



Data Capture



Optional Scanner SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology
Rear Camera 16 MP autofocus; flash LED generates balanced white light
Front Camera 8 MP; mechanical privacy shade
Camera Scanning 1D/2D barcodes; optional OCR for documents, license plates, VINs and more

Wireless LAN



Data Rates 6 GHz: 802.11ax – 20 MHz, 40 MHz, 80 MHz,
160 MHz – up to 2402 Mbps; 5 GHz: 802.11a/n/ac/ax – 20 MHz, 40 MHz, 80 MHz, 160 MHz – up to 2402 Mbps; 2.4 GHz: 802.11b/g/n/ax – 20 MHz – up to 286.8 Mbps
Operating Channels Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz)Channel Bandwidth: 20/40/80/160 MHz;
Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.
Security and Encryption WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES)—EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit mode
(GCMP256) – EAP-TLS; Enhanced Open (OWE)
Fast Roam PMKID caching; 802.11r (Over-the-Air); OKC
Certifications Wi-Fi Alliance Certifications:
Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6; Wi-Fi Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; Wi-Fi Direct



Wireless WAN (ET65 only)



SIM Slots
1 x eSIM, 1 x Nano SIM
Frequency Bands 5G FR1: n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/
41/48/66/71/77/78
4G: B1/2/3/4/5/7/8/12/13/14/17/20/25/26/28/29/30/38/39/40/
41/42/43/46/48/66/71
3G: B1/2/4/5/8
LTE/5G Private Networking Supported
GNSS GPS, GLONASS, Galileo, Beidou, QZSS Dual-Band GNSS—concurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA



Wireless PAN



Bluetooth
Bluetooth v5.2 Class 1, Bluetooth Low Energy (BLE)
NFC ISO 14443 Type A and B; FeliCa and ISO 15693 cards



Security Features



FIPS 140-2 Validated (ISO 19790) and Common Criteria certified (ISO 15408);
FIPS 140-2 cryptography can be enabled on select configurations through a custom SKU request; supports Secure Boot and Verified Boot



Peripherals and Accessories



Accessories include: vehicle dock; keyboard3; CAC reader3; RFID reader3; 2-slot battery charger3; stylus; carrying accessories—handstrap, kickstand, shoulder strap and handle



Warranty



Subject to the terms of Zebra’s hardware warranty statement, the ET60/ET65 Enterprise Tablets are warranted against defects in workmanship and materials for a period of 3 (three) years from the date of shipment. For complete warranty statement, go to:
www.zebra.com/warranty



Recommended Services



Zebra OneCare® Essential and Select support services; Zebra Visibility Services—VisibilityIQ™ Foresight; Learning Services



Footnotes



1. CBRS is available in the US only
2. OCR Wedge license required for each data type
3. Available 1H 2024
4. Battery and Super Capacitor performance can vary according to usage conditionsSpecifications subject to change without notice
