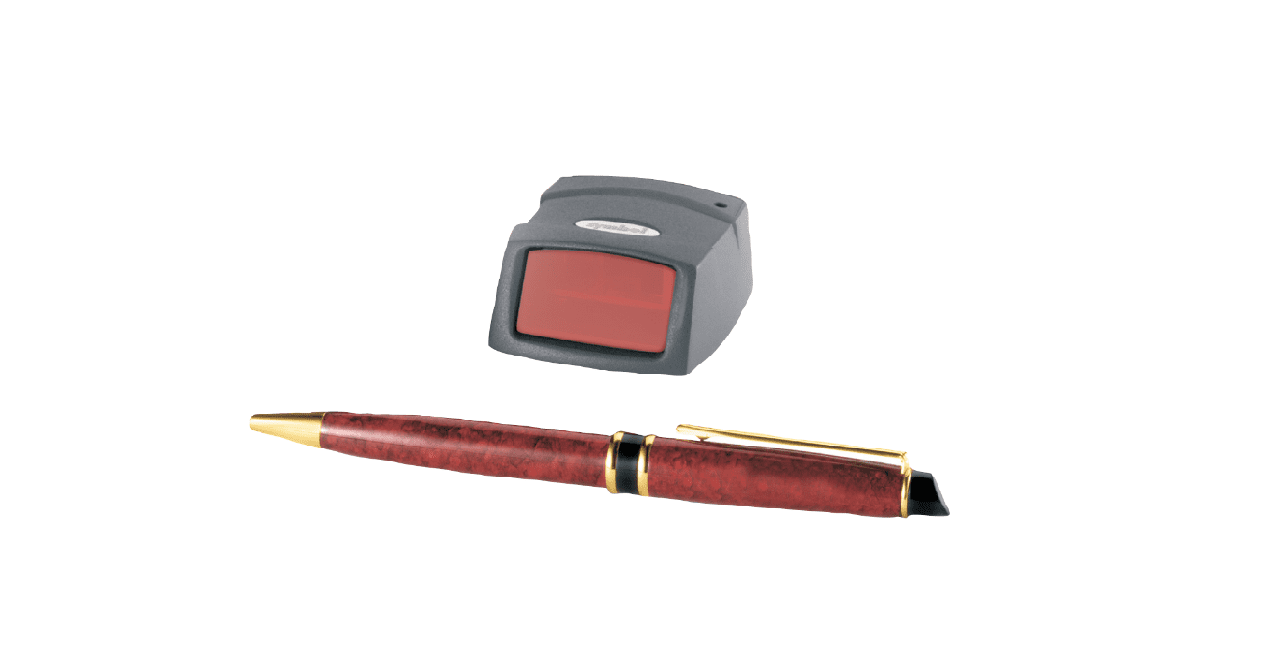

Fixed Mount Scanner MiniScan MS954

Zebra Products In Qatar

The MS954 is a compact, durable, fixed-mount laser bar code scanner for premium linear scanning on all types of 1-D bar codes, including poorly printed and low contrast symbols.
The MS954 offers a configurable scan angle of 47° and 35° for OEM devices requiring a flexible, expanded working range. As one of the smallest, lightest and brightest fixed-mount scanners available today, the MS954 is ideal for accurate automated data collection in OEM device designs with space constraints. It can also be used as a standalone fixed-mount scanner.

The MS954 is a compact, durable, fixed-mount laser bar code scanner for premium linear scanning on all types of 1-D bar codes, including poorly printed and low contrast symbols.
The MS954 offers a configurable scan angle of 47° and 35° for OEM devices requiring a flexible, expanded working range. As one of the smallest, lightest and brightest fixed-mount scanners available today, the MS954 is ideal for accurate automated data collection in OEM device designs with space constraints. It can also be used as a standalone fixed-mount scanner.



Dimensions

1.02H x 1.93W x 2.31D (in), 25.9H x 49.02W x 58.67D (mm)

Weight

1.67 oz./ 47.34 g

Interface

RS-232

Ambient Lighting Tolerance

Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 ft. candles (4,844 Lux), Sunlight: 8,000 ft. candles (86,111 Lux), Tolerant to typical artificial indoor and natural outdoor (direct sunlight ) lighting conditions

Operating Temperature

-4° to 140°F (-20° to 60°C)

Storage temperature

-40° to 158°F (-40° to 70°C)

Humidity

5% to 95% non-condensing

Power

Input voltage: 5 VDC ± 10% Scanning current: 95mA Standby current: 27mA Vcc noise level: 200mV peak-to-peak max

Drop Rate

Unit functions normally after multiple 30 in (76 cm) drops to concrete

Barcode Symbologies

All major 1-D bar codes

Programmable parameters

Aim Duration, Beeper Tone, Bi-directional Redundancy, Data Formatting, Laser On Time, Power Mode, Scan Angle, Serial Parameters, Symbology Types/Lengths, Trigger Mode

Laser classification

CDRH Class II, IEC Class 2

Electrical Safety

Certified to UL1950, CA C22-2 NO950 ENG60950/ IEC950

Environmental

RoHS compliant

EMI/RFI

Australian SMAv, FCC Part 15 Class B, ICES-003 Class B European Union ENC Directive

Light Source

Visible laser diode 650 nm

Scan Rate

104 ± 12 scans per second

Scan Angle

47° ± 3° (typical) / 35° ± 3° (narrow )

Scan pattern

Linear

Minimum Print Contrast

Minimum 25% absolute dark/light reflectance measured at 650 nm

Ranges - 1-D codes

13 mil: 100% UPC – 80%MRD: 0.9 – 22 (in) / 2.29 – 55.88 (cm), 20 mil: Code 39; 2.2:1 – * – 27.5 (in ) / *- 69.85 (cm), 20 mil: Code 39; 2.2:1 – 80% MRD : 2 – 30 (in) / 5.08 – 76.2 (cm), 40 mil: Code 39; 2.2:1 – * – 28 (in) / *- 71.12 (cm), 5 mil: Code 39; 2.5:1 – 0.7 – 7.3 (in ) / 1.8 – 18.54 (cm), 55 mil: Code 39; 2.2:1 – * – 35 (in) / *- 88.90 (cm), 7.5 mil: Code 39; 2.5:1 – 0.9 – 12.4 (in) / 2.29 – 31.24 (cm)
