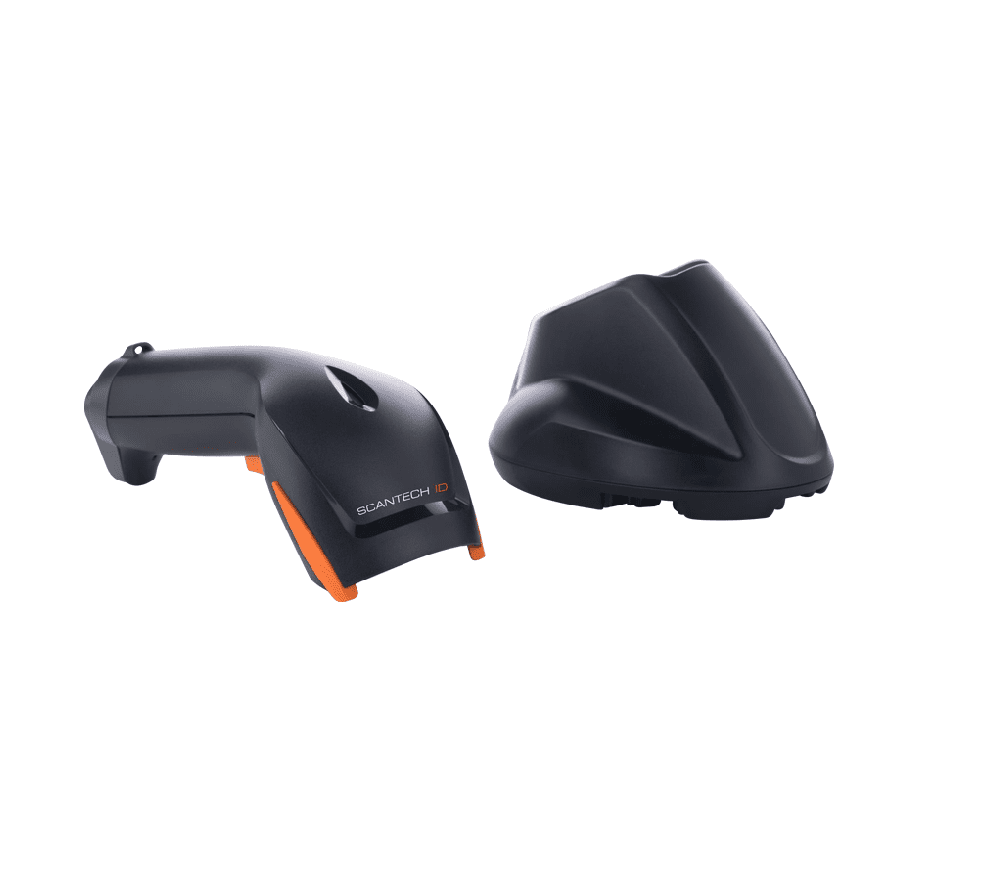

General Purpose Gun Type Scanners SG800BT


SG800/BT is a brand new general purpose gun-type linear imager barcode scanner which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multiple interface cable options that makes it more easily to be operated by the customers to accommodate itself to user environment.

SG800/BT is a brand new general purpose gun-type linear imager barcode scanner which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multiple interface cable options that makes it more easily to be operated by the customers to accommodate itself to user environment.



• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage temperature

-20°C to 70°C (-4°F to 158°F)

Humidity

20% to 95% (Non-condensing)

Ambient light

100,000 Lux Max

• • SPECIFICATION

• • • • • • • • • •

Dimensions (WxDxH)

73.5 mm W x 76.2mm H x 173 mm L

Light Source

Visible Red light 635±5nm LED

Filed of View

Horizontal: 45°

Depth of Field

Code 39, PCS90%, Up to 550mm@20mil/0.5mm

RESOLUTION

4mil/0.1mm@PCS90%, Code39

Scan Rate

Smart detection, up to 500 scans per second

Pitch

±10°~65°(±5°)

Skew

± 60°(±5°)

Indicators

Beep and LED (Good read Green)

Drop resistance

59.05 inches(150cm) drop on concrete surface

Print Contrast Ratio

25%

Sealing

IP42 water and dust protection

Body weight

Approx. 165g / 5,83 oz

Wireless Standard

Bluetooth V2.1, HID and SPP profile supported

Battery

Li-ion 3.7V / 2600 mAh

Recharge Time

Approx. 5 hours

Scan Per Charge

50,000 times (continuous read)

Radio Transmission Range

Class 1, up to 100m (in open space)

Interface

RS232, USB (HID, Virtual COM)

Power

DC 5V
