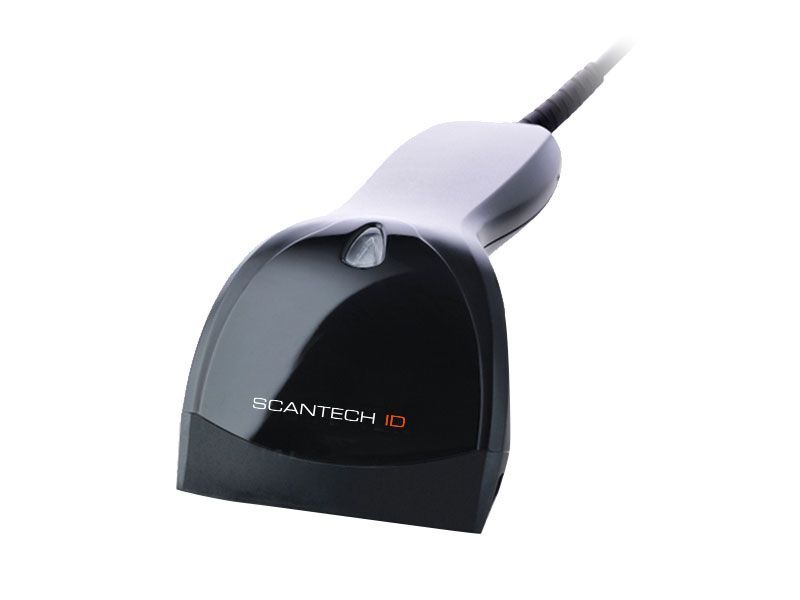

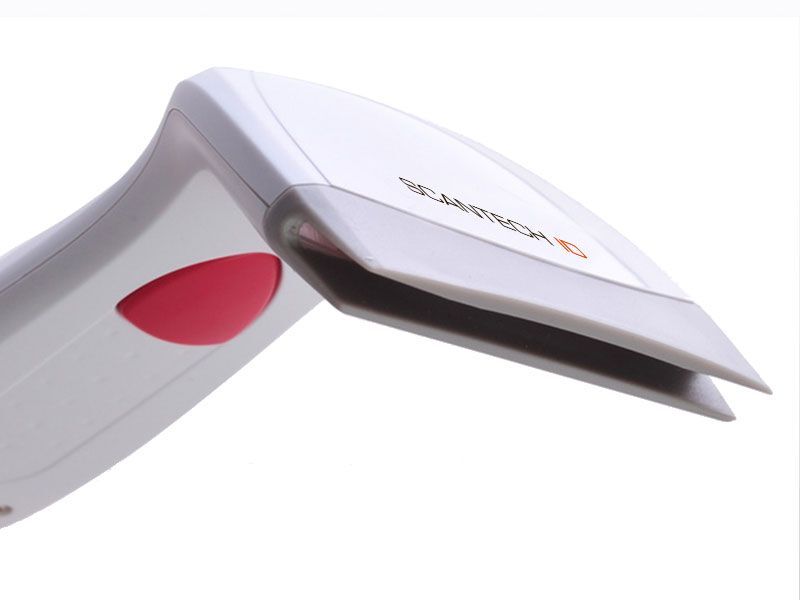

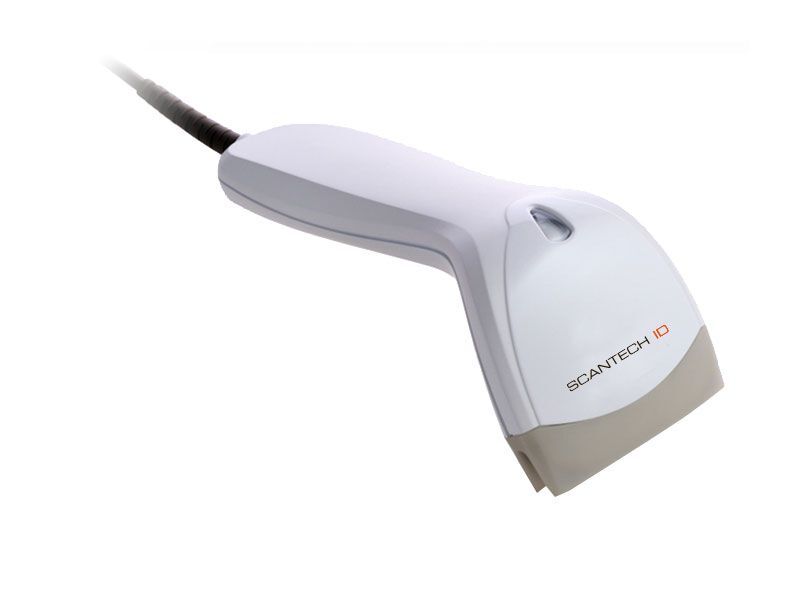

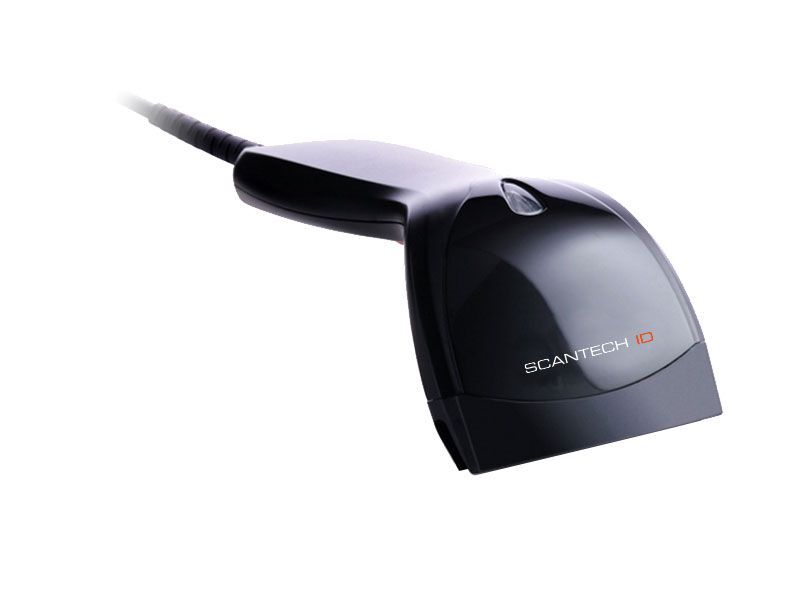

Handheld Linear Image Scanner SD700


SD700 is a brand new ultra slim Handheld linear imaging contact reader represents for customers who require a cost-e ective solution for close contact to middle range bar code reading without sacri cing quality and performance. Aside from the characteristics of “high performance, high sensitivities and high stability” inherited from Champtek previous products, SD700 provides the guarantee of excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.

SD700 is a brand new ultra slim Handheld linear imaging contact reader represents for customers who require a cost-e ective solution for close contact to middle range bar code reading without sacri cing quality and performance. Aside from the characteristics of “high performance, high sensitivities and high stability” inherited from Champtek previous products, SD700 provides the guarantee of excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.



• • ENVIRONMENTAL

• • • • • • • • • •

Ambient light

Up to 20,000 Lux Max

• • SPECIFICATION

• • • • • • • • • •

Dimensions (WxDxH)

171.3 x 82.8 x 75mm

Light Source

632±5nm Red LED

Depth of Field

Code 39, Contact to 80mm@20mil/0.5mm, PCS90%

RESOLUTION

3mil/0.076mm

Scan Rate

200 scans±10%

Indicators

Beeper and LED

Drop resistance

1.2m

Print Contrast Ratio

30%

Width of Field

90mm (80mm at window)

Interface

KBW, RS232, USB (HID, Virtual COM)

Power

DC 5V
