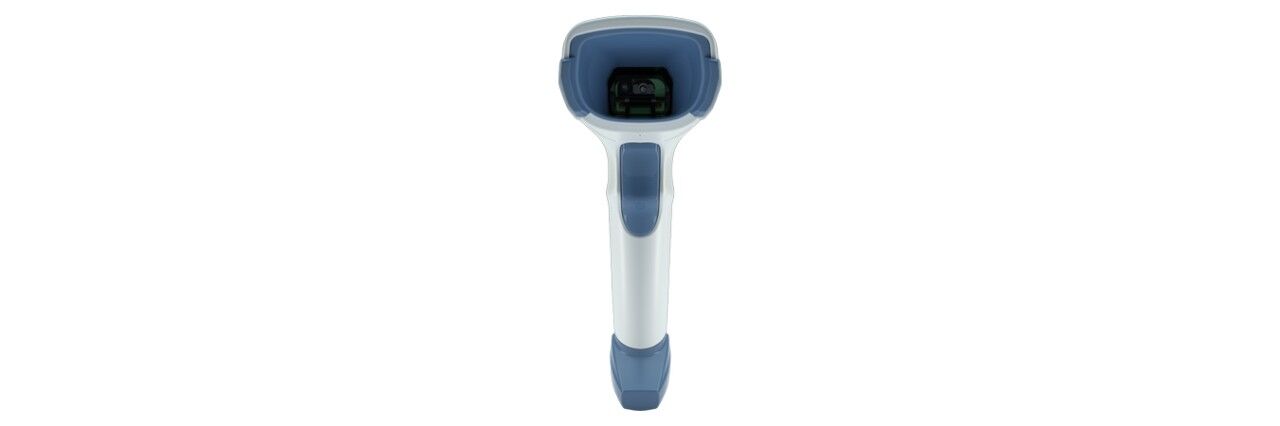

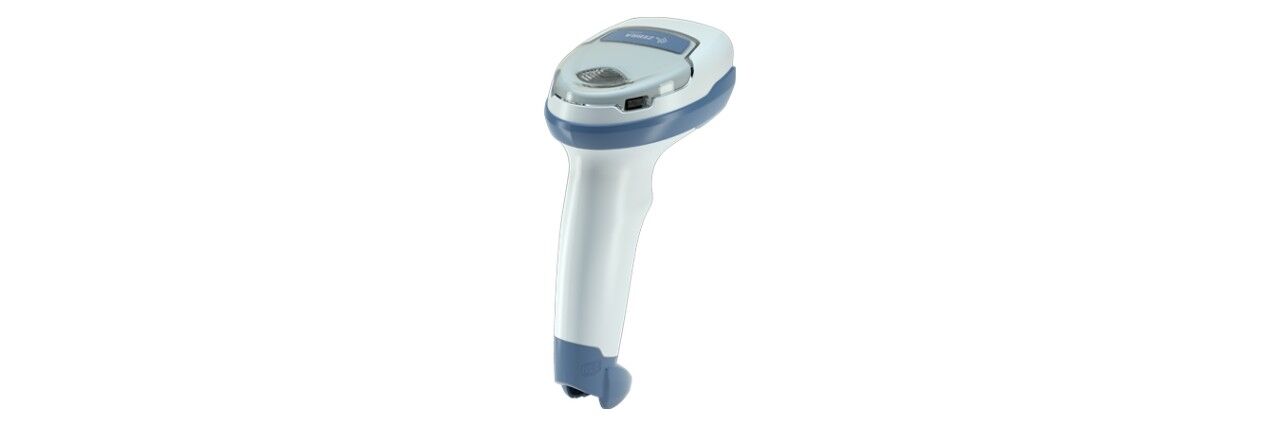

Handheld Scanners DS4600

Zebra Products In Qatar

Every second of every day, data capture plays a critical role throughout the hospital. NICU nurses scan an ankle bracelet to confirm a newborn’s identity. Nurses scan IV bags to record time and dosage. Pharmacists scan a medication’s barcode to cross-check it with the prescribed dosage. And lab technicians scan barcodes to carefully track specimens. With the DS4600 Series for Healthcare, you get a single solution for all of these data capture needs—and more. Designed for use throughout the whole hospital, the DS4608-HC can withstand constant disinfecting at the point-of-care and has an LED aimer that is safe for use in the NICU. This versatile scanner accurately and easily captures virtually every barcode type found throughout the hospital, and includes innovative features that further boost workflow efficiency and the patient experience. Zebra’s unique DataCapture DNA and industry-preferred management tools make it easier than ever to integrate, deploy and manage your scanners. The DS4600 Series for Healthcare—the performance you need to improve the quality of care, the versatility you need to simplify your scanner deployment throughout the whole hospital.

Every second of every day, data capture plays a critical role throughout the hospital. NICU nurses scan an ankle bracelet to confirm a newborn’s identity. Nurses scan IV bags to record time and dosage. Pharmacists scan a medication’s barcode to cross-check it with the prescribed dosage. And lab technicians scan barcodes to carefully track specimens. With the DS4600 Series for Healthcare, you get a single solution for all of these data capture needs—and more. Designed for use throughout the whole hospital, the DS4608-HC can withstand constant disinfecting at the point-of-care and has an LED aimer that is safe for use in the NICU. This versatile scanner accurately and easily captures virtually every barcode type found throughout the hospital, and includes innovative features that further boost workflow efficiency and the patient experience. Zebra’s unique DataCapture DNA and industry-preferred management tools make it easier than ever to integrate, deploy and manage your scanners. The DS4600 Series for Healthcare—the performance you need to improve the quality of care, the versatility you need to simplify your scanner deployment throughout the whole hospital.



Dimensions (WxDxH)

6.5 in. H x 2.6 in. W x 3.9 in. D

Weight

5.7 oz. / 161.9 g

Input Voltage

4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply

Operating current

375 mA (typical)

Standby Current (Idle) at Nominal Voltage (5.0V)

150 mA (typical)

COLOR

Healthcare White

Supported Host Interfaces

USB, RS232, TGCS (IBM) 46XX over RS485

Keyboard Support

Supports over 90 international keyboards

User Indicators

Direct Decode Indicator, Good Decode LEDs, rear view LEDs, beeper (adjustable tone and volume), haptic/vibration

Light Source

Aiming Pattern: circular 528nm true green LED

Illumination

(2) warm white LED’s

Imager Field of View

35° H x 22° V nominal

Image Sensor

1280 x 800 pixels

Minimum Print Contrast

15% minimum reflective difference

Skew Tolerance

+/- 60°

Pitch Tolerance

+/- 60°

Roll Tolerance

0° – 360°

• • Imaging Characteristics

• • • • • • • • • •

Graphics Format Support

Images can be exported as Bitmap, JPEG or TIFF

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

32.0° to 122.0° F / 0.0° to 50.0° C

Storage temperature

40.0° to 158.0° F / -40.0° to 70.0° C

Operating Humidity

5% to 95% RH, non-condensing

Drop Specification

Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete

Tumble Specification

Designed to withstand 2,000 tumbles in 1.5 ft./0.5 m tumbler

Sealing

IP52

Approved Cleaners

Disinfectant Ready. Refer to the product reference guide for the complete list of approved cleaners.

Electrostatic Discharge (ESD)

ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light Immunity

0 to 10,000 foot candles/0 to 107,000 Lux

Barcode Symbologies

• • • • • • • • • •

1D

Base 32 (Italian Pharma), Codabar/NW-7, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI/Plessey, UPC/EAN extensions

2D

Aztec, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, Postal Codes, QR code, SecurPharm, TLC 39
