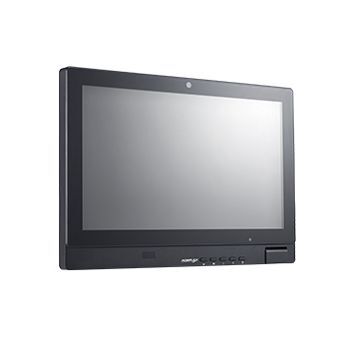

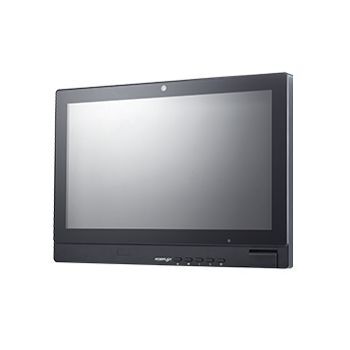

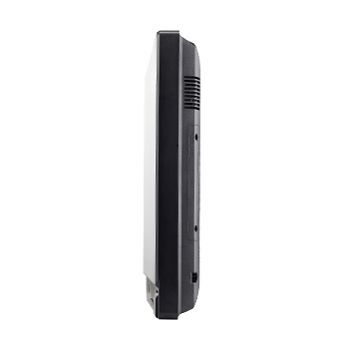

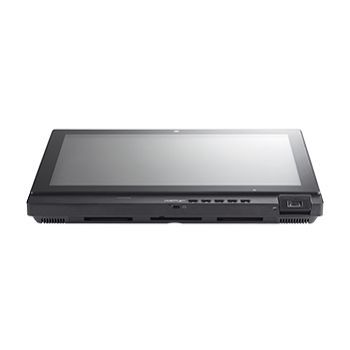

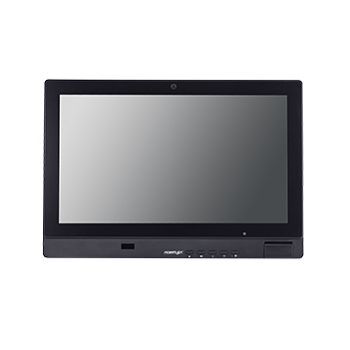

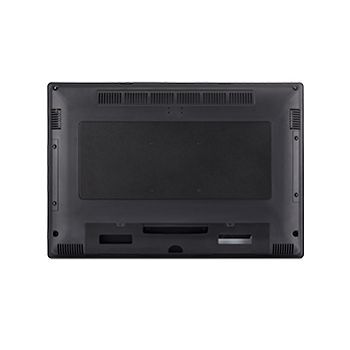

The HC-1521P-Pro Series is a high-end infotainment terminal with a 21.5” PCAP touch screen display. Well-suited to meet durability and aesthetic requirements, the HC-1521P Series
• • SPECIFICATION | • • • • • • • • • • |
---|---|
Processor | Intel Haswell Core i5-4570TE CPU, up to 3.30 GHz, 4M Cache |
System Memory | DDR3L SO-DIMM x 2, max. 16GB in 2 slots |
Storage Device | SATA x 1 + mSATA x 1 |
Intel VPro Support | YES |
Power Supply | 12V/100W |
OS Support | Linux per request, POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7 |
• • DISPLAY & TOUCH | • • • • • • • • • • |
LCD | 21.5″ TFT LCD |
RESOLUTION | 1920 x 1080 |
TOUCH | True-flat PCAP touch with multi-touch support (optional AG glass) |

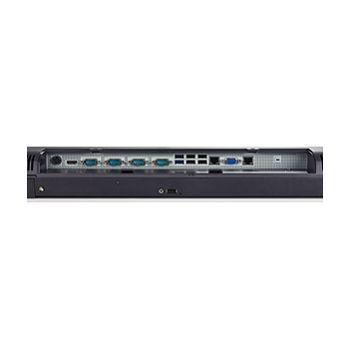

• • I/O & EXPANSION | • • • • • • • • • • |
SERIAL PORT | 4, DB9 x 4, 5V/12V support on all COM ports |
STANDARD USB PORT | 7, USB 3.0 x 2+ USB 2.0 x 5 |
LAN PORT | 10/100/1000 Mb x 2 |
DISPLAY PORT | VGA x 1 + HDMI x 1, 12V support on VGA port for Posiflex monitors |
Audio | Internal 3W speaker x 2 + Mic-in/Line-out |
EXPANSION SLOT | Mini-PCIe slot x 1 |
HOTKEYS | Volume up, volume down, brightness up, brightness down, power (hotkeys lockable) |
• • PHYSICAL DIMENSION | • • • • • • • • • • |
DIMENSION (W X D X H IN MM) | 547 x 61 x 377 |
Weight | 6.6 |
• • ENVIRONMENTAL | • • • • • • • • • • |
OPERATING CONDITION | 0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD) |
STORAGE CONDITION | -20°C – 70°C, 10%RH – 90%RH |
• • BUILT-IN OPTIONS | • • • • • • • • • • |
WIFI | Mini-PCIe WiFi/BT module |
Scanner | 2D barcode scanner |
CAMERA | Front facing, 1MP wide angle, auto focusing |
PERIPHERALS | iButton, MSR, MSR + optional 3G dongle + optional Fingerprint Sensor, MSR + optional RFID +optional iButton, MSR+optional RFID+optional Fingerprint Sensor, Price Checker Kit – wall mount bracket + 2D barcode scanner |
STANDALONE OPTION | TV tuner |
BRAND | POSIFLEX |
