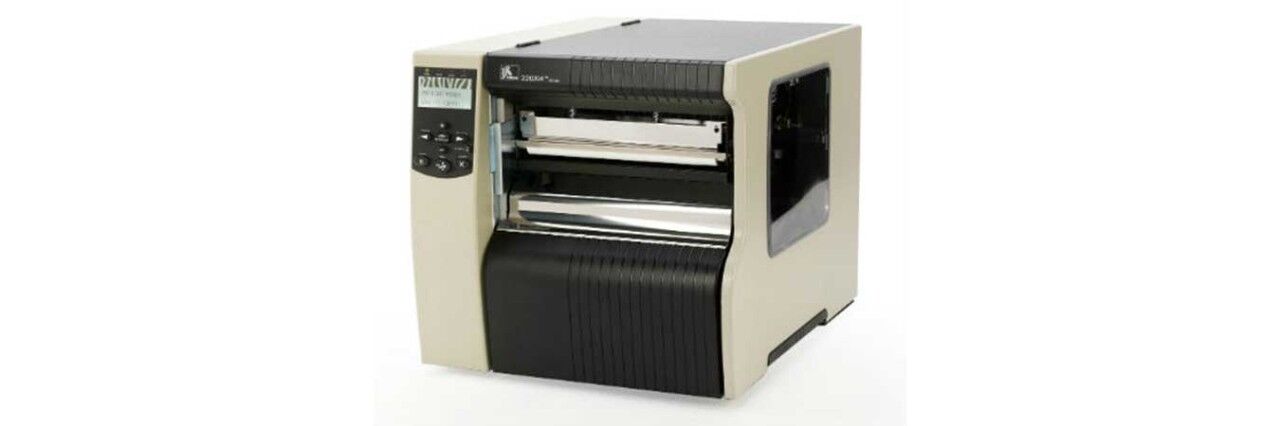

Industrial Printer 220Xi4

Zebra Products In Qatar

Zebra’s built-to-last 220Xi4 printer is renowned for it’s incredible durability, consistently outstanding print quality, fast print speed, long life and unparalleled reliability in demanding applications. The 220Xi4 is designed for printing of labels up to 8″ wide for chemical drum or other wide label applications. The ZT610 or ZT620 Industrial printers are the preferred printers for high volume print applications with a print width of less than 6.6″ (168 mm).

Zebra’s built-to-last 220Xi4 printer is renowned for it’s incredible durability, consistently outstanding print quality, fast print speed, long life and unparalleled reliability in demanding applications. The 220Xi4 is designed for printing of labels up to 8″ wide for chemical drum or other wide label applications. The ZT610 or ZT620 Industrial printers are the preferred printers for high volume print applications with a print width of less than 6.6″ (168 mm).



STANDARD FEATURES

• Dual media sensors — transmissive and reflective, selectable through software or front panel, 16 MB SDRAM Flash memory, 32 bit 133 Mhz RISC processor, 64 MB on-board linear Flash memory, Advanced label/media counters, Auto calibration when printer is turned on or when printhead is closed using approximately two labels, Clear media side door allows easy monitoring of supplies usage without opening the printer systems, Communications: USB 2.0, RS-232 Serial, and bi-directional Parallel port with auto detect, Early warning systems provide low label, low ribbon and clean printhead alerts via the front panel and ZebraLink alerts, ENERGY STAR qualified, Full-function front panel and large, multilingual, back-lit LCD display with user-programmable password protection, Internal real-time clock, Internal ZebraNet® 10/100 Print Server (Ethernet), Print methods: Thermal Transfer or Direct Thermal, Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality

• • SPECIFICATION

• • • • • • • • • •

RESOLUTION

203 dpi/8 dots per mm, 300 dpi/12 dots per mm

Memory

64 MB Flash; 16 MB RAM

Maximum Print Width

8.5"/216 mm

Maximum Print Speed

10"/254 mm per second (203 dpi), 6"/152.4 mm per second (300 dpi)

Media Sensors

Transmissive and reflective

Media Width

4.25" (108 mm) to 8.8" (224 mm)

Media Roll Size

8.0" (203 mm) outside diameter on a 3" (76 mm) inside diameter core

Media Thickness

0.003"/0.076 mm to 0.012"/0.305 mm

Minimum NonContinuous Label Length

0.25"/6 mm (Rewind mode), 0.5"/13 mm (Peel mode), 0.7"/18 mm (Tear-off mode), 1.5"/38 mm (Cutter mode)

Ribbon Outside Diameter

3.2"/81.3 mm

Ribbon Length

1476'/450 M, 984'/300 M

Ribbon Width

4.25" (108 mm) to 8.6" (220 mm)

Core I.D.

1.0"/25.4 mm

• • OPERATING CHARACTERISTICS

• • • • • • • • • •

Environmental

Direct thermal: 32°F to 105°F/0°C to 40°C, Operating Humidity: 20% to 85% non-condensing, Operating Temperature: 40°F to 105°F/5°C to 40°C, Storage Humidity: 5% to 85% non-condensing, Storage/Transportation Temperature: -40°F to 140°F/ -40°C to 60°C, Thermal transfer: 40°F to 105°F/5°C to 40°C

Electrical

90-264VAC; 48-62Hz, ENERGY STAR qualified (140Xi4, 170Xi4, 220Xi4)

Height

15.5" / 393.7 mm

Width

15.81" / 401.6 mm

Depth

20.38" / 517.5 mm

Weight

72 lbs. / 32.7 kg

Web View

Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers.

Alert

Printers equipped with ZebraNet print servers will notify you via any emailenabled, wired, or wireless device to minimize downtime.

FIRMWARE

ZBI 2.0, ZPL and ZPL II®

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, ISBT-128, Logmars, MSI, Planet Code, Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E

2D

Aztec, Codablock, Code 49, Data Matrix, GS1 Databar, MaxiCode, PDF417, QR code, TLC 39

FONTS AND GRAPHICS

12 MB user-available SDRAM, 61 MB user-available non-volatile memory storage for downloadable objects, Bitmap fonts A through H and GS symbols are *Contains UFST® from Agfa Monotype Corporation, Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent, IBM® Code Page 850 International Characters, Smooth scalable font Ø (CG Triumvirate™ Bold Condensed*) is expandable dot-by-dot, height and width independent, Supports user-defined fonts and graphics — including custom logos, Unicode™-compliant Global Printing

Options and Accessories

Additional fonts, Applicator interface – provides status and control signals for applicators and remote control devices, Clear media side bi-fold door–allows shorter media door opening radius, Full-width rotary knife cutter and catch tray–operates under software control cutting labels individually or in strips, Media rewind spindle–rewinds finished roll internally onto 3" (76 mm) core or enables label peel and liner rewind, Media supply spindle for 3" (76mm) core or 40mm core
