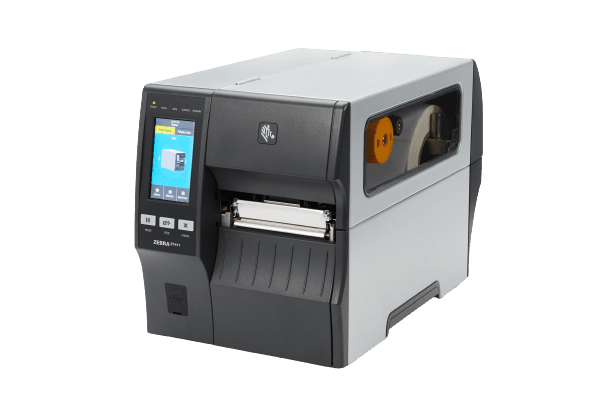

Industrial Printer ZT400 Series
Keep your critical operations running efficiently with Zebra’s durable ZT400 Series printers. The ZT400 offers advanced technology that drives versatility, ease of use and performance to a new level. Available in three print resolutions and two print widths, the ZT400 Series addresses a broad array of applications throughout manufacturing, transportation and logistics, retail and more. See printer status at a glance and manage settings quickly using the large color touch display. Field-installable connectivity, media handling and RFID options let you easily add new features as your needs evolve. And your IT department will find ZT400 printers easy to integrate and manage, thanks to Zebra’s Print DNA suite of applications, utilities and developer tools–all powered by Link-OS®. The result? The ZT400 offers the versatility, reliability and performance to meet your industrial printing needs — today and tomorrow.
Keep your critical operations running efficiently with Zebra’s durable ZT400 Series printers. The ZT400 offers advanced technology that drives versatility, ease of use and performance to a new level. Available in three print resolutions and two print widths, the ZT400 Series addresses a broad array of applications throughout manufacturing, transportation and logistics, retail and more. See printer status at a glance and manage settings quickly using the large color touch display. Field-installable connectivity, media handling and RFID options let you easily add new features as your needs evolve. And your IT department will find ZT400 printers easy to integrate and manage, thanks to Zebra’s Print DNA suite of applications, utilities and developer tools–all powered by Link-OS®. The result? The ZT400 offers the versatility, reliability and performance to meet your industrial printing needs — today and tomorrow.
| STANDARD FEATURES | 4.3-inch color touch display with intuitive menu for quick operation and settings management, Bi-colored status LEDs for quick printer status, Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1, Dual USB Host, Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window, ENERGY STAR qualified, Print Methods: Thermal transfer and direct thermal printing, Side-loading supplies path for simplified media and ribbon loading, Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality |
|---|---|
| Dimensions | ZT411: 19.5 in. L x 10.6 in. W x 12.75 in. H, ZT421: 19.5 in. L x 13.25 in. W x 12.75 H |
| Weight | ZT411: 36 lbs./16.33 kg, ZT421: 40 lbs./18.14 kg |
| • • SPECIFICATION | • • • • • • • • • • |
| RESOLUTION | 203 dpi/8 dots per mm, 300 dpi/12 dots per mm (optional), 600 dpi/24 dots per mm (optional for ZT411 only) |
| Memory | 256 MB SDRAM memory, 512 MB on-board linear Flash memory |
| Maximum Print Width | ZT411: 4.09 in./104 mm, ZT421: 6.6 in./168 mm |
| Maximum Print Speed | ZT411: 14 ips/356 mm per second, ZT421: 12 ips/305 mm per second |
| Media Sensors | Adjustable dual media sensors: transmissive and reflective |
| PRINT LENGTH | ZT411: 203 dpi: 157 in./3988 mm | 300 dpi: 73 in./1854 mm | 600 dpi: 39 in./991 mm, ZT421: 203 dpi: 102 in./2591 mm | 300 dpi: 45 in./1143 mm |
| Media Width | ZT411: 1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter | 1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind, ZT421: 2.00 in./51 mm to 7.0 in./178 mm tear/cutter | 2.00 in./51 mm to 6.75 in./171 mm peel/rewind |
| Media Roll Size | 8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core |
| Media Thickness | 0.0023 in./0.058 mm to 0.010 in./0.25 mm |
| Media Type | Black Mark, Continuous, die-cut, Notch |
| Ribbon Length | 1476 ft./450 M |
| Ribbon Width | ZT411: 2.00 in./51 mm to 4.33 in./110 mm, ZT421: 2.00 in./51 mm to 6.85 in./174 mm |
| Core I.D. | 1.0 in./25 mm I.D. |
| • • ENVIRONMENTAL | • • • • • • • • • • |
| Operating Temperature | Direct thermal: 32º F to 104º F/0º C to 40º C, Thermal transfer: 40º F to 104º F/5º C to 40º C |
| Storage temperature | -40º F to 140º F/-40º C to 60º C |
| Operating Humidity | 20% to 85% non-condensing |
| Storage Humidity | 5% to 85% non-condensing |
| FIRMWARE | EPL and EPL2™, ZBI 2.0, ZPL and ZPL II® |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR qualified |
| Options and Accessories | • • • • • • • • • • |
| Communications | 10/100 Ethernet, Applicator interface, Dual band 802.11ac Wi-Fi and Bluetooth, Parallel (bi-directional interface) |
| Media Handling | 1 in. I.D. Core media supply hanger (ZT411 only), Cutter: Front-mount guillotine cutter and catch tray, Ink-side in ribbon supply (ZT411 only), Peel: Front-mount, passive peel option, Peel: Liner take-up — additional full-roll liner takeup spindle accommodates standard printer base, Rewind: Internally rewinds a full roll of printed labels on 3” core, or peels and rewinds liner (factory installed only) |
| RFID | Adaptive Encoding Technology automatically selects optimum encode settings, Field installable on-metal RFID kit available, Integrated RFID system is user-upgradable in the field and available on both 4 in. and 6 in. models, Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols |
| Keyboard Display Unit | ZKDU™ keyboard display units for stand-alone printing applications |
| FONTS AND GRAPHICS | 16 resident expandable ZPL II bitmap fonts, 64 MB user-available non-volatile memory storage for downloadable objects, 8 MB user-available SDRAM, Asian and other international scalable and smooth bitmapped fonts, Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0, Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats, IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control, Unicode™: For multi-language printing |
| Barcode Symbologies | • • • • • • • • • • |
| 1D | Codabar, Code 11, Code 128 with subsets A/B/C and UCC Case Codes, Code 39, Code 93, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, ISBT-128, Logmars, MSI, Planet Code, Plessey, Postnet, Standard 2-of-5, UPC and EAN 2-or 5-digit extensions, UPC-A, UPC-E |
| 2D | Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, RSS-14 (and composite), TLC 39 |
| BRAND |
