Industrial Printer ZT600 Series

Zebra Products In Qatar

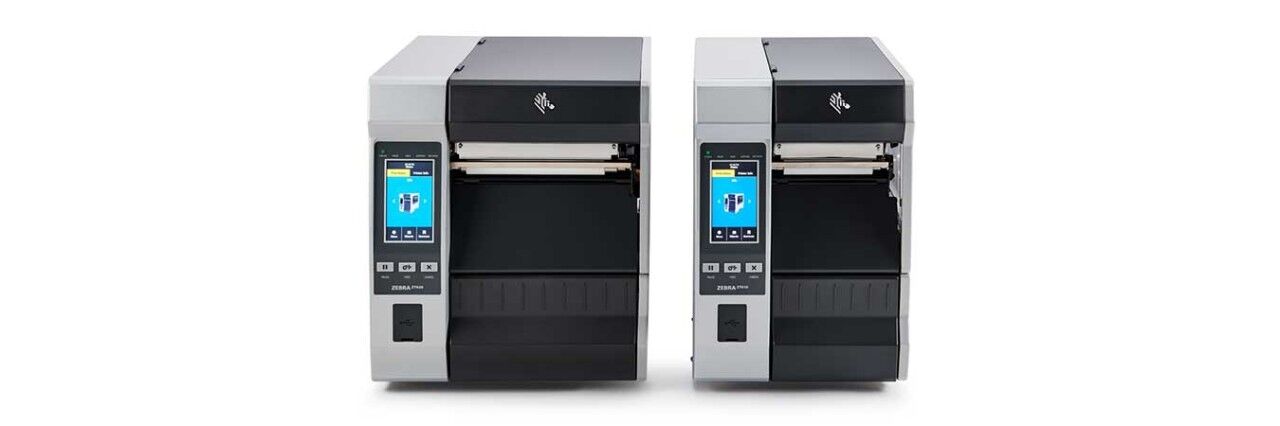

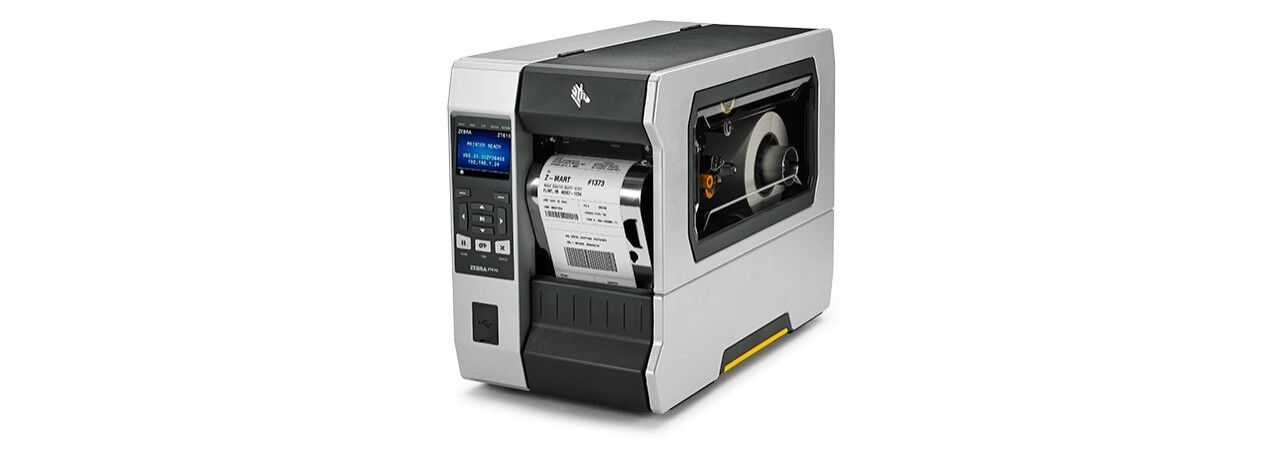

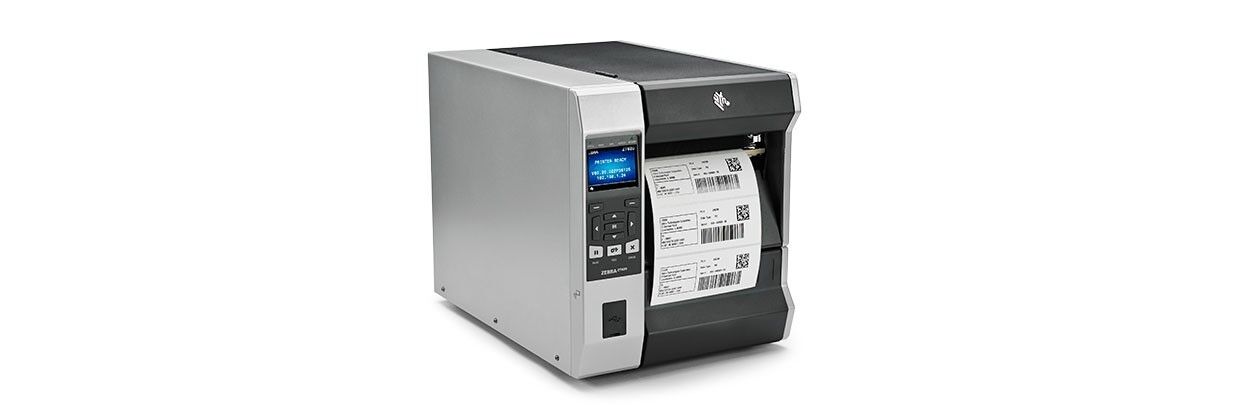

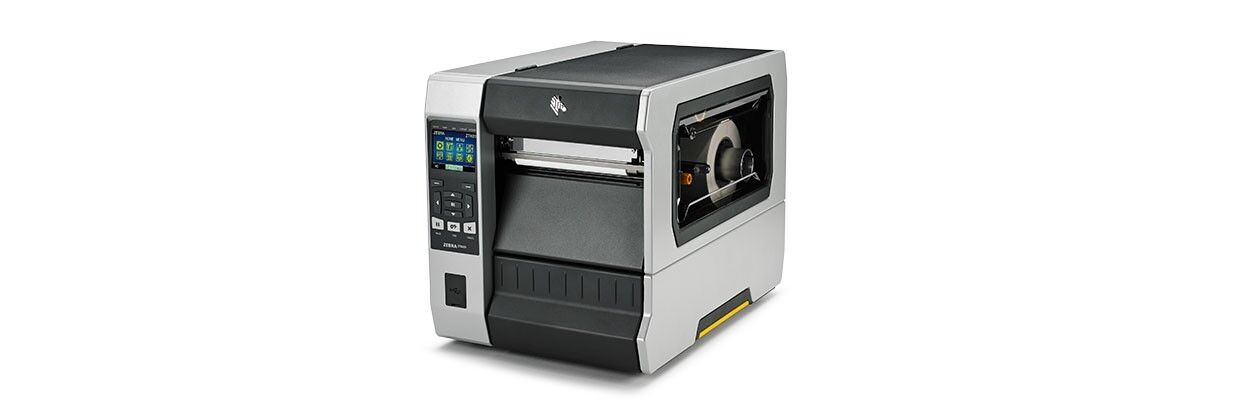

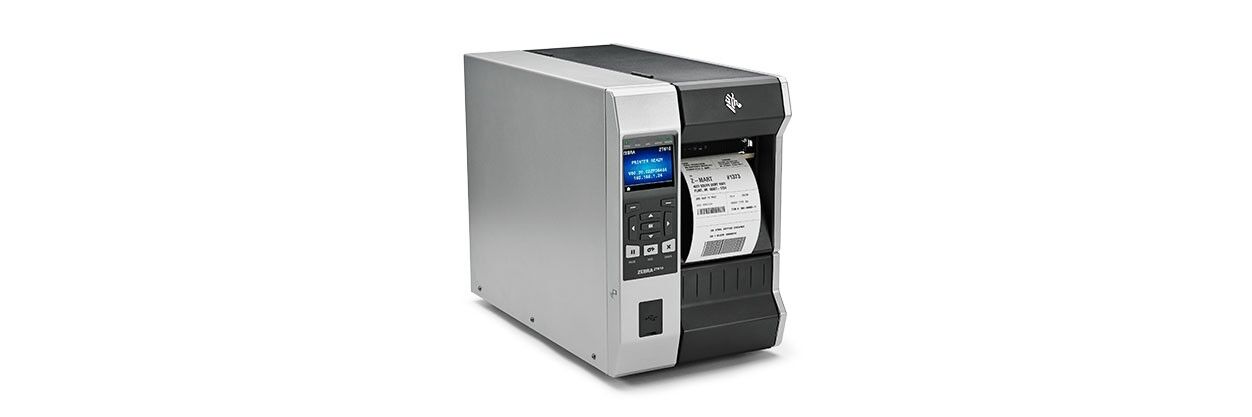

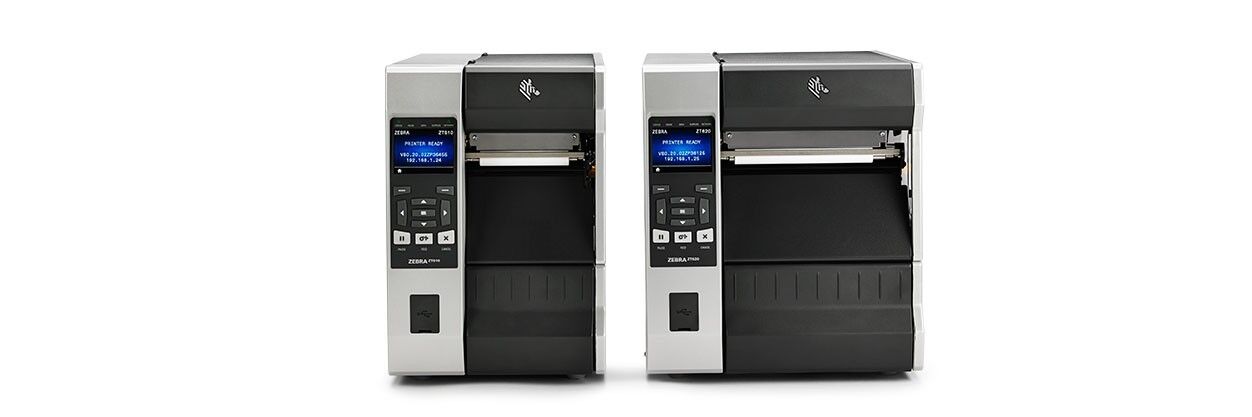

Advancing the legacy of their industry-leading Xi Series predecessors, the ZT610 and ZT620 combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next-generation workhorses are designed to help you navigate the rapidly evolving business technology landscape. So, whether you’re concerned about growing production line demands, increasing operational complexities, integrating disparate systems or controlling investment costs, ZT600 Series Industrial Printers have you covered today—and for years to come.

Advancing the legacy of their industry-leading Xi Series predecessors, the ZT610 and ZT620 combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next-generation workhorses are designed to help you navigate the rapidly evolving business technology landscape. So, whether you’re concerned about growing production line demands, increasing operational complexities, integrating disparate systems or controlling investment costs, ZT600 Series Industrial Printers have you covered today—and for years to come.



STANDARD FEATURES

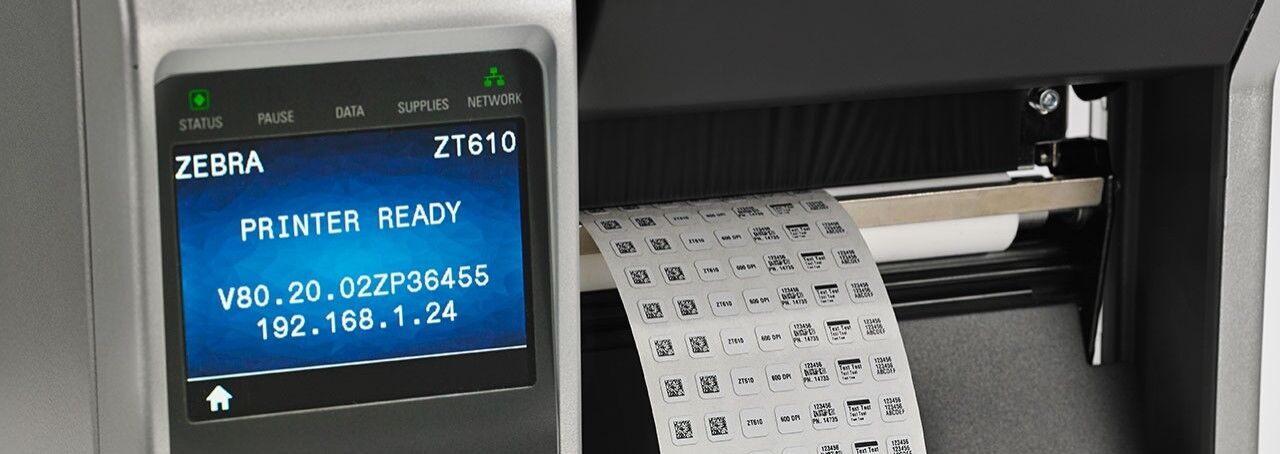

Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0, Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window, Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance, Print Methods: Thermal transfer and direct thermal printing, Side-loading supplies path for simplified media and ribbon loading, Simplified icon menu navigation system categorizes settings into logical groups of functions, Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality

• • SPECIFICATION

• • • • • • • • • •

Operating System

Link-OS®

RESOLUTION

203 dpi/8 dots per mm, 300 dpi/12 dots per mm (optional), 600 dpi/24 dots per mm (optional for ZT610 only)

Memory

1 GB RAM memory, 2 GB on-board linear Flash memory

Maximum Print Width

ZT610: 4.09"/104 mm, ZT620: 6.6"/168 mm

Maximum Print Speed

ZT610: 14 ips/356 mm per second, ZT620: 12 ips/305 mm per second

Media Sensors

Dual media sensors: transmissive and reflective

Maximum Print Length

ZT610: 203 dpi: 150"/3810 mm | 300 dpi: 100"/2540 mm | 600 dpi: 30"/762 mm, ZT620: 203 dpi: 80"/2032 mm | 300 dpi: 80"/2032 mm

Media Width

ZT610: 0.79"/20 mm to 4.5"/114 mm, ZT620: 2.0"/51 mm to 7.1"/180 mm

Media Roll Size

8.0"/203 mm O.D. on a 3"/76 mm I.D. core

Media Thickness

0.0023"/0.058 mm to 0.010"/0.25 mm

Media Type

Black Mark, Continuous, die-cut, Notch

Ribbon Length

1476'/450 M

Ribbon Width

ZT610: 0.79"/20 mm to 4.33"/110 mm, ZT620: 2.0"/51 mm to 6.7"/170 mm

Core I.D.

1.0"/25.4 mm I.D.

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

Direct thermal = 32ºF to 104ºF/0ºC to 40ºC, Thermal transfer = 40ºF to 104ºF/5ºC to 40ºC

Operating Humidity

20% to 85% non-condensing

Storage temperature

-22F to 140F/ -30C to 60C

Storage Humidity

20% to 85% non-condensing

Electrical

Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts, ENERGY STAR qualified

Length

ZT610 closed: 19.88"/505 mm, ZT620 closed: 19.88"/505 mm

Width

ZT610 closed: 10.56"/268.2 mm, ZT620 closed: 13.44"/341.45 mm

Height

ZT610 closed: 15.58"/395.68 mm, ZT620 closed: 15.58"/395.68 mm

Weight

ZT610 closed: 50 lbs/22.7 kg, ZT620 closed: 57.4 lbs/26 kg

Software

Developer Tools, Management Tools, Productivity Tools, Visibility Tools

FIRMWARE

XML-enabled Printing, ZBI 2.0, ZPL and ZPL II®

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 11, Code 128 with subsets A/B/C and UCC Case Codes, Code 39, Code 93, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, ISBT-128, Logmars, MSI, Planet Code, Plessey, Postnet, Standard 2-of-5, UPC and EAN 2-or 5-digit extensions, UPC-A, UPC-E

2D

Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, RSS-14 (and composite), TLC 39

FONTS AND GRAPHICS

16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts, 32 MB user available DRAM, 512 MB user available on-board Flash, Asian and other international scalable and smooth bitmapped fonts, Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0, Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats, IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control, Unicode™: For multi-language printing

Options and Accessories

• • • • • • • • • •

Communications

Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port

Media Handling

Cutter: Front-mount guillotine cutter and catch tray, Ink-side in ribbon supply spindle, Rewind: Internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner

RFID

Adaptive Encoding Technology automatically selects optimum encode settings, Integrated RFID system is user-upgradable in the field and available on both 4" and 6" models, Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols

Display

Brightly lit, 4.3-inch full-color touch display with clear navigation and immediate status visibility and support

Keyboard Display Unit

ZKDU™ keyboard display units for stand-alone printing applications
