POS Terminal In Qatar, POS Terminal XT Series

JIVA_XT-8315

JIVA_XT-8315 is the companion of the XT-7315, which has been enhanced with 11th Gen Intel® Tiger Lake CPUs, which is powerful enough to handle any task imaginable that comes its way.

Description
Specification

Sleek Look

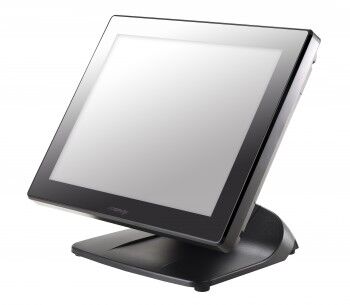

Slimmer than ever! Every curve and detail of the XT-8315/ XT-8315E is carefully thought out to make itself one of the most visually desirable terminals in the market.

Powerful and Reliable

With Intel CPUs up to Core i7, XT-8315/ XT-8315E can deliver powerful performance to run today’s demanding POS applications.

GEN8E Base

Optional GEN8E Base (U.S. Patent 9004436) that integrates internal power adaptor and PoweredUSB port into the base stand, which keeps counters clutter-free.

Fan-free Design

Solve the fan maintenance issue and provide silent mode operation, which is ideally suited for high-end boutique stores or hospital environments.

Multi-Position Folding Base

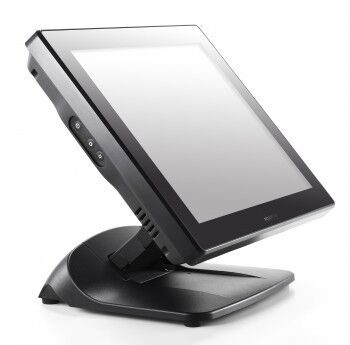

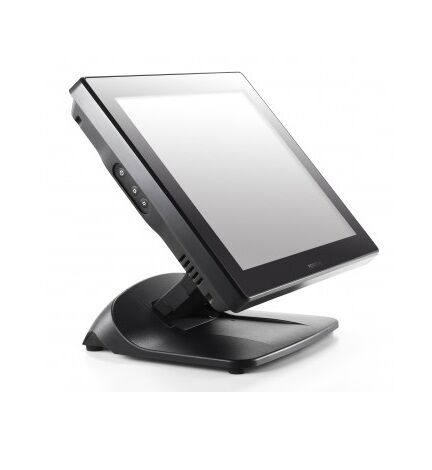

The patented foldable base of the XT-8315/ XT-8315E enables users to adjust the screen to a height and angle of their choice, providing unparalleled flexibility. (U.S. Patent 9004436)

Categories: POS Terminal In Qatar, POS Terminal XT Series Brand: Posiflex Products In Qatar, XT SERIES

System-Configuration	XT-8315	XT-8315E
Processor	Intel Tiger Lake UP3 Core i3-1115G4E, up to 3.90 GHz, 6M Cache; Intel Tiger Lake UP3 Core i5-1145G7E, up to 4.10 GHz, 8M Cache; Intel Tiger Lake UP3 Core i7-1185G7E, up to 4.40 GHz, 12M Cache	Intel Tiger Lake UP3 Core i3-1115G4E, up to 3.90 GHz, 6M Cache; Intel Tiger Lake UP3 Core i5-1145G7E, up to 4.10 GHz, 8M Cache; Intel Tiger Lake UP3 Core i7-1185G7E, up to 4.40 GHz, 12M Cache
System Memory	DDR4 SO-DIMM slot x 2, max. 64GB	DDR4 SO-DIMM slot x 2, max. 64GB
Storage Device	M.2 connector x 2 (support both SATA and PCIe signal)	M.2 connector x 2 (support both SATA and PCIe signal)
RAID Function	Yes , (RAID 0/1)	Yes , (RAID 0/1)
Intel vPro Support	Yes, depends on processor	Yes, depends on processor
TPM	TPM 2.0	TPM 2.0
Power Supply	12V/60W	12V/150W
OS Support	Windows 10 IoT LTSC Windows 11 IoT LTSC	Windows 10 IoT LTSC Windows 11 IoT LTSC
Display & Touch
LCD	15” TFT LCD	15” TFT LCD
Resolution	1024 x 768	1024 x 768
Touch	True-flat PCAP touch with multi-touch support (IP65 on front panel)	True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port	RJ50 x 3 + COM4/COM5 via optional converter cable from service window, 5V support on all COM ports, 12V support on COM1 to COM3	RJ50 x 3 + COM4/COM5 via optional converter cable from service window, 5V support on all COM ports, 12V support on COM1 to COM3
Parallel Port	via optional conversion cable through service window	via optional conversion cable through service window
Standard USB Port	USB 3.0 x 4 + USB 2.0 x 2	USB 3.0 x 4 + USB 2.0 x 2 + USB Type-C x 1 (for both storage & display)
PoweredUSB Port	Optional 24V x 1 + 12V x 3 via GEN8E base	24V PoweredUSB x 1, Optional 24V x 1 + 12V x 3 via GEN8E base
OTG USB	N/A	N/A
LAN Port	10/100/1000 Mb x 2	10/100/1000 Mb x 2
Display Port	VGA x 1 (12V support for Posiflex monitors) + HDMI x 1	VGA x 1 (12V support for Posiflex monitors) + HDMI x 1 + USB Type-C x 1 (for both storage & display)
CR Port	RJ11 x 1, control 2 CR via optional Y-cable, support 24V cash drawer	RJ11 x 1, control 2 CR via optional Y-cable, support 24V cash drawer
PS2 Port	via optional conversion cable through service window	via optional conversion cable through service window
UPS Port	Yes, for optional UPS battery	Yes, for optional UPS battery
Audio	Internal 2W speaker x 1 + Line-out/mic-in combo jack x 1	Internal 2W speaker x 1 + Line-out/mic-in combo jack x 1
Expansion Slot	M.2 slot x 1	M.2 slot x 1
Dimension
Dimension (W x D x H in mm)	372 x 252.7 x 320	372 x 252.7 x 320
Weight (N. W. in kg)	6	6
Environmental
Operating Condition	0°C – 40°C, 20%RH – 90%RH	0°C – 40°C, 20%RH – 90%RH
Storage Condition	-20°C – 70°C, 10%RH – 90%RH	-20°C – 70°C, 10%RH – 90%RH
Built-In Options
WiFi module	M.2 WiFi/BT module	M.2 WiFi/BT module
Camera Module	N/A	N/A
Printer Module	N/A	N/A
AG Glass	N/A	N/A
Attachment Options
POS Monitor	PCAP touch TFT LCD: 9.7″/14″/15″ Non-touch TFT LCD: 7″/9.7″/12.1″/14″/15″ Resistive touch TFT LCD: 15″	PCAP touch TFT LCD: 9.7″/14″/15″ Non-touch TFT LCD: 7″/9.7″/12.1″/14″/15″ Resistive touch TFT LCD: 15″
Line Display	2 x 20 rear-mount VFD/LCD customer line display; 7″ color LCD graphical customer line display	2 x 20 rear-mount VFD/LCD customer line display; 7″ color LCD graphical customer line display
External UPS Pack for RT Series	N/A	N/A
Attachment	MSR; iButton; Rotatable 2D Scanner; RFID; Fingerprint Sensor; Keypad, 24V + 12V PoweredUSB module via GEN 8E base (USB 2.0 x 1 will be occupied with this module)	MSR; iButton; Rotatable 2D Scanner; RFID; Fingerprint Sensor; Keypad, 24V + 12V PoweredUSB module via GEN 8E base (USB 2.0 x 1 will be occupied with this module)
Note	–
