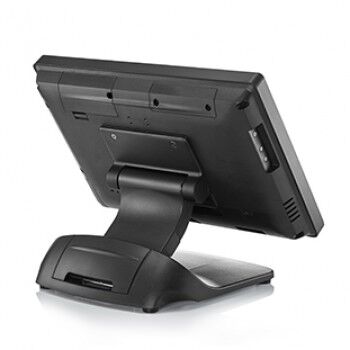

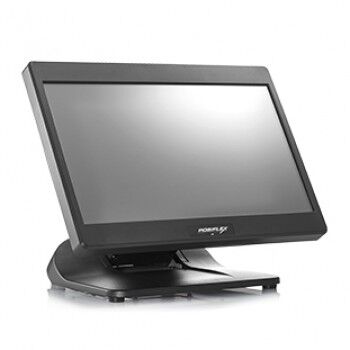

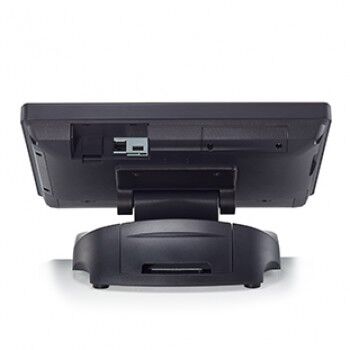

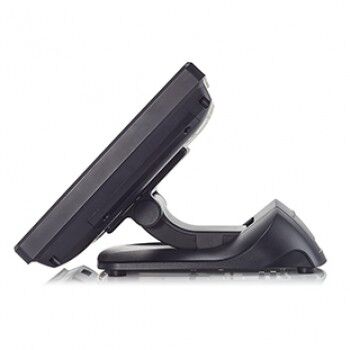

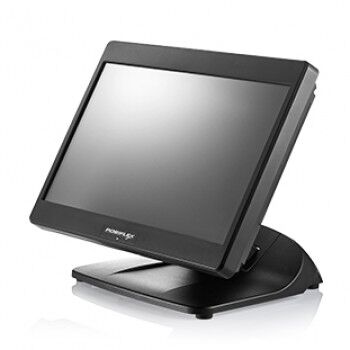

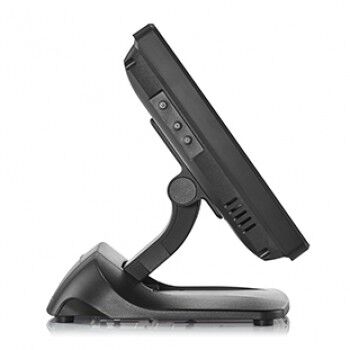

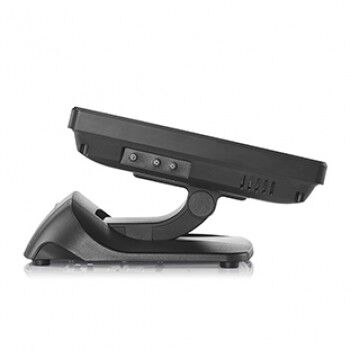

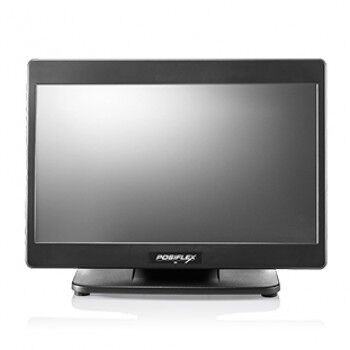

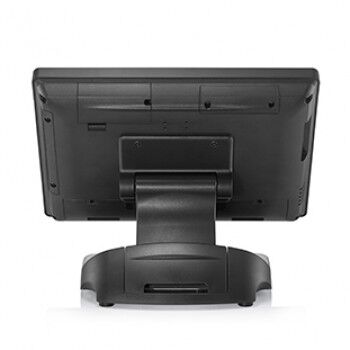

POS Terminal PS-3316E

Posiflex Products

Featuring a 15.6” wide touch screen, the PS-3316E Series is a fanless POS Terminal with all the essential functions and capabilities to satisfy businesses of all sizes, and represent one of the best value choices in the entry-level POS Terminal segment.

Featuring a 15.6” wide touch screen, the PS-3316E Series is a fanless POS Terminal with all the essential functions and capabilities to satisfy businesses of all sizes, and represent one of the best value choices in the entry-level POS Terminal segment.



• • SPECIFICATION

• • • • • • • • • •

Processor

Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache

System Memory

DDR3L SO-DIMM x 1, max. 8GB

Storage Device

SATA x 1, SATA SSD default

Power Supply

12V/40W

OS Support

Linux per request, POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7

• • DISPLAY & TOUCH

• • • • • • • • • •

LCD

15.6" TFT LCD

RESOLUTION

1366 x 768

TOUCH

5-wire Resistive touch

SERIAL PORT

4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports

PARALLEL PORT

1, via optional conversion cable through service window

STANDARD USB PORT

USB 2.0 x 5

LAN PORT

10/100/1000 Mb x 1

DISPLAY PORT

VGA x 1, 12V support for Posiflex monitors

CR PORT

1, control 2 CR via optional Y-cable

PS/2 PORT

1, via optional conversion cable through service window

Audio

Buzzer only

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

372 x 252.7 x 291.4

Weight

4.7

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

• • BUILT-IN OPTIONS

• • • • • • • • • •

WIFI

USB WiFi dongle
