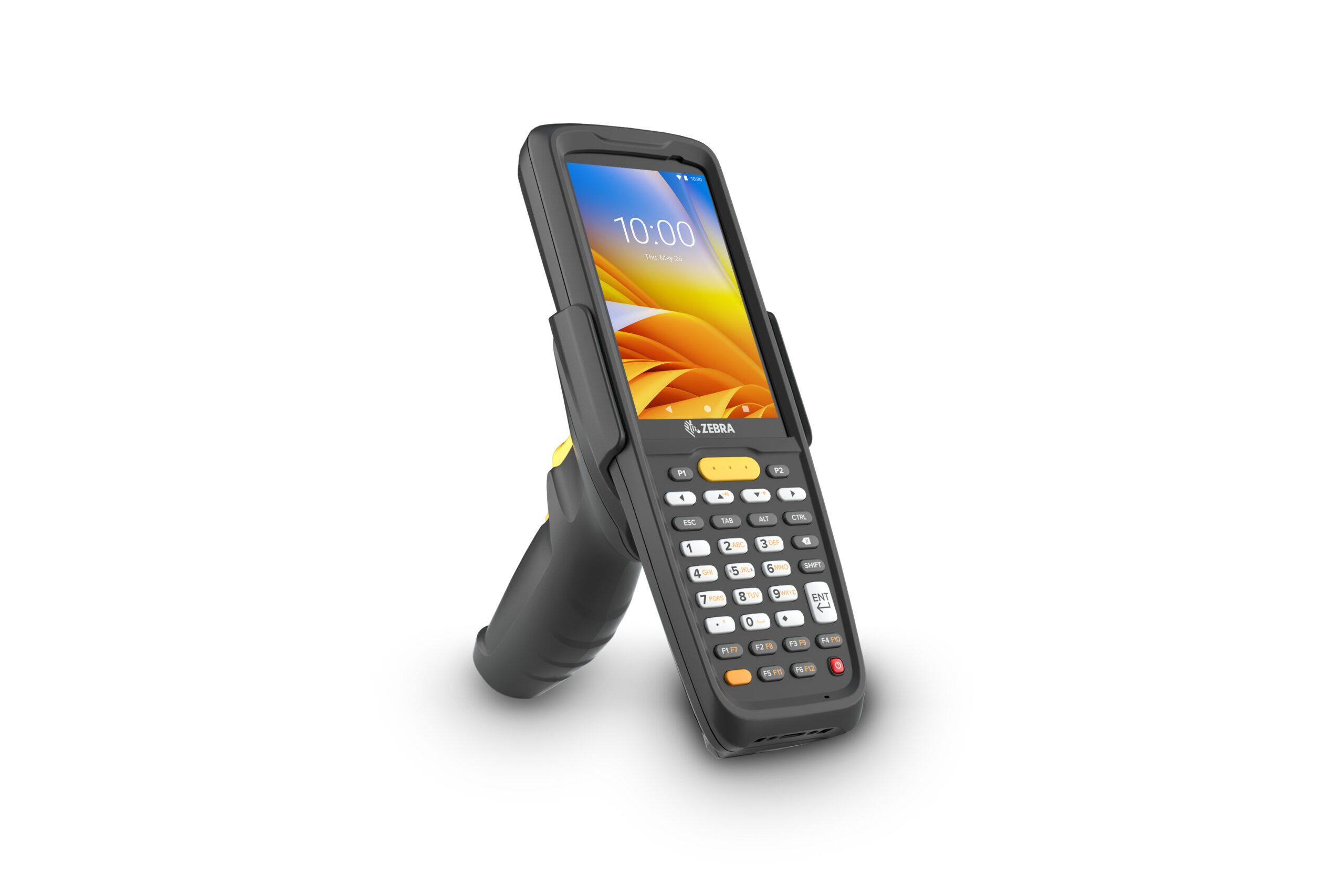

MC2700 Mobile Computer

The MC2700 mobile computer offers affordable mobility for small and medium businesses, providing secure WiFi and cellular coverage for reliable connectivity in large outdoor areas.

Add to quote

MC2700 Mobile Computer is designed for workers in small and medium businesses, offering affordable mobility without compromise. It provides secure and reliable WiFi and cellular coverage, making it ideal for large outdoor areas like yards and ports where WiFi networks may be insufficient or too costly to implement and maintain. This device ensures that workers stay connected and productive, no matter the location.

Categories: , , Brand: ,

Physical Characteristics



Dimensions 7.89 in. L x 2.76 in. W x 1.52 in. D
200.5 mm L x 70 mm W x 38.5 mm D
Weight Standard battery: 10.4 oz./296 g
Extended battery: 11.2 oz./316 g
Display 4 in. WVGA (800 x 480), LED backlight; color display; optically bonded to touch panel
Touch Panel Capacitive touch panel; multi-touch; Corning® Gorilla® Glass
Power
Standard capacity 3500 mAh/12.60 Wh
Extended capacity 4900 mAh/17.64 Wh
Imager Window Corning® Gorilla® Glass
Expansion Slot User accessible MicroSD slot up to 128 GB SDXC
SIM One Nano SIM slot; optional eSIM (MC2700 only)
Notifications Audible tone; multi-color LEDs; haptic feedback (China SKU only)
Keypad 34 key Numeric with FN keys; supports on-screen keypad
Voice and Audio Internal speaker and microphone; Bluetooth wireless headset support; high quality speaker phone
Buttons Physical scan, volume up/down; power
Network Connections MC2200/MC2700: WLAN (WiFi), WPAN (Bluetooth),
USB 2.0 High Speed (Host and Client)
MC2700 only: WWAN (cellular)



Performance Characteristics



CPU Qualcomm Snapdragon™ 660 octa-core, 1.8 GHz
Operating System MC2200: Upgradeable to Android 14
MC2700: Upgradeable to Android 14
Memory 2 GB RAM/16 GB Flash memory
3 GB RAM/32 GB Flash memory
Security Product is FIPS 140-2 validated. This security feature can be enabled on select configurations through a custom SKU request. Product supports Secure Boot, Verified Boot



User Environment



Operating Temp. -4° F to 122° F/-20° C to 50° C
Storage Temp. -40° F to 158° F/-40° C to 70° C
Humidity 5%-95% non condensing
Drop Spec. Multiple 5 ft./1.52 m drop to concrete from 14° F to 122° F/-10° C to 50° C per MIL-STD 810G
Tumble Spec. 500 1.6 ft./0.5 m tumbles; meets and exceeds IEC tumble specifications
Sealing IP65 per applicable IEC sealing specifications
Vibration 4g’s PK Sine (5Hz to 2kHz); 0.04g 2/Hz Random
(20 Hz to 2 kHz); 60 minutes duration per axis, 3 axis
Scanner Window Corning® Gorilla® Glass
Electrostatic Discharge (ESD) +/-15 kV air discharge, +/-8 kV direct/indirect discharge;



Interactive Sensor Technology (IST)



Motion Sensor 3-axis accelerometer with MEMS Gyro

Data Capture



Scanning SE4100 1D/2D standard range imager
Camera Optional rear camera 13 MP Phase Detection Auto Focus, with Flash LED
NFC ISO14443 Type A and B: FeliCa and ISO 15693 cards. P2P mode and Card Emulation via Host (HCE) support



Wireless WAN, Data Communications Only



Radio Frequency Band MC2700 North America
• UMTS: B2/B4/B5
• LTE: B2/B4/B5/B7/B12/B13/B14/B17/B66
• LTE: Category 6MC2700 Rest of World
• GSM: 850/900/1800/1900
• UMTS: B1/B2/B3/B4/B5/B8/B9/B19
• LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B19/B20/B28
• LTE-TDD: B38//B40/B41
• LTE: Category 6MC2700 China
• GSM: 850/900/1800
• UMTS: B1/B5/B8
• LTE-FDD: B1/B3/B5/B7/B8
• LTE-TDD: B38/B39/B40/B41
• LTE: Category 6
VoIP Communications Optional Workforce Connect Voice3 turns MC2200/MC2700 devices into fully-featured PBX handsets with a custom interface that makes it easy to execute even the most complex telephony features — eliminating the need to purchase and manage additional voice-enabled devices.
GPS MC2700 only: Autonomous, Concurrent GPS; GLONASS; Gallileo; BeiDou, and A-GPS. Supports IZAT (TM) XTRA



Wireless LAN



WLAN Radio IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v; Wi-Fi™ certified;
IPv4, IPv6, 1×1 MU-MIMO
Data Rates 2.4 GHz: 802.11b/g/n — 20 MHz, 40 MHz — up to 150 Mbps
5 GHz: 802.11a/g/n/ac – 20 MHz, 40 MHz, 80 MHz – up to 433 Mbp
Operating Channels Channel 1-13 (2412-2472 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

Channel 36-165 (5180-5825MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165

Channel bandwidth: 20, 40, 80 MHz

Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency
Security and Encryption WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit Mode (GCMP-256) EAP-TLS; Enhanced Open (OWE)
Certifications WFA (802.11n, WPA2-Personal, WPA3-Personal, WPA2-Enterprise, WPA3-Enterprise)
Fast Roam 802.11r (Over-The-Air); PMKID caching; Cisco CCKM; OKC



Wireless PAN



Bluetooth Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low Energy (BLE) support
