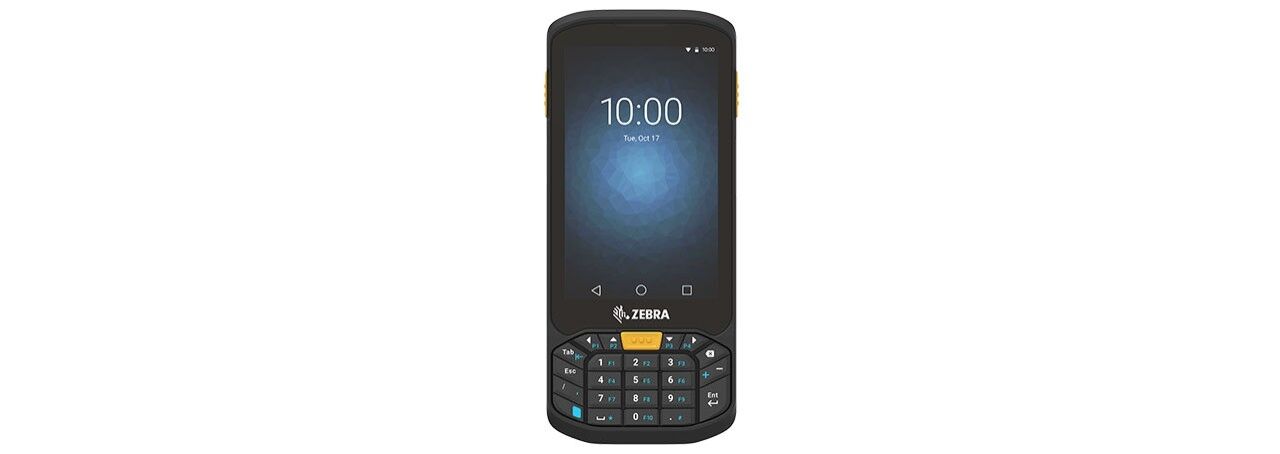

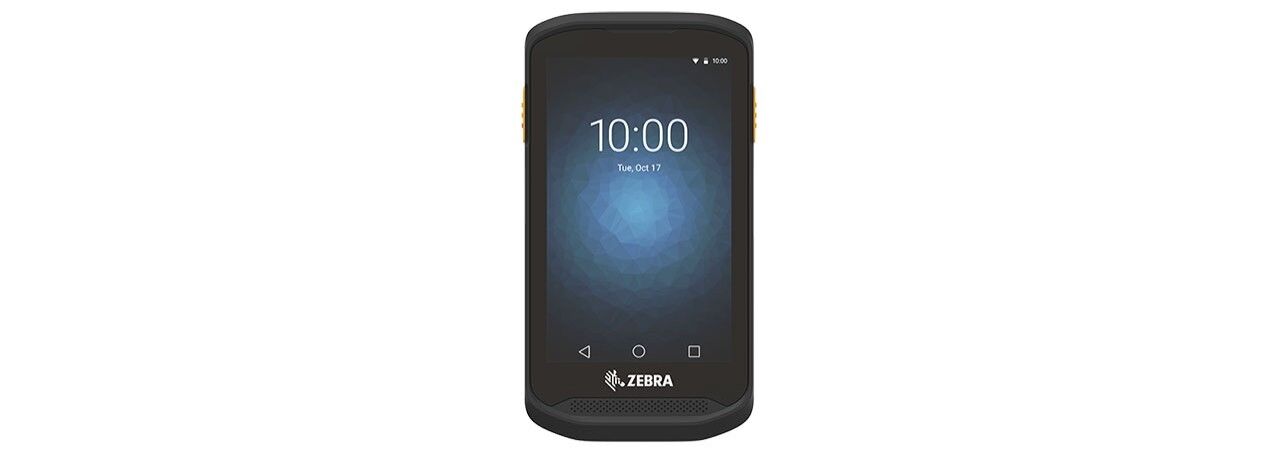

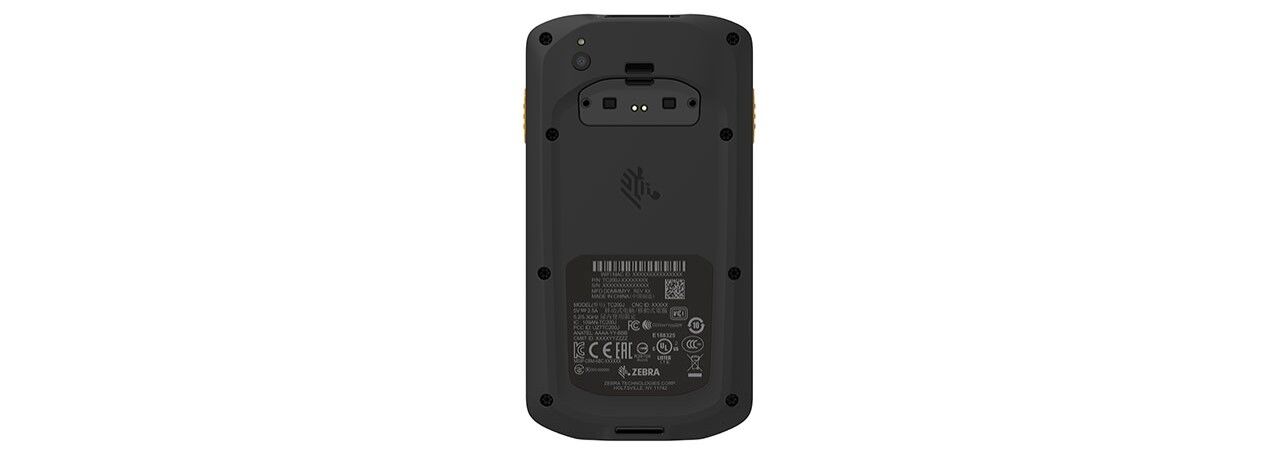

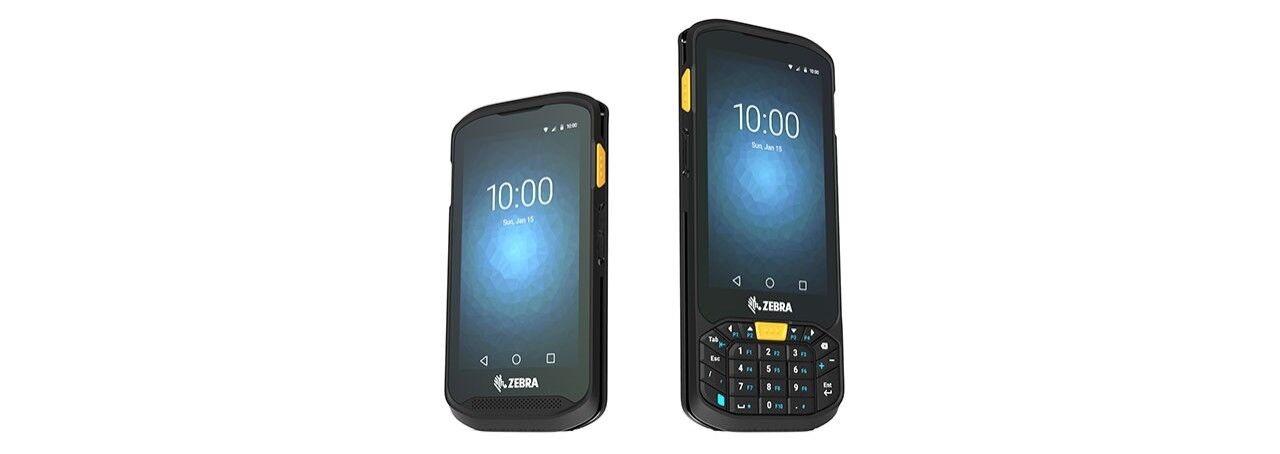

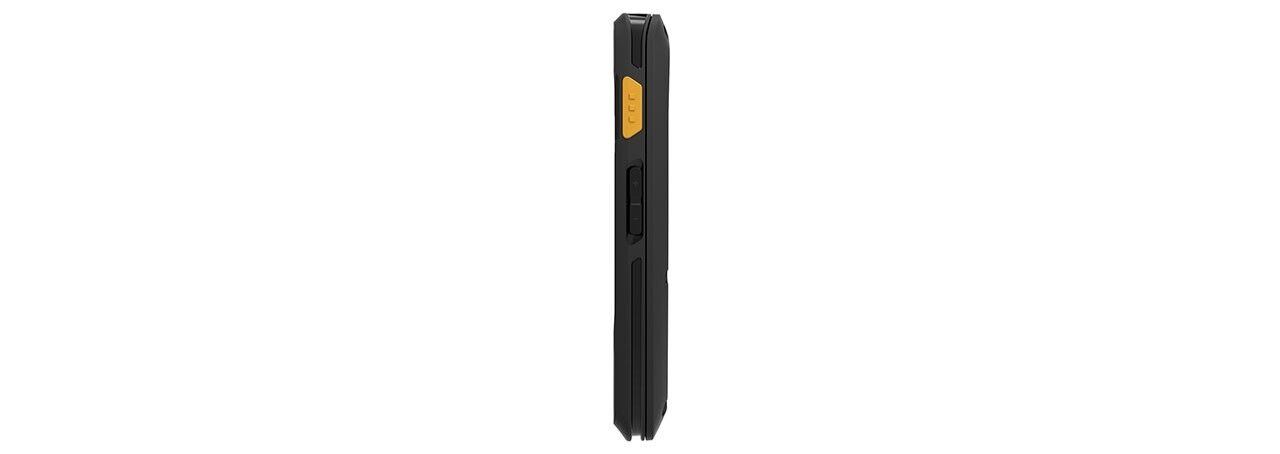

Mobile Computer TC20
You’re running a small business. And that means there’s so much to do…and so little time. Now, there’s a new small business tool that will help you do more — in less time.
You’re running a small business. And that means there’s so much to do…and so little time. Now, there’s a new small business tool that will help you do more — in less time.
| Dimensions | TC20 ALL-TOUCH: 5.27 in. L x 2.82 in. W x .63 in. D 134 mm L x 73.1 mm W x 16 mm D, TC20 WITH KEYBOARD: 6.45 in. L x 2.82 in W x .63 in. D 164 mm L x 73.1 mm W x 16 mm D |
|---|---|
| Weight | TC20 ALL-TOUCH: 6.88 oz./195 g, TC20 WITH KEYBOARD: 7.58 oz./215 g |
| Display | 4.3 in. color WVGA (800×480), Corning Gorilla Glass, LED backlight |
| Imager Window | Corning Gorilla Glass |
| Touch Panel | Capacitive Touch Panel, multi-touch |
| Power | Charge in under 4 hours (10hrs = 1 Shift) RTC backup, Non-removable Rechargeable Li-Ion, standard capacity, 3000mAh |
| EXPANSION SLOT | One 128GB micro SD slot |
| Network Connections | One USB OTG – host/client (Type C connector) |
| Notification | Unsolicited packet data and programmable |
| Keypad | TC20 All-Touch: On-screen Keypad, TC20 Keyboard: Numeric |
| Voice and Audio | 2 microphones, Audio jack, PTT Express, PTT Pro, Speaker – 1 Watt (94dBA), Voice support (Internal speaker/microphone) |
| Button | Power, push-to-talk (PTT) Key, Scan on each side, Volume Up/Down |
| CPU | QCOM MSM8937® 64-bit 8-Core, ARM® Cortex A53 1.4GHz, 512KB L2 cache, power-optimization |
| Operating System | Android 8.1 Oreo |
| Memory | 2GB RAM/16 GB Flash memory |
| Operating Temperature | 14° F to 122° F / -10° C to 50° C |
| Storage temperature | -40° F to 158° F / -40° C to 70° C |
| Drop Specification | Multiple 4 ft./1.2 m drop to tile over concrete per MIL-STD at room temperature |
| Tumble Specification | 300 tumbles, 1.6 ft./0.5 m |
| Sealing | IP65 |
| Vibration | 4g’s PK Sine (5Hz to 2KHz), 60 minute duration per axis, 3 axis |
| Thermal Shock | -40° F to 158° F/-40° C to 70° C rapid transition, 10 cycles (1 cycle = 1.25 hours at -40°C and 1.25 hours at 70°C) |
| Electro-Static Discharge | +/-15kv Air; +/-8kv contact; +/-8kv charge body |
| • •Interactive Sensor Technology (IST) | • • • • • • • • • • |
| Light Sensor | Automatically adjusts display backlight brightness |
| Motion Sensor | 3-axis Accelerometer with MEMS Gyro |
| Proximity Sensor | Automatically detects when the user places the handset against head during a phone call to disable display output and touch input |
| Scanning | SE2100 1D/2D imager, SE4710 1D/2D imager + rear camera |
| CAMERA | 8MP autofocus color camera with flash |

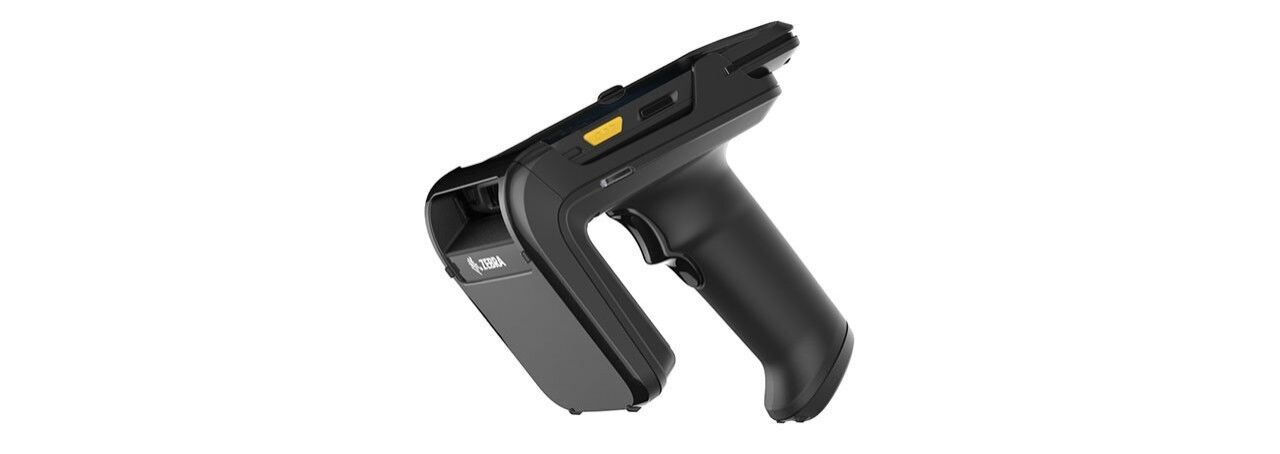

| NFC | RFD2000 UHF RFID snap-on sled |
| Bluetooth | Bluetooth 4.2 BLE |
| Radio | 802.11 a/b/g/n/ac/d/r/h/i IPv4, IPV6 |
| Data Rates | 2.4 GHz: 20 MHz, 40 MHz, 5 GHz: 20 MHz, 40 MHz, 80 MHz |
| Operating Channels | 2.4 GHz (channels 1-13; 1-11(US)), 5GHz (channels 36-48, 52-64, 100-144, 149- 165), Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency |
| Security and Encryption | EAP-TLS, EAP-TTLS, PEAPv0-MSCHAPv2, WPA/WPA2 (PSK & Enterprise 802.1x) |
| Certifications | 802.11a/b/g/n, WPA, WPA2 |
| Fast Roam | 802.11r |
| BRAND |
