• • PHYSICAL CHARACTERISTICS | • • • • • • • • • • |
---|
Dimensions | 155 mm L x 75.5 mm W x 18.6 mm H, 6.1 in. L x 2.9 in. W x 0.73 in. H |
---|
Weight | 8.8 oz./249 g with battery |
---|
Display | 5.0 in. High Definition (1280 x 720), 600 NITs, exceptionally bright, optically bonded to touch panel, outdoor viewable |
---|
Imager Window | Corning Gorilla Glass |
---|
Touch Panel | Corning Gorilla Glass 5, Dual mode capacitive touch with stylus or bare or gloved fingertip input (conductive stylus sold separately) |
---|
Backlight | LED backlight |
---|
Power | fast USB charging (500mA), improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management, Rechargeable Li-Ion, Power Precision + Standard Capacity, 4300 mAh typical/4030 mAh minimum |
---|
EXPANSION SLOT | User accessible MicroSD up to 32GB SDHC and up to 128 GB SDXC |
---|
Network Connections | WLAN, WPAN (Bluetooth), WWAN |
---|
Notification | Audible tone, multi-color LEDs, vibration |
---|
Keypad | On-screen keypad and enterprise keyboard |
---|
Voice and Audio | Bluetooth wireless headset support, cellular circuit switch voice, HD Voice, High quality speaker phone, PTT headset support, speaker, Two microphones with noise cancellation, vibrate alert |
---|
Button | dedicated push-to-talk button and volume up/down buttons, dual dedicated scan buttons, Programmable back button |
---|
• • Performance Characteristics | • • • • • • • • • • |
---|
CPU | Snapdragon 650 64-bit hexa-core 1.8GHz ARM Cortex A72, power optimization |
---|
Operating System | Android 8.1 Oreo |
---|
Memory | Optional: 4GB RAM/32GB Flash, Standard: 2GB RAM/16GB Flash |
---|
• • USER ENVIRONMENT | • • • • • • • • • • |
---|
Operating Temperature | -4°F to 122°F/-20°C to 50°C |
---|
Storage temperature | -40°F to 158°F/-40°C to 70°C |
---|
Humidity | 5% to 85% non-condensing |
---|
Drop Specification | Multiple 4 ft./1.2 m to tile over concrete over -10°C to 50°C (14°F to 122°F), Multiple 6ft. drops to concrete with the rugged boot accessory per MIL STD 810 G |
---|
Tumble Specification | 500 1.6 ft./0.5 m tumbles, meets or exceeds IEC tumble specification |
---|
Sealing | IP67 and IP65 per applicable IEC sealing specifications |
---|
Vibration | 0.04 g 2/Hz Random (20 Hz to 2 kHz), 4g’s PK Sine (5Hz to 2KHz), 60 minute duration per axis, 3 axis |
---|
Thermal Shock | -40° F to 158° F/-40° C to 70° C rapid transition |
---|
Electro-Static Discharge | +/-15kv Air; +/-8kv contact; +/-8kv charge body |
---|
• •Interactive Sensor Technology (IST) | • • • • • • • • • • |
---|
Light Sensor | Automatically adjusts display backlight brightness |
---|
Motion Sensor | 3-axis Accelerometer with MEMS Gyro |
---|
Proximity Sensor | Automatically detects when the user places the handset against head during a phone call to disable display output and touch input |
---|
• • DATA CAPTURE | • • • • • • • • • • |
---|

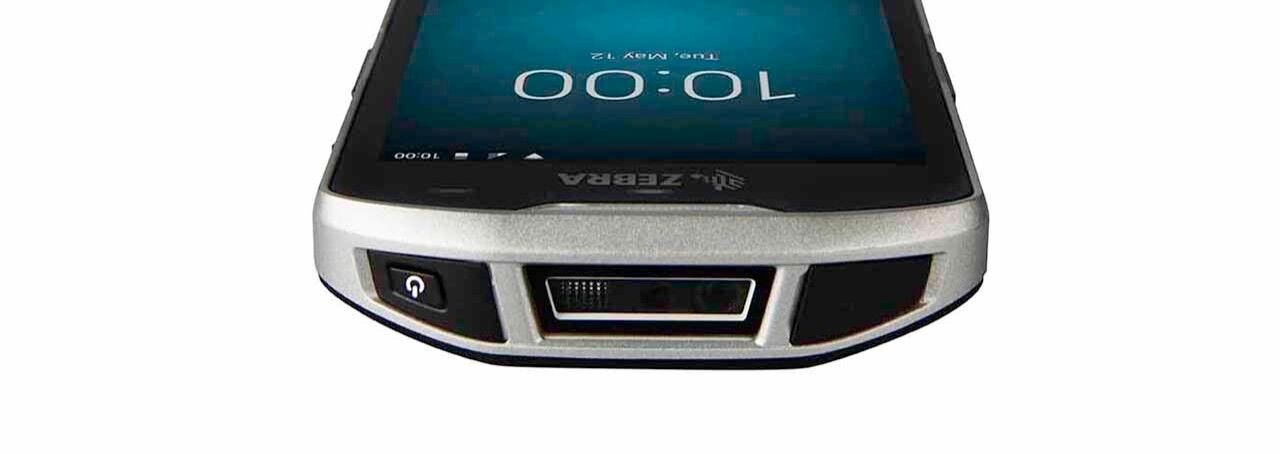

Scanning | Code 39 barcode: 20 Mil: 1.8 in. to 32.0 in./4.5 cm to 81.3 cm 3 Mil: 3.1 in. to 5.6 in./7.9 cm to 14.2 cm, SE4710 imager (1D and 2D) with extraordinary range: Scan range |
---|
CAMERA | Rear — 13 MP autofocus; f/2.4 aperture, rear camera flash LED generates balanced white light; supports Torch mode |
---|
NFC | FeliCa and ISO 15693 cards, ISO 14443 Type A and B; F, P2P mode and Card Emulation via UICC and Host |
---|
• • WIRELESS PAN | • • • • • • • • • • |
---|
Bluetooth | Bluetooth v4.1 (Bluetooth® Smart technology), Bluetooth v4.1 Low Energy (LE), Bluetooth Wideband support HFPv1.6, Class 2 |
---|
• • WIRELESS LAN | • • • • • • • • • • |
---|
Radio | 2×2 MIMO, IEEE 802.11a/b/g/n/ac/d/h/i/k/r/w, IPv4, IPv6, Wi-Fi™ certified |
---|
Data Rates | 2.4GHz: 802.11b/g/n — up to 144 Mbps, 5GHz: 802.11a/n/ac — up to 866.7 Mbps |
---|
Operating Channels | Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency, Chan 36-165 (5180-5825 MHz), Channel 1-13 (2412-2472 MHz), Channel Bandwidth: 20, 40, 80 MHz |
---|
Security and Encryption | Data at Rest: FIPS 140-2 Level 1, Data in Motion: FIPS 140-2 Level 1, EAP-TLS, LEAP, PEAPv0-MSCHAPv2, PEAPv1- EAP-GTC, WEP (40 or 104 bit), WPA/WPA2 Enterprise (TKIP and AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), WPA/WPA2 Personal (TKIP, and AES) |
---|
Certifications | WFA (802.11n, 802.11ac, WMM-AC, Voice Enterprise, WMM-PS) |
---|
Fast Roam | 802.11r, Cisco CCKM, OKC, PMKID caching |
---|
BRAND | ZEBRA |
---|
