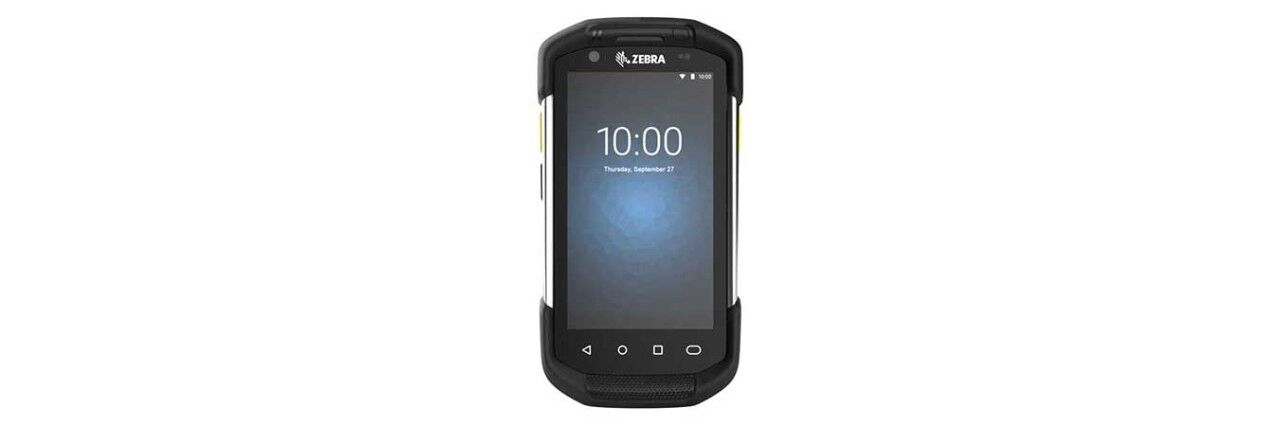

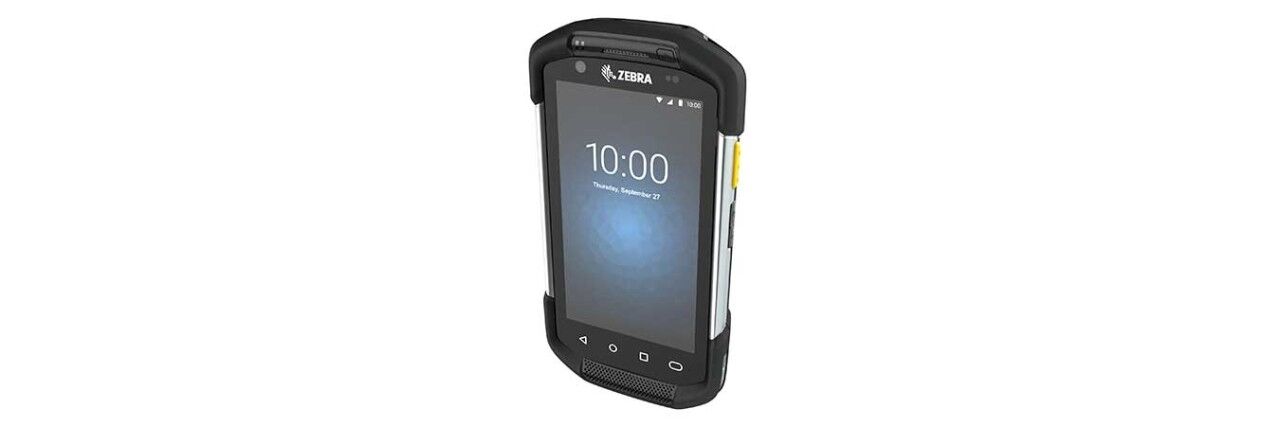

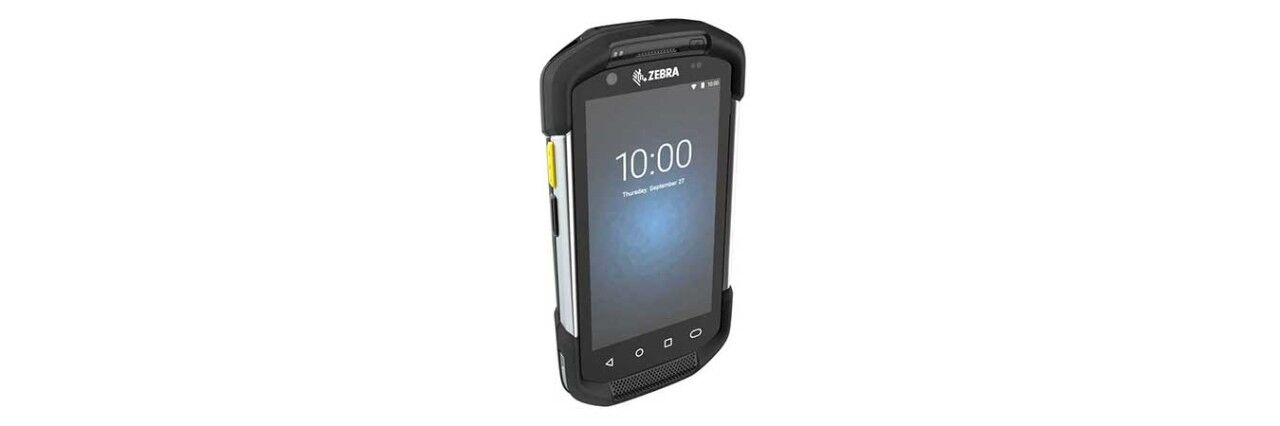

Mobile Computer TC77

Zebra Products In Qatar

At the edge of your business are your front line workers that spend their days face-to-face serving the important asset in your company — your customers. Now, there’s a device designed to take customer service to the next level by delivering everything your workers need to achieve peak efficiency, with trouble-free reliability — the TC72 and TC77 Android Touch Computers. This family builds on the highly successful TC7 Series family to create the ultimate ultra-rugged all-touch computer for all workers inside and outside the four walls — a smartphone experience for maximum simplicity, construction designed to withstand years of the toughest everyday use and abuse, and a new platform offering more capabilities than any other device in this class. The TC72 and TC77 — for a real competitive edge at the edge of your business, delivered.

At the edge of your business are your front line workers that spend their days face-to-face serving the important asset in your company — your customers. Now, there’s a device designed to take customer service to the next level by delivering everything your workers need to achieve peak efficiency, with trouble-free reliability — the TC72 and TC77 Android Touch Computers. This family builds on the highly successful TC7 Series family to create the ultimate ultra-rugged all-touch computer for all workers inside and outside the four walls — a smartphone experience for maximum simplicity, construction designed to withstand years of the toughest everyday use and abuse, and a new platform offering more capabilities than any other device in this class. The TC72 and TC77 — for a real competitive edge at the edge of your business, delivered.



Dimensions

161 mm L x 84 mm W x 28 mm D, 6.3 in. L x 3.3 in. W x 1.1 in. D

Weight

13.3 oz./376 g

Display

4.7 in. High Definition (1280 x 720), exceptionally bright, outdoor viewable, optically bonded to touch panel

Imager Window

Corning Gorilla Glass

Touch Panel

Corning® Gorilla® Glass, Dual mode capacitive touch with stylus, finger or gloved fingertip input (conductive stylus sold separately), Screen Protector and Rain modes

Backlight

LED backlight

Power

Li-Ion 3.7 V, 4620 mAh. PowerPrecision/ PowerPrecision+

EXPANSION SLOT

User accessible MicroSD with 32 GB SDHC and up to 256 GB SDXC

SIM Card

2 Nano SIM slots (Dual SIM, Dual Stand-by – EU Only)

Network Connections

USB 2.0 High Speed (host and client), WWAN (cellular, WLAN (WiFi), WPAN (Bluetooth)

Notification

Audible tone, multi-color LEDs, vibration

Keypad

On-screen keypad and enterprise keyboard

Voice and Audio

Bluetooth wireless headset support, cellular circuit switch voice, HD Voice, High quality speaker phone, PTT headset support, speaker, Three microphone support with noise cancellation, vibrate alert

CPU

Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz

Operating System

Android 8.1 Oreo, Both with Zebra’s Restricted Mode for control over GMS and other services, OS upgradeable through Android R2

Memory

4 GB RAM/32 GB Flash pSLC

Internet Protocol

IPv4 and IPv6

Operating Temperature

-4° F to 122° F/-20° C to 50° C

Storage temperature

-40°F to 158°F/-40°C to 70°C

Humidity

5% to 90% non-condensing

Drop Specification

multiple 6 ft./1.8 m drop to concrete across full operating temperature range, Multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G

Tumble Specification

2,000 3.3 ft./1.0 m tumbles, meets and exceeds IEC tumble specifications

Sealing

IP65 and IP67 per applicable IEC sealing specifications

Vibration

0.04 g 2/Hz Random (20 Hz to 2 kHz), 4 g’s PK Sine (5 Hz to 2 kHz), 60 minute duration per axis, 3 axis

Thermal Shock

-40° F to 158° F/-40° C to 70° C rapid transition

Electro-Static Discharge

+/-15kVdc air discharge; +/-8kVdc direct discharge; +/-8kVdc indirect discharge

• •Interactive Sensor Technology (IST)

• • • • • • • • • •

Light Sensor

Ambient light sensor auto adjusts display backlight brightness

Motion Sensor

3-axis accelerometer, 3-axis Gyro, eCompass

Atmospheric Pressure Sensor

Yes

Scanning

Digimarc Symbology support, SE4750: 1D/2D omnidirectional imager, SE4770: 1D/2D omnidirectional imager

CAMERA

4K video with image stabilization, Camera supports barcode scanning, f/2.4 aperture, flash LED generates balanced white light, Front — 5MP fixed focus Rear — 13 MP autofocus, supports Torch mode

NFC

Dual SAM support, FeliCa and ISO 15693 cards, Felica and Mifare technology, ISO 14443 Type A and B; F, P2P mode and Card Emulation via Host, SAM SKU, SAM support for Calypso

• • WIRELESS DATA AND VOICE COMMUNICATIONS

• • • • • • • • • •

Radio Frequency Band

AT&T FirstNet Ready certification, Carrier Aggregation up to 3DL CA, GSM/GPRS/EDGE: 850/900/1800/1900, LTE FDD: 700/800/850/900/1800/1900/ AWS/2100/2600 (28,13,14,12,17/19,20/5,26/8/3/2, 25/4,66/1/7), LTE TDD: 1900/2300/2500 (39/40/41,38); UMTS/HSPA/HSPA+: 850/900/AWS/1900/2100 (5/8/4/2/1), Supports VoLTE, Verizon PNTM certification

GPS

Assisted GPS (A-GPS), Autonomous, BeiDou, Gallileo, GLONASS, Navstar

Radio

2×2 MU-MIMO, IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w, IPv4, IPv6, Wi-Fi™ certified

Data Rates

2.4GHz: 802.11b/g/n — up to 300 Mbps, 5GHz: 802.11a/n/ac — up to 866.7 Mbps

Operating Channels

Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency, Channel 1-13 (2412-2472 MHz); Chan 36-165 (5180-5825 MHz), Channel Bandwidth: 20, 40, 80 MHz

Security and Encryption

EAP-PWD, EAP-TLS, LEAP, PEAPv0- MSCHAPv2, PEAPv1- EAP-GTC, WEP (40 or 104 bit), WPA/WPA2 Enterprise (TKIP and AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), WPA/WPA2 Personal (TKIP and AES)

Multimedia

Wi-Fi Multimedia™ (WMM)

FEATURES

256 QAM Modulation on 5G GHz radio, 2×2 MU-MIMO, Full IEEE 802.11 a/b/g/n legacy compatibility, Maximum Ratio Combining (MRC), Soft AP, Transmit Beamforming(TxBF) and Beamformee (BFee) capability, Tx/Rx Low-Density Parity Check (LDPC)

Certifications

WFA (802.11n, WMM-PS, 801.11ac, PMF)

Fast Roam

802.11r, Cisco CCKM, OKC, PMKID caching

Bluetooth

Bluetooth Low Energy (BLE), Bluetooth v5.0, Class 2
