Mobile Printer QLn Series Healthcare

Zebra Products In Qatar

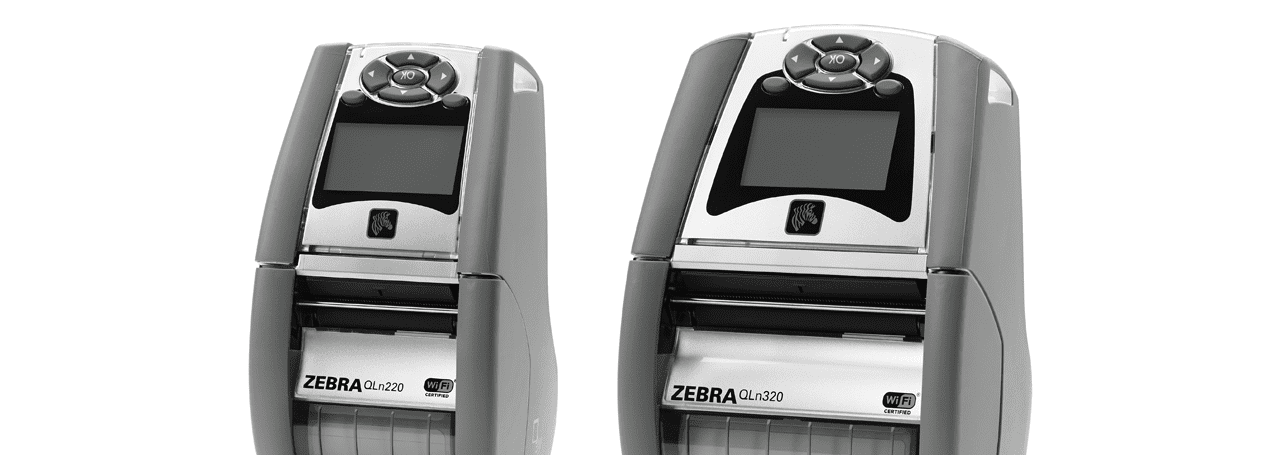

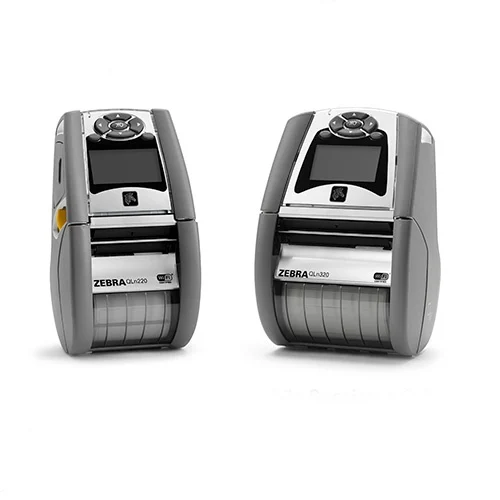

Zebra’s popular QL™ family of direct thermal mobile label and receipt printers has built a highly satisfied following based upon its proven drop-resistant durability; user-friendly, productivity-boosting features; and easy integration. As Zebra’s third generation of QL printers, the QLn™ series extends these QL-platform benefits to the “nth” power — whether you choose the QLn220™ for print widths up to 2 inches or the QLn320™ for 3-inch-wide printing.

Zebra’s popular QL™ family of direct thermal mobile label and receipt printers has built a highly satisfied following based upon its proven drop-resistant durability; user-friendly, productivity-boosting features; and easy integration. As Zebra’s third generation of QL printers, the QLn™ series extends these QL-platform benefits to the “nth” power — whether you choose the QLn220™ for print widths up to 2 inches or the QLn320™ for 3-inch-wide printing.



• • SPECIFICATION

• • • • • • • • • •

RESOLUTION

203 dpi/8 dots per mm

Memory

128 MB RAM; 256 MB Flash (standard)

Maximum Print Width

QLn220: 1.9"/48 mm, QLn320: 2.8"/72 mm

Maximum Print Speed

Up to 4"/102 mm per second

Media Sensors

Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time

PRINT LENGTH

Maximum: 32"/813 mm, Minimum: 0.5"/12.7 mm

Power

2450 mAh (nominal) 18.1 Wh removable, rechargeable PowerPrecision+ Li-Ion battery

Maximum Label and Liner Length

QLn220: 0.5"/12.7 mm to 32"/813 mm, QLn320: 0.5"/12.7 mm to 32"/813 mm or continuous

Media Width

QLn220: 0.63"/16 mm to 2.18"/55.4 mm, QLn320: 1.0"/25 mm to 3.125"/79 mm

Media Roll Size

QLn220: 2.2"/55.9 mm OD on a 0.75"/19 mm or 1.375"/34.9 mm, QLn320: 2.6"/66 mm OD on a 0.75"/19 mm or 1.375"/34.9 mm

Media Thickness

2.3 mil to 5.5 mil tag stock and 6.5 mil label stock

Media Type

black bar and gap sensing, Die-cut labels and tags, linerless labels, receipt paper

• • OPERATING CHARACTERISTICS

• • • • • • • • • •

Operating Temperature

32°F to 122°F/0°C to 50°C

Operating Humidity

10% to 90% non-condensing

Storage temperature

-13°F to 158°F/-25°C to 65°C

Storage Humidity

10% to 90% non-condensing

Length

QLn220: 6.5"/165 mm, QLn320: 6.8"/173 mm

Width

QLn220: 3.5"/89 mm, QLn320: 4.6"/117 mm

Height

QLn220: 2.75"/70 mm, QLn320: 3.3"/84 mm

Weight

QLn220: 1.25 lbs/0.57 kg, QLn320: 1.6 lbs/0.73 kg

COMMUNICATION AND INTERFACE CAPABILITIES

10/100 Ethernet support (via charging cradle), Bluetooth 3.0 radio, Mini-B connector with optional strain relief, Serial interface: 14-pin RS-232C port for communication to terminal or other host up to 115.2 Kbps, USB 2.0 full-speed interface (12 Mbps), ZebraNet® 802.11n radio

Software

Developer Tools, Device Integration, Device Management, Document Design

FIRMWARE

CPCL, EPL and ZPL programming languages, ZBI 2.x™ — powerful programming language that lets printers run standalone applications, connect to peripherals, and much more

Barcode Symbologies

• • • • • • • • • •

Barcode Ratios

1.5:1, 2:1, 2.5:1, 3:1, 3.5:1

1D

2 and 5 digit add-on, Codabar/NW-7, Code 128, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2 of 5, UCC/EAN-128, UPC-A, UPC-E

2D

Aztec, Data Matrix, FIM Postnet, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, MSI/ Plessey, PDF417, QR code, TLC 39

FONTS AND GRAPHICS

International Character Sets (optional): Chinese 16 x 16 (traditional), 16 x 16 (simplified); Japanese 16 x 16, 24 x 24; Korean Mincho, Optional Fonts: downloadable bitmapped/scalable fonts, Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed*)
