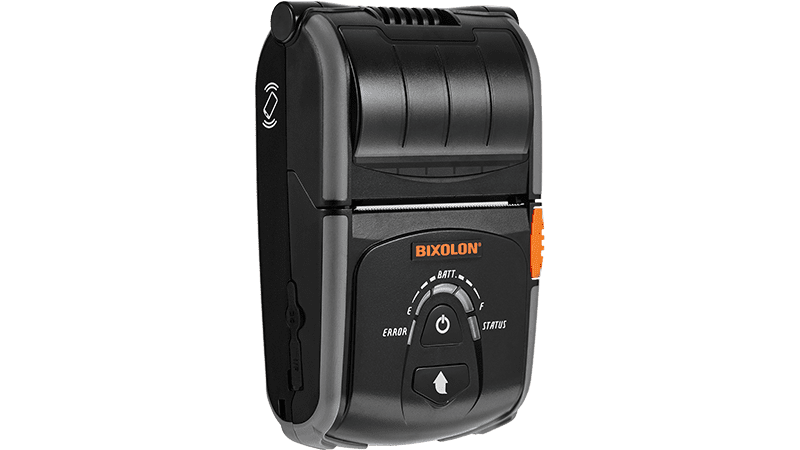

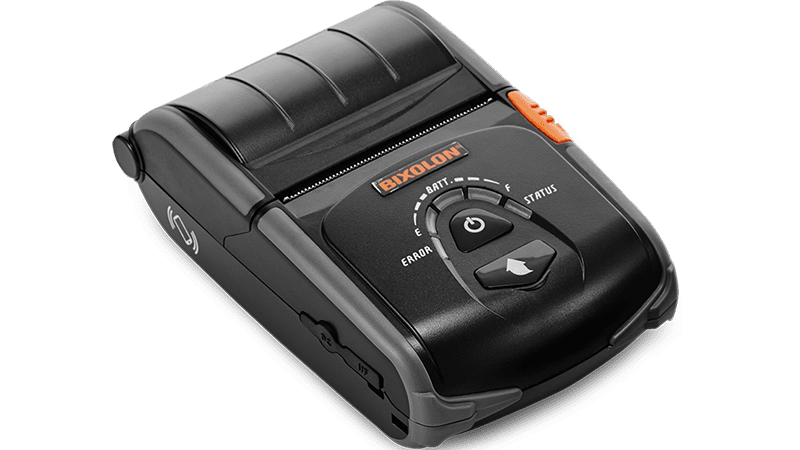

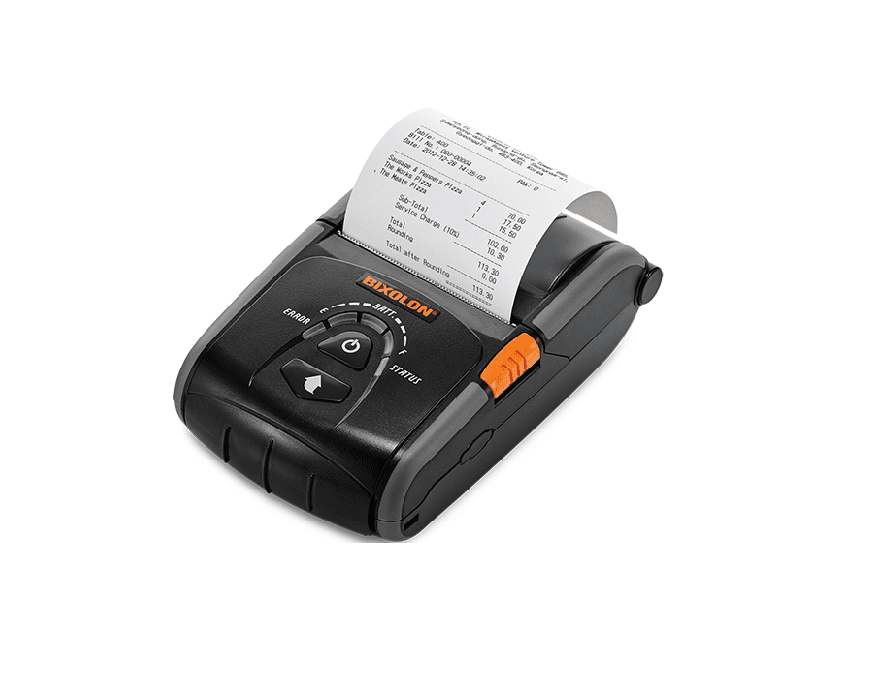

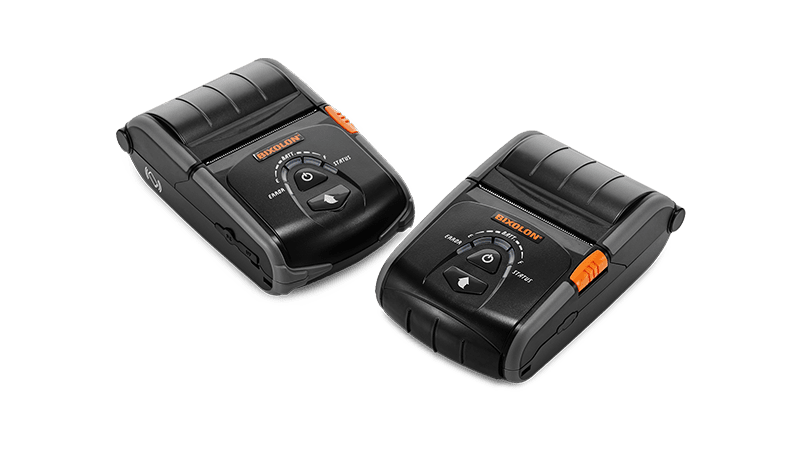

Mobile Receipt Printer SPP-R200III

BIXOLON PRODUCTS IN QATAR

For BIXOLON customers looking for a 2-inch (58mm) device that prints faster, then the Direct Thermal SPP-R200III Mobile printer is the choice. Providing a greater media capacity and more ruggedized housing than other 2-inch receipt printers, the SPP-R200III supports Near Field Communication (NFC) for Easy Bluetooth Pairing™, setup and use. Wireless connectivity is offered with choices of Bluetooth and 802.11a/b/g/n WLAN, plus there is USB and the provision of Serial. Supporting receipt, label and linerless media, with optional card reader functionality, the SPP-R200III is suited to many applications where small form factor receipt and labelling is needed.

For BIXOLON customers looking for a 2-inch (58mm) device that prints faster, then the Direct Thermal SPP-R200III Mobile printer is the choice. Providing a greater media capacity and more ruggedized housing than other 2-inch receipt printers, the SPP-R200III supports Near Field Communication (NFC) for Easy Bluetooth Pairing™, setup and use. Wireless connectivity is offered with choices of Bluetooth and 802.11a/b/g/n WLAN, plus there is USB and the provision of Serial. Supporting receipt, label and linerless media, with optional card reader functionality, the SPP-R200III is suited to many applications where small form factor receipt and labelling is needed.



• • SPECIFICATION

• • • • • • • • • •

Print Method

Direct Thermal

Print Speed

12.5% pattern, Up to 100 mm/sec (Receipt), Up to 80 mm/sec (Linerless)

PRINT RESOLUTION

203 dpi

PRINT WIDTH

Up to 48 mm

SENSOR

Paper Cover Open, Paper End

Media Type

Linerless (Optional), Receipt and Label

Media Width

58 mm / 50 mm (Optional)

Media Roll Size

Up to 40 mm

Media Thickness

0.07 ± 0.005 mm

Supply Method

Easy Paper Loading

DIMENSION (W X D X H IN MM)

79.5 x 124.5 x 44.1 mm

Weight

Including battery: 228 g (0.50 Ibs.), Including MSR: 238 g (0.52 Ibs.)

Electrical

7.4 V Li-ion, 1200 mAh, EnergyStar Certified, Rechargeable Charging time: Up to 2.5 hrs

Memory

8 MB SDRAM, 4 MB Flash

Interface

• • • • • • • • • •

Standard Interface

USB V2.0 FS + Serial

Optional Interface

SPP-R200lllplus: USB V2.0 FS + Serial + Bluetooth² / WLAN², USB V2.0 FS + Serial + Bluetooth¹ / WLAN¹

Bluetooth¹

V3.0 + EDR

Bluetooth²

* Easy Bluetooth Pairing™ via NFC, V4.2 Classic / LE

WLAN¹

802.11b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct) – WEP40/104, WPA1/2 (PSK, EAP)

WLAN²

802.11a/b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP) – WEP40/104, WPA1/2 (PSK, EAP)

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

Operating: -15 ~ 50℃ (5 ~ 122℉), Storage: -30 ~ 70℃ (-22 ~ 158℉)

Operating Humidity

Operating: 10 ~ 80% RH

Sealing

IP43 (IP54 with protective case)

Drop Rate

1.5 m (5 ft.) for MSR model, 2.1 m (7 ft.)

Emulation

BXL / POS

Driver / Utility

Linux, Mac CUPS Driver, OPOS / JPOS Driver, Utility Program, Windows Driver

SDK / Plugin

Android / iOS / Windows SDK, Chrome SDK, Cordova Plugin, Linux SDK, Xamarin SDK

Application

BIXOLON Profile Manager (XPM™, XCM™), mPrint App (iOS), mPrint Server (Windows, iOS)

• •Fonts/Graphics/Symbologies

• • • • • • • • • •

Character Size

CHN, Font A: 12 x 24, Font B: 9 x 17, Font C: 9 x 24, JPN: 24 x 24, KOR

Characters Per Line

CHN, Font A: 32, Font B, C: 42, JPN: 16, KOR

Character Sets

Alphanumeric: 95, Expanded Graphics: 128 x 33 page, International: 32, Optional Unicode supported (UTF-8, UTF-16LE, UTF-16BE)

Graphics

Supporting user-defined fonts, graphics, formats, and logos

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, ITF, UPC-A, UPC-E

2D

Aztec, Data Matrix, GS1 Databar, MaxiCode, PDF417, QR code

Standard Accessories

Battery Charger, Battery Pack, Belt Clip, Paper, Power Cord

Optional Accessories

Battery Pack_V2 (with outer contacts), Belt Strap, Case, Cigarette Lighter Charger, Protective Case, Quad Battery Charger, Quad Docking Cradle, Serial / USB Cable, Shoulder Strap, Single Battery Cradle, Vehicle Holder

• • Integrated Card Reader (Optional)

• • • • • • • • • •

MSR

3 Track (T-DES / DUKPT (Optional))

Supplies

B-linerlessTM : BIXOLON’s flexible and ecological linerless label consumables
