MT-4310W

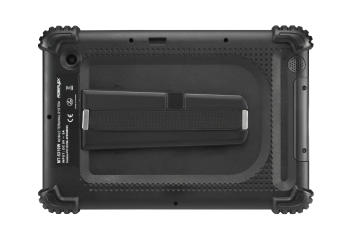

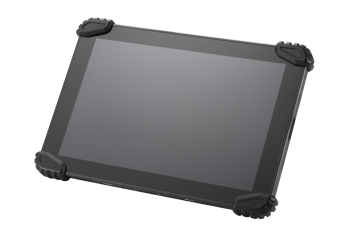

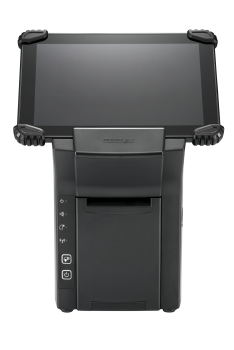

MT-4310W is a mobile POS specifically designed for both the retail and hospitality businesses. It is a 10.1” tablet supporting MSR/RFID attachment, pistol grip with built-in 1D or 2D barcode scanner, 2nd removable battery and an optional dock station to transform the device into a full-fledged, stationary POS.

Hybrid Solution

  • The MT-4310W is proven to provide businesses with the mobility of a tablet and the functionality of a fixed POS terminal.

Ergonomic Design

  • Ergonomically designed pistol grip shaped handle PG-201E for easy carrying the tablet along with an additional battery and optional built-in barcode scanner.

Extra Protection

  • Hand strap provides extra protection and eases the user’s fatigue during the hours of operation.

Extended Operation

  • In addition to the charging dock station, both attachments PG-201E and TA-500 house a removable battery to vastly extend the overall operating time.
Specification (Tablet Only)
Processor Intel Cherry Trail x5-Z8350 Quad Core, up to 1.92 GHz, 2M Cache
System Memory LPDDR3 4 GB
Storage Device 64 GB eMMC, upgradable to 128 GB
OS Support Windows 10 IoT 32 bit & 64 bit
LCD 1280 x 800, 10.1″ TFT LCD with LED backlight
Resolution N/A
Brightness 400 nits
Touch Input True-flat PCAP touch with multi-touch support
WiFi Dual band 2.4 GHz/5.0 GHz, WiFi + BT; Optional 3G NGFF
Audio N/A
OTG USB Port N/A
Camera 8MP AF rear facing camera
Standard USB port N/A
Button Power
LAN port N/A
CR Port N/A
Sensor G sensor, light sensor
Built-in Printer N/A
Battery 3.7V/4800 mAh, 17.76 Wh
Speaker/Audio + Mic Yes/Yes
I/O microSD, micro-SIM, Power Jack, micro-USB
Physical Dimension (Tablet Only)
Dimension (W x D x H in mm) 260.7 x 16.8 x 175
Weight (N. W. in g) 750
Environmental
Operation Condition 0°C – 40°C, 20%RH – 90%RH
Storage Condition -20°C – 70°C, 10%RH – 90%RH
Built-in Options
Smart Card Reader EMV level 2 certified (cannot co-exist with 4G/LTE module)
3G Communication N/A
4G / LTE Communication Selected bands for selected regions (cannot coexist with EMV Chip Card Reader)
NFC N/A
Customer Display N/A
Camera N/A
Scanner N/A
Attachment Options
MSR (TA-220 / TA-300) 3T MSR reader
RFID (TA-220) Support MIFARE Classic 1K & MIFARE Ultralight
Fingerprint sensor (TA-300) Fingerprint Sensor (Active Capacitive technology)
Pistol Grip (PG-201E) Swappable battery module (5000 mAh); Optional 2D barcode scanner
Pistol Grip (PG-500) N/A
Scanner 2D barcode scanner embedded in Pistol Grip
Shoulder Strap + 2nd Battery Option (TA-500) Swappable battery module (5000 mAh)
Shoulder Strap + 2nd Battery Option (TA-600) N/A
EMV Chip Card Reader N/A
Standalone Options
Removal Battery Charging Rack (CS-100) Charging rack for up to 4 x removal battery
Tablet Charging Rack (CS-210 / CS-220) Single charging station for MT Series tablet
Quad Tablet Charging Rack (CS-200) N/A
Hand Strap Hand Strap is available for added security
Protection Cover (MC-408) N/A
