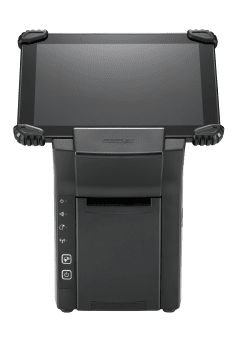

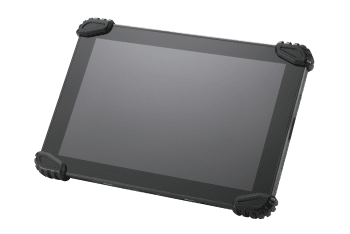

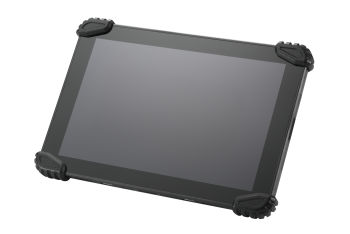

MT-5210A is an Android version of mobile POS that provides businesses with the mobility of a tablet and the functionality of a fixed POS terminal. It is a 10.1”tablet supporting MSR attachment, pistol grip with built-in 2D barcode scanner, 2nd removable battery and an optional dock station to transform the device into a full-fledged, stationary POS.
Hybrid Solution
|
Ergonomic Design
|
Extra Protection
|
Extended Operation
|
Specification (Tablet Only) | |
---|---|
Processor | Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up to 1.4GHz |
System Memory | DDR4 4 GB |
Storage Device | 32 GB eMMC + microSD slot x 1 |
OS Support | Android 9.0* |
LCD | 1280 x 800, 10.1″ TFT LCD with LED backlight |
Resolution | N/A |
Brightness | 400 nits |
Touch Input | True-flat PCAP touch with multi-touch support |
WiFi | WiFi IEEE 802.11a/b/g/n/ac (dual band 2.4 GHz / 5 GHz) + BT; Optional 4G/LTE |
Audio | N/A |
OTG USB Port | N/A |
Camera | 5MP AF rear facing camera |
Standard USB port | N/A |
Button | Power |
LAN port | N/A |
CR Port | N/A |
Sensor | G sensor, light sensor |
Built-in Printer | N/A |
Battery | 3.7 V / 4800 mAh, 17.76 Wh |
Speaker/Audio + Mic | Yes / Yes |
I/O | microSD, micro-SIM, Power Jack, micro-USB |
Physical Dimension (Tablet Only) | |
---|---|
Dimension (W x D x H in mm) | 260.7 x 16.8 x 175 |
Weight (N. W. in g) | 980 |
Environmental | |
---|---|
Operation Condition | 0°C – 40°C, 20%RH – 90%RH |
Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
Built-in Options | |
---|---|
Smart Card Reader | ID Tech MiniSmart II, EMV level 2 certified (cannot co-exist with 4G/LTE module) |
3G Communication | N/A |
4G / LTE Communication | Selected bands for selected regions (cannot coexist with EMV Chip Card Reader) |
NFC | N/A |
Customer Display | N/A |
Camera | N/A |
Scanner | N/A |
Attachment Options | |
---|---|
MSR (TA-220 / TA-300) | 3T MSR reader |
RFID (TA-220) | Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable) |
Fingerprint sensor (TA-300) | Fingerprint Sensor (Active Capacitive technology) |

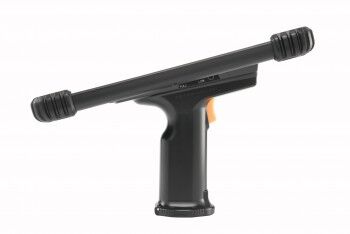

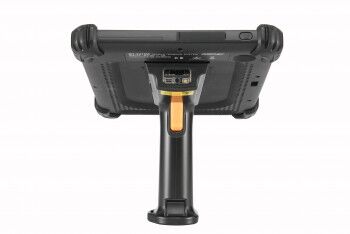

Pistol Grip (PG-201E) | Swappable battery module (5000 mAh); Optional 2D barcode scanner |
Pistol Grip (PG-500) | N/A |
Scanner | 2D barcode scanner embedded in Pistol Grip |
Shoulder Strap + 2nd Battery Option (TA-500) | Swappable battery module (5000 mAh) |
Shoulder Strap + 2nd Battery Option (TA-600) | N/A |
EMV Chip Card Reader | N/A |
Standalone Options | |
---|---|
Removal Battery Charging Rack (CS-100) | Charging rack for up to 4 x removal battery |
Tablet Charging Rack (CS-210 / CS-220) | Single charging station for MT Series tablet |
Quad Tablet Charging Rack (CS-200) | N/A |
Hand Strap | Hand Strap is available for added security |
Protection Cover (MC-408) | N/A |
Note | Google Play services is not supported by this device |
