MT-6208A

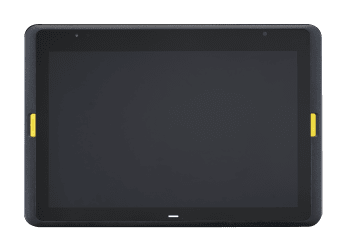

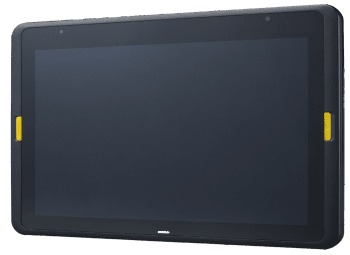

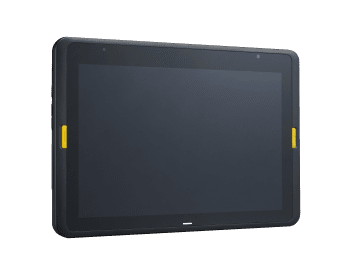

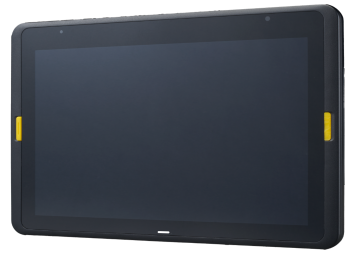

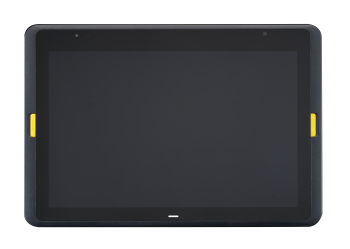

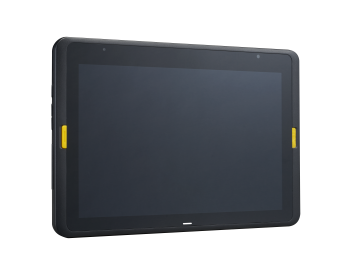

MT-6208A is a 8” semi-rugged tablet powered by MediaTek’s MT-8786 processor, designed with 1.2m drop resistance and IP54 rating, equip with USB Type-C Port with fast charging and support comprehensive attachments.



Add to quote

Thin, Lightweight and Semi-Rugged

  • The MT-6200 Series boasts great aesthetics; the thin and lightweight design is well-suited for business environments, while its semi-rugged construction allows it to withstand drops of up to 1.2 meters and offers IP-54 protection.

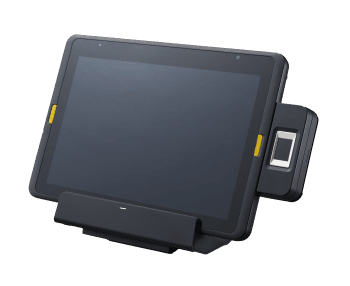

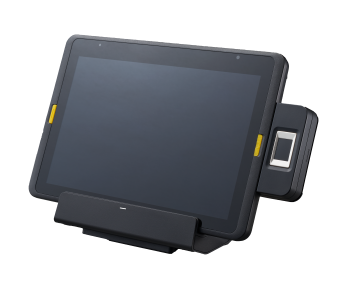

Type-C Charging Dock with Rich I/O

  • Featuring USB Type-C charging dock with a diverse range of I/O ports to enhance its functionality for stationary operations.

Seamless Connectivity

  • MT-6200 Series leads the way with seamless connectivity, supporting WiFi 5/6 and Bluetooth 5.0/5.2, ensuring a superior and efficient user experience.

Cleverly Programmable Function Keys

  • The MT-6200 series features 2 physical buttons, which are suitable triggers for the built-in 2D Barcode scanner. These buttons are also programmable, allowing customization for your specific applications.
Category: Brand: ,
Specification (Tablet Only)
Processor MT8786 (2 x A75 2.0GHz + 6 x A55 1.5Ghz)
System Memory On-board 4GB LPDDR4 (Option: 8GB LPDDR4 with 128GB eMMC)
Storage Device On-board 64GB eMMC (Option: 8GB LPDDR4 with 128GB eMMC)
Supported Expansion Storage 1 x TF Card slot, up to 512GB
TPM Support –
Intel vPro Support –
OS Support Android 13 W/GMS
LCD 8” TFT LCD with LED backlight
Resolution 800×1280
Brightness 300nits
Touch Input PCAP supporting multi-touch, Cover Glass : Corning Gorilla III
WiFi Wi-Fi IEEE 802.11a/b/g/n/ac/ax (WiFi6)
Accessory port 1 x Inner USB 2.0 pin header (for attachment)
Docking Port 1 x USB-C as docking connector & power charging function
Audio 1 x 1W speaker, 1 x 3.5mm Headphone Jack
OTG USB Port –
Camera Front: 2MP (FF)
Rear: 5MP (AF)
Standard USB port –
Button 1 x Power Button, 1 x Vol+/-, 2 x programmable Key
LAN port –
CR Port –
Sensor G-sensor, ALS
Built-in Printer –
LED indicator 1 x LED indicator (tri-color) for power up/ battery/ BCR scan
Battery 2S1P Li-Po battery, 45Wh
Adapter AC100~240V, Type-C type connector, Support PD
Speaker/Audio + Mic –
BT BT 5.0
I/O –
NFC Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica),
ISO/IEC 15693, ISO/IEC-18092
Physical Dimension (Tablet Only)
Dimension (W x D x H in mm) 217.8 x 144.5 x 19.4
Weight (N. W. in g) 660
Environmental
Drop 1.0 m, 1.2m with protection case
IP Rating IP54
Operation Condition 0°C – 40°C, 20%RH – 90%RH
Storage Condition -20°C – 60°C, 10%RH – 90%RH
Built-in Options
Smart Card Reader –
3G Communication –
4G / LTE Communication –
NFC –
Customer Display –
Camera –
Scanner –
Attachment Options
MSR (TA-220 / TA-300) –
RFID (TA-220) –
Fingerprint sensor (TA-300) –
Pistol Grip (PG-201E) –
Pistol Grip (PG-500) –
Scanner –
Shoulder Strap + 2nd Battery Option (TA-500) –
Shoulder Strap + 2nd Battery Option (TA-600) –
EMV Chip Card Reader –
2 in 1 MSR/ FPU Side attachment (TA-620) 3 track MSR support (ISO7811 magnetic card)
Fingerprint Sensor support (Active Capacitive technology)
2D BCR ( Factory option) 1280*800 CMOS Sensor, Resolution≧5mil, Decoding Capability 1D:EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128,
Codabar，Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-
Plessey GS1 Databar,GS1 Composite Code, Code 11,Industrial
Standalone Options
Removal Battery Charging Rack (CS-100) –
Tablet Charging Rack (CS-210 / CS-220) –
Quad Tablet Charging Rack (CS-200) –
Hand Strap –
Protection Cover (MC-408) –
Docking Station (CS-640) Single charging station for 8” & 10.1” Opera Series tablet Provide 2 x USB 2.0, 1 x RJ50 COM Port, 1 x 10/100 Mbps LAN
Port
